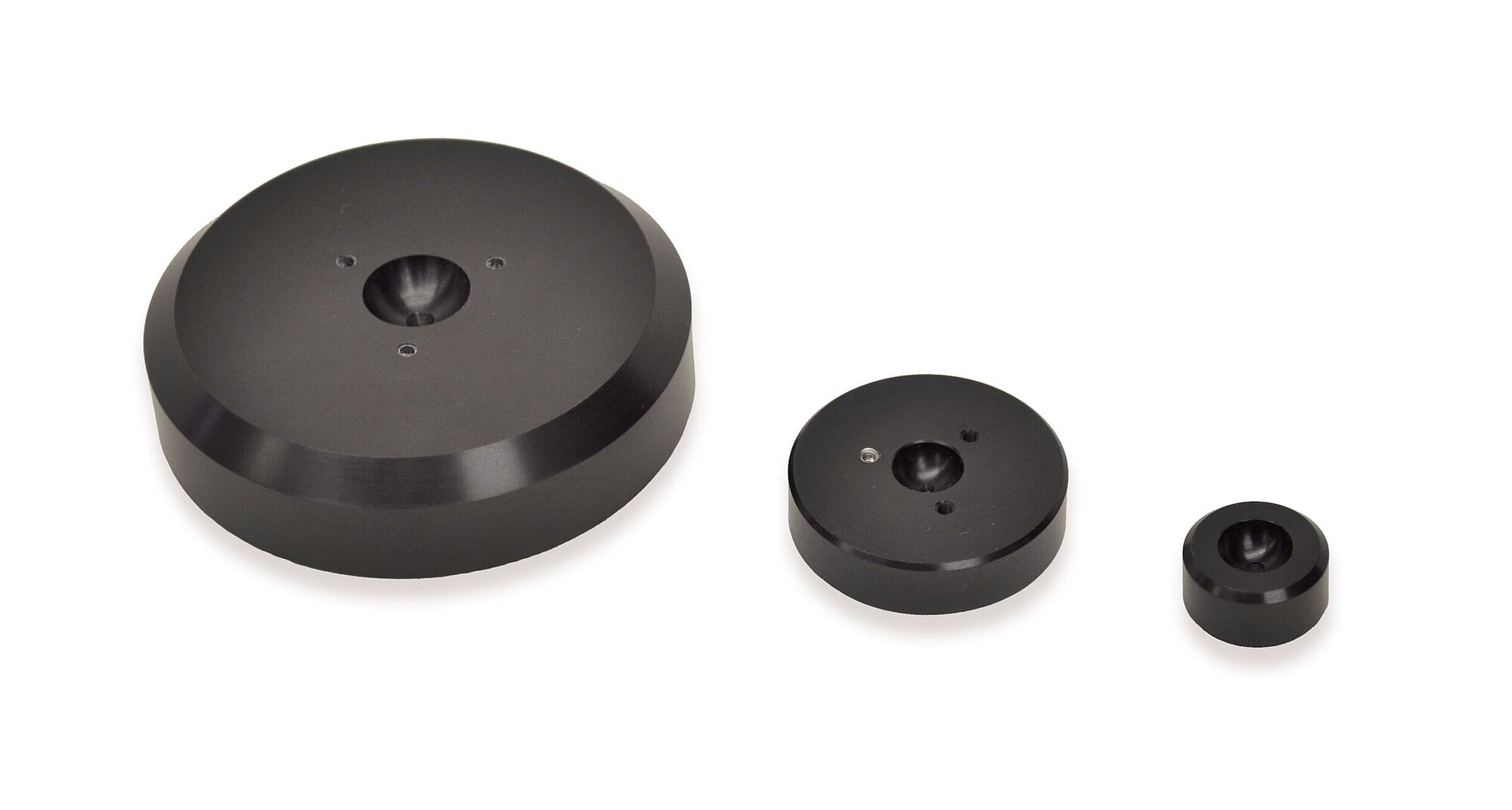

A-41x PIglide FPC: Flat, Circular Air Bearing Modules

Friction-free, modular air bearings

A-41x PIglide FPC: Flat, Circular Air Bearing Modules
Product Description Specifications Downloads Quote / Order
  • Diameters from 25 mm to 300 mm
  • Load capacity to 15500 N
  • Stiffness to 860 kN/mm
  • Mounting hardware, customizations, and accessories available

The PIglide Flat Pad Circular air bearing series is suitable for applications that require friction-free, accurate linear or planar motion. The modular concept of these air bearings allows the user to build their own motion system. Several bearings can be combined to increase the load capacity or to create multi-axis motion platforms.

Application fields

For setting up positioning, scanning, metrology, inspection, and calibration systems.

Thanks to the friction-free motion, no particles are formed, which makes PIglide stages ideal for cleanroom applications.

Specifications

Datasheet A-41x

Version / Date
2018-01-31
Version / Date
2018-01-31
Version / Date
2017-07-06
Document language
pdf - 848 KB
pdf - 854 KB
pdf - 823 KB

Downloads

Datasheet

Datasheet A-41x

Version / Date
2018-01-31
Version / Date
2018-01-31
Version / Date
2017-07-06
Document language
pdf - 848 KB
pdf - 854 KB
pdf - 823 KB

3-D Models

A-41x 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

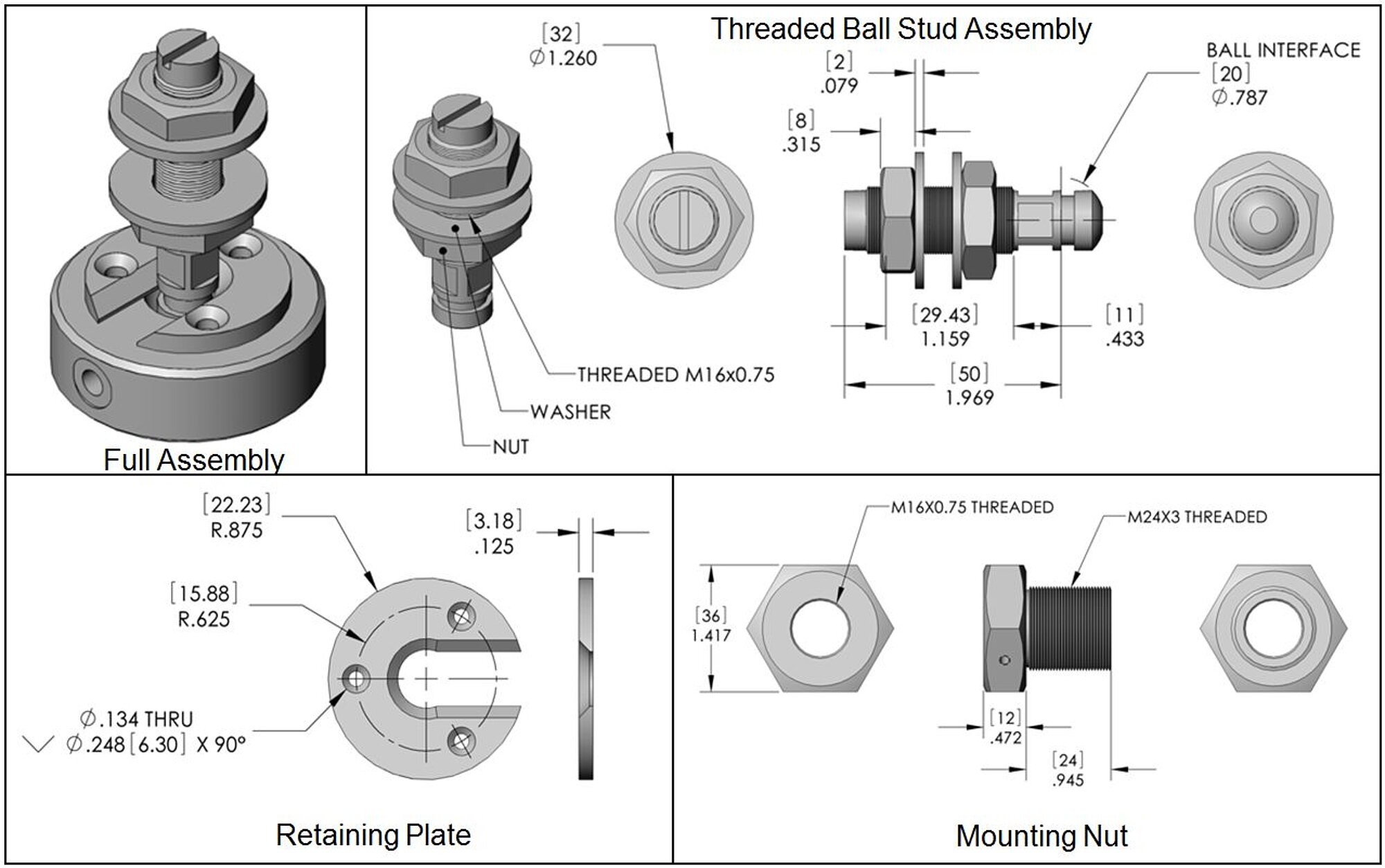

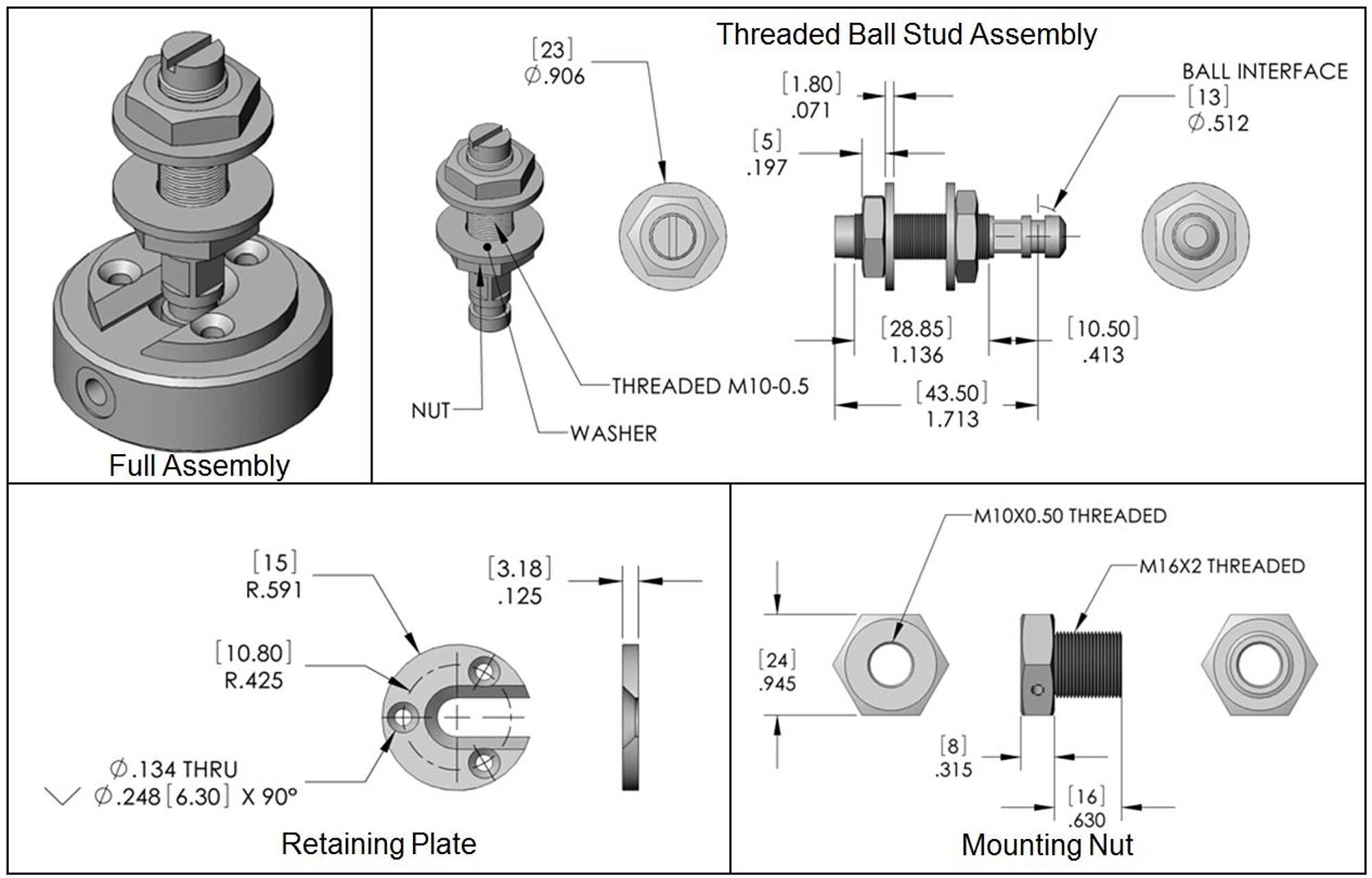

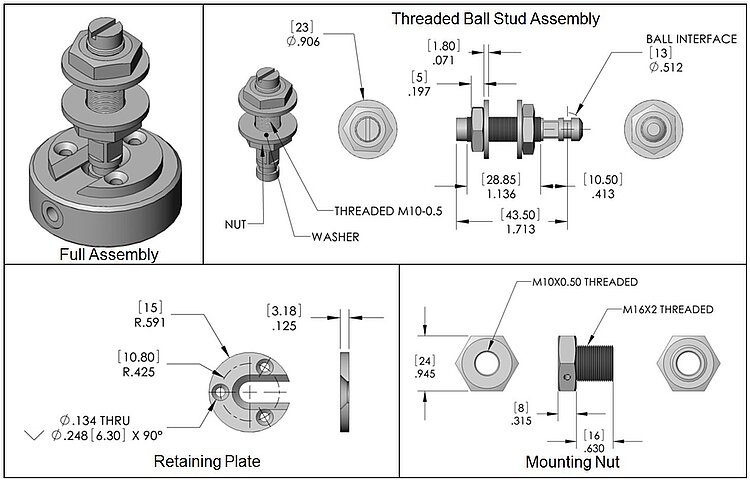

Mounting Hardware

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
