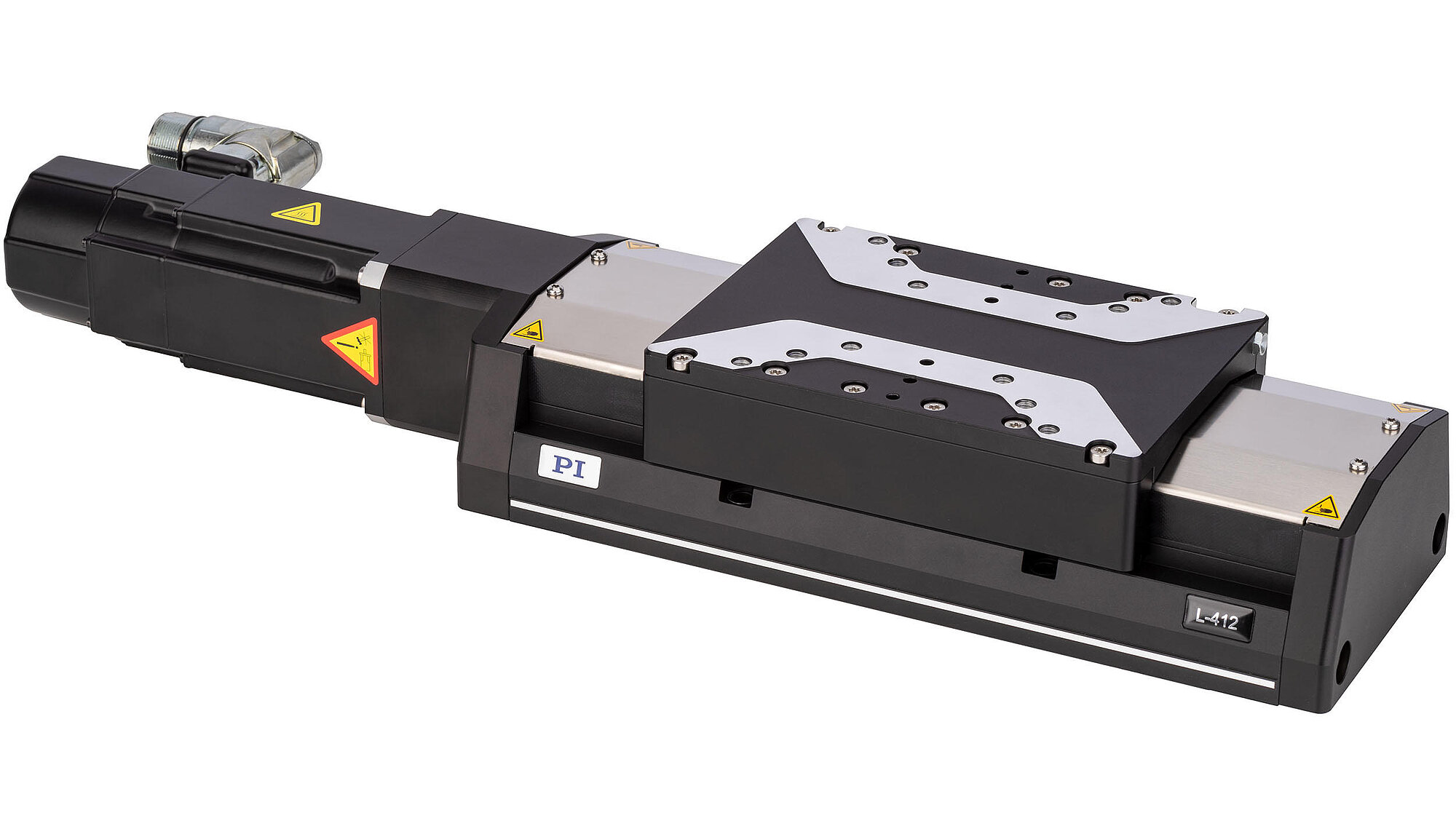

L-412 High-Load Linear Stage

High Performance, Drive Screw

  • Width 116 mm, travel range to 610 mm
  • Precision ball screw
  • Incremental and absolute rotary encoders
  • Additional linear encoder options
  • Precision recirculating ball bearing guides, load capacity to 400 N
  • Covering strip on the side for protection against particles
L-412 High-Load Linear Stage
Product Description Specifications Downloads Quote / Order
At the moment only a limited selection of product variants is available.

Please note that at the moment only a limited selelction of variants of this product family is available. This selection can be found here on the web page. The complete list of products can be found in the PDF datasheet that is available for download.

If you require further information contact us via info@pi.ws.



Powerful linear stage for use in demanding industrial applications

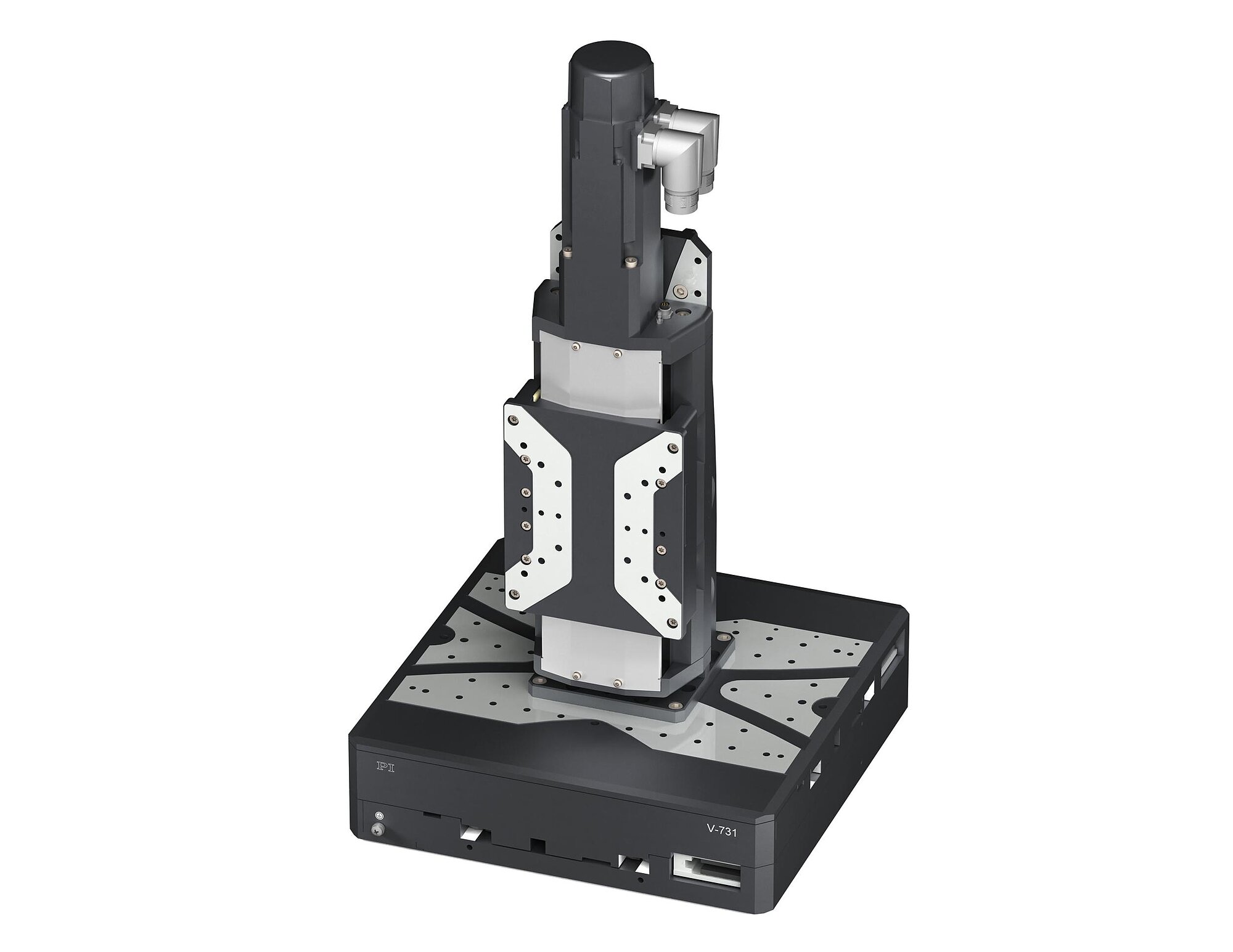

Precision ball screws, high-performance synchronous servo motors, heavy-duty recirculating ball bearing guides, and precision rotary and linear encoders enable continuous and reliable operation under high load. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes. It is also possible to integrate into a customer's central lubrication system. The covering strip on the side and the purge air connector prevent contamination by particles.

Pioneering design

The recirculating ball bearing guides of the L-412 series are designed for high load capacity and dynamics. The high resolution of the motors allows improved tracking performance, smaller tracking errors, and improved settling times.

Options

  • Holding brake (L-412.xxxxxxB)
  • Various rotary and linear encoders, absolute and incremental

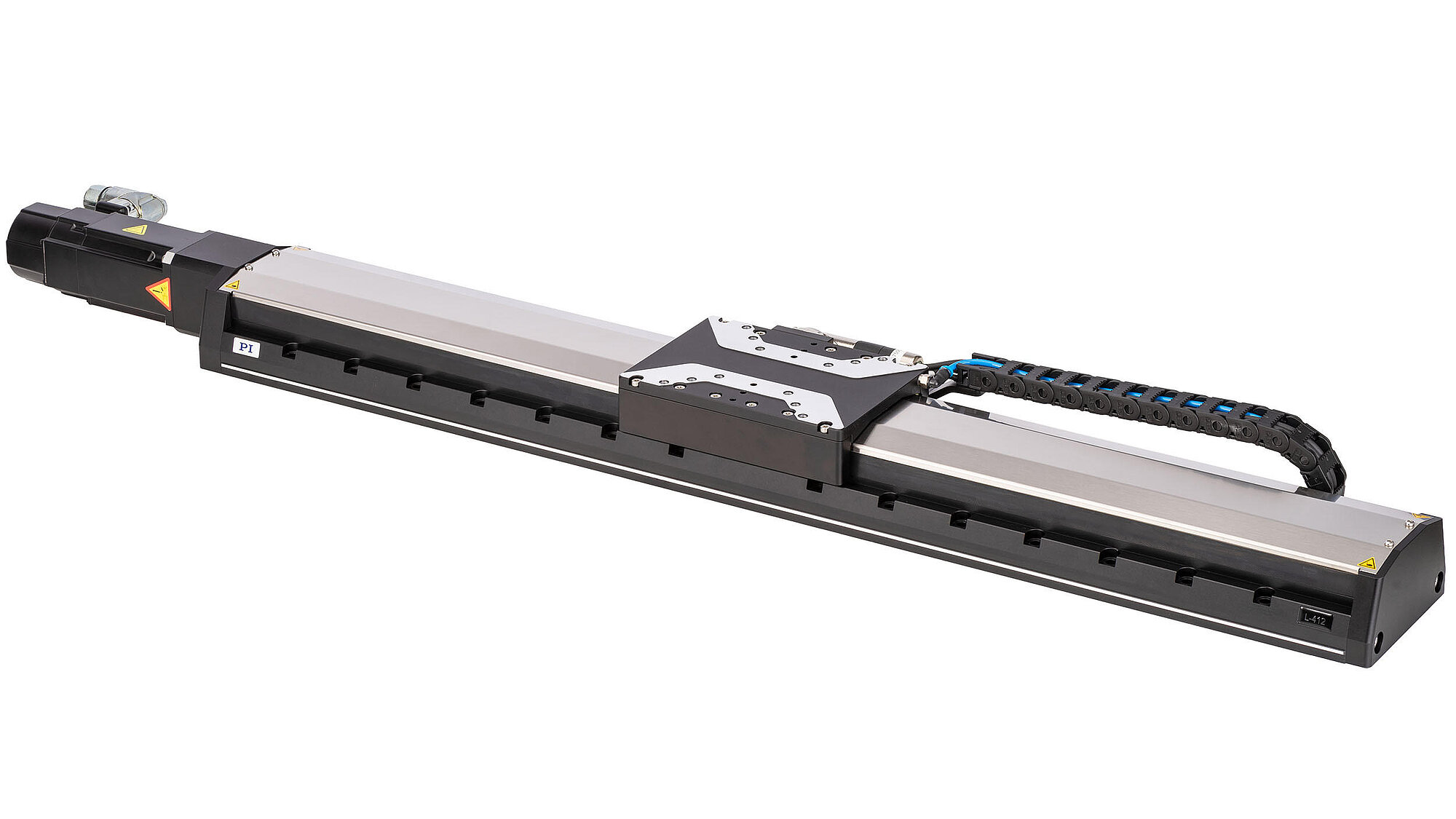

  • Versions with linear encoder with drag chain and connection box (L-412.xxxxxxE1).
  • On request: Folded drivetrain with belt drive. This modification reduces the overall length.
  • On request: Calibration and certification

Synchronous servo motor

These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives. The long lifetime, high performance, and robustness of these motors allow excellent results in industrial automation applications.

Application fields

Laser cutting. Electronics manufacturing. AOI (Automated Optical Inspection). Automation. Applications with high demands on dynamics, precision, smooth motion, short settling times, and low tracking errors.

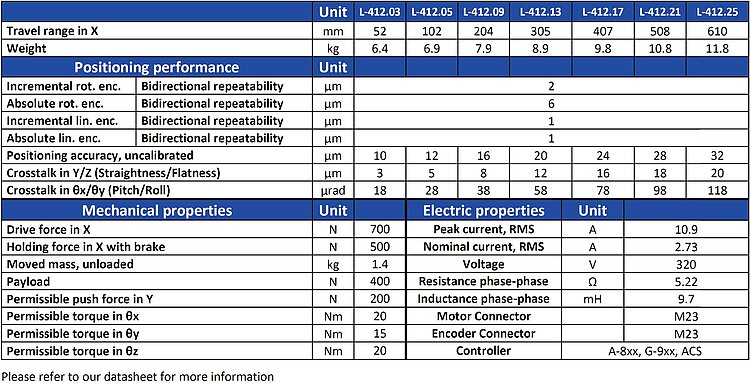

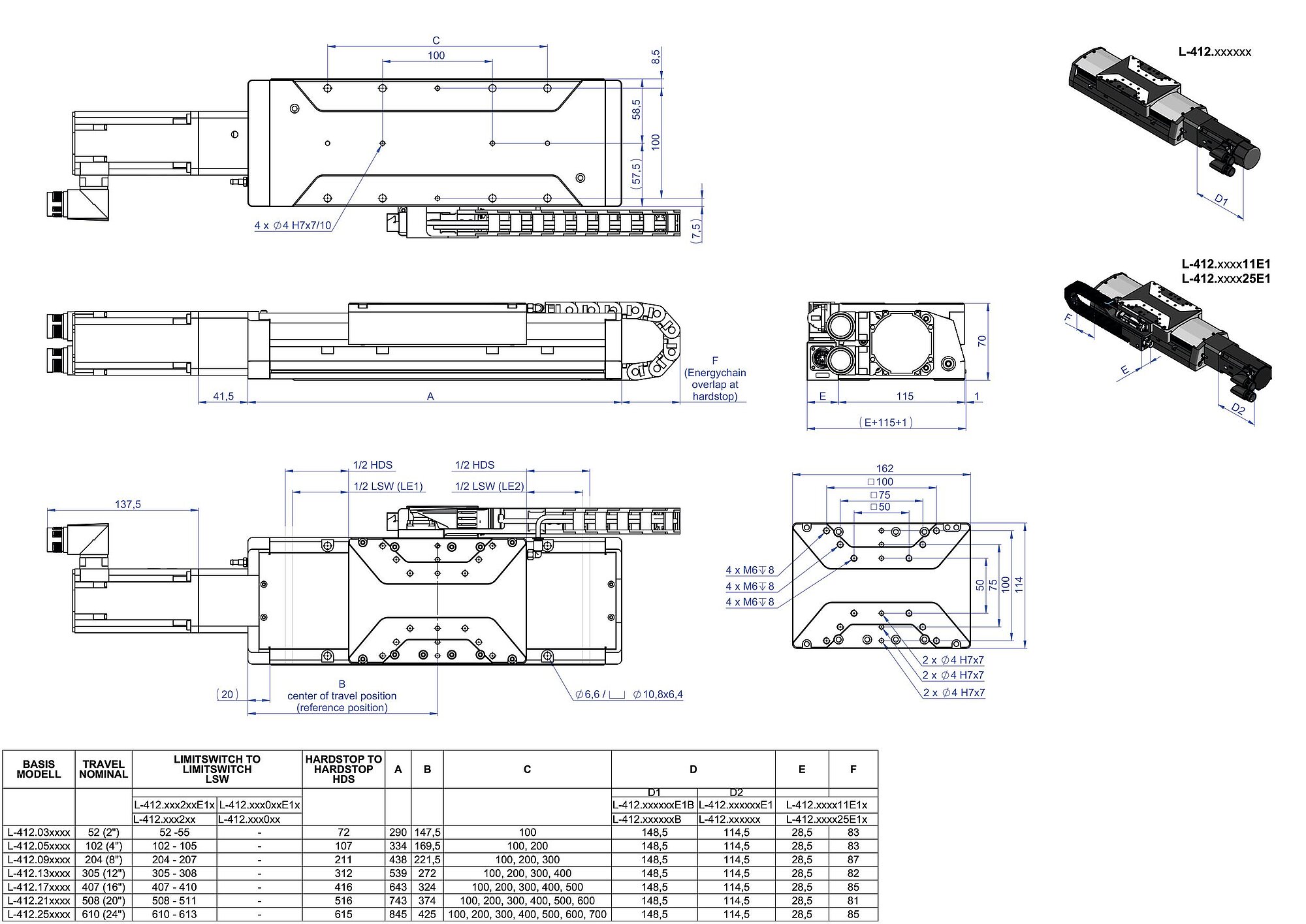

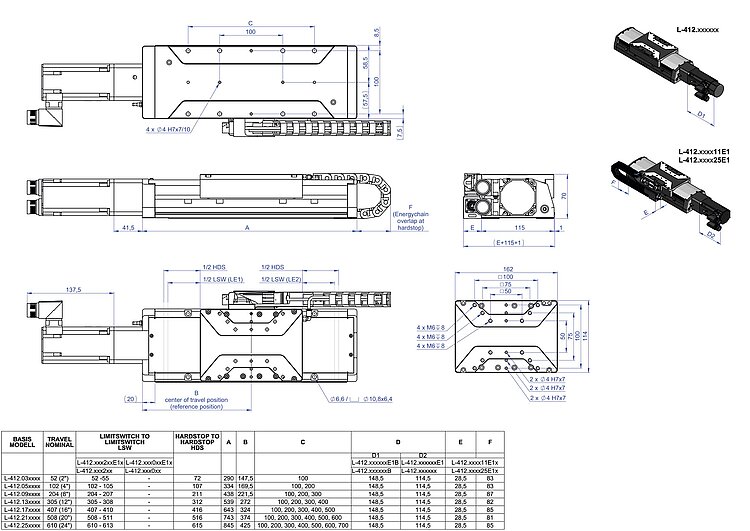

Specifications

Datasheet

Datasheet L-412

Version / Date
2023-11-07
pdf - 4 MB
Version / Date
2023-11-07
pdf - 4 MB
Version / Date
2019-03-18
pdf - 630 KB
Version / Date
2021-01-19
pdf - 997 KB

Downloads

Product Note

Product Note

Product Change Notification L-412 and L-417

Streamlining L-412 and L-417

Version / Date
2020-02-27
pdf - 650 KB
English

Datasheet

Datasheet

Datasheet L-412

Version / Date
2023-11-07
pdf - 4 MB
Version / Date
2023-11-07
pdf - 4 MB
Version / Date
2019-03-18
pdf - 630 KB
Version / Date
2021-01-19
pdf - 997 KB

Documentation

Documentation

User Manual L412UM0001

Version / Date
2022-10-24
pdf - 7 MB
Version / Date
2022-10-24
pdf - 7 MB
Documentation

User Manual L412UM0002

Version / Date
2022-10-24
pdf - 7 MB
Version / Date
2022-10-24
pdf - 7 MB
Documentation

User Manual L412UM0003

Version / Date
2022-10-24
pdf - 7 MB
Version / Date
2022-10-24
pdf - 7 MB
Documentation

User Manual L412UM0004

Version / Date
2022-10-24
pdf - 7 MB
Version / Date
2022-10-24
pdf - 7 MB
Documentation

Short Instructions MP187EK

Positioners with Electric Motors to 320 V: L-412 / L-417

Version / Date
1.0.0 05/2019
pdf - 2 MB
English

3-D Models

3-D Models

L-412.xx9025 3D Model

Version / Date
2023-11-07
zip - 43 MB
3-D Models

L-412.xx9211 3D Model

Version / Date
2023-11-07
zip - 43 MB
3-D Models

L-412.xx9054 3D Model

Version / Date
2023-11-07
zip - 17 MB
3-D Models

L-412.xx9232 3D Model

Version / Date
2023-11-07
zip - 21 MB
At the moment only a limited selection of product variants is available.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-412.039232

High-load linear stage; synchronous servo motor to 320 V; 52 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; 116 mm width

L-412.059232

Hochlast-Lineartisch; Synchron-Servomotor bis 320 V; 102 mm Stellweg; 400 N Belastbarkeit; 300 mm/s maximale Geschwindigkeit; Kugelumlaufspindel; Inkrementeller Rotationsencoder, 20000 Impulse/U Auflösung, A/B-Quadratur, RS-422; 116 mm Breite

L-412.099232

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; 116 mm width

L-412.099232B

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; electromagnetic safety brake; 116 mm width

L-412.139232

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; 116 mm width

L-412.139232B

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; electromagnetic safety brake; 116 mm width

L-412.179232

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; 116 mm width

L-412.179232B

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; electromagnetic safety brake; 116 mm width

L-412.219232

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; 116 mm width

L-412.219232B

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; electromagnetic safety brake; 116 mm width

L-412.259232

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; 116 mm width

L-412.259232B

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; electromagnetic safety brake; 116 mm width

L-412.039025E1

High-load linear stage; synchronous servo motor to 320 V; 52 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.059025E1

High-load linear stage; synchronous servo motor to 320 V; 102 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.099025E1

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.099025E1B

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; electromagnetic safety brake; drag chain; 116 mm width

L-412.139025E1

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.139025E1B

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; electromagnetic safety brake; drag chain; 116 mm width

L-412.179025E1

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.179025E1B

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; electromagnetic safety brake; drag chain; 116 mm width

L-412.219025E1

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.219025E1B

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; electromagnetic safety brake; drag chain; 116 mm width

L-412.259025E1

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; drag chain; 116 mm width

L-412.259025E1B

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev resolution, A/B quadrature, RS-422; absolute linear encoder, 1 nm sensor resolution, EnDat 2.2; electromagnetic safety brake; drag chain; 116 mm width

L-412.039211E1

High-load linear stage; synchronous servo motor to 320 V; 52 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.059211E1

High-load linear stage; synchronous servo motor to 320 V; 102 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.059211E1B

High-load linear stage; synchronous servo motor to 320 V; 102 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; electromagnetic safety brake; drag chain; 166 mm width

L-412.099211E1

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.099211E1B

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; electromagnetic safety brake; drag chain; 166 mm width

L-412.139211E1

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.139211E1B

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; electromagnetic safety brake; drag chain; 166 mm width

L-412.179211E1

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.179211E1B

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; electromagnetic safety brake; drag chain; 166 mm width

L-412.219211E1

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.219211E1B

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; electromagnetic safety brake; drag chain; 166 mm width

L-412.259211E1

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; drag chain; 166 mm width

L-412.259211E1B

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; electromagnetic safety brake; drag chain; 166 mm width

L-412.039054

High-load linear stage; synchronous servo motor to 320 V; 52 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.039054B

High-load linear stage; synchronous servo motor to 320 V; 52 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; electromagnetic safety brake; 116 mm width

L-412.059054

High-load linear stage; synchronous servo motor to 320 V; 102 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.099054

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.099054B

High-load linear stage; synchronous servo motor to 320 V; 204 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; electromagnetic safety brake; 116 mm width

L-412.139054

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.139054B

High-load linear stage; synchronous servo motor to 320 V; 305 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; electromagnetic safety brake; 116 mm width

L-412.179054

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.179054B

High-load linear stage; synchronous servo motor to 320 V; 407 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; electromagnetic safety brake; 116 mm width

L-412.219054

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.219054B

High-load linear stage; synchronous servo motor to 320 V; 508 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; electromagnetic safety brake; 116 mm width

L-412.259054

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; 116 mm width

L-412.259054B

High-load linear stage; synchronous servo motor to 320 V; 610 mm travel range; 400 N load capacity; 300 mm/s maximum velocity; ball screw; absolute rotary encoder, multiturn, 8192 counts/rev sensor resolution, EnDat 2.1; electromagnetic safety brake; 116 mm width
