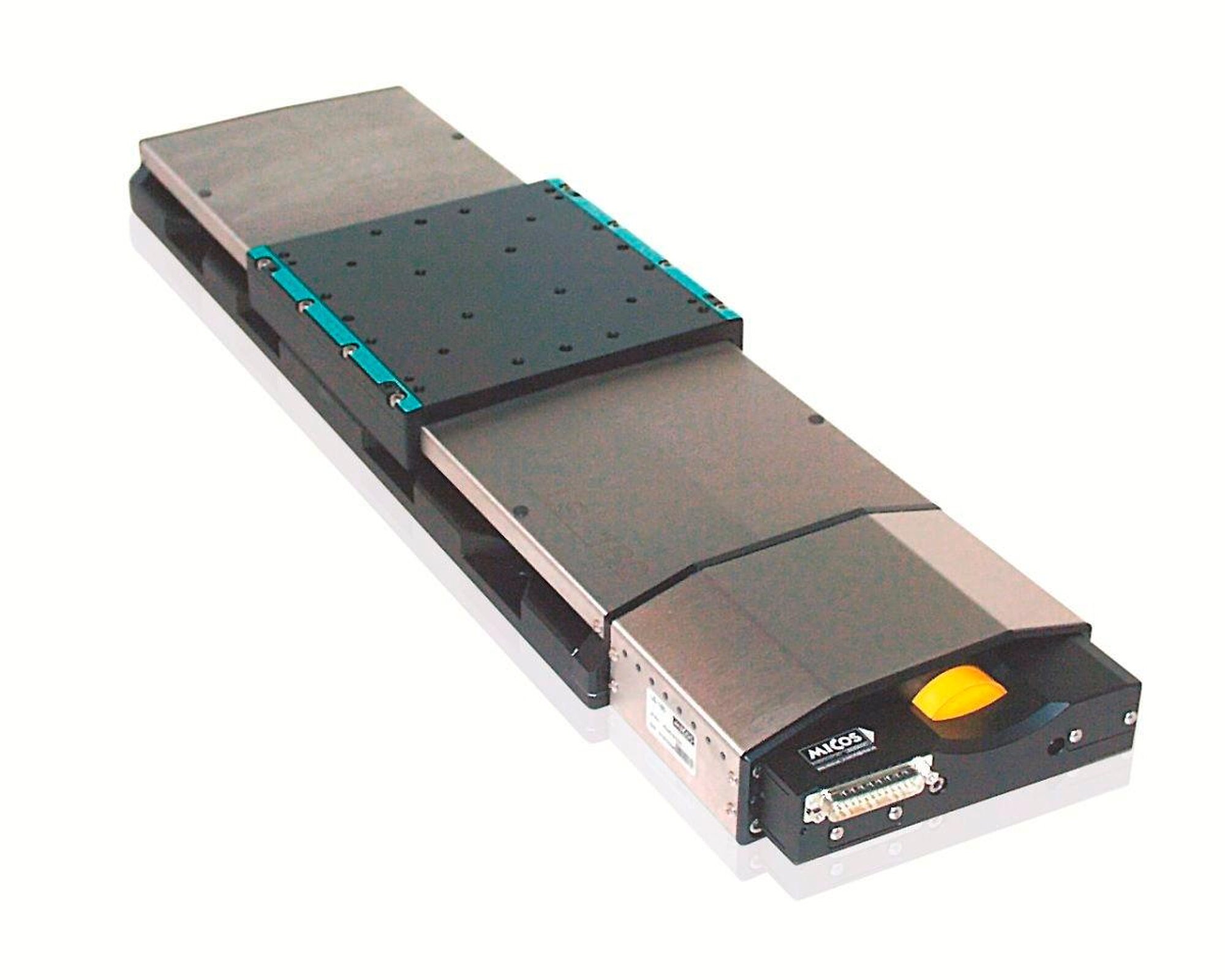

LS-180 Linear Stage for Heavy Loads

Robust Design for Industrial Use

  • Travel ranges from 155 mm to 508 mm (6" to 20")
  • Max. Velocity to 150 mm/s
  • Load capacity to 1000 N
  • Optional: Linear encoder for direct position measuring
LS-180 Linear Stage for Heavy Loads
Product Description Specifications Downloads Quote / Order
At the moment only a limited selection of product variants is available.

Please note that at the moment only a limited selelction of variants of this product family is available. This selection can be found here on the web page. The complete list of products can be found in the PDF datasheet that is available for download.

If you require further information contact us via info@pi.ws.



Reference-class linear stage

High travel accuracy and load capacity thanks to recirculating ball bearing guides. Precision ball screw with 5 mm pitch. Stress-relieved aluminum base for high stability. Noncontact inductive limit switches.

Drive types

  • Closed-loop DC servo motor with rotary encoder on the motor shaft
  • 2-phase stepper motor for high torque even at low velocities and high resolution

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Recirculating ball bearing guides

When carefully assembled, recirculating ball bearing guides are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guide accuracy. The moving part of the stages is supported by four preloaded recirculating ball bearing units, which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Minimum incremental motion

In conjunction with the SMC Hydra controller, versions with stepper motor and integrated linear encoder achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.

Application fields

Sample inspection. Scanning. Research. Semiconductor technology.

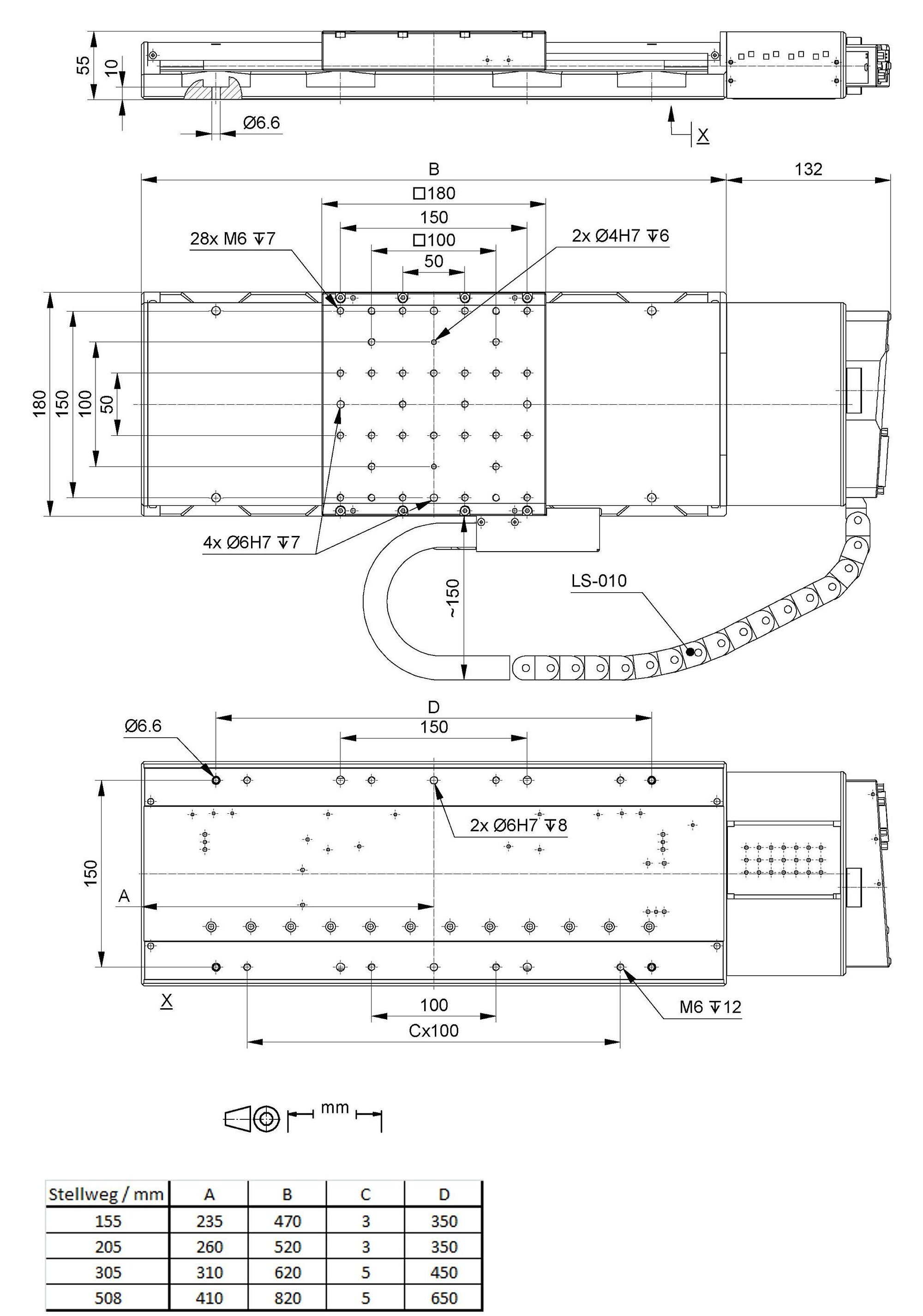

Specifications

Datasheet

Datasheet LS-180

Version / Date
2023-01-30
pdf - 831 KB
Version / Date
2023-01-30
pdf - 880 KB
Version / Date
2019-07-31
pdf - 1 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet LS-180

Version / Date
2023-01-30
pdf - 831 KB
Version / Date
2023-01-30
pdf - 880 KB
Version / Date
2019-07-31
pdf - 1 MB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB
Documentation

User Manual LS-180

Linear Stage

Version / Date
00.003 2017-04-20
pdf - 729 KB
Version / Date
00.003 2017-04-20
pdf - 739 KB

3-D Models

3-D Models

LS-180 3-D model

Version / Date
2016-11-22
zip - 28 MB
At the moment only a limited selection of product variants is available.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

62409221-0001

Linear stage for high loads; 2-phase stepper motor; 205 mm travel range; 1000 N load capacity; 75 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
