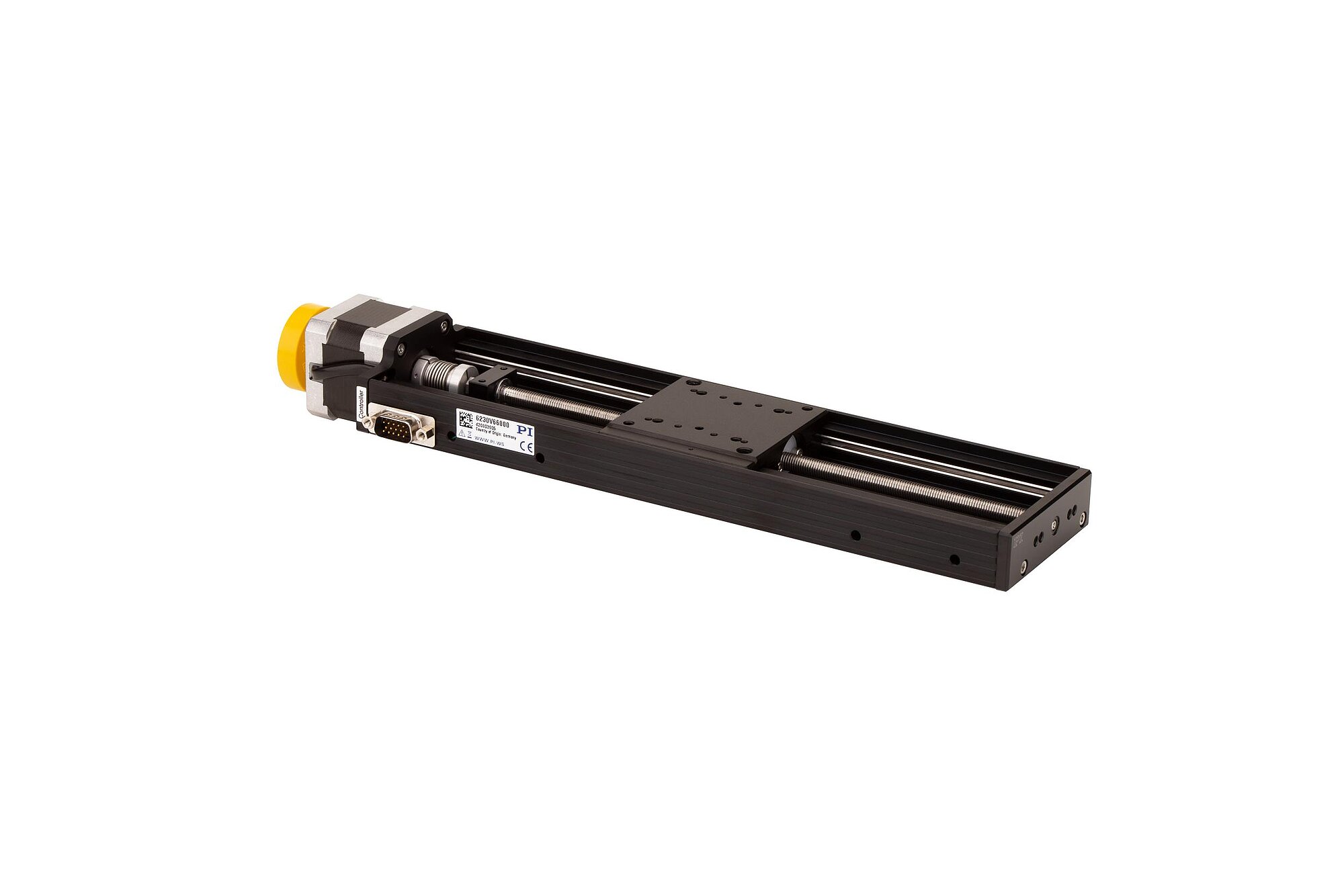

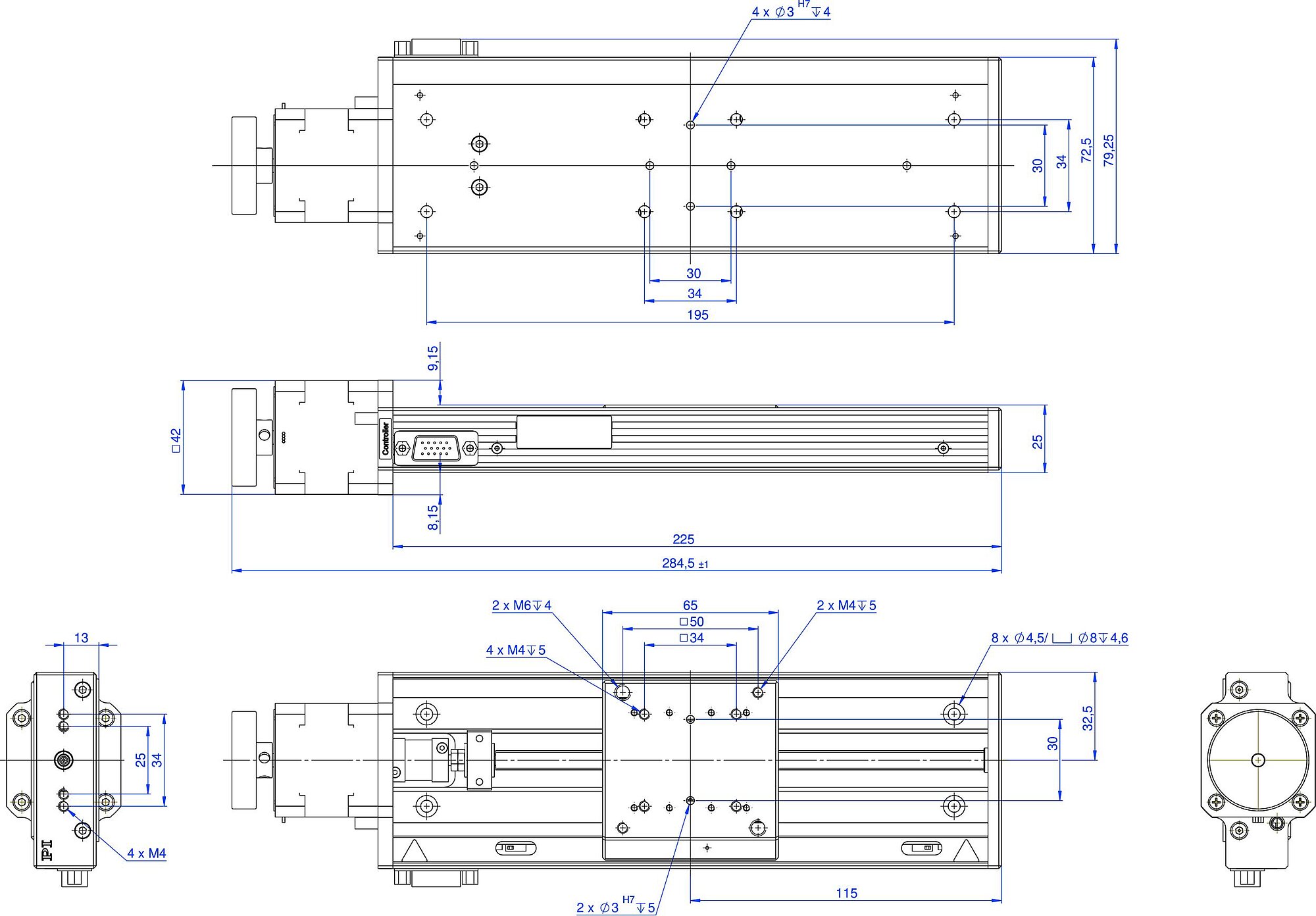

VT-80 V6 Linear Stage Suitable for Vacuum

Basic Version for Universal Fields of Use

  • Suitable for vacuum up to 10-6 hPa
  • Travel ranges between 25 and 300 mm
  • Low profile
  • Max. Velocity to 10 mm/s
  • Load capacity to 5 kg
VT-80 V6 Linear Stage Suitable for Vacuum
Product Description Specifications Downloads Quote / Order
At the moment only a limited selection of product variants is available.

Please note that at the moment only a limited selelction of variants of this product family is available. This selection can be found here on the web page. The complete list of products can be found in the PDF datasheet that is available for download.

If you require further information contact us via info@pi.ws.



Standard-class linear stage

Recirculating ball bearing guides and precision leadscrew for smooth and even feed. Stress-relieved aluminum base for high stability. Compact XY combinations. Two mechanical limit switches.

Recirculating ball bearing guides

When carefully assembled, recirculating ball bearing guides are distinguished by a beneficial combination of high load capacity, lifetime, and guiding accuracy.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. This allows a bakeout temperature of up to 80° C. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10-6hPa.

Drive

2-phase stepper motor for high torque even at low velocities and high resolution

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Specifications

Datasheet

Datasheet VT-80 V

Version / Date
2024-03-19
pdf - 5 MB
Version / Date
2024-03-19
pdf - 5 MB
Version / Date
2021-01-14
pdf - 677 KB

Downloads

Datasheet

Datasheet

Datasheet VT-80 V

Version / Date
2024-03-19
pdf - 5 MB
Version / Date
2024-03-19
pdf - 5 MB
Version / Date
2021-01-14
pdf - 677 KB

Documentation

Documentation

User Manual 6230T0003

6230V63000 Precision linear stage with stepper drive for vacuum applications (1 E-6 hPa)

Version / Date
2020-05-08
pdf - 294 KB
English
Documentation

User Manual 6230T0001

6230V61000 Precision linear stage with stepper drive for vacuum applications (1 E-6 hPa)

Version / Date
2021-10-08
pdf - 506 KB
English
Documentation

User Manual VT-80

Linear Stage

Version / Date
2022-06-17
pdf - 1 MB
Version / Date
2022-06-17
pdf - 1 MB
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB

3-D Models

3-D Models

3-D model VT-80 V6

Version / Date
2021-03-26
zip - 4 MB
English
At the moment only a limited selection of product variants is available.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

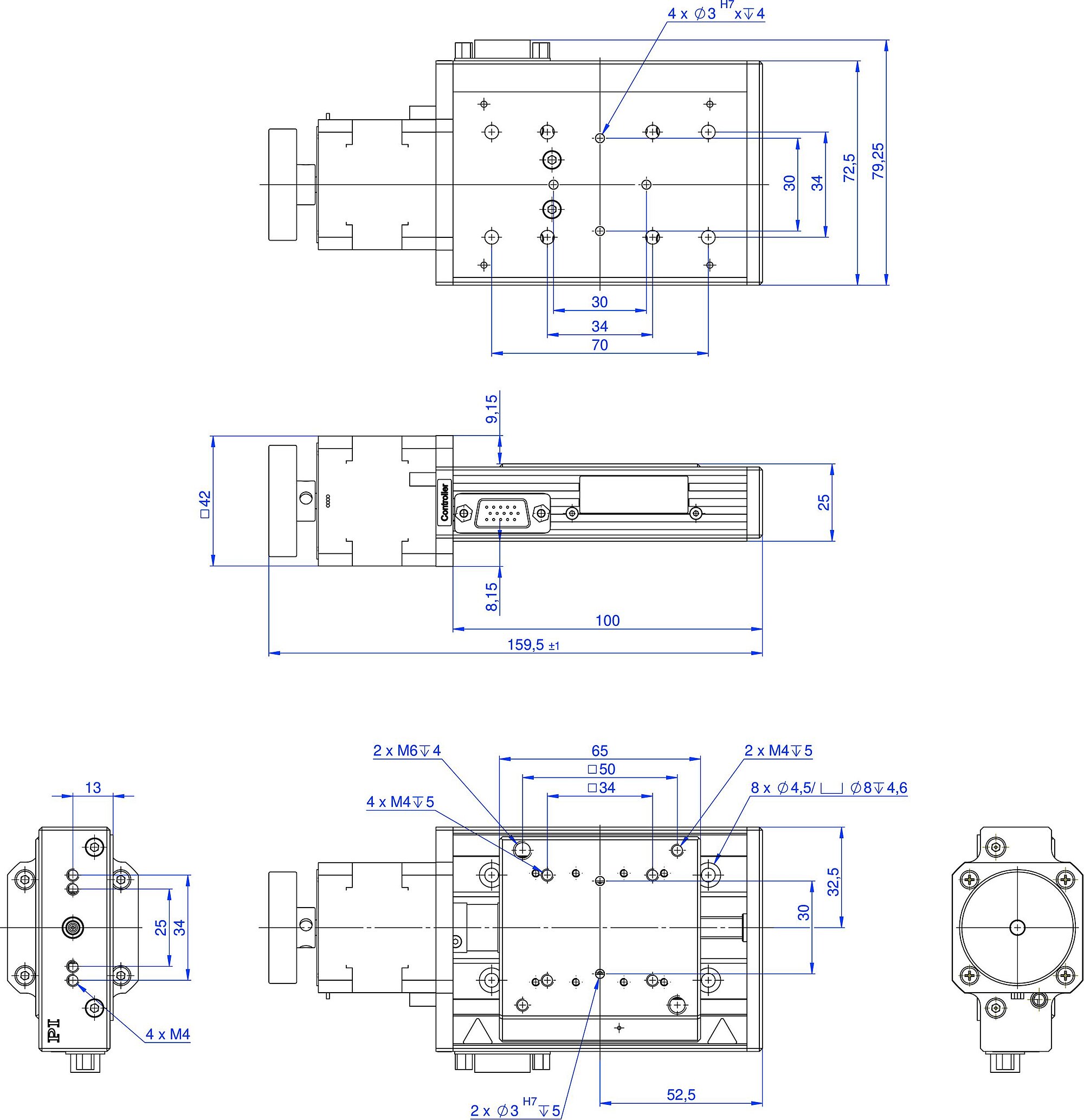

6230V61000 NEW!

Vacuum-compatible linear stage; 2-phase stepper motor; 25 mm travel range; 50 N load capacity; 10 mm/s maximum velocity; metric leadscrew; vacuum compatible to 10-6 hPa

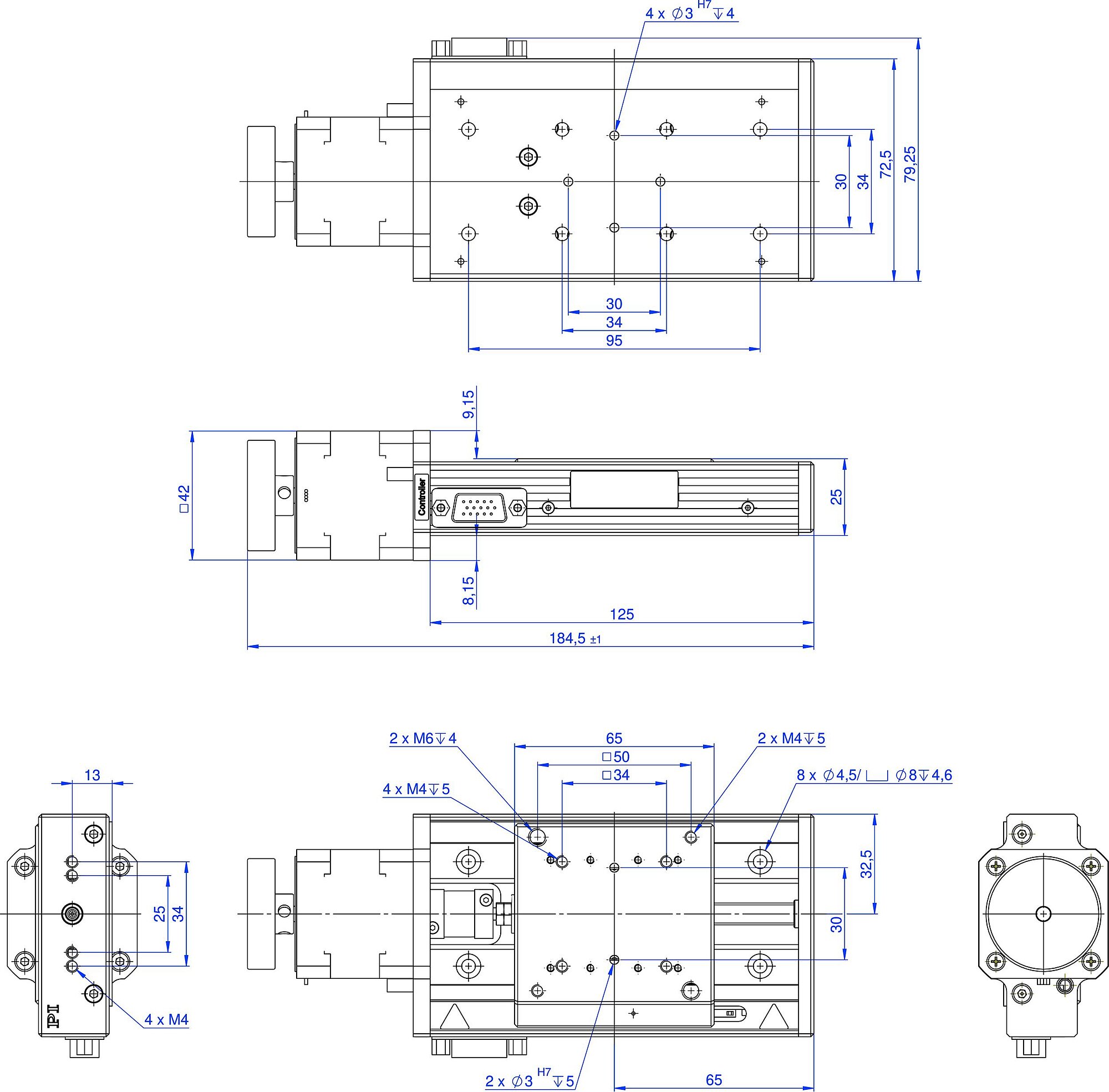

6230V62000 NEW!

Vacuum-compatible linear stage; 2-phase stepper motor; 50 mm travel range; 50 N load capacity; 10 mm/s maximum velocity; metric leadscrew; vacuum compatible to 10-6 hPa

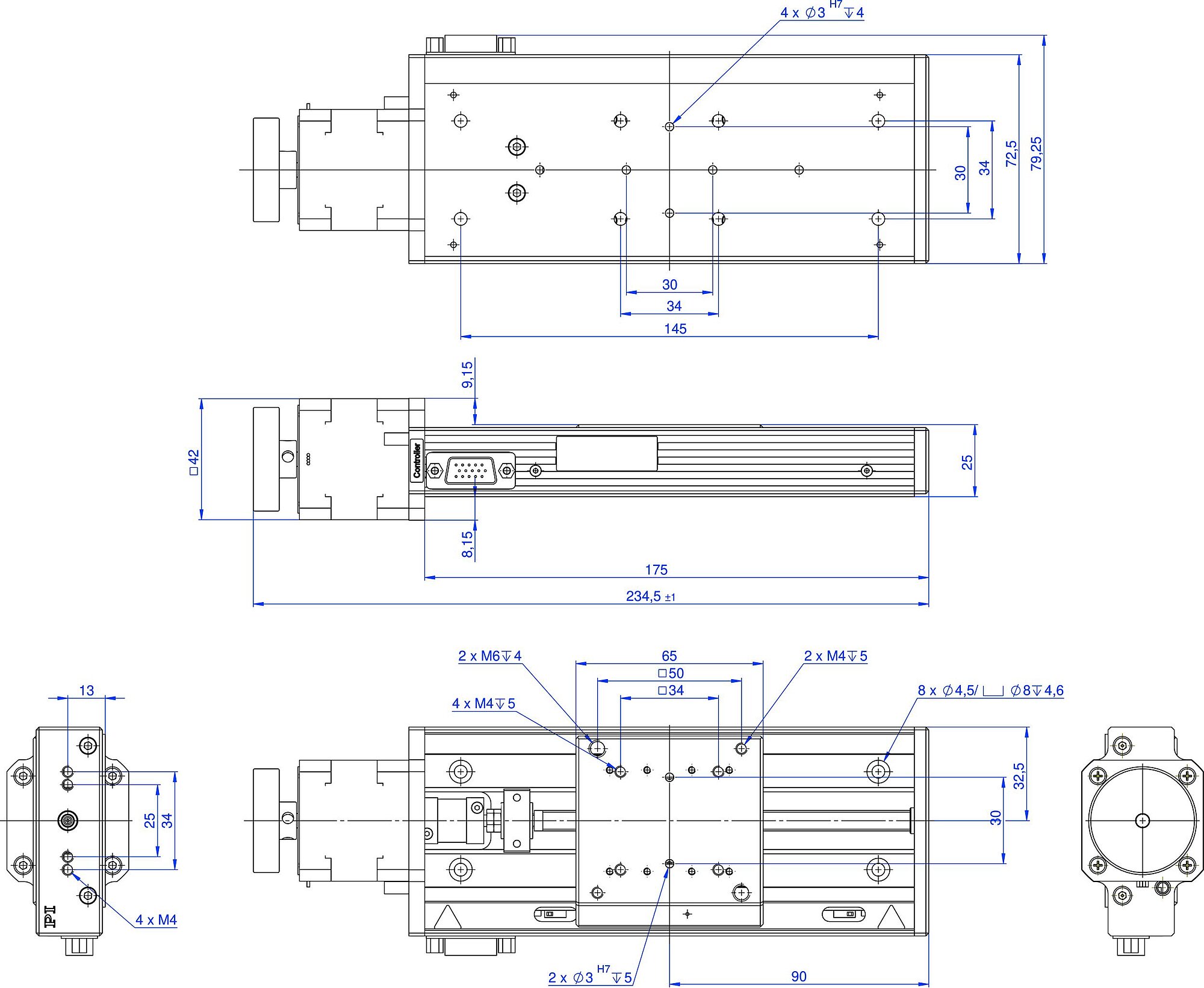

6230V64000 NEW!

Vacuum-compatible linear stage; 2-phase stepper motor; 100 mm travel range; 50 N load capacity; 10 mm/s maximum velocity; metric leadscrew; vacuum compatible to 10-6 hPa

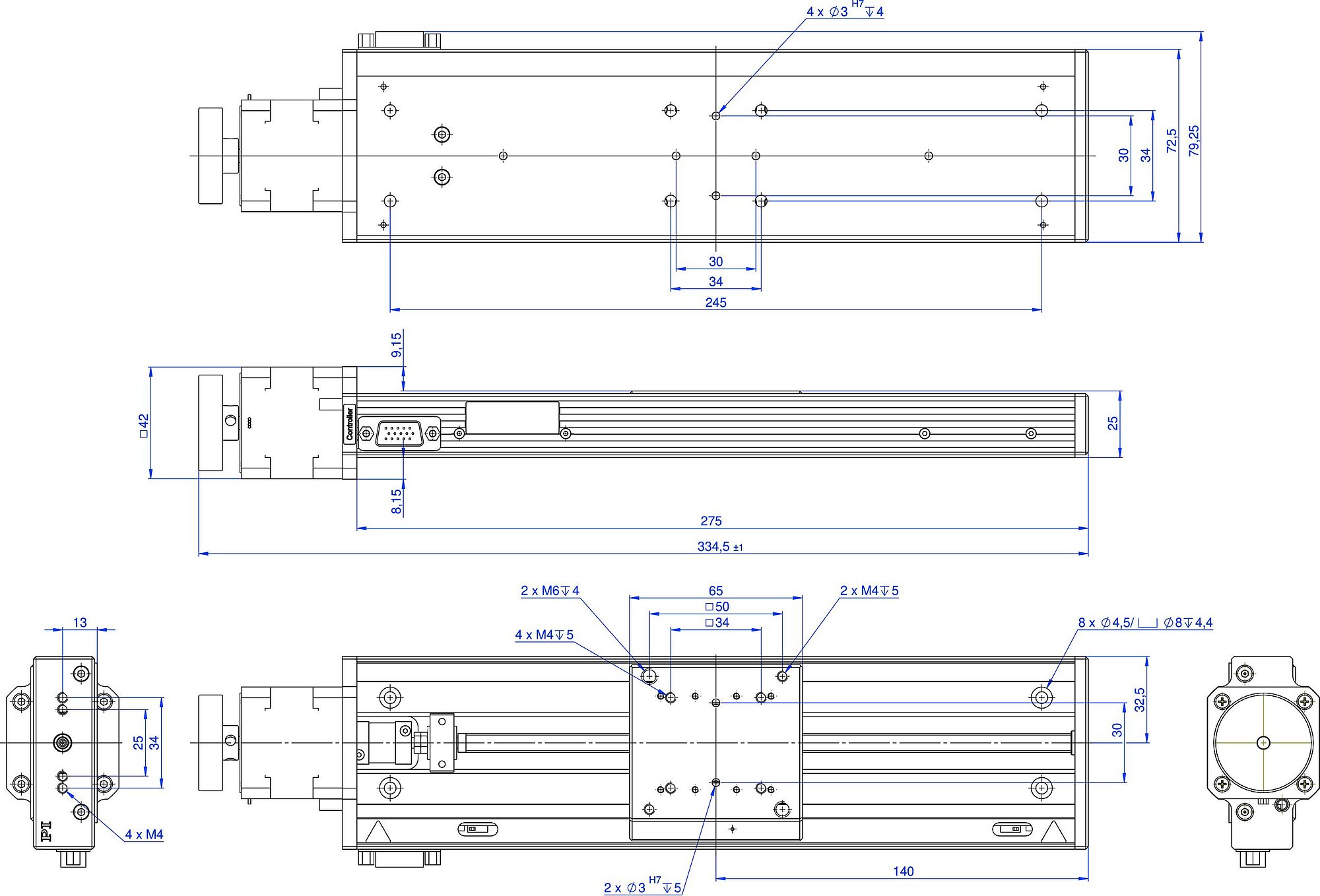

6230V66000 NEW!

Vacuum-compatible linear stage; 2-phase stepper motor; 200 mm travel range; 50 N load capacity; 10 mm/s maximum velocity; metric leadscrew; vacuum compatible to 10-6 hPa

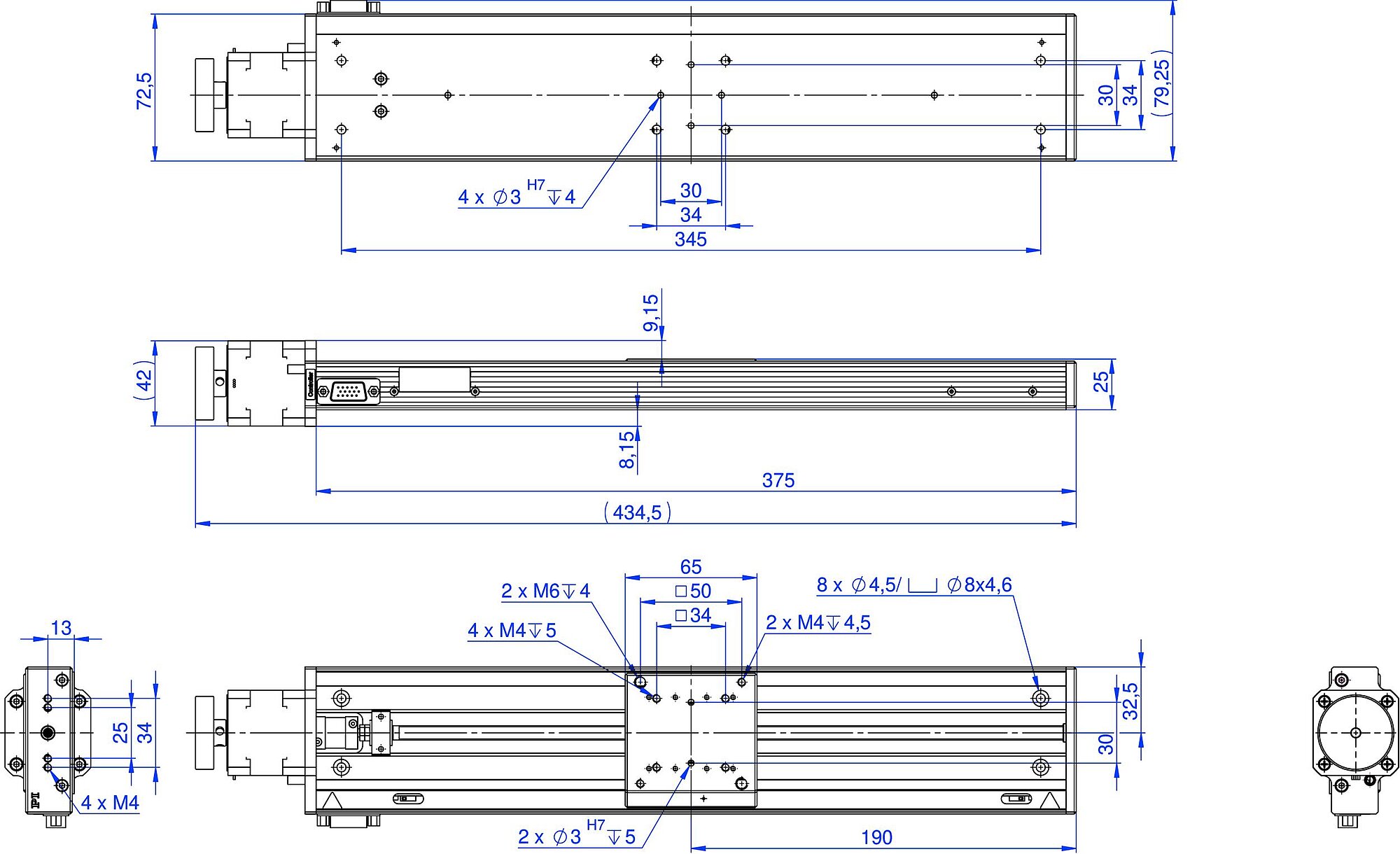

6230V68000

Vacuum-compatible linear stage; 2-phase stepper motor; 300 mm travel range; 50 N load capacity; 10 mm/s maximum velocity; metric leadscrew; vacuum compatible to 10-6 hPa
