DT-80 Compact Rotation Stage

Large Clear Aperture

DT-80 Compact Rotation Stage
Product Description Specifications Downloads Quote / Order

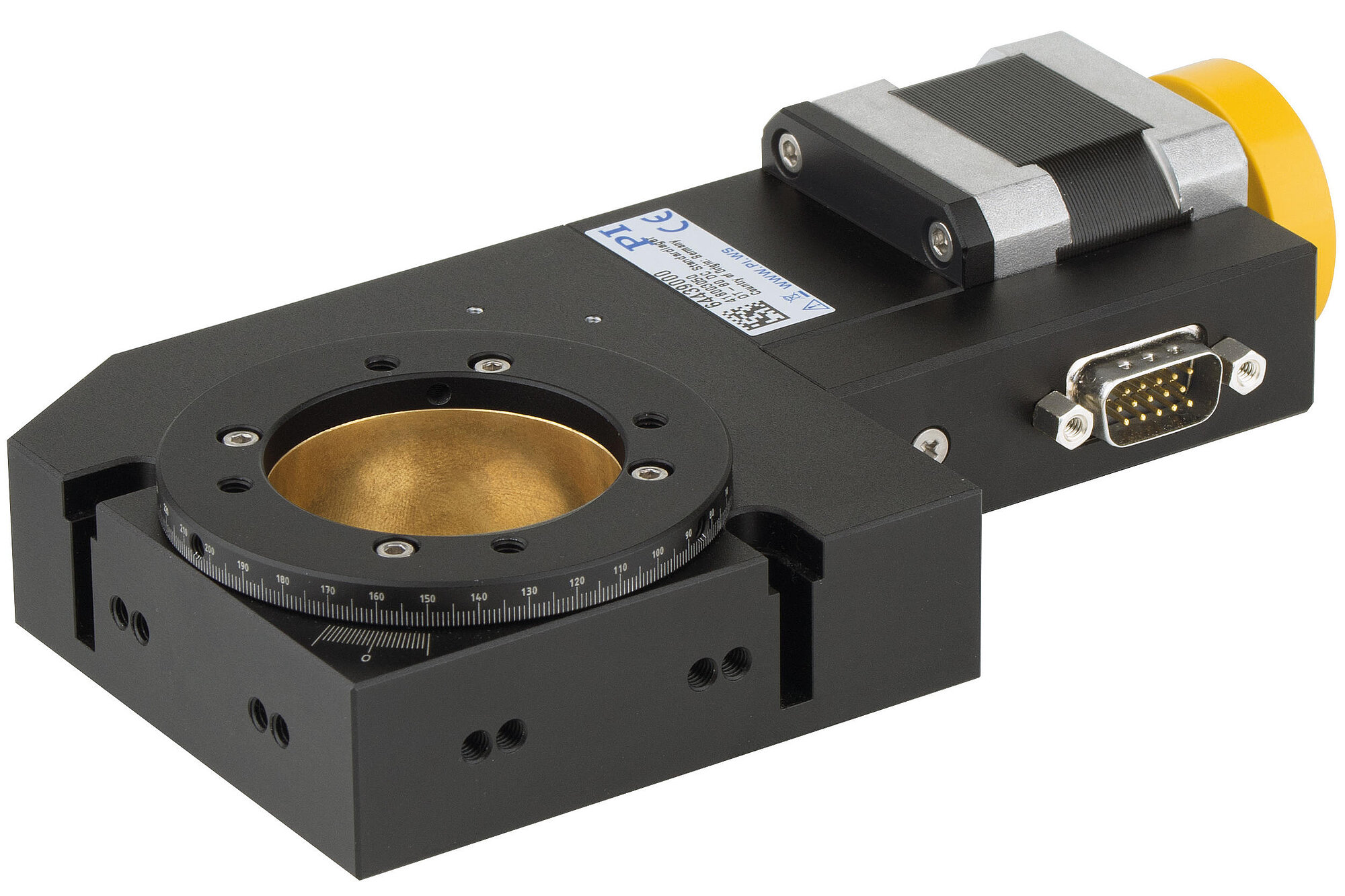

Precision-class rotation stage

Worm drive with high gear ratio for precision positioning. Large aperture with 40 mm Ø. Mechanical reference switch.

Drive types

  • DC servo motor with rotary encoder on the motor shaft
  • Stepper motor

Application fields

Precision microassembly. Research. Automation. Vacuum.

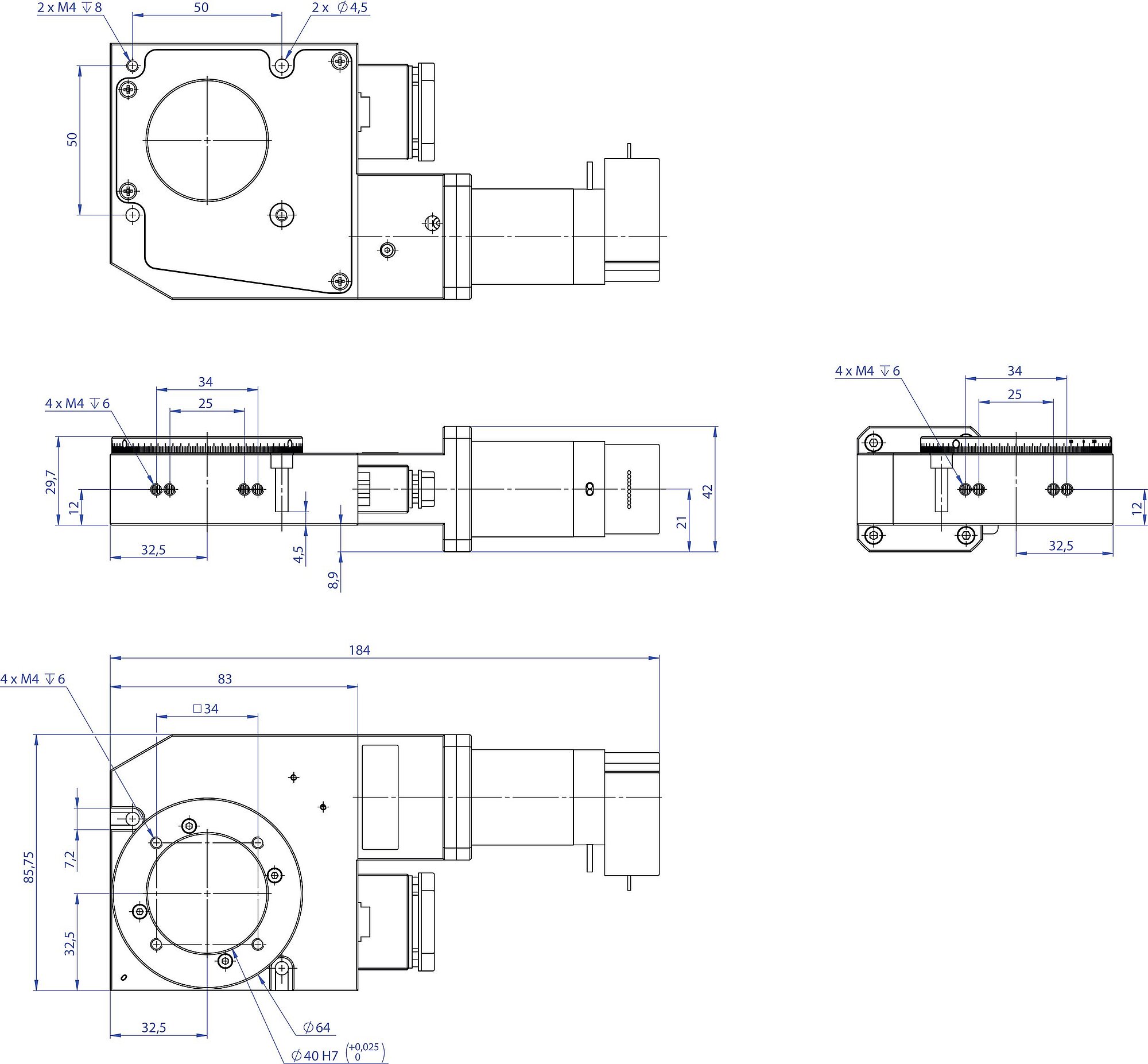

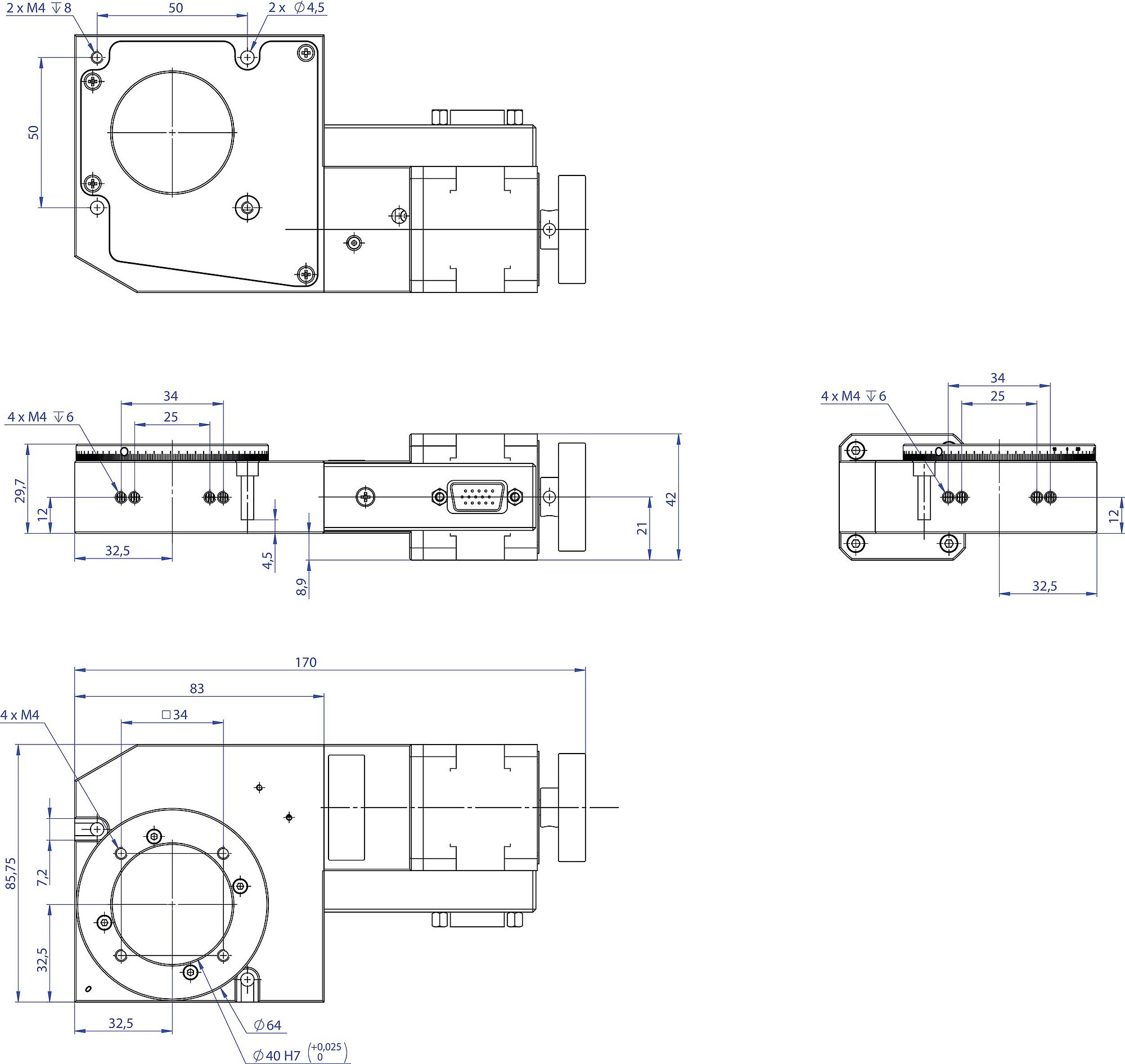

Specifications

Datasheet

Datasheet DT-80

Version / Date
2019-11-19
Version / Date
2019-11-19
Version / Date
2017-08-08
Document language
pdf - 494 KB
pdf - 498 KB
pdf - 1 MB

Downloads

Product Note

Product Note

Product Change Notification Stepper Motor DT-80

Version / Date
2019-09-18
Document language English
pdf - 442 KB
Product Note

Product Change Notification Stepper Motor VT-80 / DT-80

Version / Date
2019-04-23
Document language English
pdf - 238 KB

Datasheet

Datasheet

Datasheet DT-80

Version / Date
2019-11-19
Version / Date
2019-11-19
Version / Date
2017-08-08
Document language
pdf - 494 KB
pdf - 498 KB
pdf - 1 MB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
1.5.0 October 2017
pdf - 395 KB
Documentation

User Manual DT-80

Compact Rotation Stage
Version / Date
2019-07-19
Version / Date
2019-07-19
Document language

3-D Models

3-D Models

DT-80 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
