L-611 V6 • V7 • V9 Precision Rotation Stage Suitable for Vacuum

High Travel Accuracy

L-611 V6 • V7 • V9 Precision Rotation Stage Suitable for Vacuum
Product Description Specifications Downloads Quote / Order

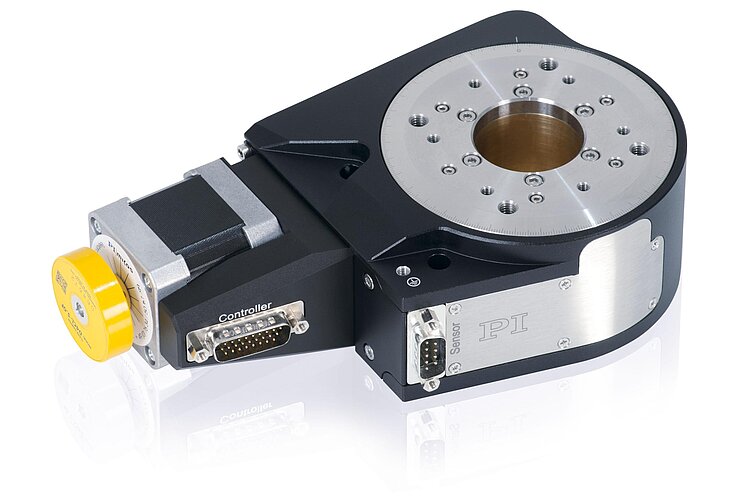

Reference-class rotation stage

High-precision positioning due to low-play preloaded worm gear. Preloaded pivot bearings for high travel accuracy. Clear aperture with Ø 35 mm. Unlimited travel range in both directions of rotation. Reference switch.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. Therefore, a bakeout temperature of up to 80 °C can be reached. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10-6 hPa.

Higher quality for high vacuum applications

In this case, special components suitable for high vacuum are used, such as motor, measuring system, and limit switches. In addition, the surface is made of uncoated aluminum, the drive screw and guides are made of stainless steel. With this, the PI V7 vacuum class is reached, which means up to 10-7 hPa.

The highest quality for special requirements in ultrahigh vacuum

In this vacuum class, the product is optimized in all details and thanks to components suitable for ultrahigh vacuum, in order to reach PI V9 vacuum class up to 10-9 hPa. Among other things, only selected types of plastic are used for this purpose and bakeout temperatures of 120 °C with measuring system, respectively 150 °C without measuring system are applied.

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Specifications

Datasheet

Datasheet L-611 V

Version / Date
2019-12-04
Version / Date
2019-12-04
Document language
pdf - 538 KB
pdf - 542 KB

Downloads

Datasheet

Datasheet

Datasheet L-611 V

Version / Date
2019-12-04
Version / Date
2019-12-04
Document language
pdf - 538 KB
pdf - 542 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
1.5.0 October 2017
pdf - 395 KB

3-D Models

3-D Models

3-D model L-611.991661V91

Version / Date
2019-12-06
Request download link
3-D Models

3-D model L-611.991600V9

Version / Date
2019-12-06
Request download link
3-D Models

3-D model L-611.991300V71

Version / Date
2019-12-06
Request download link
3-D Models

3-D model L-611.9912xxV6

Version / Date
2019-12-09
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

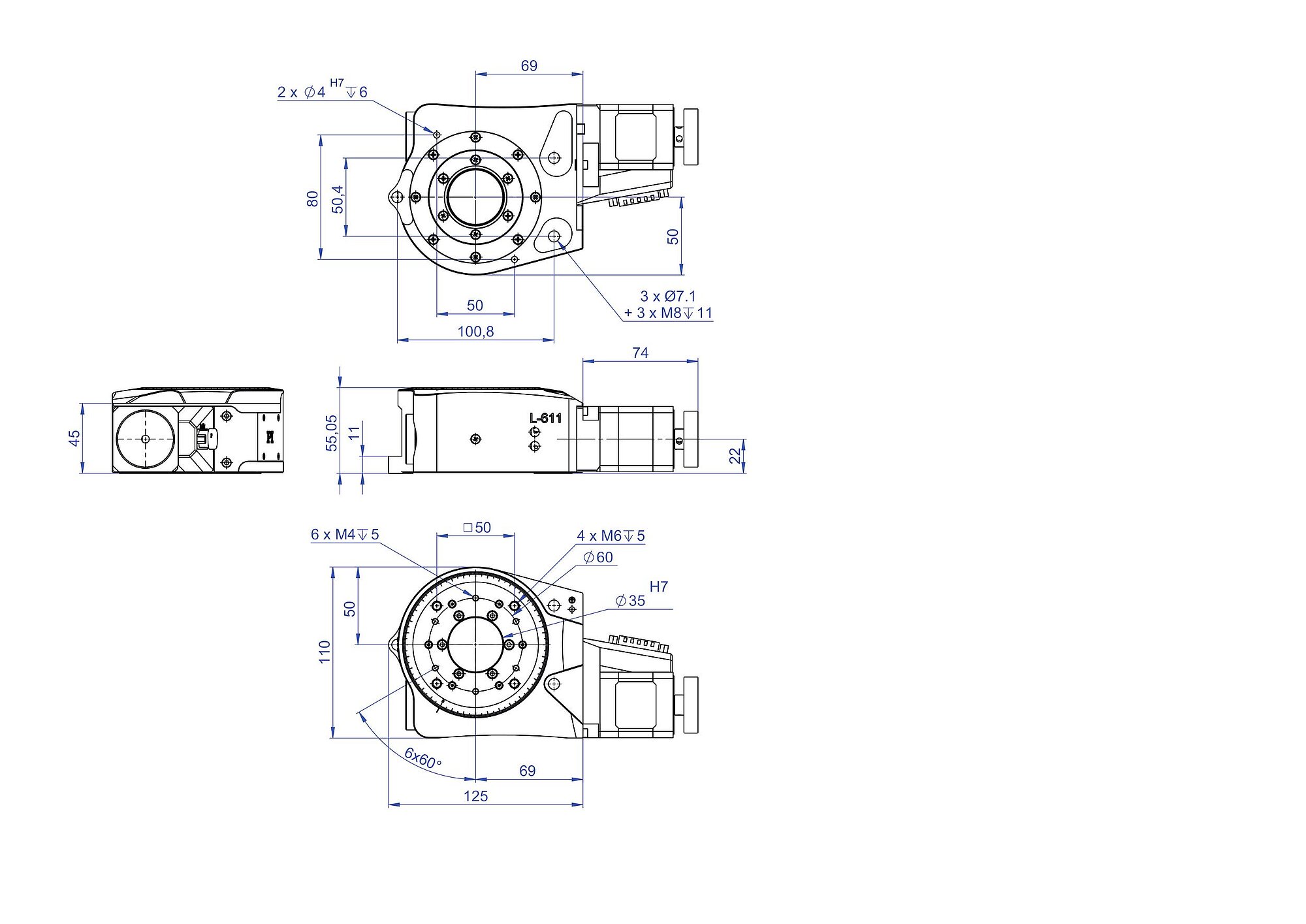

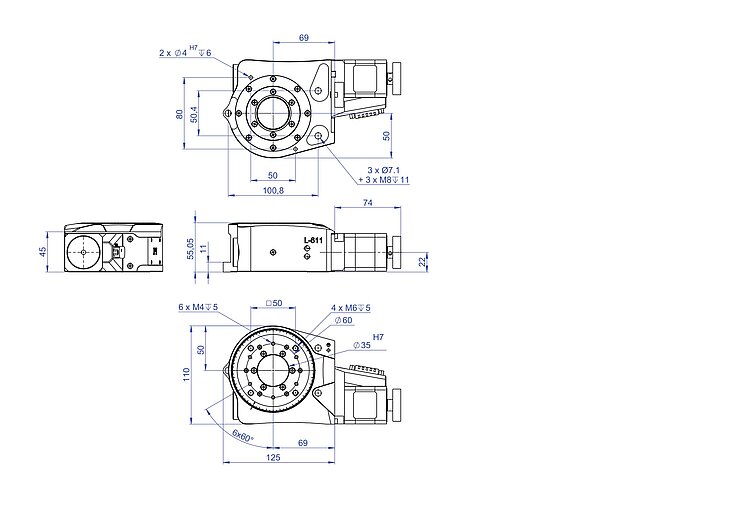

L-611.991200V6 NEW!
Precision rotation stage, stepper motor, 35 mm Ø clear aperture , including 2 m cable on the vacuum side, when ordered with a controller from PI additionally including 3 m cable on the air side, vacuum compatible to 10-6 hPa
L-611.991300V7 NEW!
Precision rotation stage, stepper motor, 35 mm Ø clear aperture , including 2 m cable on the vacuum side, when ordered with a controller from PI additionally including 3 m cable on the air side, vacuum compatible to 10-7 hPa

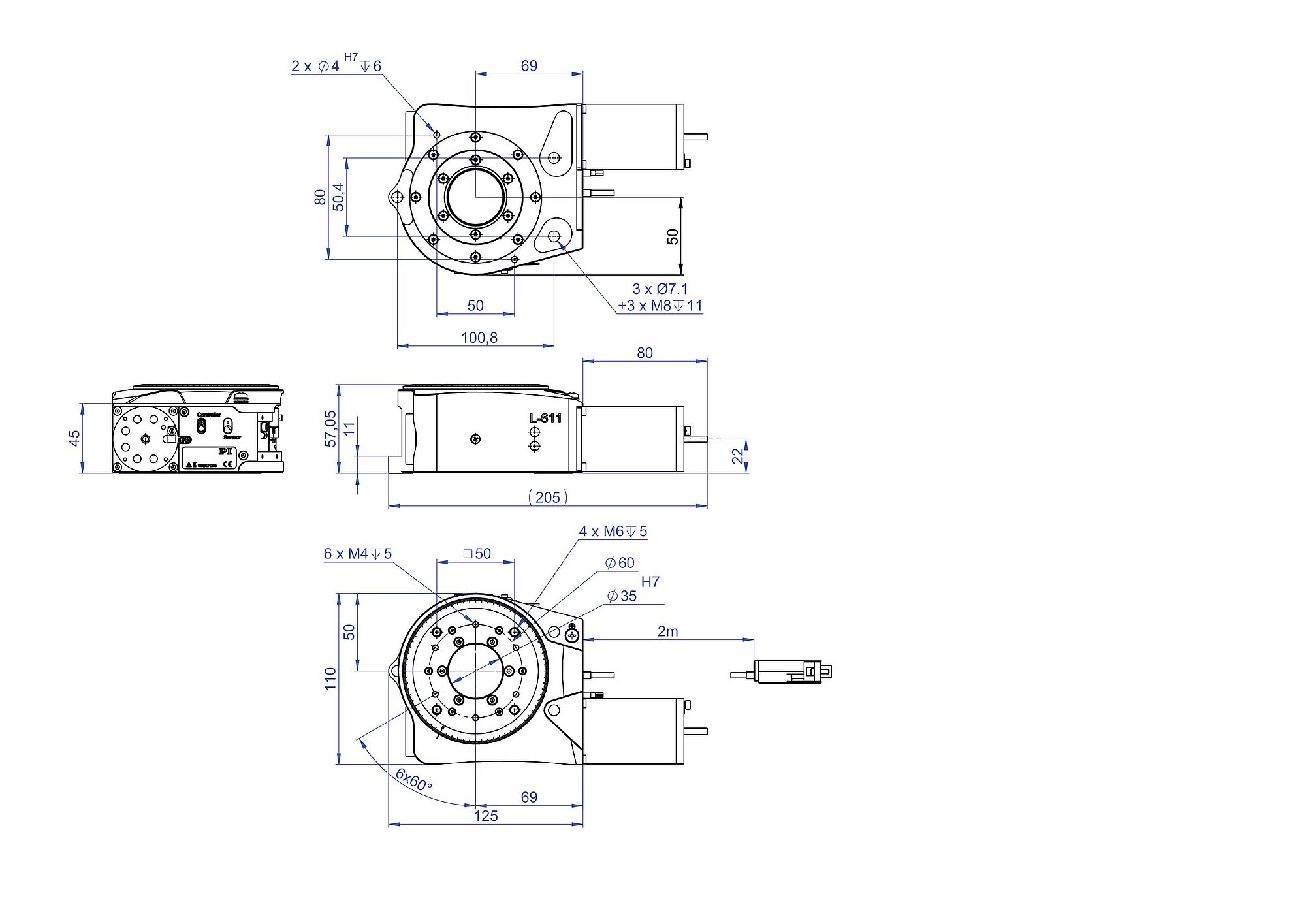

L-611.991600V9 NEW!
Precision rotation stage, stepper motor, 35 mm Ø clear aperture , including 2 m cable on the vacuum side, when ordered with a controller from PI additionally including 3 m cable on the air side, vacuum compatible to 10-9 hPa
