PiezoMike for Long-Term Stability

PiezoMike Actuators for Long-Term Stability

The PiezoMike linear actuators offer the high resolution of piezo direct drives, high forces and absolutely stable positioning. This makes them ideal for set-and-forget applications with high precision requirements like the positioning of optical elements in a laser application.

N-480 High-Precision Kinematic Mirror Mount

With N-470 PiezoMike Linear Actuators
  • Rotation range θX/θY: 8 µrad to 16 µrad

N-470.V PiezoMike Linear Actuator

Minimum Dimensions, High Forces, Stable Positioning, Vacuum to 10-6 hPa
  • Travel range: to 13 mm
  • Drive force: 22 N
  • Max. velocity: 2.4 mm/min

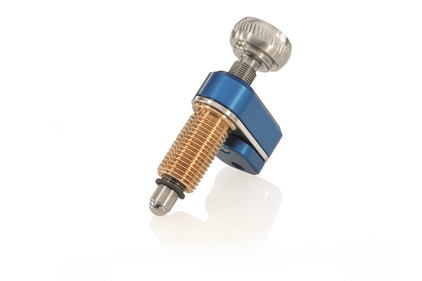

N-470 PiezoMike Linear Actuator

Minimum Dimensions, High Forces, Stable Positioning
  • Travel range: to 13 mm
  • Drive force: 22 N
  • Max. velocity: 2.4 mm/min

N-472 PiezoMike Linear Actuator

With Position Sensor for Closed-Loop Operation
  • Travel range: 7 mm
  • Drive force: 22 N
  • Unidirectional repeatability: ±200 nm
  • Max. velocity: 2 mm/min
