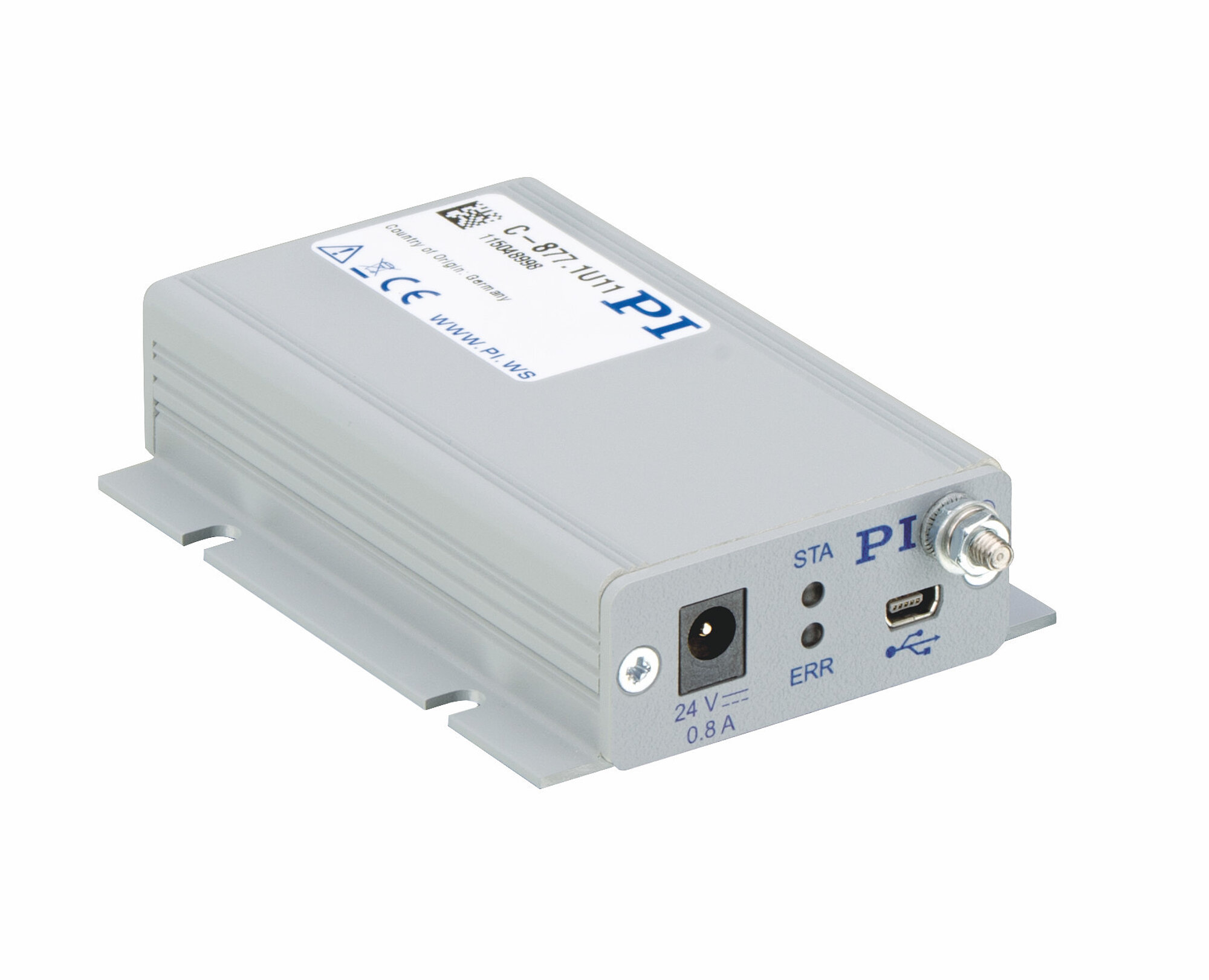

C-877.1U11 PILine® Motion Controller

For Ultrasonic Piezo Motors, 1 Axis, Inexpensive and Compact

  • Integrated power amplifier
  • PID servo control with dynamic parameter switching
  • Macro programmable for stand-alone functionality
  • Data recorder
  • Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python

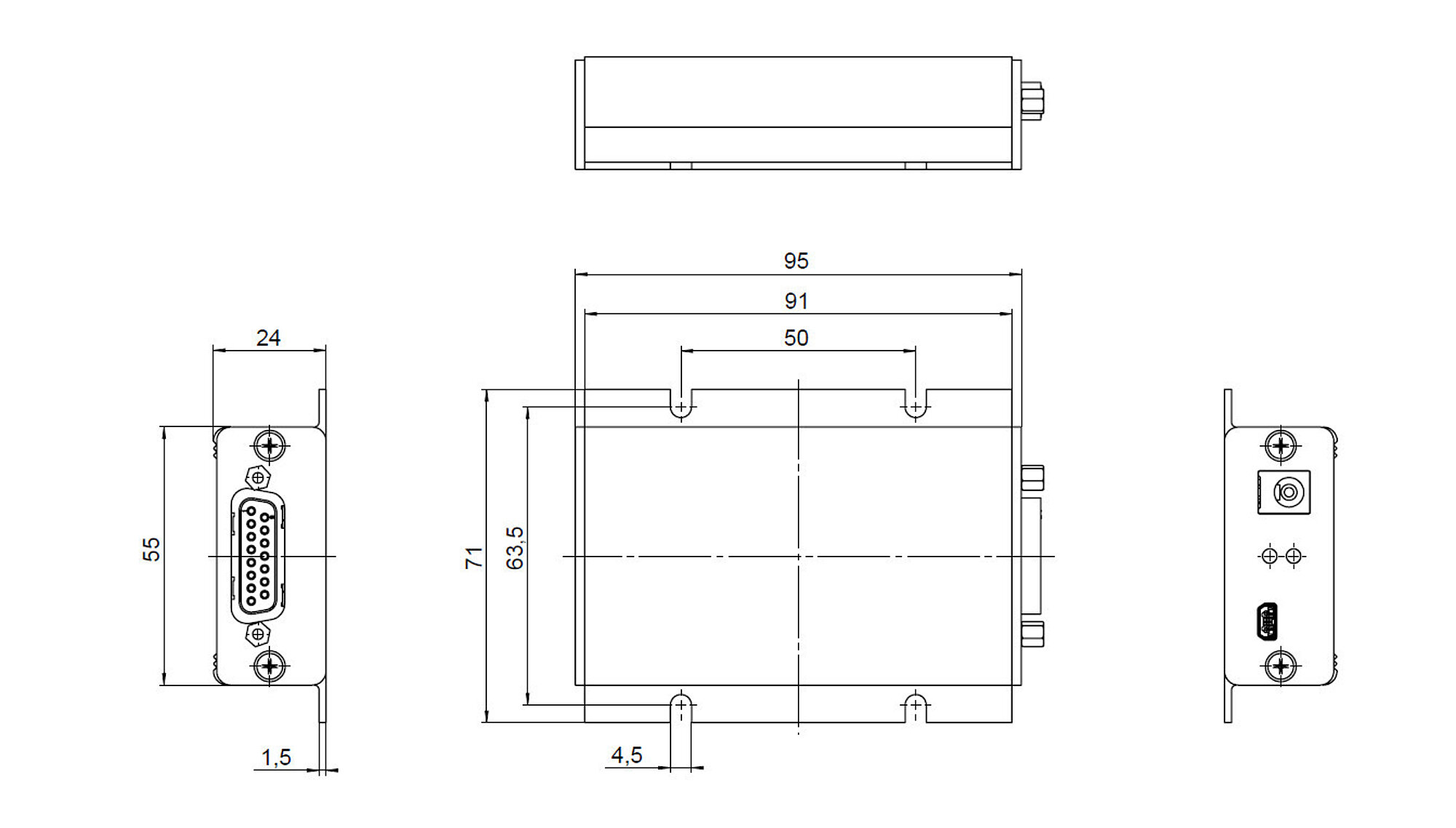

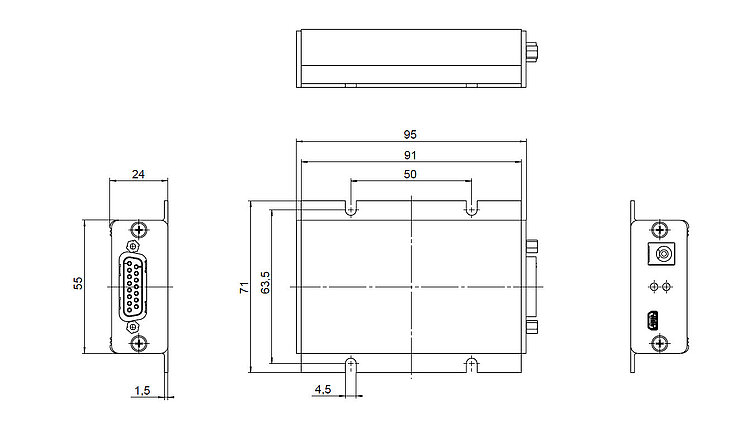

C-877.1U11 PILine® Motion Controller
Product Description Specifications Downloads Quote / Order

Servo controller and power amplifier

Single-axis benchtop device with special PID controller for ultrasonic piezo motors. Integrated power amplifier for PILine® drives and class 1 positioners.

Interfaces and communication, encoder input

USB interface for commanding. Differential signal transmission (A/B). TTL inputs for limit and reference point switches.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Fields of application

  • Micromanipulation
  • Automation
  • Biotechnology
  • Sample manipulation
  • Sample positioning
  • Optical measuring technology
