- Peak power 280 W
- High continuous power of 100 W
- Output voltage range -30 to 130 V
- Module for E-500 piezo controller rack
- Position control (optional)
- Interface / display modules (optional)

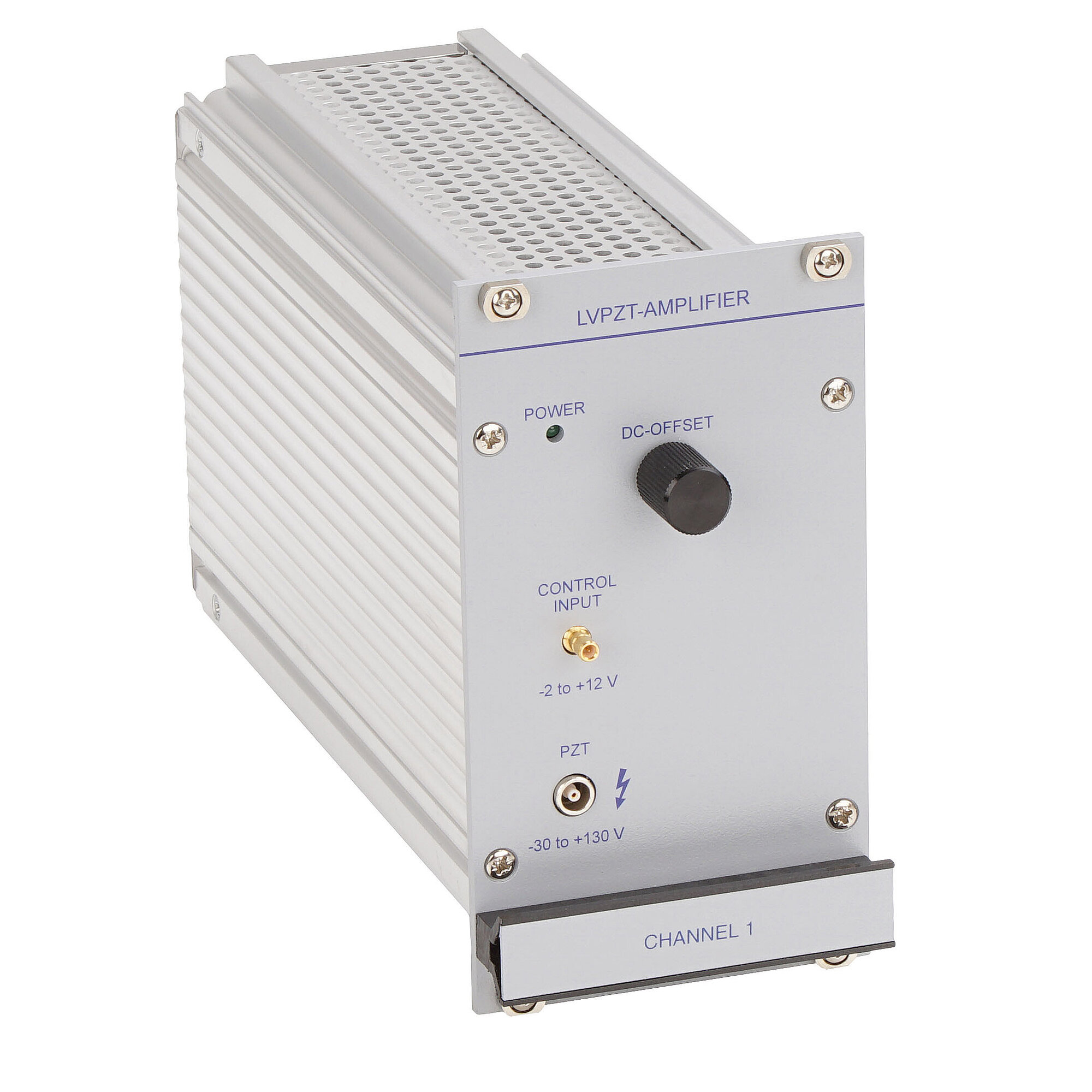

Power amplifier for low voltage piezo actuators
Peak currents to 2000 mA. 280 W peak power, average output power up to 100 W.
Class-D switched amplifier with capacitor for energy recovery. Low influence of the application thanks to reduced heat dissipation.
The working principle of the E-504 series is particularly good for high dynamics scanning and switching applications. The E-505 is recommended for applications that require static position stability in a subnanometer range.
Industry, automation. High dynamics scanning or switching applications.
Short Instruction PZ300
Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx
User Manual PZ62
E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).
