R-FMP-GSM Fast, Multi-Channel Gradient Search Routines

Firmware Functionality Provides Fast Optimization in Several Axes

R-FMP-GSM Fast, Multi-Channel Gradient Search Routines
Product Description Specifications Downloads Quote / Order
  • Flexible optimization of photonic and optical assemblies
  • Parallel execution of alignment processes speeds global alignment by eliminating time-consuming repetitive loops
  • Integrated in all F-712 series
  • Available for H-811 hexapods and C-887 hexapod controllers

Enhanced throughput in automated alignment processes

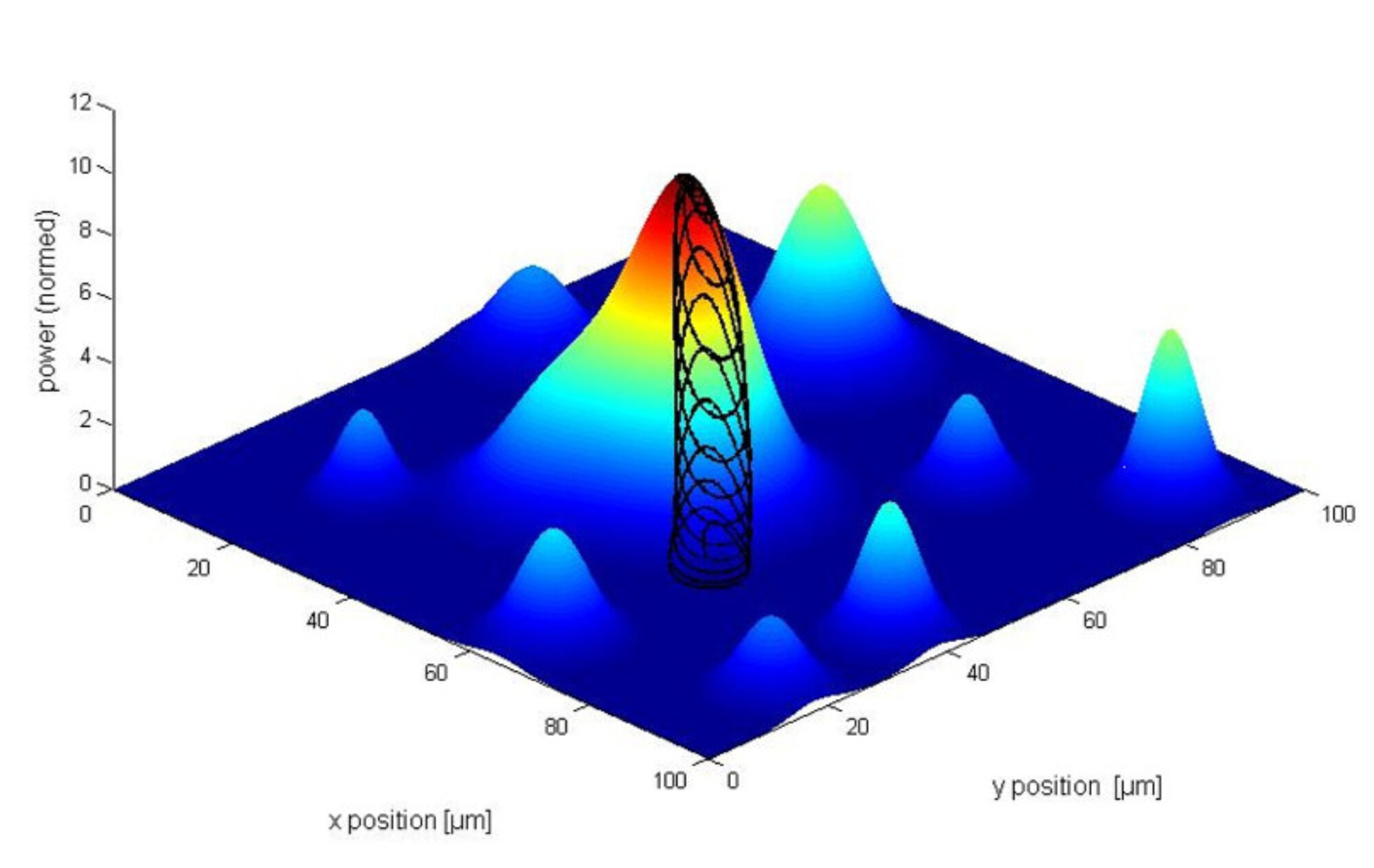

Optimization of an analog figure of merit (FoM), such as optical power transmission or a representation of a calculated measure such as Modulation Transfer Function (MTF), can be executed simultaneously across multiple axes. Any analog figure which can be provided as +5/-5 V voltage is accepted.

The gradient search functionality is built into the firmware of the controller which allows fastest execution and best integration into testing or production processes. The lengthy serial motion sequences formerly required are eliminated, the entire process time is drastically reduced.

The number of parallel optimizations possible in a system depends on factors such as the FoM bandwidth, load, and overall positioning bandwidth. Typical configurations can perform XY & angular optimization processes simultaneously.

System configuration / Installation requirements

Gradient search is available for hexapod mechanics H-811.F2 and H-811.I2 in combination with a C-887 hexapod controller that features a high-resolution analog input.

Optimized fast multi-channel photonics alignment systems available

Full optimization functionality and execution at even better speed is obtained using the F-712 dedicated alignment systems. With an integrated 3-axis piezo system for best dynamics and stability, these systems offer unmatched performance in terms of maximum parallel execution capability, speed and tracking. Consult with a PI applications engineer for guidance and advice.

Specifications

Datasheet

Datasheet R-FMP-GSM

Version / Date
2020-01-30
Version / Date
2020-01-30
Document language
pdf - 394 KB
pdf - 397 KB

Downloads

Datasheet

Datasheet

Datasheet R-FMP-GSM

Version / Date
2020-01-30
Version / Date
2020-01-30
Document language
pdf - 394 KB
pdf - 397 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

R-FMP-GSM NEW!
Parallel Gradient Search Mode. Firmware functionality to allow simultaneous execution of gradient search routines in several axes of motion. Available for hexapod mechanics H-811.F2 and H-811.I2 in combination with a C-887 hexapod controller with high-resolution, high-bandwidth analog inputs.
