M-230 High-Resolution Linear Actuator, DC or Stepper Motor

Nonrotating Tip, Limit Switches

  • Minimum incremental motion 0.05 µm
  • Travel ranges 10 and 25 mm
  • Nonrotating tip
  • Velocity up to 1.2 mm/s
  • MTBF >20000 h
M-230 High-Resolution Linear Actuator, DC or Stepper Motor
Product Description Specifications Downloads Quote / Order

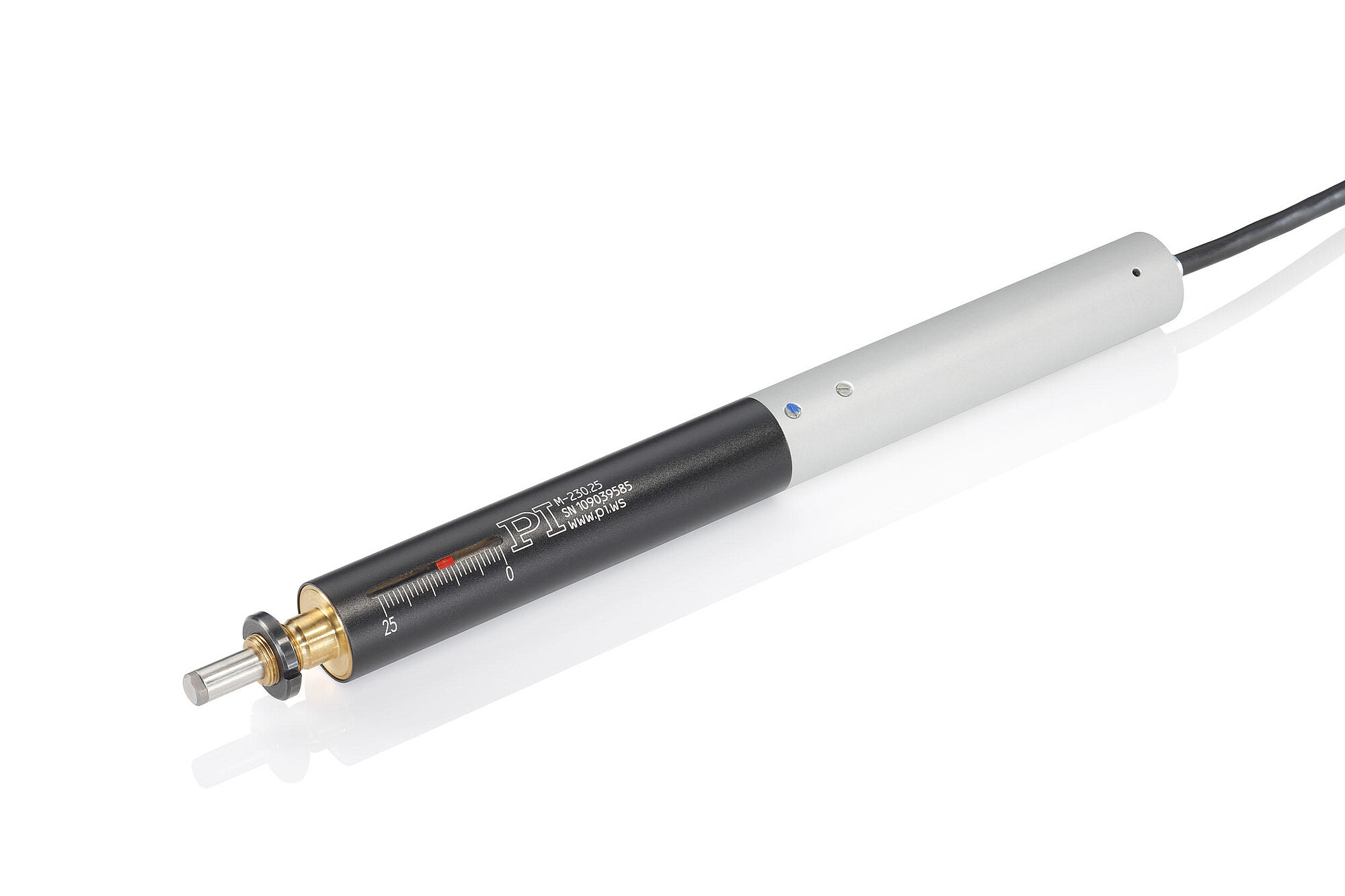

Precision-class linear drive

High-resolution linear actuator. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm. Powerful and low-vibration 2-phase stepper motors with gearhead allow for smooth and accurate open-loop positioning.

High-quality components

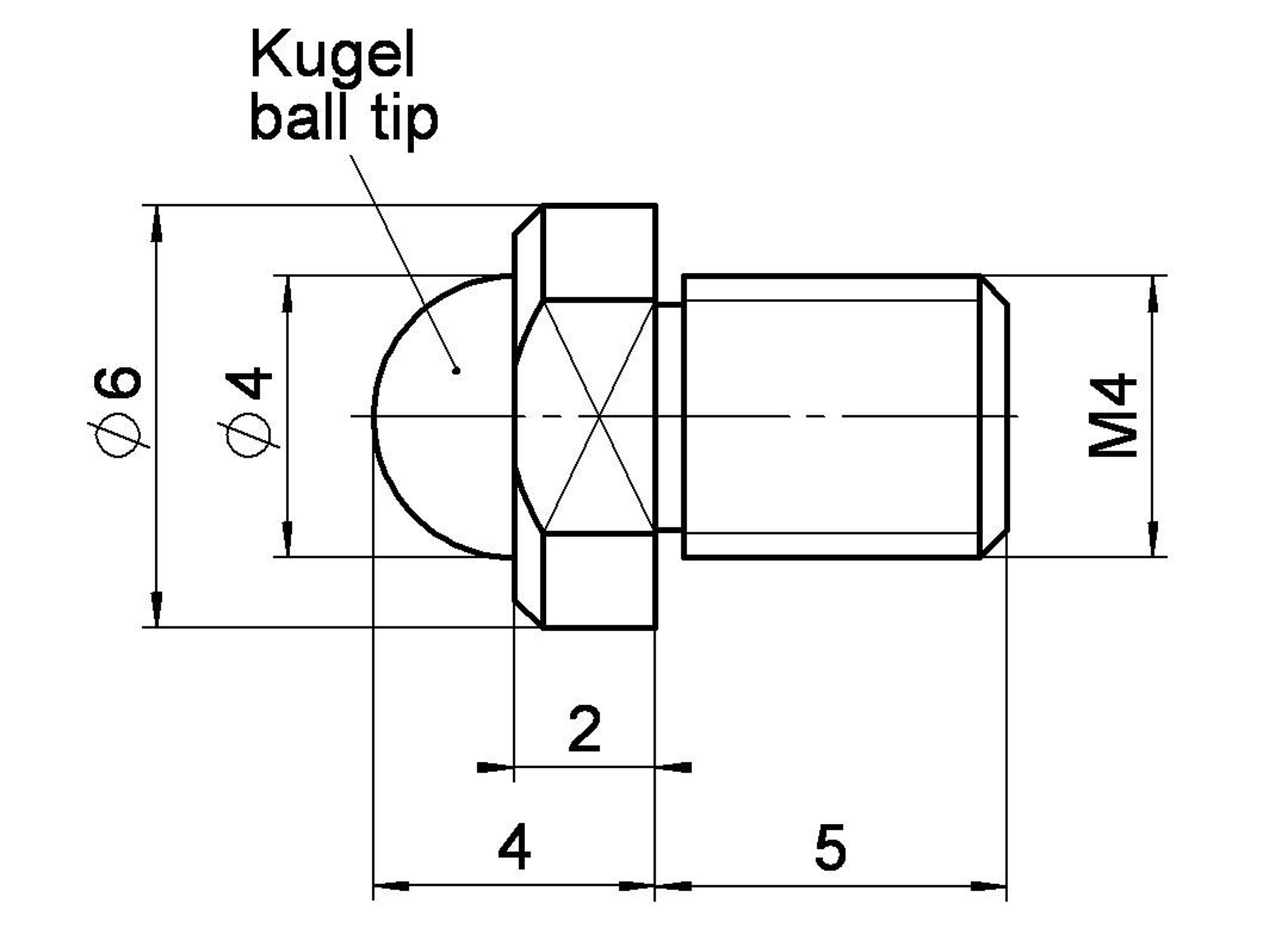

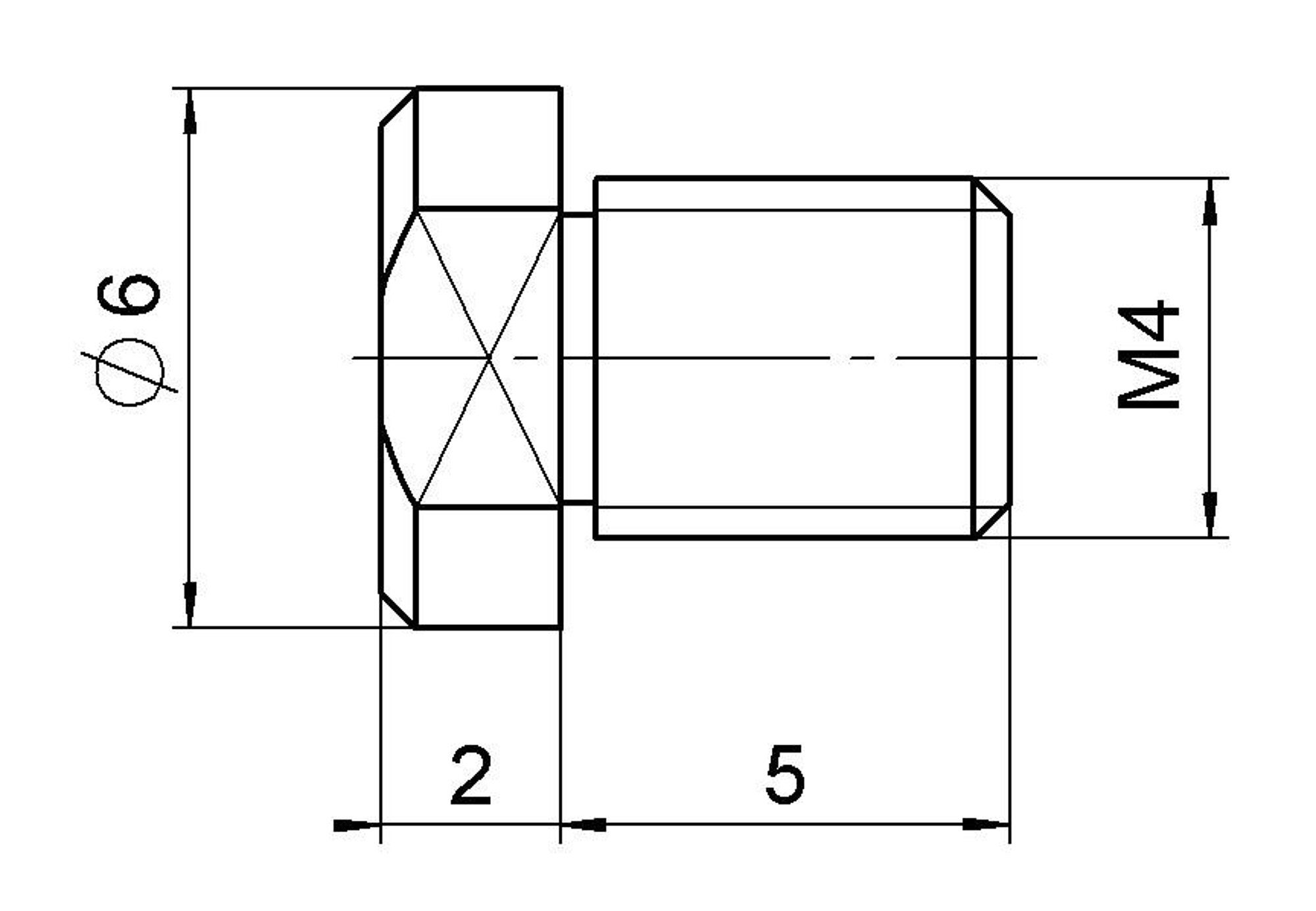

Extremely low-friction and backlash-free construction. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.

Application fields

Precision alignment, motorized alternative for micrometer screws.

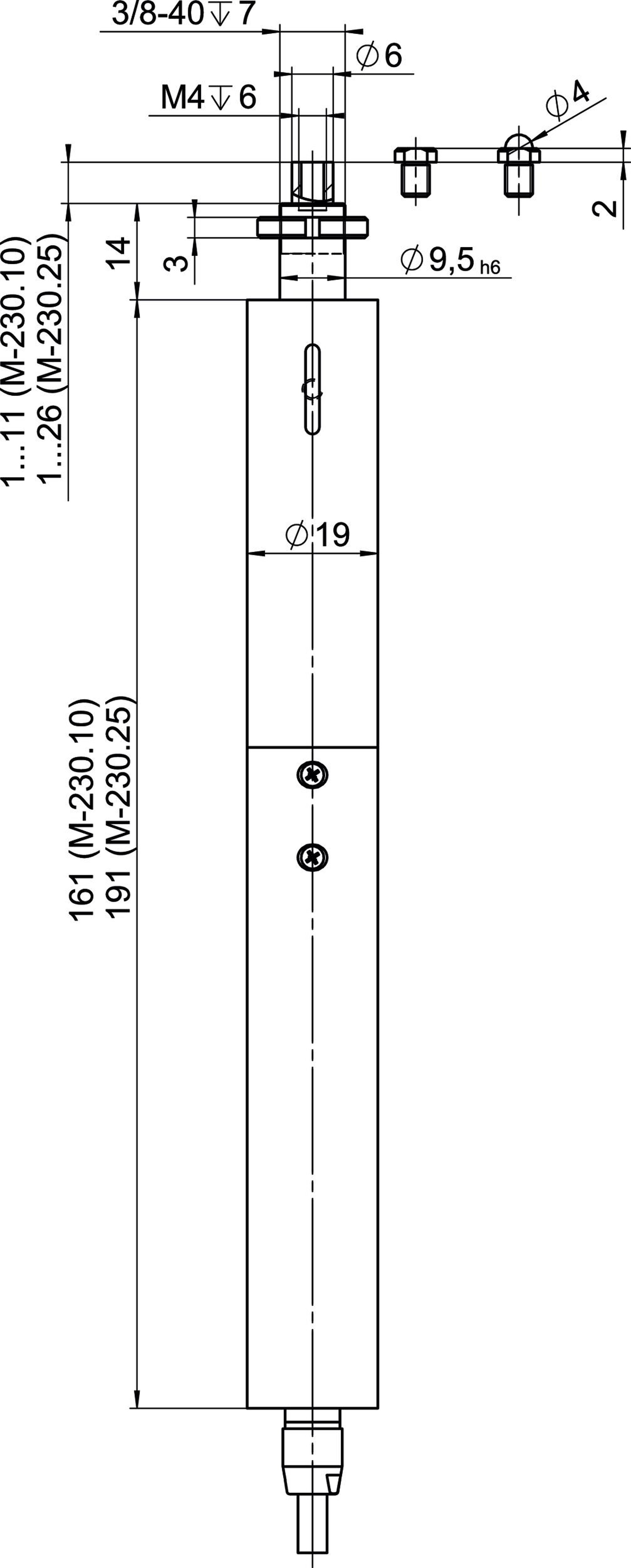

Specifications

Datasheet

Datasheet M-230

Version / Date
2023-07-12
pdf - 552 KB
Version / Date
2023-07-12
pdf - 556 KB
Version / Date
2019-07-31
pdf - 751 KB

Downloads

Datasheet

Datasheet

Datasheet M-230

Version / Date
2023-07-12
pdf - 552 KB
Version / Date
2023-07-12
pdf - 556 KB
Version / Date
2019-07-31
pdf - 751 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Version / Date
6.0.0 2023-10-10
pdf - 372 KB
Version / Date
6.0.0 2023-10-10
pdf - 384 KB
Documentation

User Manual MP102

M-230 High-Resolution Linear Actuator

Version / Date
1.2 2020-0831
pdf - 722 KB
Version / Date
1.2 2020-0831
pdf - 890 KB

3-D Models

3-D Models

M-230 3-D model

zip - 246 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-230.10

High-resolution linear actuator with DC or stepper motor; DC gear motor; 10 mm travel range; 70 N feed force; 0.8 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

M-230.25

High-resolution linear actuator with DC or stepper motor; DC gear motor; 25 mm travel range; 70 N feed force; 0.8 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

M-230.10S

High-resolution linear actuator with DC or stepper motor; 2-phase stepper motor with gearhead; 10 mm travel range; 45 N feed force; 1.2 mm/s maximum velocity; trapezoidal-threaded spindle; limit switches: Hall effect; 0.5 m cable length

M-230.25S

High-resolution linear actuator with DC or stepper motor; 2-phase stepper motor with gearhead; 25 mm travel range; 45 N feed force; 1.2 mm/s maximum velocity; trapezoidal-threaded spindle; limit switches: Hall effect; 0.5 m cable length

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
