N-422 Linear Actuator with Piezo Motor

Inexpensive and Easy to Integrate

  • Easy integration: Two mounting versions
  • Silent: Operating frequency to >20 kHz
  • Velocity over 5 mm/s
  • Submicron resolution
  • Holding force to 10 N
N-422 Linear Actuator with Piezo Motor
Product Description Specifications Downloads Quote / Order

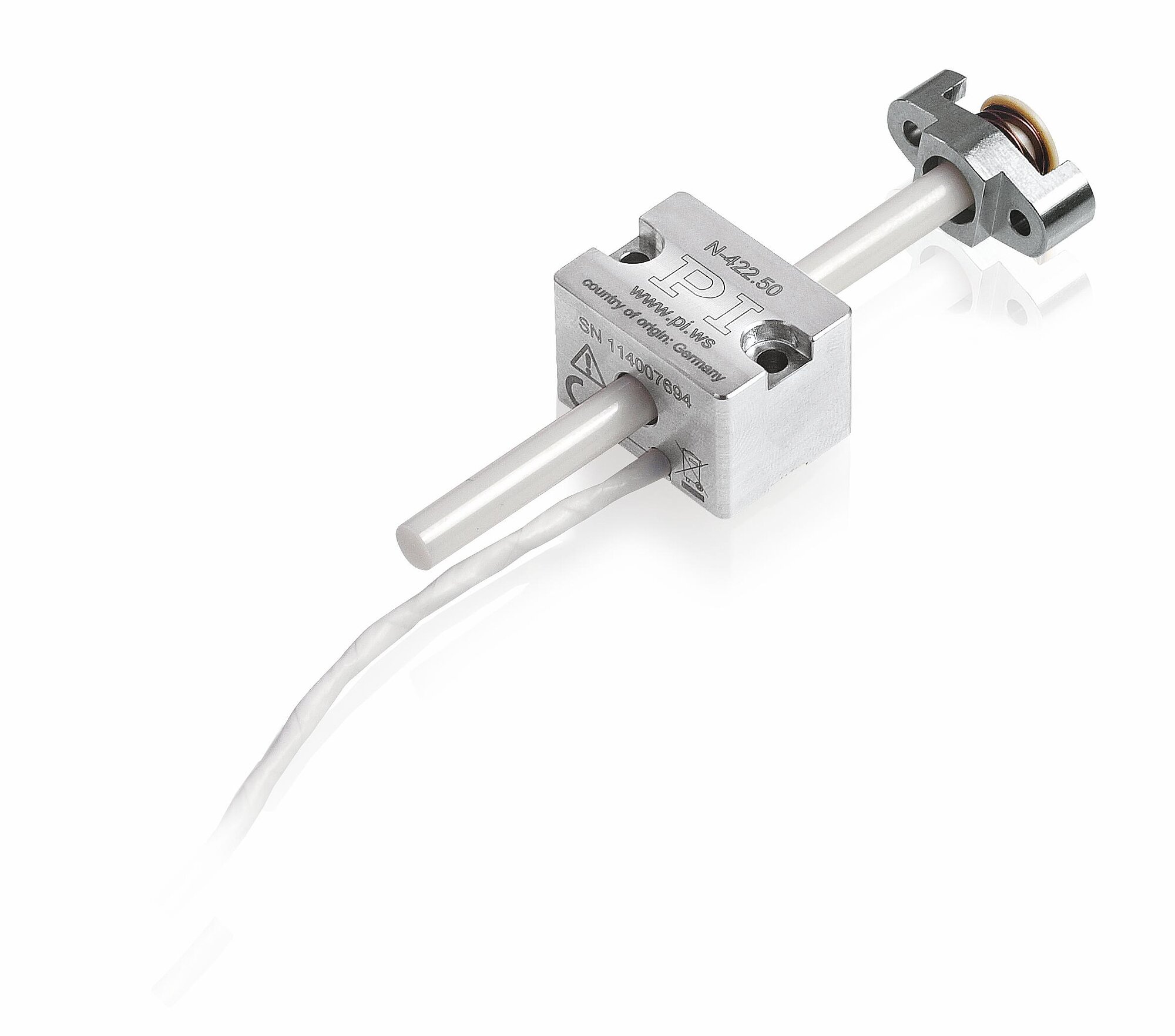

Piezo motor direct drive

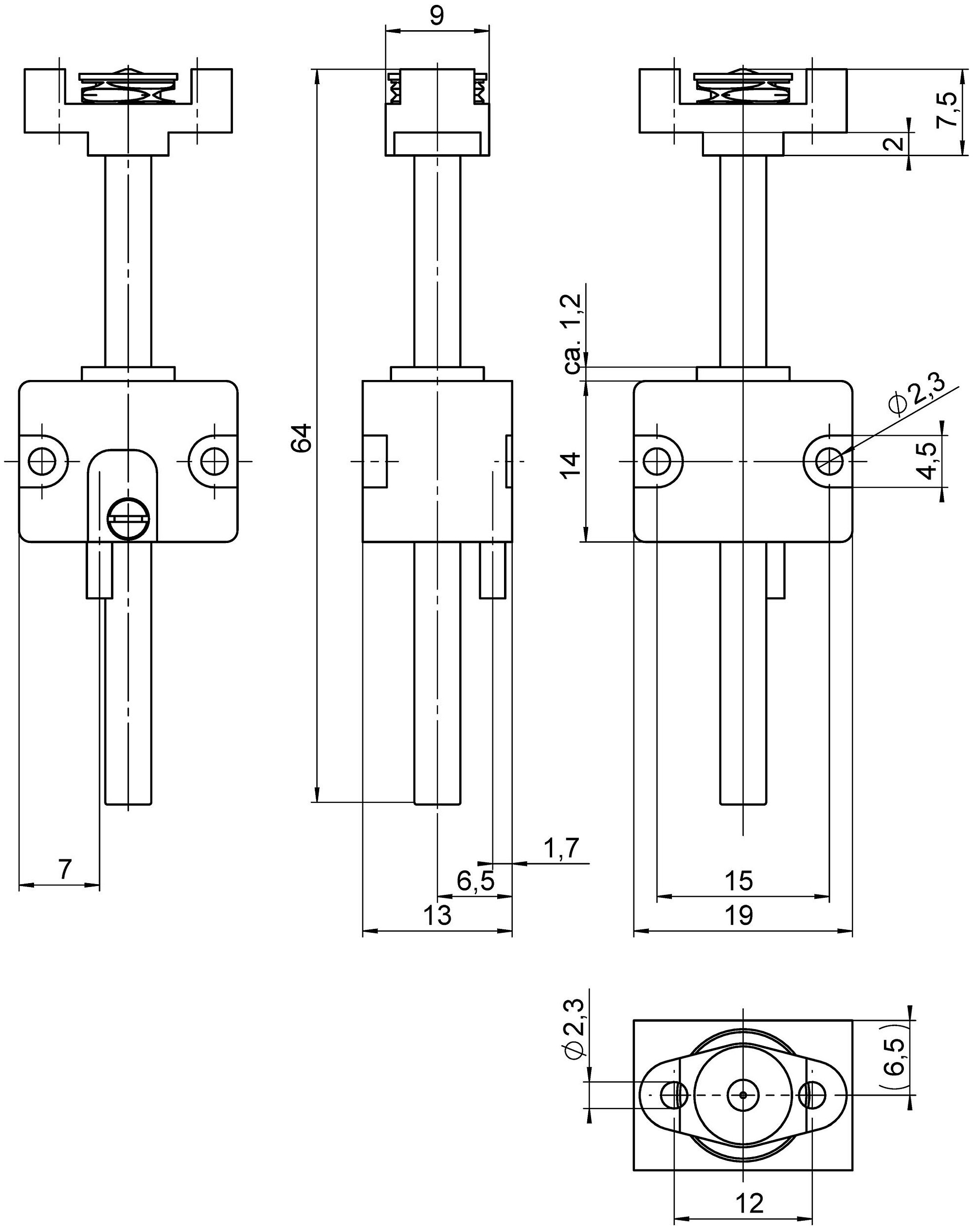

OEM actuator without position sensor. Continuous motion with step frequencies in the ultrasound range. Mounting via thread on the front or on a level surface perpendicular to the direction of motion.

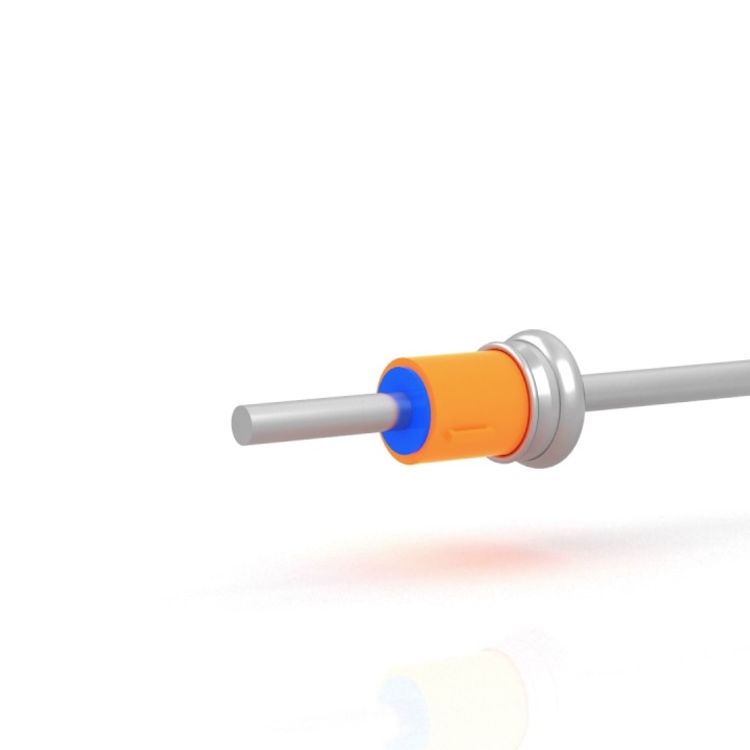

Inertia drive

Self-locking, no heat generation at rest. Noiseless drive with operating frequencies over 20 kHz. Resolution in step mode approx. 300 nm, open loop.

Application fields

Industry and research. Alignment of optical elements, micromanipulation, biotechnology, cell manipulation, medical technology.
