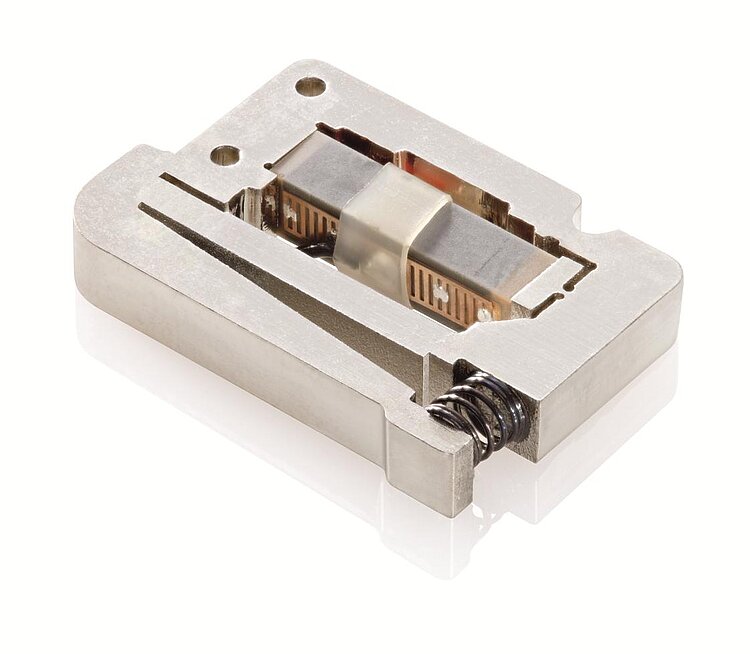

P-604 Compact PiezoMove Linear Actuator

Inexpensive, with 300 µm Travel Range

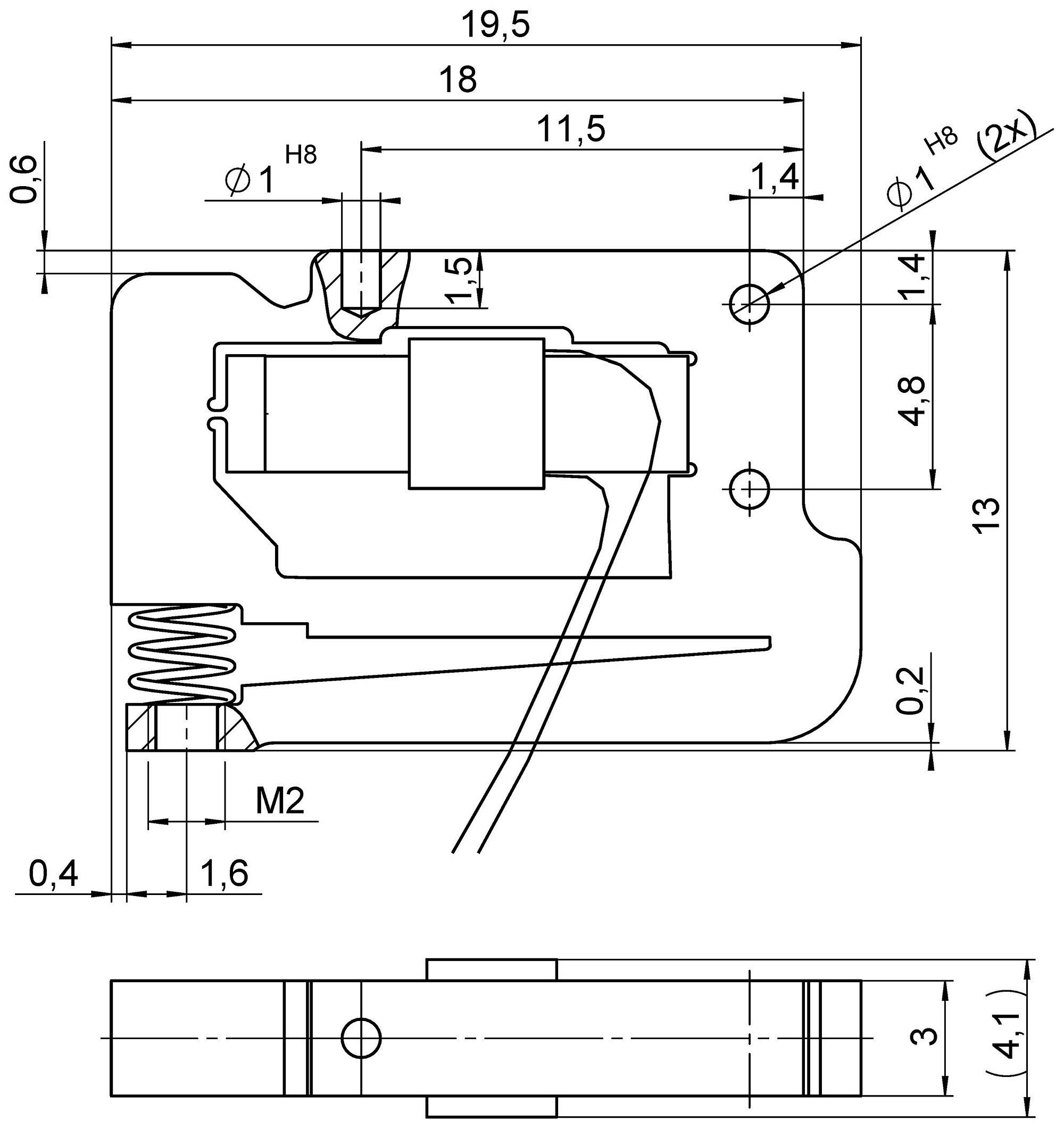

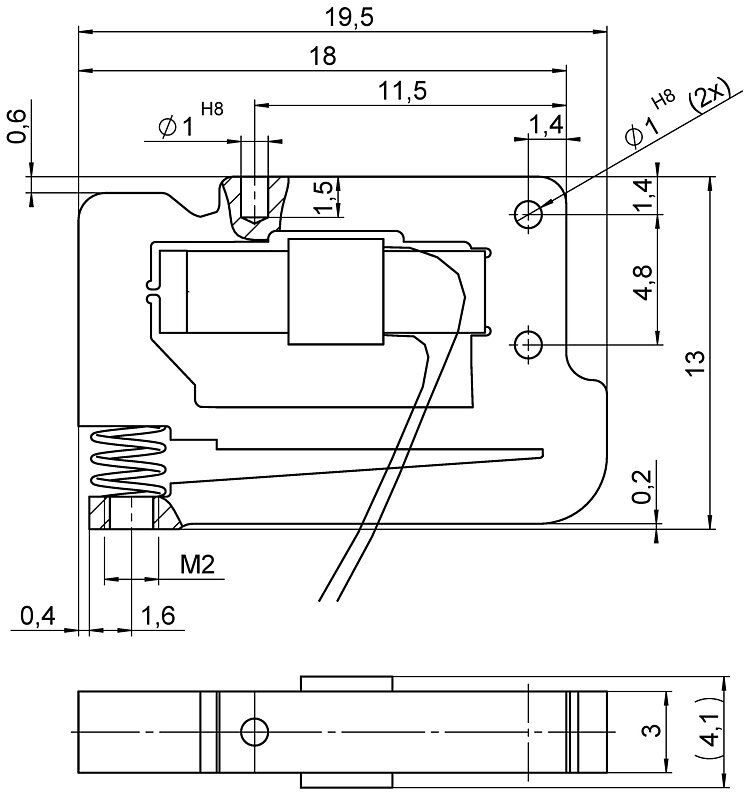

  • Light and compact: 4 g and <13 mm × 20 mm surface
  • Travel range 300 µm
  • Optimized design for manufacturing in large quantities
  • Customer-specific adaptations can be provided
  • Outstanding lifetime due to PICMA® piezo actuators
  • Ideal for OEM applications in optics, medical technology, biotechnology, and microfluidics
P-604 Compact PiezoMove Linear Actuator
Product Description Specifications Downloads Quote / Order

Fields of application

  • Nanopositioning
  • High-speed switching
  • Patch clamp
  • Microdispensing
  • Adaptive systems technology / automation
  • Photonics / integrated optics
  • Biotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymerinsulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100% vacuum compatible and work in a wide temperature range.

Specifications

Datasheet

Datasheet P-604

Version / Date
2023-12-11
pdf - 412 KB
Version / Date
2023-12-11
pdf - 415 KB
Version / Date
2018-06-20
pdf - 627 KB

Downloads

Datasheet

Datasheet

Datasheet P-604

Version / Date
2023-12-11
pdf - 412 KB
Version / Date
2023-12-11
pdf - 415 KB
Version / Date
2018-06-20
pdf - 627 KB

Documentation

Documentation

Short Instructions PZ302

PiezoMove® Linear Actuators: P-60x

Version / Date
1.1.0 2023-10-10
pdf - 633 KB
Version / Date
1.1.0 2023-10-10
pdf - 640 KB
Documentation

User Manual PZ282

P-604.300 Compact PiezoMove Linear Actuator

Version / Date
2018-02-20
pdf - 3 MB
Version / Date
2018-02-20
pdf - 3 MB

3-D Models

3-D Models

3-D-model P-604.300

zip - 25 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-604.300

Compact PiezoMove linear actuator; PICMA® piezo actuator drive; 300 µm travel range (open loop); push force capacity 2 N; pull force capacity 1.5 N; bare wire strands; 0.1 m cable length

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

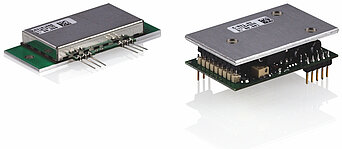

Compatible Electronics Related Products
