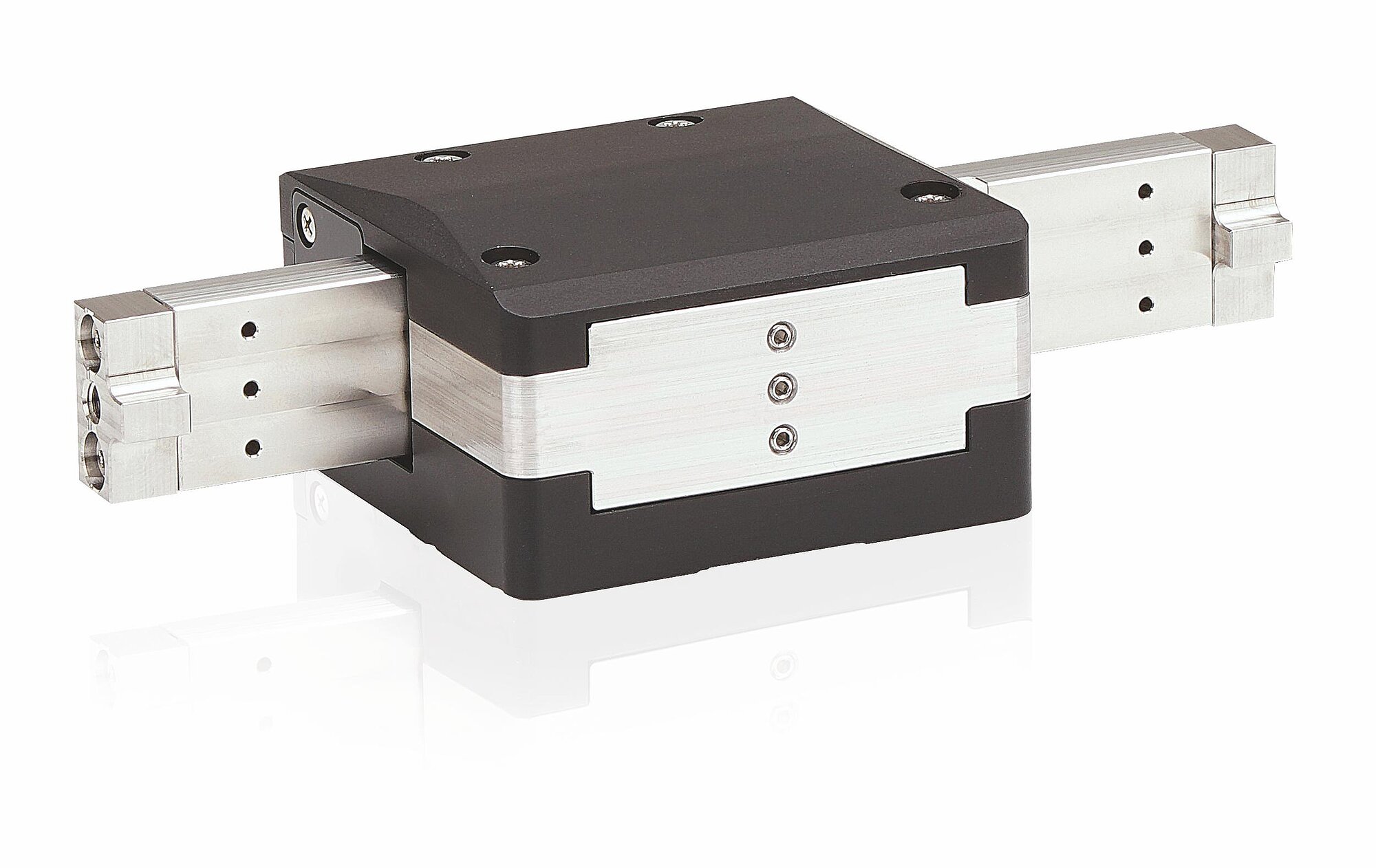

N-331 PICMAWalk Walking Drive

OEM Walking Drive for Durable Applications with up to 15 mm/s Velocity and up to 50 N Push/Pull Force

N-331 PICMAWalk Walking Drive
Product Description Specifications Downloads Quote / Order
  • Robust and industrially usable walking drive with PICMA® technology for extreme durability
  • Fastest and strongest drive of its size class
  • Variable runner lengths from 25 mm to 100 mm
  • Precise, nanometer precision positioning of loads up to 5 kg
  • Plug-and-play, thanks to PI proprietary controller technology

Fields of application

  • Industrial precision positioning
  • Semiconductor technology
  • Semiconductor tests
  • Wafer inspection
  • Lithography
  • Nanoimprinting
  • Nanometrology
  • Motion in strong magnetic fields and in a vacuum

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

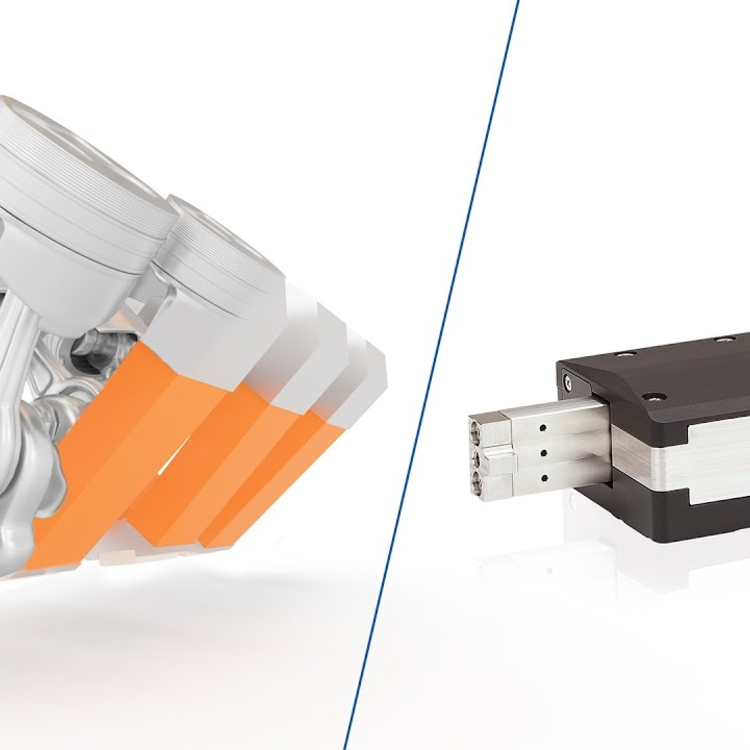

Nanometer precision and high feed force with PiezoWalk® walking drives

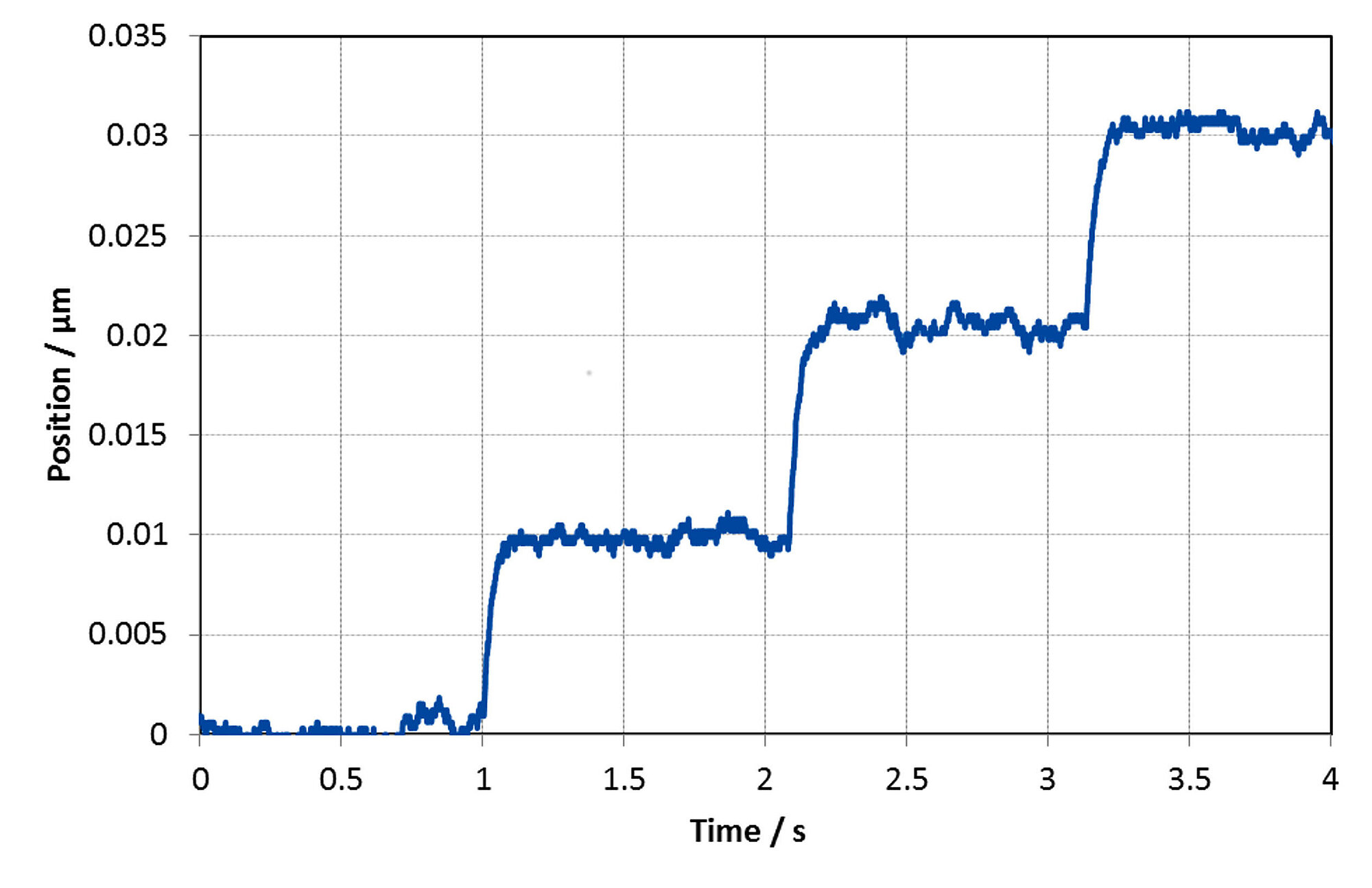

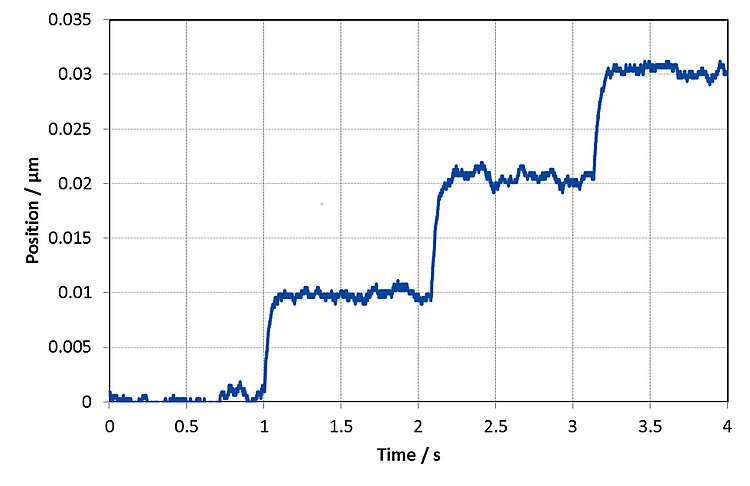

Several piezo actuators perform a walking motion in the PiezoWalk® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.

Highly accurate position measuring with incremental encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Suitable for sophisticated vacuum applications

Piezo motors from PI are principally vacuum-compatible and suitable for operation in strong magnetic fields. Special versions of the drives are available for this purpose. Piezo walking drives can also be used in cleanrooms or in environments with strong ultraviolet radiation.

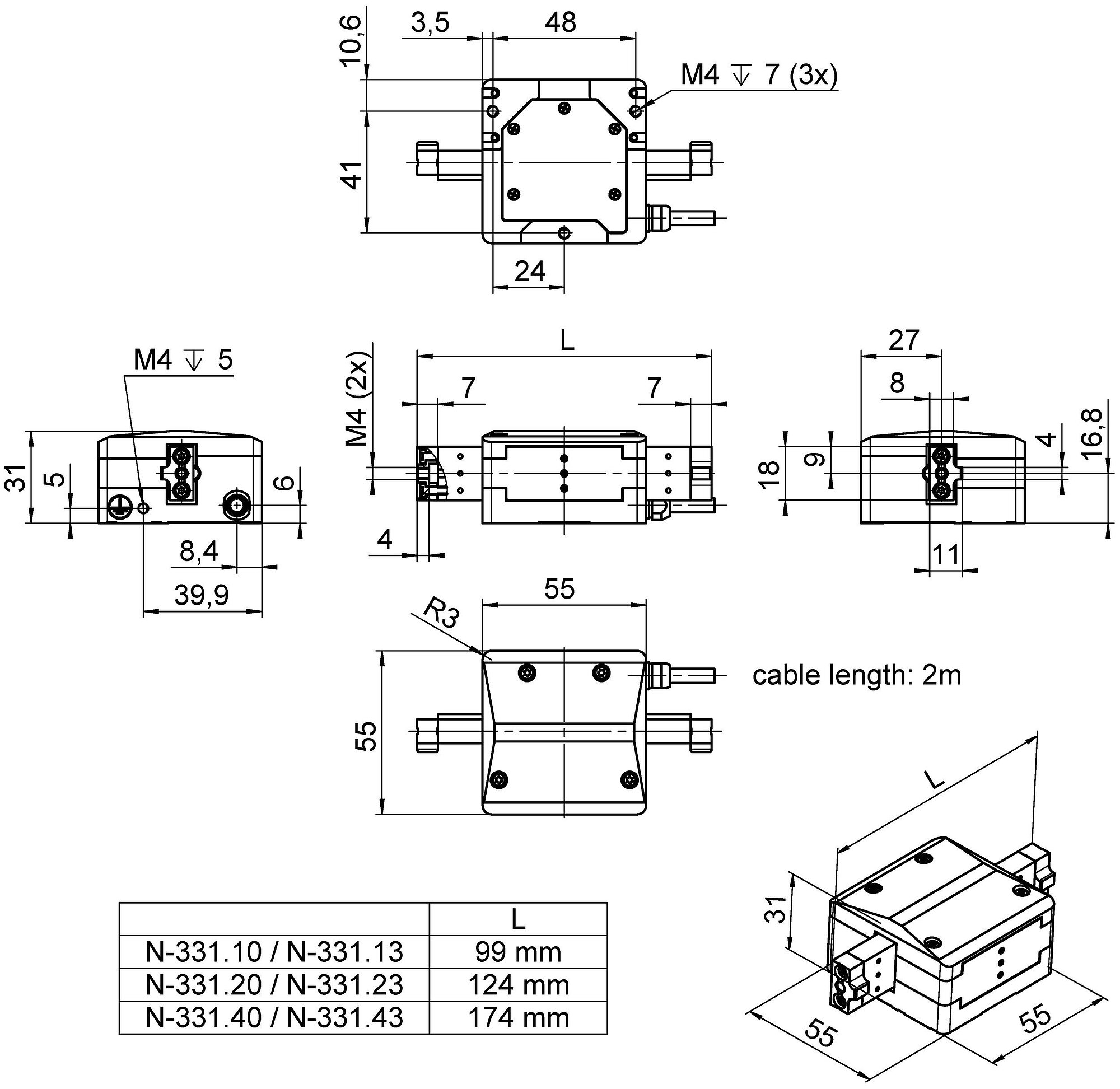

Specifications

Datasheet N-331

Version / Date
2018-10-16
Version / Date
2018-10-16
Version / Date
2018-10-16
Document language
pdf - 756 KB
pdf - 769 KB
pdf - 791 KB

Downloads

Datasheet

Datasheet N-331

Version / Date
2018-10-16
Version / Date
2018-10-16
Version / Date
2018-10-16
Document language
pdf - 756 KB
pdf - 769 KB
pdf - 791 KB

Documentation

User Manual PZ271

N-331 Piezoelectric Walking Drive PICMAWalk
Version / Date
2017-03-22
Document language English
pdf - 564 KB

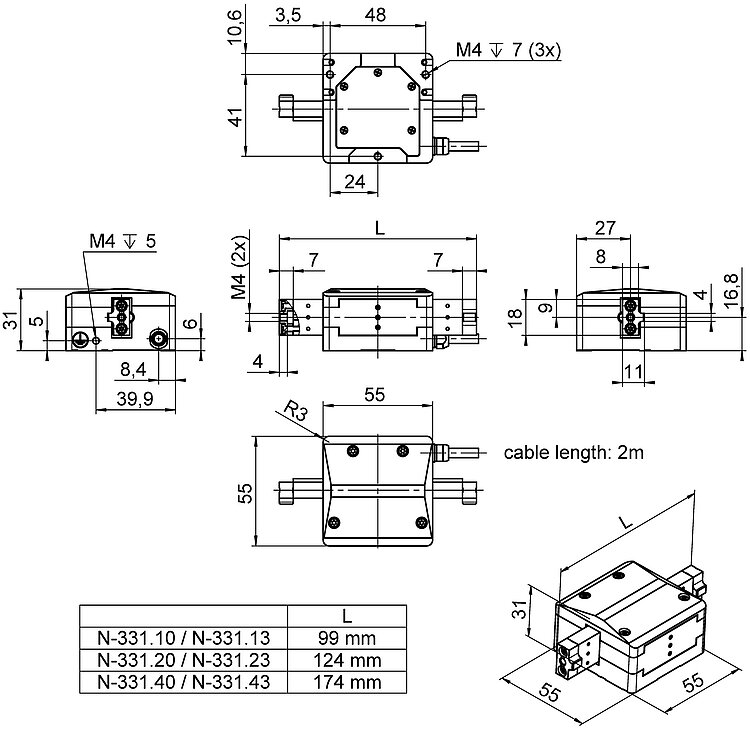

3-D Models

N-331 3-D model

N-331 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
