V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor

V-857 High-Speed Linear Stage
Product Description Specifications Downloads Quote / Order
  • Long travel ranges (to 1200 mm) with narrow profile (132 mm width)
  • Permanent load capacity to 1000 N
  • Highly dynamic, maintenance-free linear motor with velocities up to 5 m/s
  • Robust industrial design for a long lifetime
  • High-precision incremental or absolute linear encoder
  • Easy XY mounting

Industrial design for high performance and high load

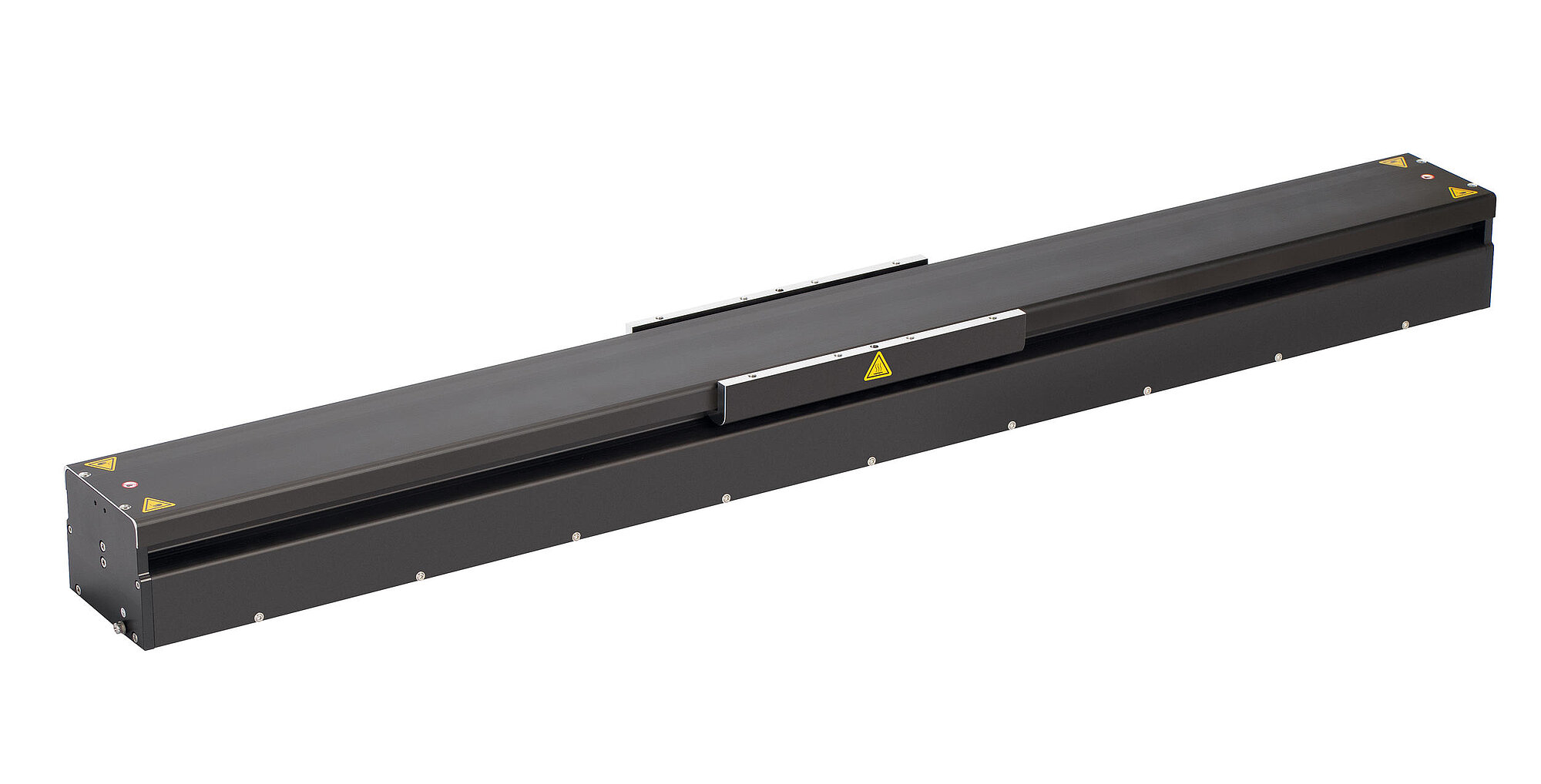

The V-857 is a heavy-duty and highly dynamic linear stage for industrial applications. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: recirculating ball bearing guides, 3-phase linear motor, incremental or absolute linear encoder. The high resolution of the encoders allows an excellent tracking performance, small tracking errors, and short settling times. Industry-compatible connectors offer a fast and secure connectivity. The optional motion platform offers versatile assembly options with a triple M6 hole pattern.

Linear motor with direct drive

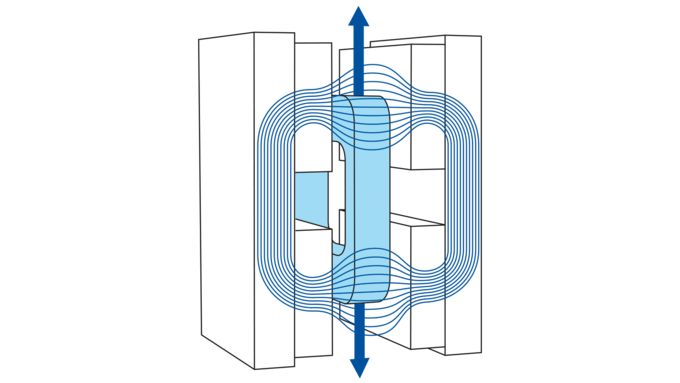

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Application fields

Electronics assembly: Sensor and camera assembly. Noncontact inspection, X-ray inspection, and AOI (automated optical inspection). Sensor and ultrasonic tests. Semiconductor manufacturing: Wafer processing and inspection. Laser machining: Laser welding. Highly dynamic applications in precision automation, smooth scan motion, minimum tracking errors, and short settling times.

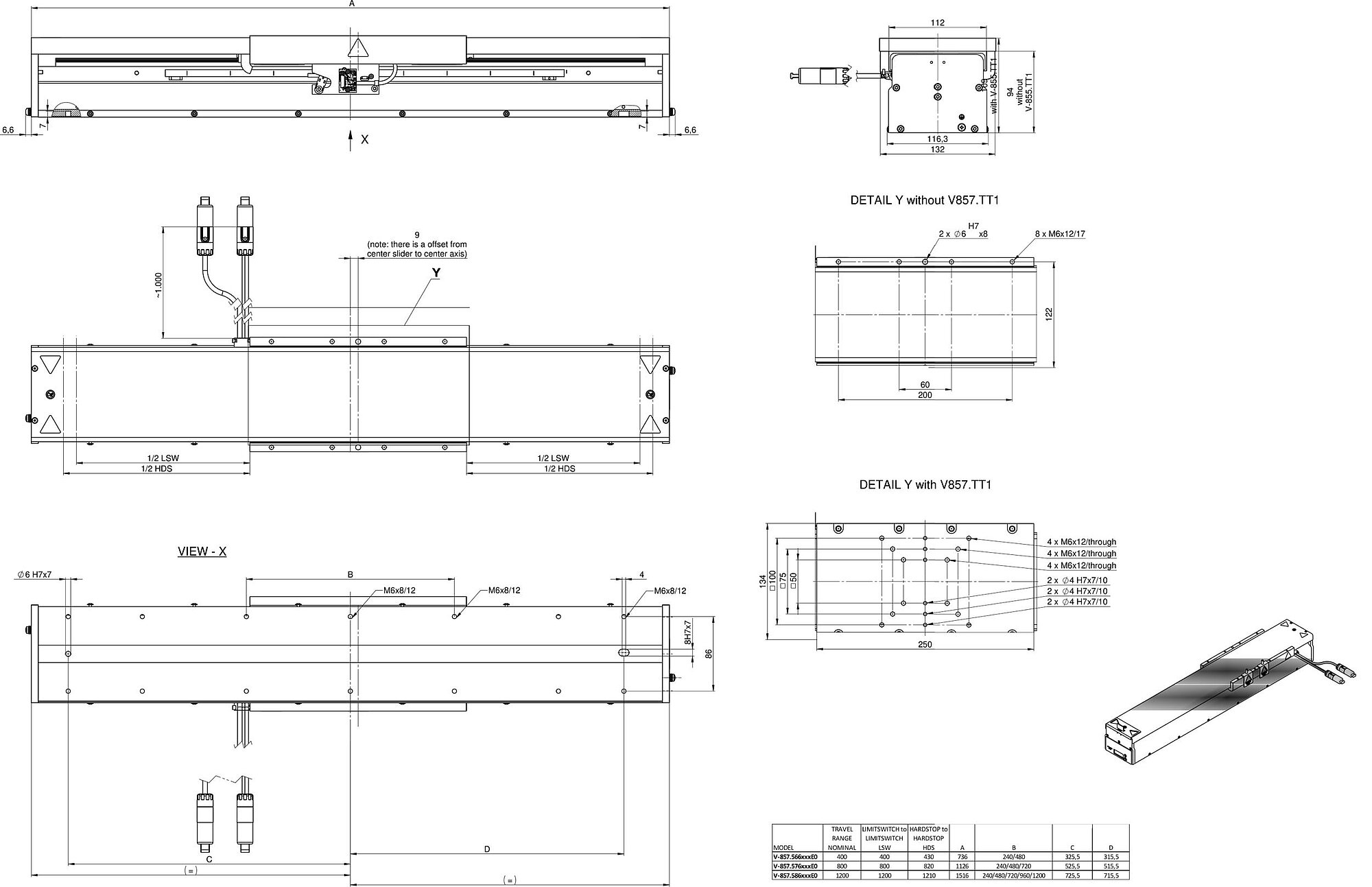

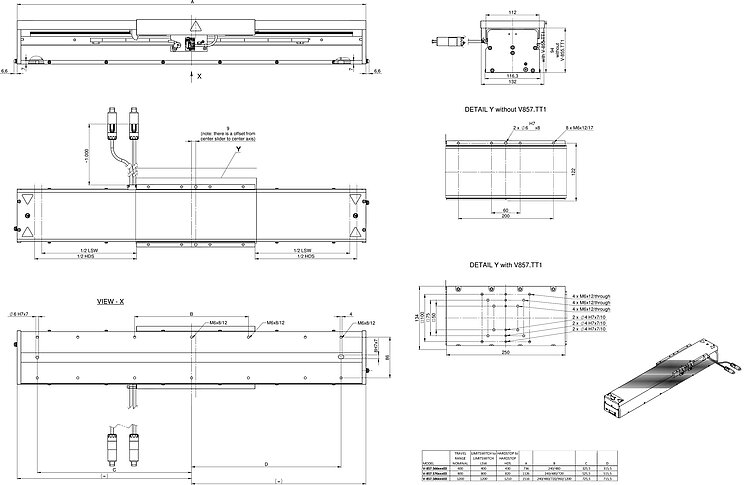

Specifications

Datasheet

Datasheet V-857

Version / Date
2021-03-23
Version / Date
2021-03-23
Document language
pdf - 957 KB
pdf - 962 KB

Downloads

Datasheet

Datasheet

Datasheet V-857

Version / Date
2021-03-23
Version / Date
2021-03-23
Document language
pdf - 957 KB
pdf - 962 KB

3-D Models

3-D Models

3-D model V-857.5x6xxxE0

Version / Date
2021-03-23
Request download link

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

V-857.576211E0 NEW!
High-speed linear stage; ironless 3-phase linear motor; 800 mm travel range; 1000 N load capacity; 5000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak;
