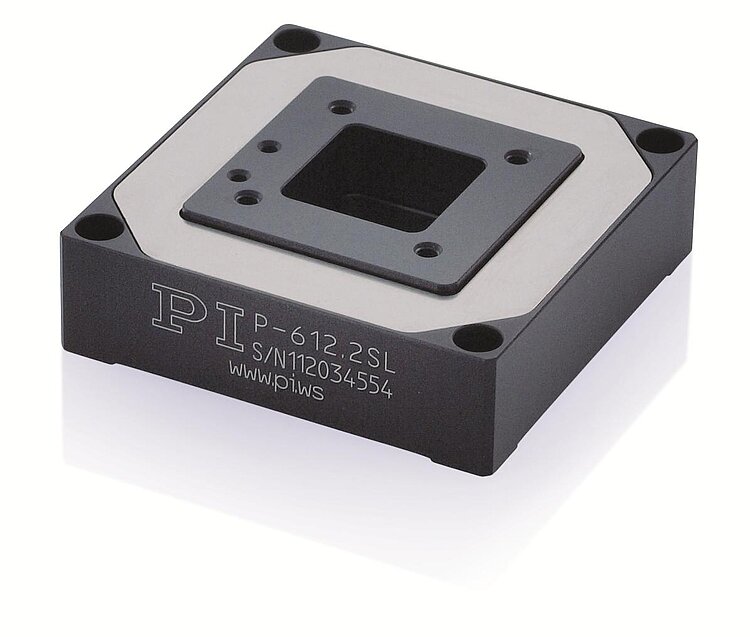

P-612.2 XY Piezo Nanopositioner

Compact, with Aperture

  • Compact: Surface 60 mm × 60 mm
  • 100 µm × 100 µm closed-loop travel range (130 µm × 130 µm, open loop)
  • For cost-critical applications
  • Clear aperture 20 mm × 20 mm
  • Parallel kinematics for faster response times and higher multi-axis accuracy
  • Outstanding lifetime thanks to PICMA® piezo actuators
  • Also available as compact version
P-612.2 XY Piezo Nanopositioner
Product Description Specifications Downloads Quote / Order

Application fields

  • Scanning microscopy
  • High-throughput microscopy
  • Super-resolution microscopy
  • Mask / wafer positioning
  • Interferometry
  • Measuring technology
  • Biotechnology
  • Micromanipulation

Outstanding lifetime due to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

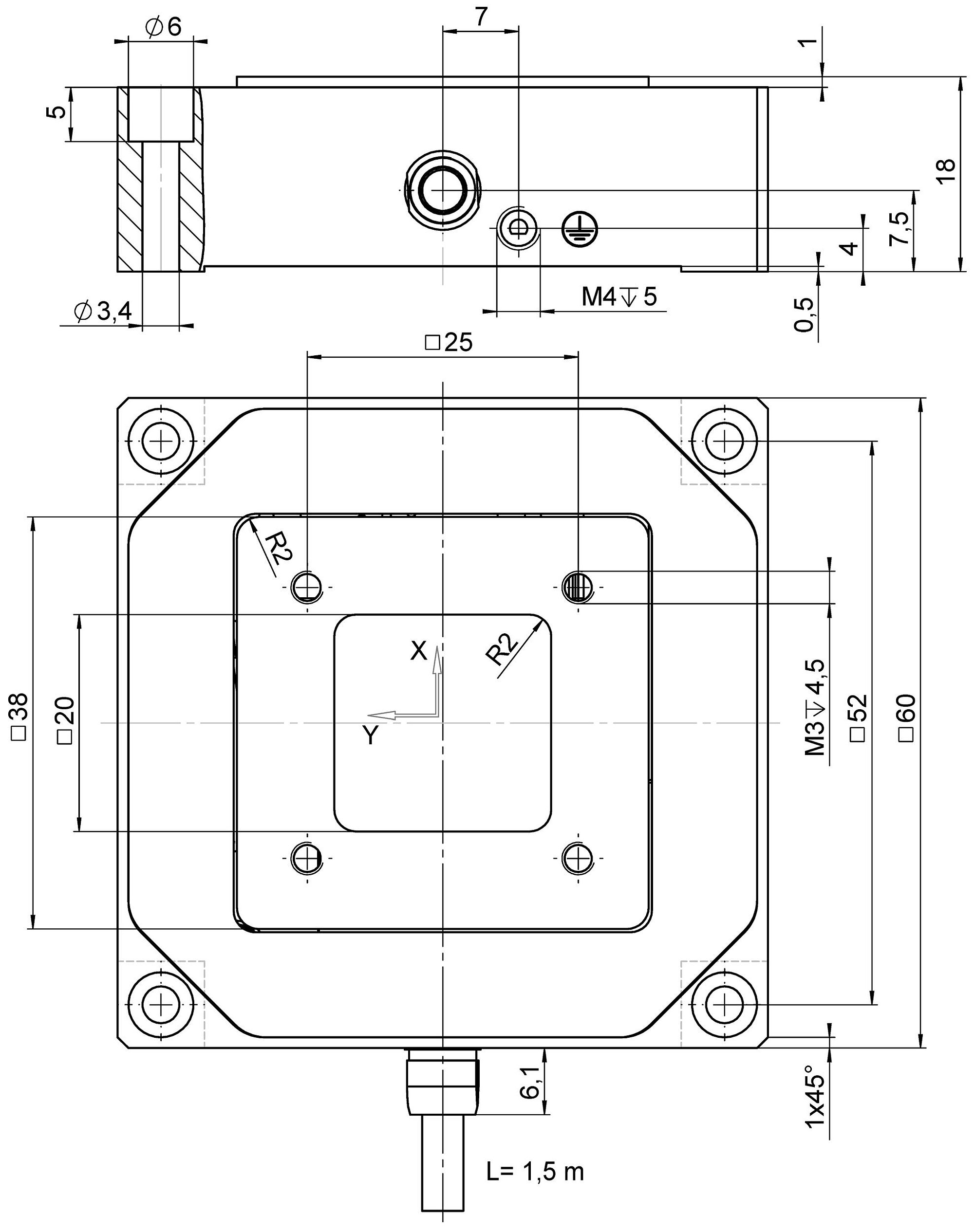

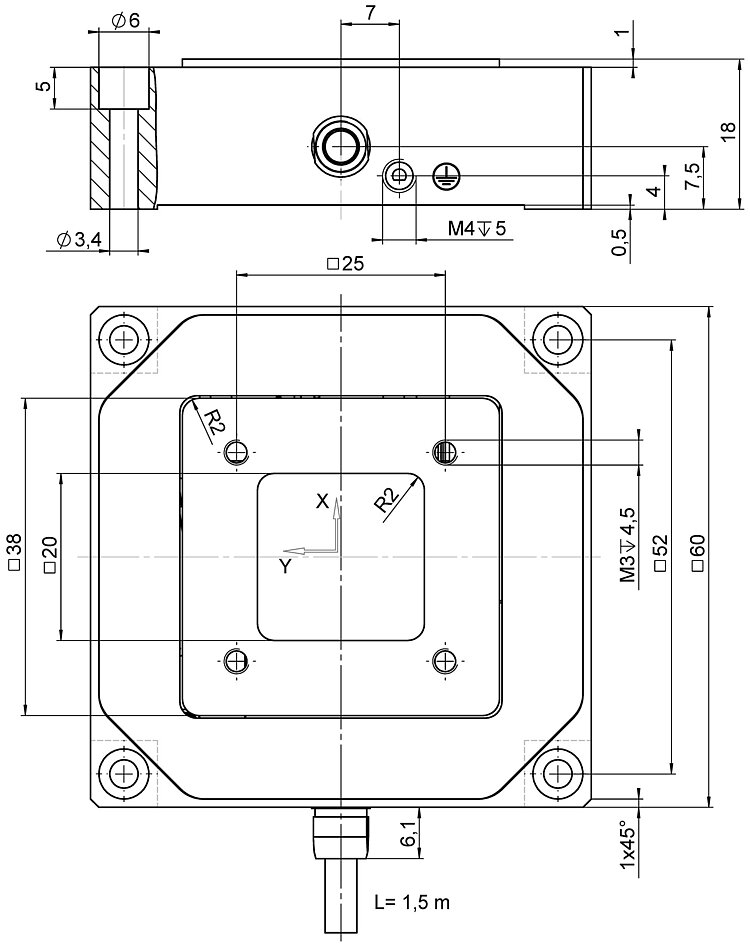

Specifications

Datasheet

Datasheet P-612.2

Version / Date
2024-01-17
pdf - 445 KB
Version / Date
2024-01-17
pdf - 498 KB
Version / Date
2018-06-13
pdf - 720 KB
Version / Date
2018-07-11
pdf - 801 KB

Downloads

Product Note

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-612.2

Version / Date
2024-01-17
pdf - 445 KB
Version / Date
2024-01-17
pdf - 498 KB
Version / Date
2018-06-13
pdf - 720 KB
Version / Date
2018-07-11
pdf - 801 KB

Documentation

Documentation

User Manual PZ280

P-612 XY Nanopositioning Systems and Vertical Nanopositioning Stages

Version / Date
1.0.0 2017-04-27
pdf - 2 MB
Version / Date
1.0.0 2017-04-27
pdf - 2 MB
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.2.0 03/2024
pdf - 561 KB
Version / Date
6.2.0 03/2024
pdf - 595 KB

3-D Models

3-D Models

P-612.2SL 3D Model

zip - 72 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-612.2SL

XY piezo nanopositioner; 100 µm × 100 µm travel range (X × Y); aperture 20 mm × 20 mm; SGS, indirect position measuring; LEMO connectors; 1.5 m cable length
