P-405 Picoactuator®

Multi-axis Actuators with Highly Linear Displacement

P-405 Picoactuator®
Product Description Specifications Downloads Quote / Order

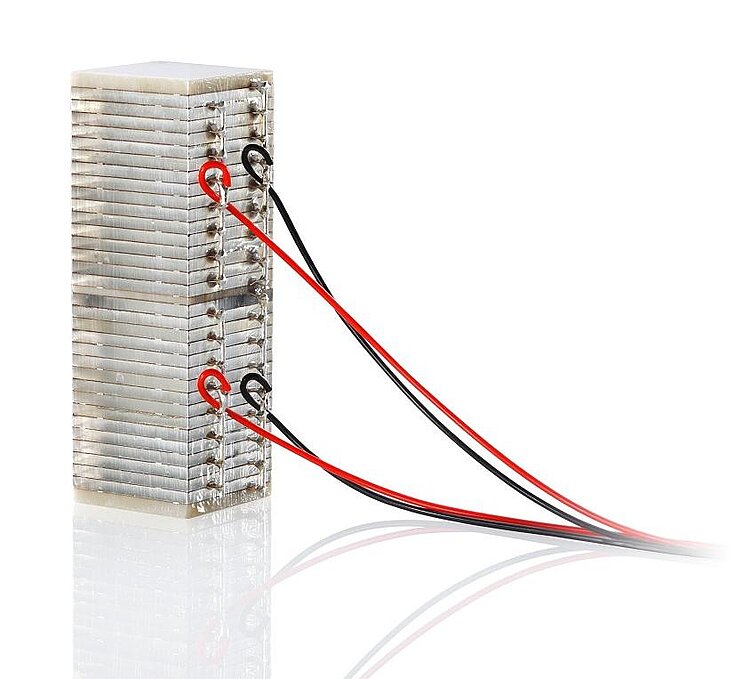

Stack actuator

Bipolar operating voltage up to ±500 V. Nearly hysteresis-free motion (<0.2 %). No creep. Picoactuators®, as longitudinal and shear actuators, are configurable up to heights of 20 mm and maximum travel ranges of ±1.5 µm.

Technology

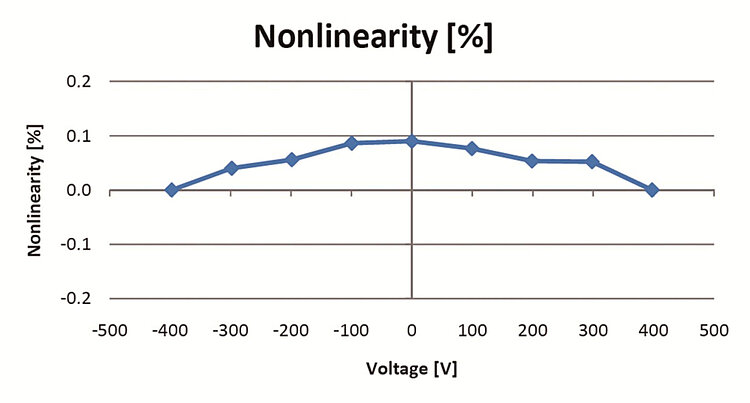

Picoactuator® longitudinal and shear actuators consist of a crystalline piezoelectric material. The specific displacement for shear actuators is ±0.02 % of the actuators length and ±0.01 % for longitudinal piezo actuators. This value is ten times lower when compared to piezo actuators made of lead zirconate titanate (PZT). The motion is highly linear and almost hysteresis-free.

Customized versions and other specifications on request

  • UHV-compatible to 10-9 hPa
  • Inner hole
  • Tips

Fields of application

  • Industry and research
  • Vacuum applications
  • High dynamics, open-loop scanning applications
  • Compensation of undesired transverse motion with nanopositioning systems ("out-of-plane" and "out-of-line")

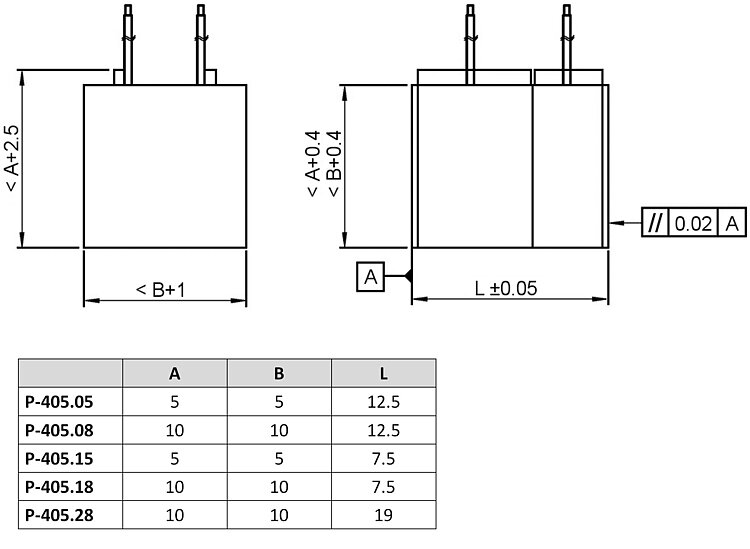

Specifications

Datasheet

Datasheet P-405

Version / Date
2019-02-19
Version / Date
2019-02-19
Version / Date
2019-07-22
Version / Date
2019-07-22
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 859 KB
pdf - 837 KB

Downloads

Datasheet

Datasheet

Datasheet P-405

Version / Date
2019-02-19
Version / Date
2019-02-19
Version / Date
2019-07-22
Version / Date
2019-07-22
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 859 KB
pdf - 837 KB

Documentation

Documentation

User Manual PZ284

P-405 Picoactuator®
Version / Date
1.0.1 2019-03-08
Version / Date
1.0.1 2019-03-08
Document language
Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®
Version / Date
2.1.0 01/2019
Document language English
pdf - 437 KB
