P-1x1.0xT PICA Shear Actuators

Compact Actuators for Cryogenic and UHV Environments

P-1x1.0xT PICA Shear Actuators
Product Description Specifications Downloads Quote / Order

Piezo shear actuators

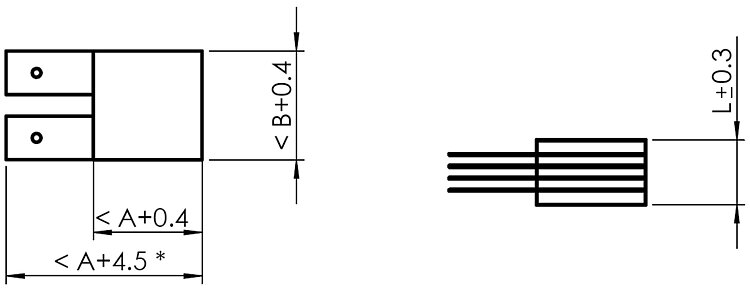

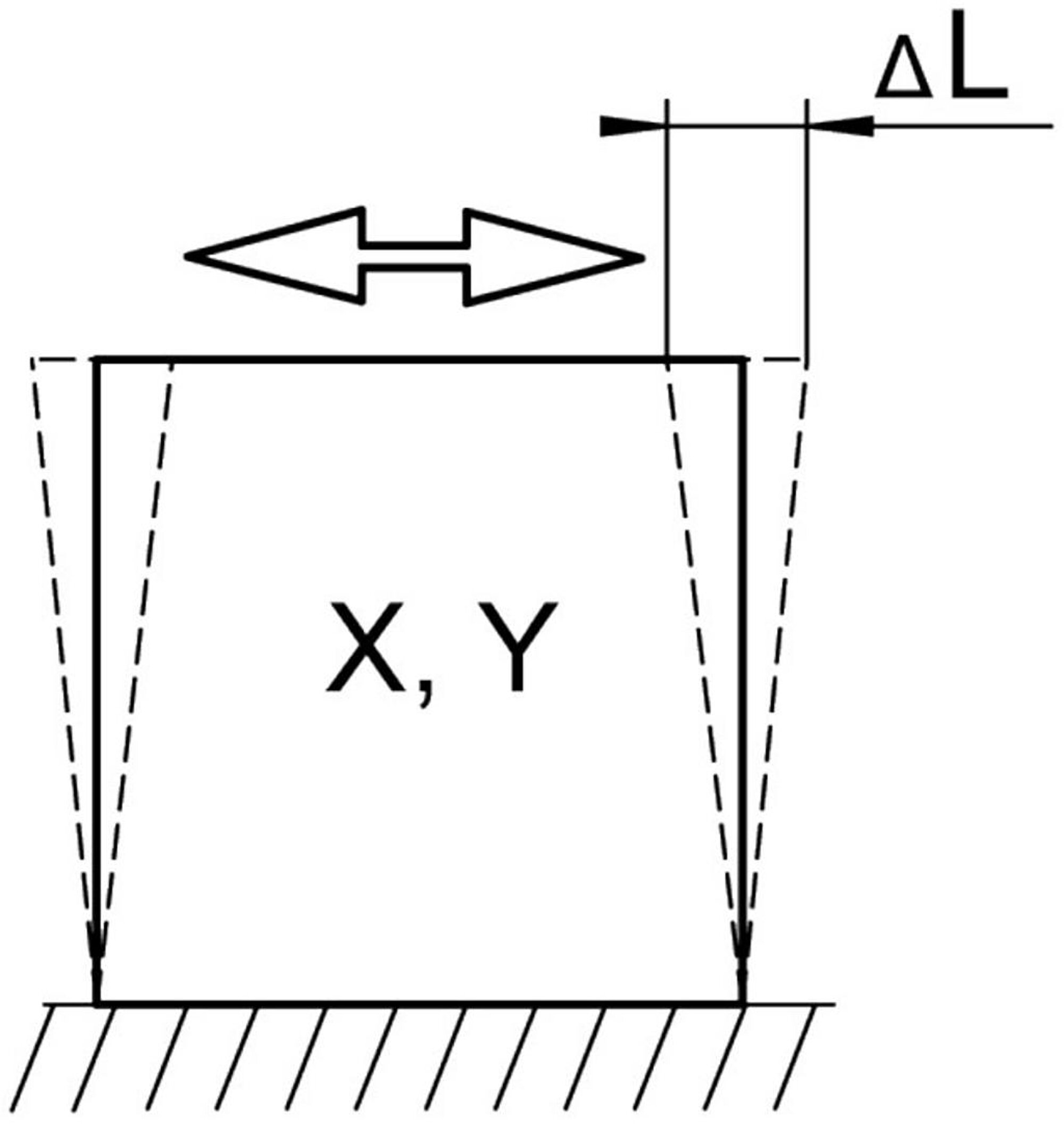

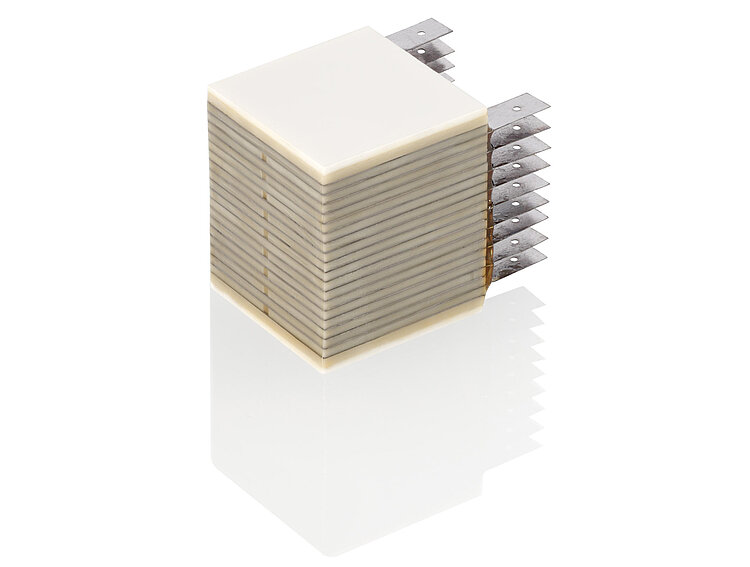

Operating voltage -250 to 250 V. Suitable for use in cryogenic and UHV environments to 10-9 hPa. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

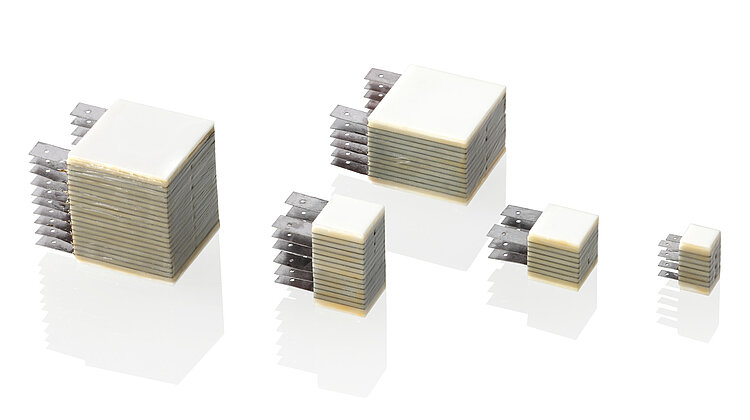

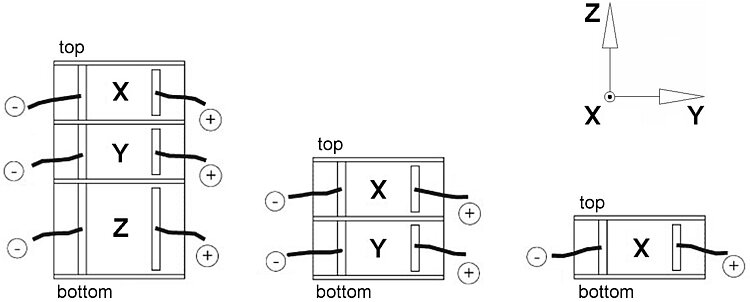

Variants for multi-axis motion, also with inner hole.

Possible modifications

  • Piezo ceramic material
  • Nonmagnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances

Fields of application

  • Industry and research
  • Low temperature / vacuum environment to 10-9 hPa
  • Scanning applications
  • Microscopy
  • Precision mechanics
  • Switching applications
