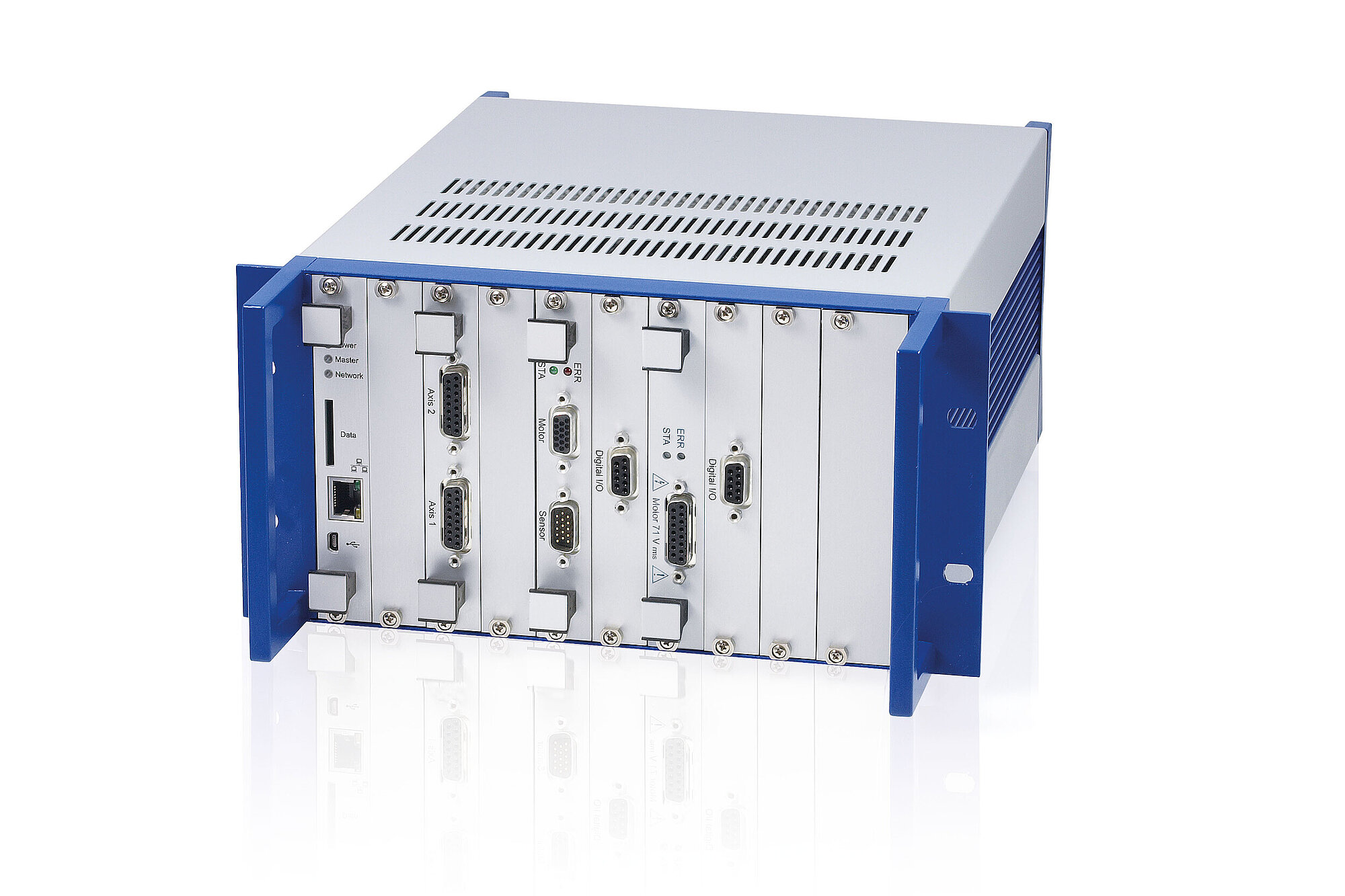

C-885 PIMotionMaster

Rack with Processor and Interface Module for Modular Multi-Axis Controller System

C-885 PIMotionMaster
Product Description Specifications Downloads Quote / Order
  • Easy configuration and startup
  • Modular design for versatile expansion
  • Efficient communication with the controller modules
  • Greatly reduced wiring effort
  • Saves space and costs

Easy installation

Plug-and-play installation of the controller modules in the C-885 PIMotionMaster. The processor and interface module communicates with the PIMikroMove software and with the controller modules. It detects the available controller module type automatically. Grouping the controller modules in one housing ensures internal communication and reduces the wiring effort because of the common power adapter and external communication via a single USB or Ethernet interface.

Easy to expand

The system is easily scalable. An additional controller module can be inserted into any free slot and expands the overall system by the corresponding functions. Optional digital inputs and outputs can be installed for every controller module.

Controller modules

C-863.20C885: Motion controller module for DC motors and brushless DC motors

C-867.10C885: Motion controller module for PILine® piezo motors of the performance class 1 and 2

E-861.11C885: Motion controller module for NEXACT® piezo motors

E-873.10C885: Motion controller module for Q‑Motion® piezoelectric inertia drives

C-663.12C885: Motion controller module for 2-phase stepper motors

C-891.11C885: Motion controller module for PIMag® magnetic direct drives
