If a corresponding amplifier module is included in the E-713 Motion Controller, the sensor connector of a module for capacitive sensors or strain gauge sensors also carries the voltage for the piezo actuators of the positioning system.

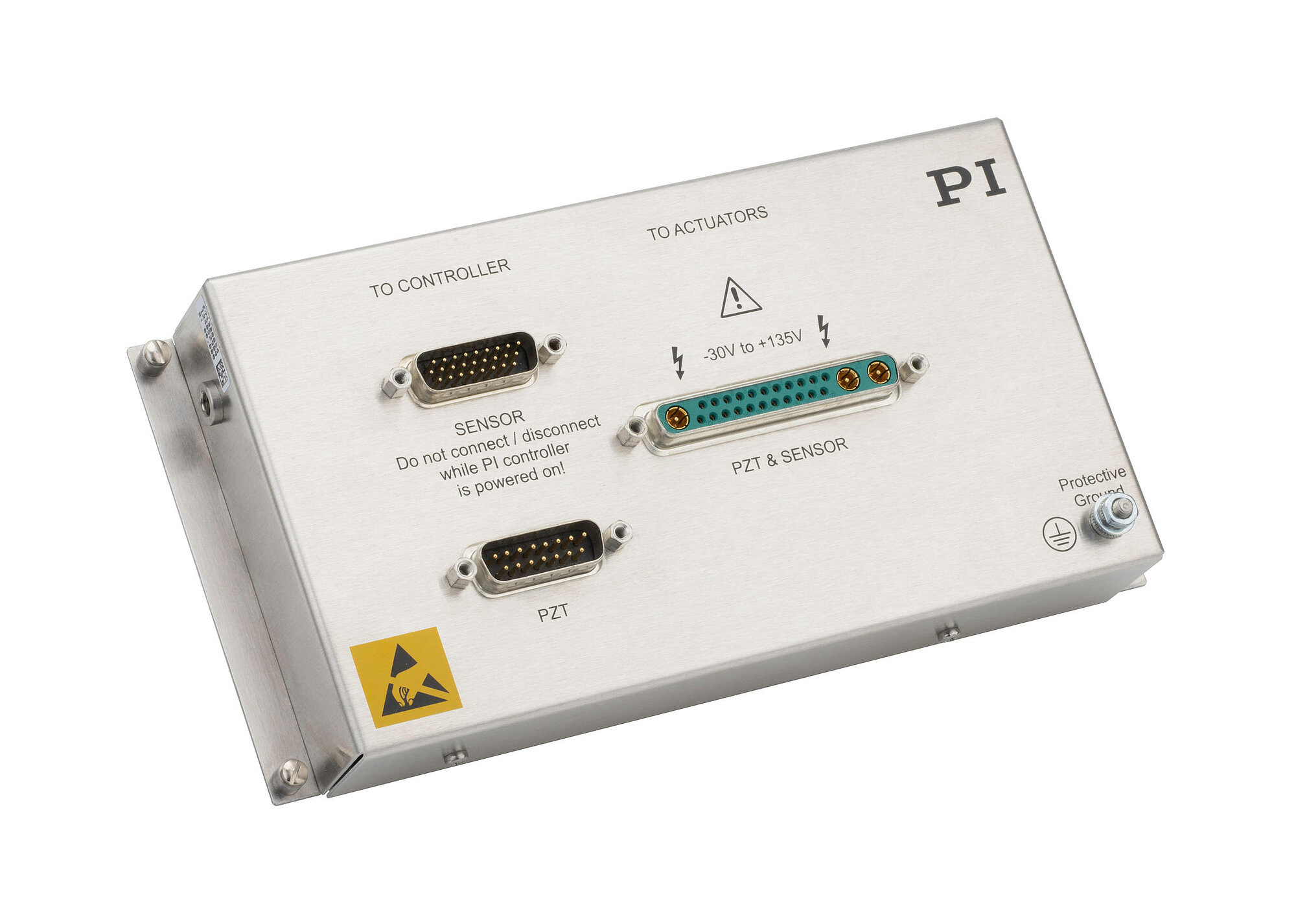

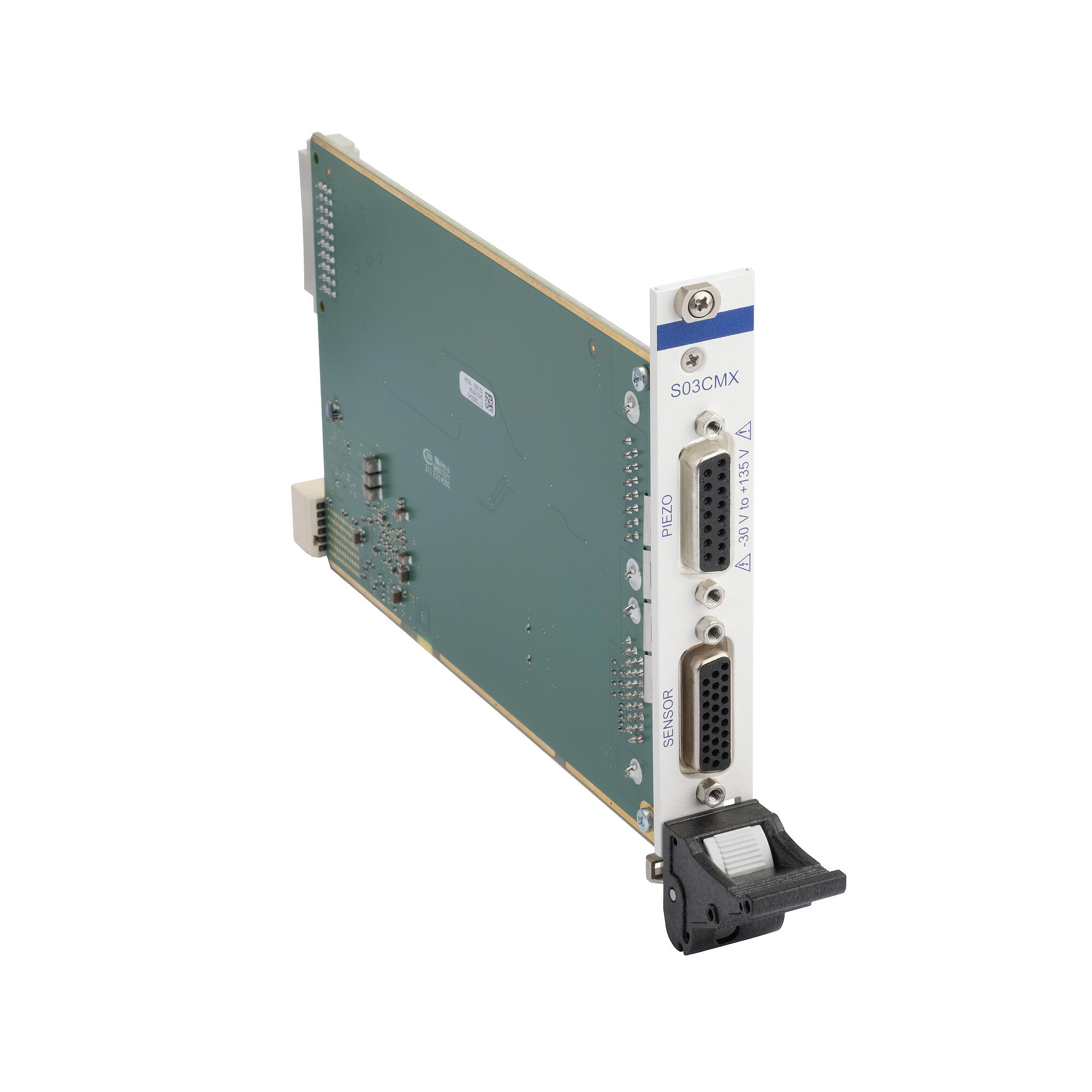

The E-713.S03CMX digital sensor signal transmission consists of a module that is installed in the housing of the E-713 Motion Controller and of a separate sensor box for installation close to the positioning system. Cables for connecting the sensor box to the module are not included in the scope of delivery as the length of the cables depends on the specific application.
When using the E-713.S18BHX sensor box, the E-713 Motion Controller must include an SPI interface module to feed in the sensor signals. The scope of delivery of the sensor box includes an adapter HD D-sub 26 (f) to DisplayPort socket for the connection to the SPI interface module. The scope of delivery does not include a DisplayPort cable.
The maximum power dissipation of the E-713.S18BHX sensor box is 2.2 W.
Where no specifications have been made on the operating voltage level and connector type or on the power supply and maximum power consumption, the power supply is provided via the housing of the E-713 Motion Controller.

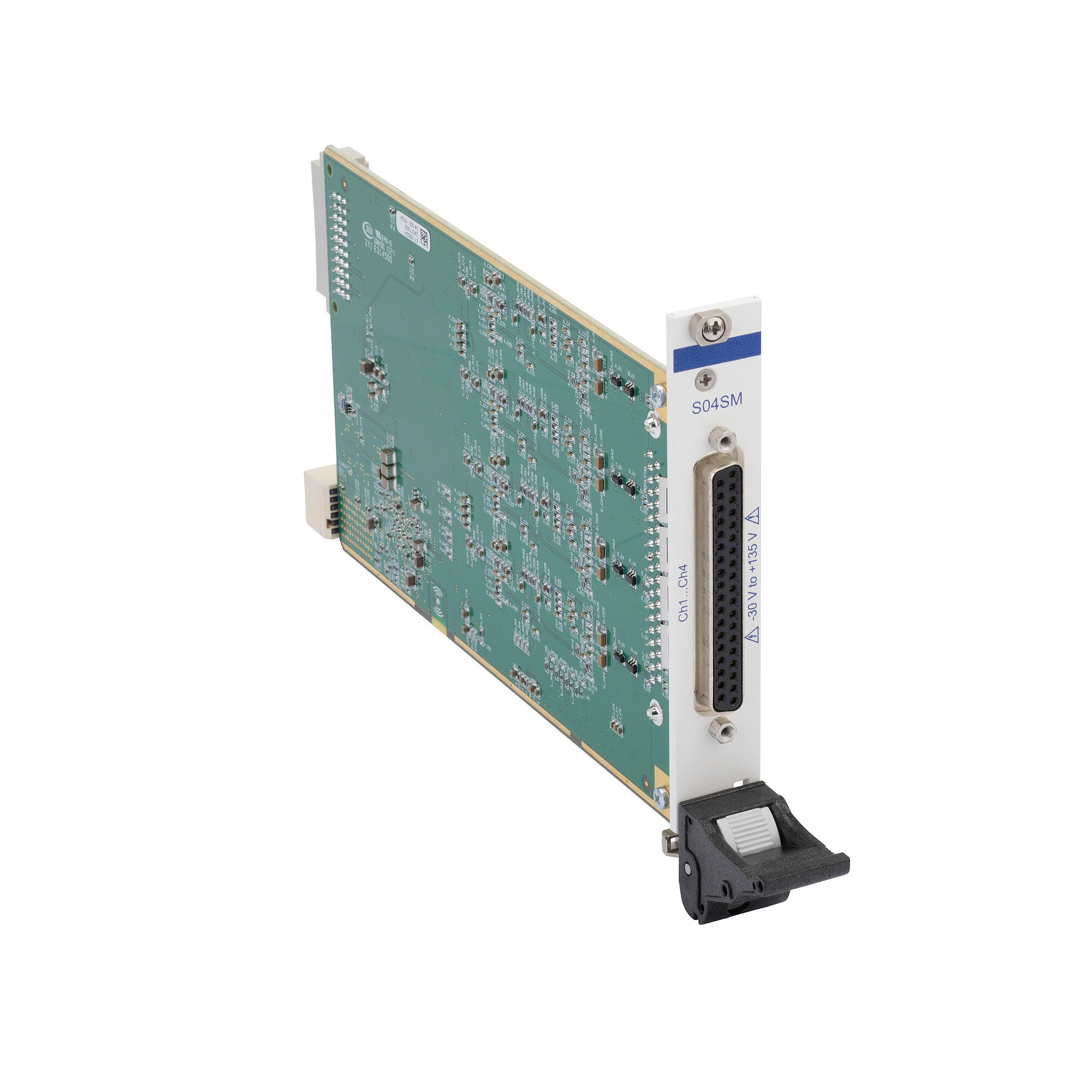

Additional specifications on the module for strain gauge sensors:
For the strain gauge sensor:
- Sensor resolution, 1 σ, at 300 Hz: 1:20000
- Reference signal, per channel: 5 V, max. 15 mA
For the PT1000 temperature sensor:
- Sensor resolution: 8 bit, -50 °C to +150 °C
- Current of the reference signal: 0.25 mA
In the case of the modules for incremental sensors, the interpolation electronics automatically adjusts offset and gain for the Sin/Cos sensor signals. The adjustment requires motion across at least 16 signal periods of the sensor.
