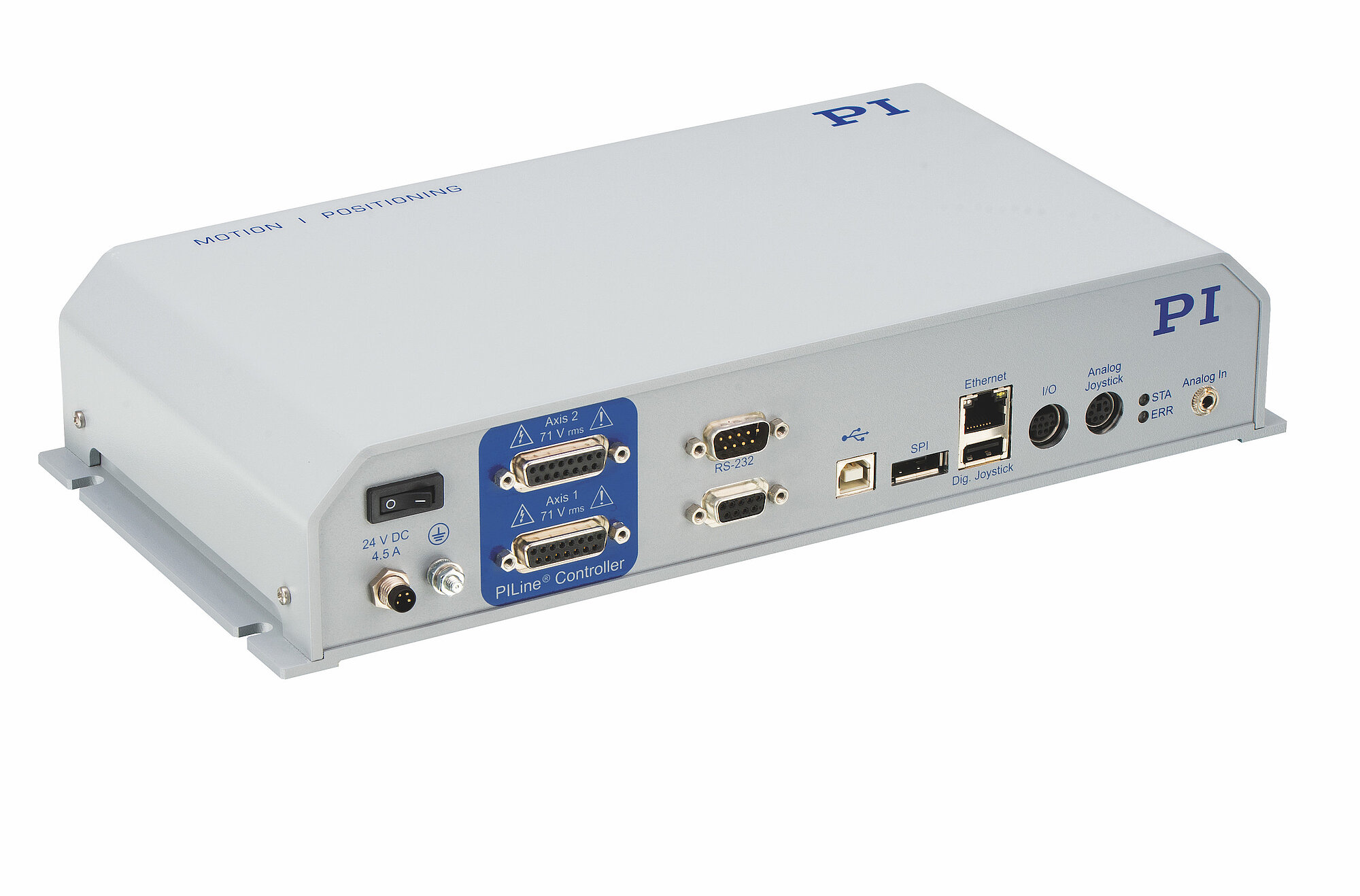

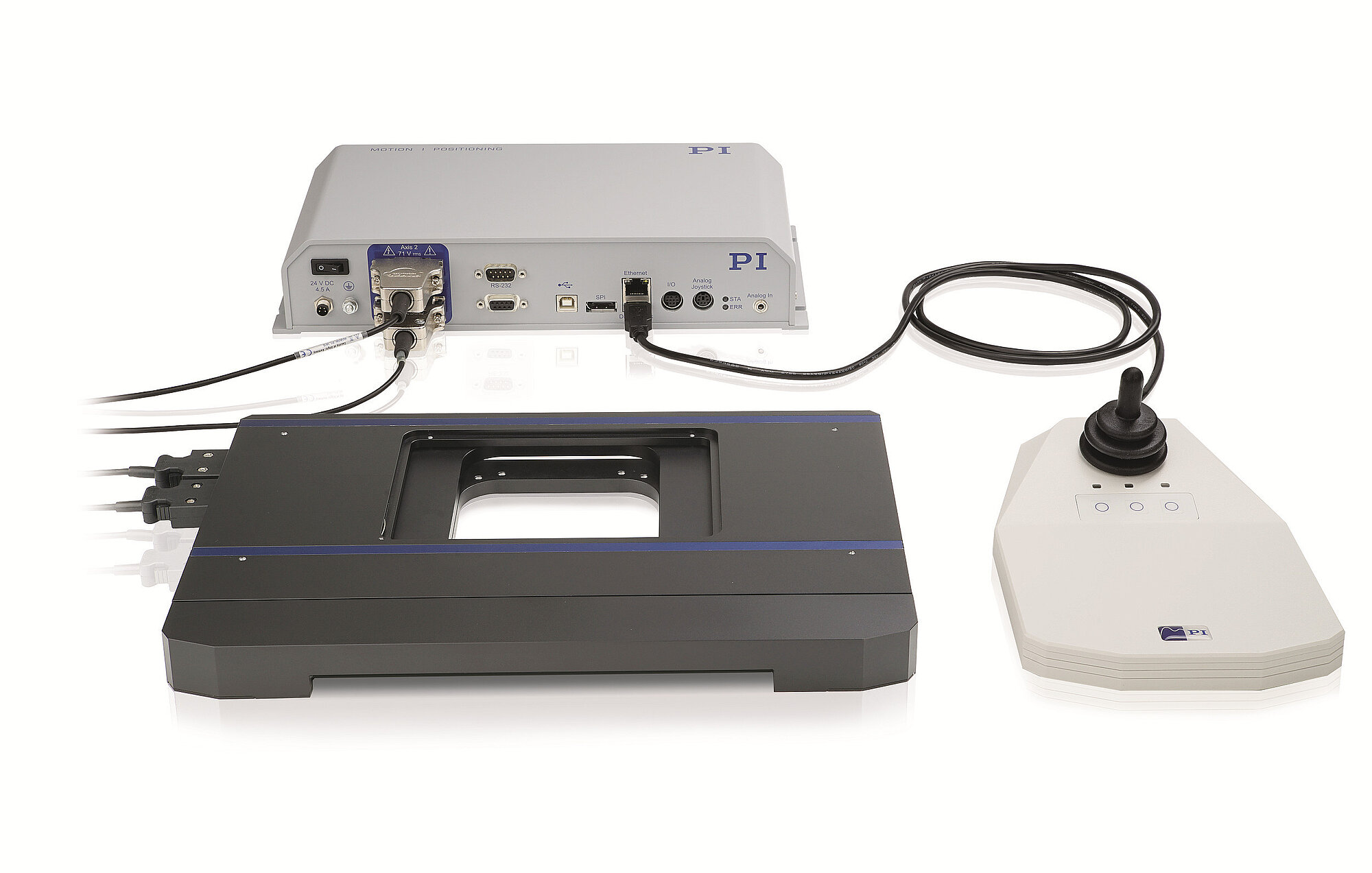

C-867.2U2 PILine® Motion Controller

For Two-Axis Positioning Stages with PILine® Ultrasonic Piezo Motors

C-867.2U2 PILine® Motion Controller
Product Description Specifications Downloads Quote / Order
  • Integrated power amplifier with dynamic frequency control
  • Multifunctional encoder input: A/B, sin/cos, BiSS
  • Macro programmable for stand-alone functionality
  • Integrated interfaces: USB, RS-232, TCP/IP, SPI, I/O, joystick
  • Daisy chain networking
  • Trajectory support for 1- or 2-D motion patterns

Servo controller and power amplifier

Two-axis benchtop device with special PID controller for PILine® ultrasonic piezo motors. Network capable with up to 16 units on a single interface. Power amplifier for PILine® ultrasonic piezo motors and stages with performance class 1 and 2 piezo motors. Dynamic frequency control for optimum control.

Motion profiles

Point-to-point, trapezoidal velocity profile. User-definable trajectories (e.g., circles, sine curves) from externally fed points.

Interfaces and communication, encoder input

USB, RS-232, TCP/IP, SPI interface for commanding. I/O lines for automation. Connectors for analog and digital joystick. Differentially transmitted A/B signals (TTL) or sin/cos signals. BiSS interface for absolute encoders. Inputs for TTL signals from limit and reference point switches.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Fields of application

  • Micromanipulation
  • Automation
  • Biotechnology
  • Sample manipulation
  • Sample positioning
  • Optical measuring technology

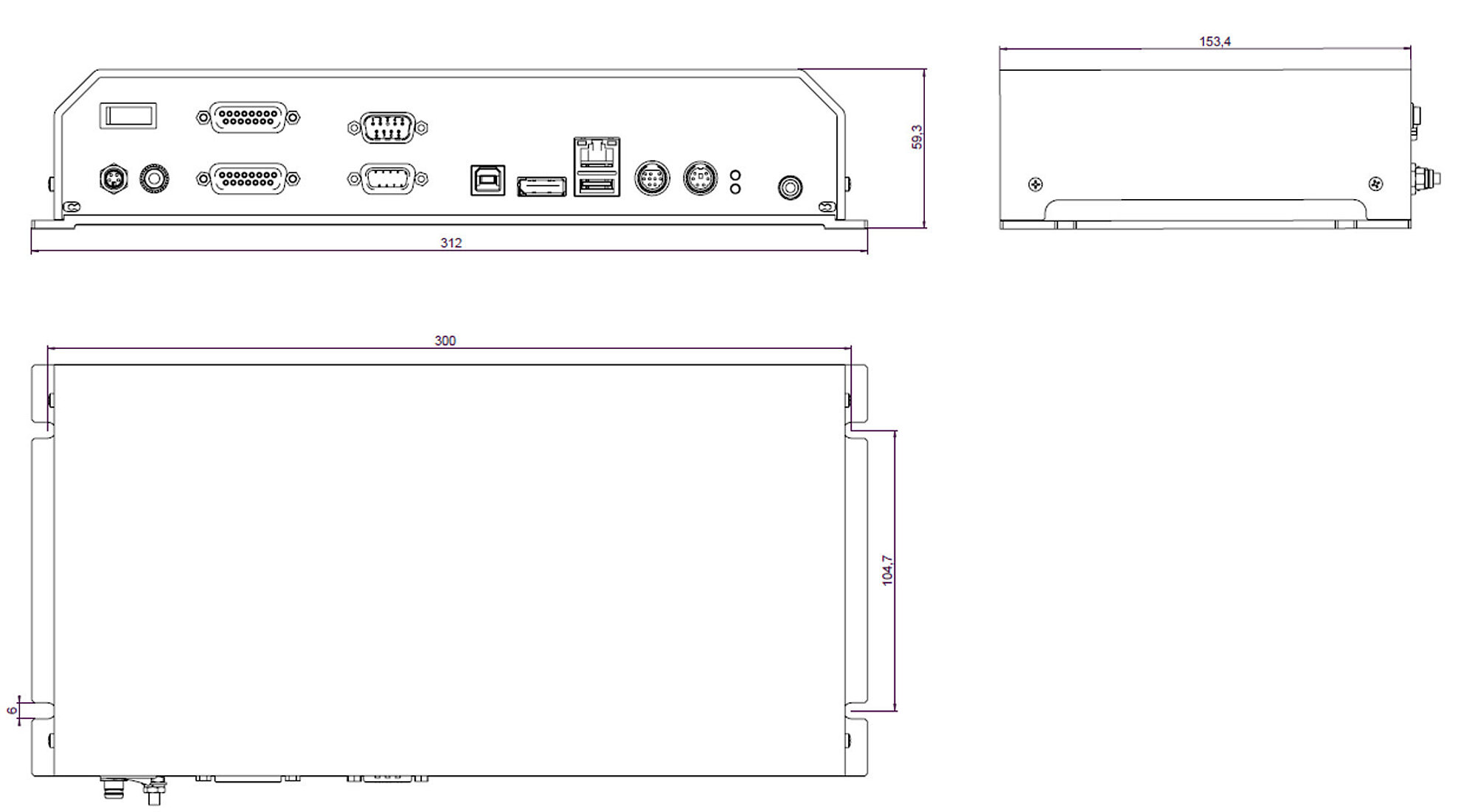

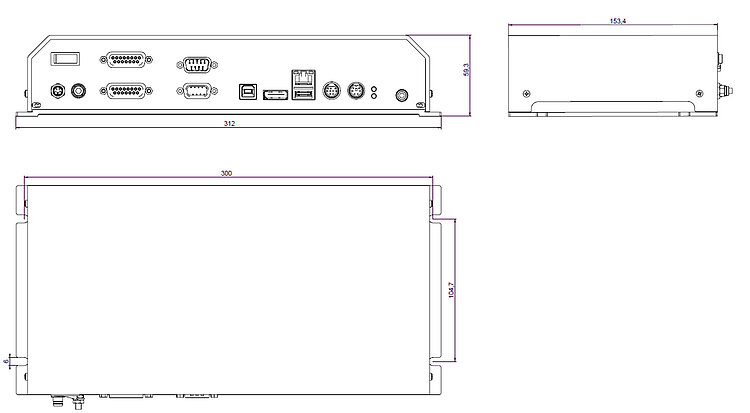

Specifications

Datasheet C-867.2U2

Version / Date
2018-05-22
Version / Date
2018-05-22
Version / Date
2018-05-22
Document language
pdf - 188 KB
pdf - 191 KB
pdf - 327 KB

Downloads

Datasheet

Datasheet C-867.2U2

Version / Date
2018-05-22
Version / Date
2018-05-22
Version / Date
2018-05-22
Document language
pdf - 188 KB
pdf - 191 KB
pdf - 327 KB

Documentation

Short Instructions MS242EK

Digital Motor Controllers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-873
Version / Date
1.2.0 Dec 2017
pdf - 3 MB

3-D Models

C-867.2U2 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
