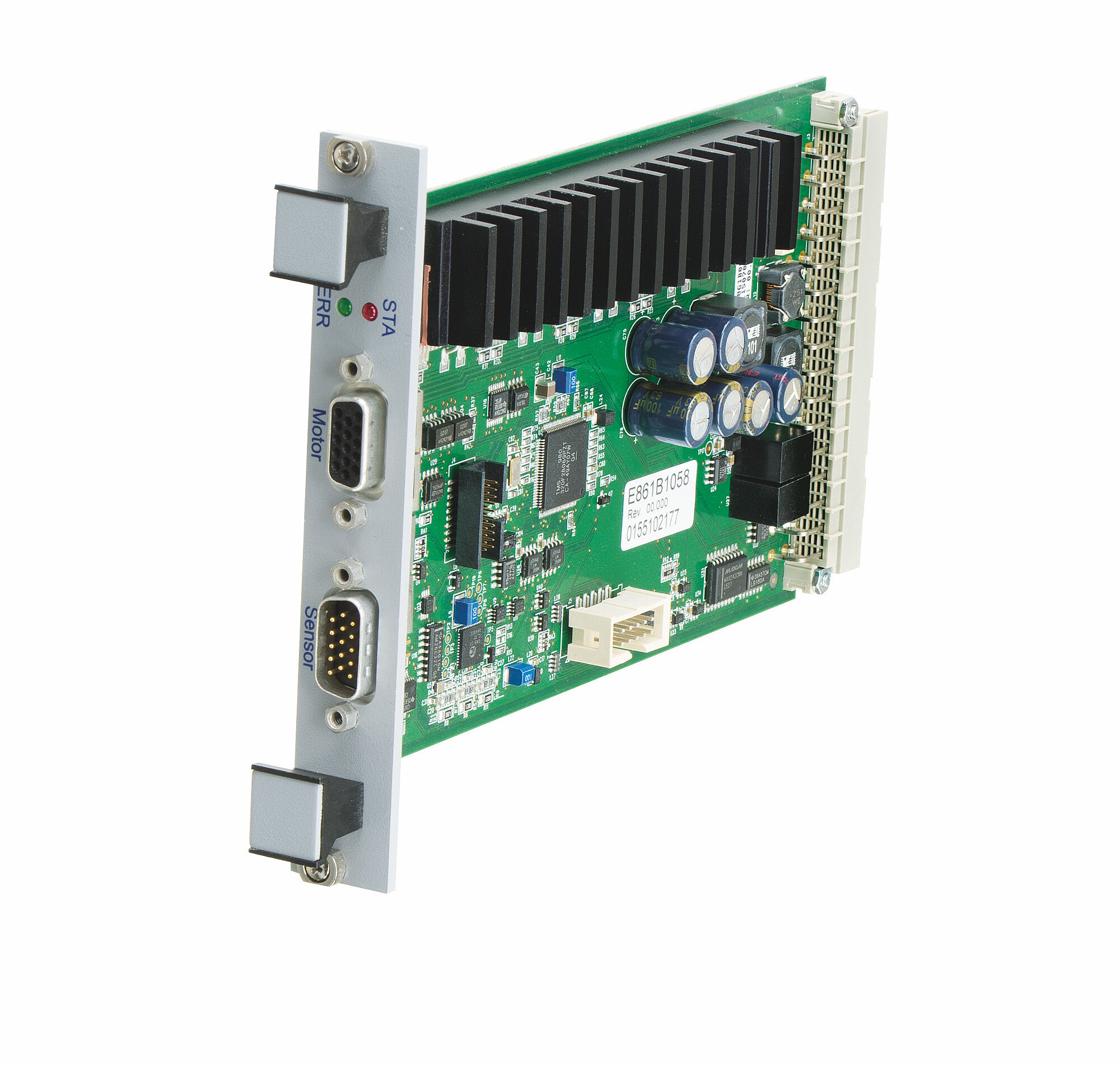

E-861.11C885 NEXACT® Controller Module

For the C-885 PIMotionMaster Modular Controller System

E-861.11C885 NEXACT® Controller Module
Product Description Specifications Downloads Quote / Order
  • High-speed encoder input
  • Data recorder
  • Nonvolatile memory for macros and parameters
  • Control signal for motor brake
  • Suitable for vacuum use because the sensor can be switched off

Digital servo controller for NEXACT® piezo motors

1 axis. Supports motion types of the NEXACT® drives: Nanostepping mode for longer distances. Highly dynamic positioning within one step with resolutions below one nanometer. Sensor can be switched off via parameter, e.g., for use in a vacuum.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Plug-and-play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.

Specifications

Datasheet

Datasheet E-861.11C885

Version / Date
2019-12-03
Version / Date
2019-12-03
Document language
pdf - 283 KB
pdf - 285 KB

Downloads

Datasheet

Datasheet

Datasheet E-861.11C885

Version / Date
2019-12-03
Version / Date
2019-12-03
Document language
pdf - 283 KB
pdf - 285 KB

Documentation

Documentation

User Manual E861T0013

E-861.11C885 Motion Controller Module for NEXACT®, for C-885 PIMotionMaster
Version / Date
2019-12-03
Version / Date
2019-12-03
Document language

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
