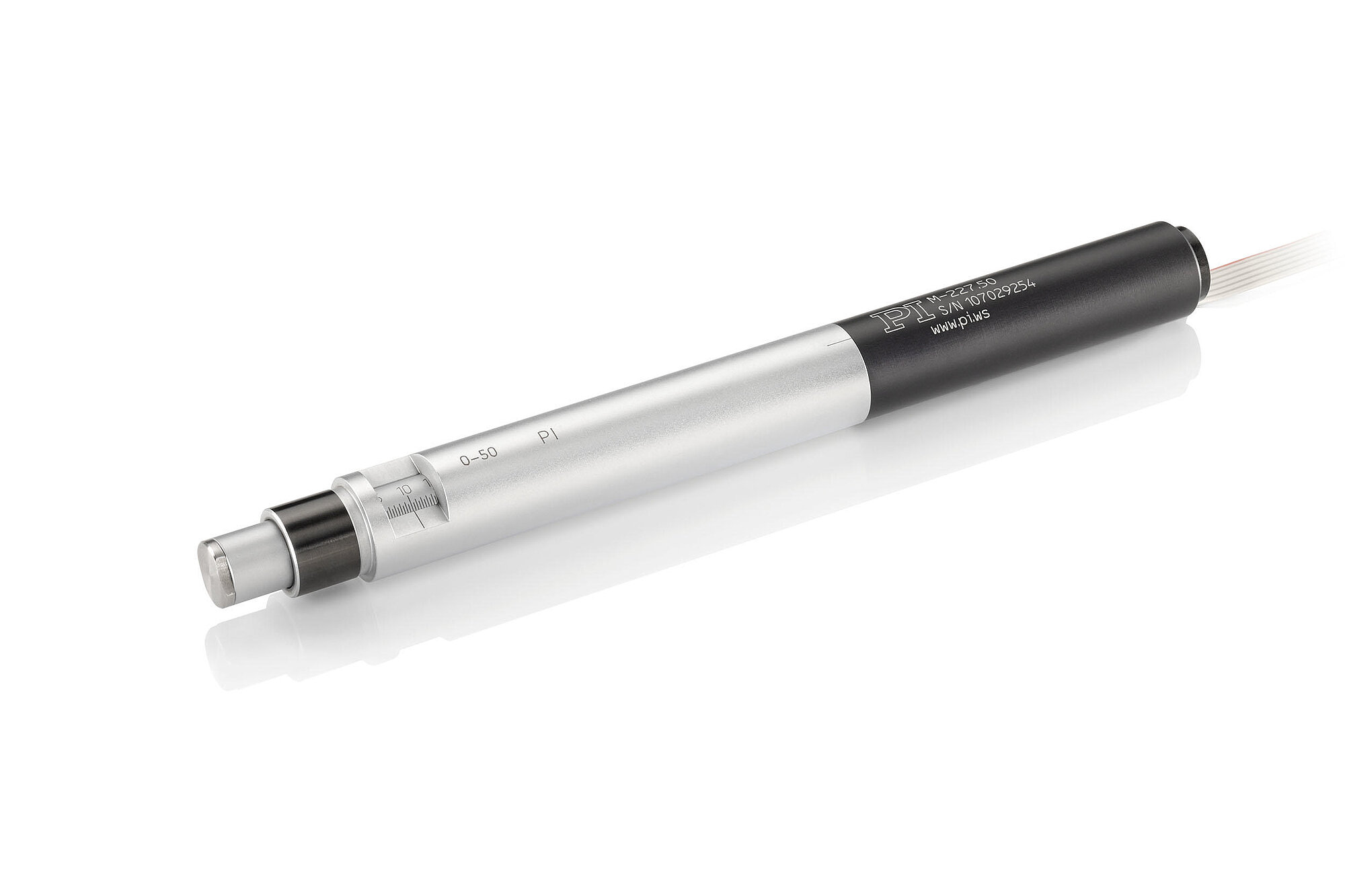

M-227 High-Resolution Linear Actuator with DC Motor

With Optional Piezo Drive

  • Minimum incremental motion 0.05 µm
  • Nonrotating tip
  • Sub-nm resolution with optional piezo drive
M-227 High-Resolution Linear Actuator with DC Motor
Product Description Specifications Downloads Quote / Order

Compact precision-class linear drive

High-resolution DC mike with closed-loop gearhead motors and rotary encoder. For installing into mechanical systems with external limit switches.

High-quality components

Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat tip for decoupling forces. With differential encoder driver in the connector for a safe position signal transmission at distances up to 10 m

Application fields

OEM, alignment, set-and-forget

Specifications

Datasheet

Datasheet M-227

Version / Date
2023-07-12
pdf - 443 KB
Version / Date
2023-07-12
pdf - 445 KB
Version / Date
2018-03-12
pdf - 593 KB

Downloads

Datasheet

Datasheet

Datasheet M-227

Version / Date
2023-07-12
pdf - 443 KB
Version / Date
2023-07-12
pdf - 445 KB
Version / Date
2018-03-12
pdf - 593 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Version / Date
6.0.0 2023-10-10
pdf - 372 KB
Version / Date
6.0.0 2023-10-10
pdf - 384 KB
Documentation

User Manual MP40

M-227 High-Resolution Linear Actuator with DC Motor

Version / Date
1.3.0 2020-07-27
pdf - 739 KB
English

3-D Models

3-D Models

M-227 3-D model

zip - 128 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

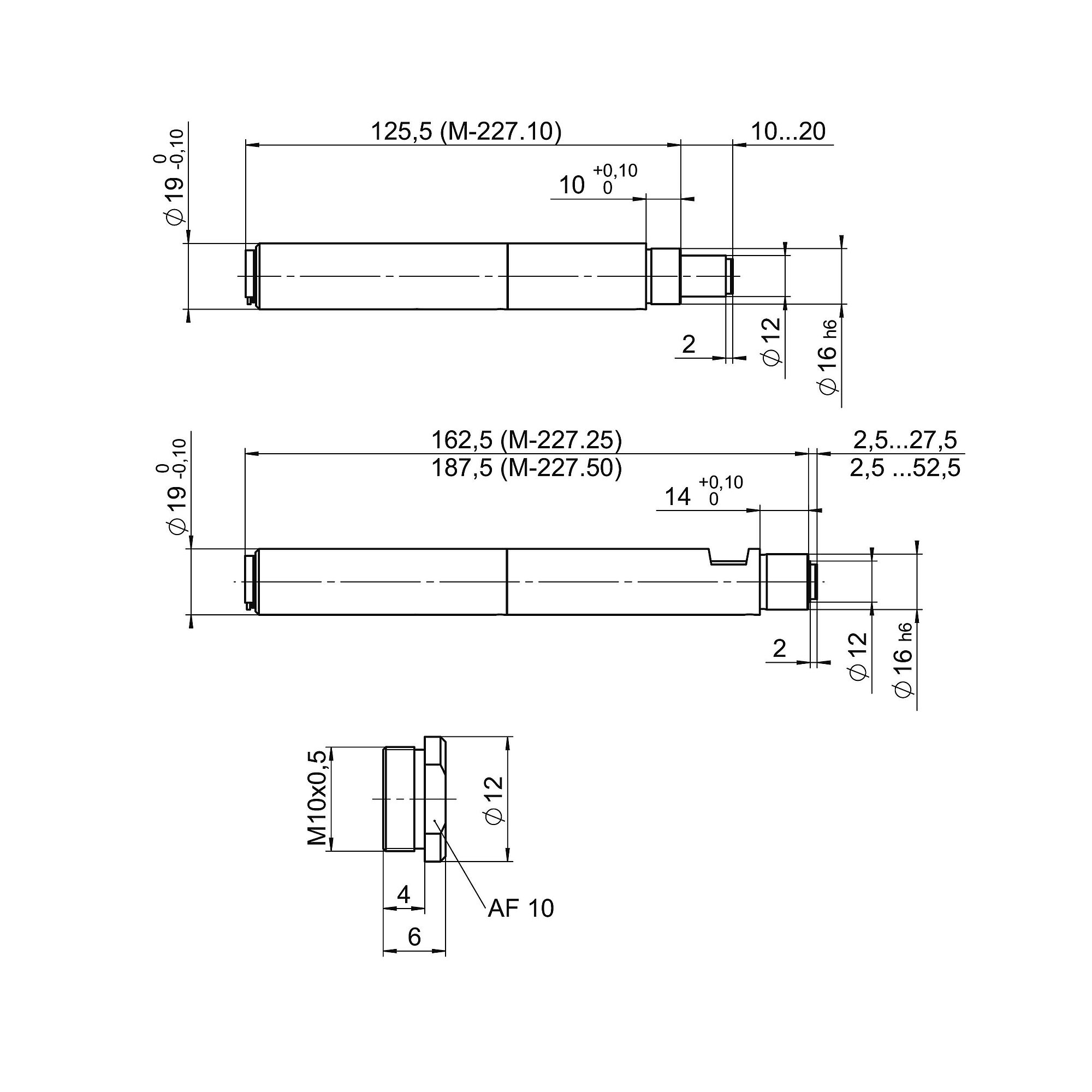

M-227.10

High-resolution linear actuator with DC motor; DC gear motor; 10 mm travel range; 40 N feed force; 0.75 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; 0.1 m cable length

M-227.25

High-resolution linear actuator with DC motor; DC gear motor; 25 mm travel range; 40 N feed force; 0.75 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; 0.1 m cable length

M-227.50

High-resolution linear actuator with DC motor; DC gear motor; 50 mm travel range; 40 N feed force; 0.75 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; 0.1 m cable length
