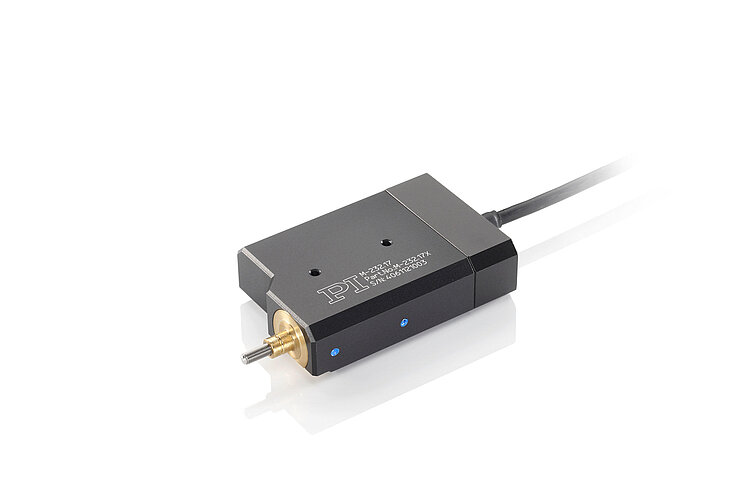

M-232 High-Resolution Linear Actuator with DC Motor

Compact due to Folded Drive

  • Travel range 17 mm
  • Minimum incremental motion 0.1 µm
  • Velocity up to 1.5 mm/s
  • Closed-loop DC motor
  • MTBF >5000 h
M-232 High-Resolution Linear Actuator with DC Motor
Product Description Specifications Downloads Quote / Order

Compact precision-class linear drive

High-resolution linear actuator, DC motor. Compact design due to folded drive. Rotating tip, rotating pusher. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm

Fits on the M-105 microtranslation stage.

High-quality components

Extremely low-friction and backlash-free construction. Noncontact limit switches protect the mechanics. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m

Application fields

Precision alignment, motorized alternative for micrometer screws.

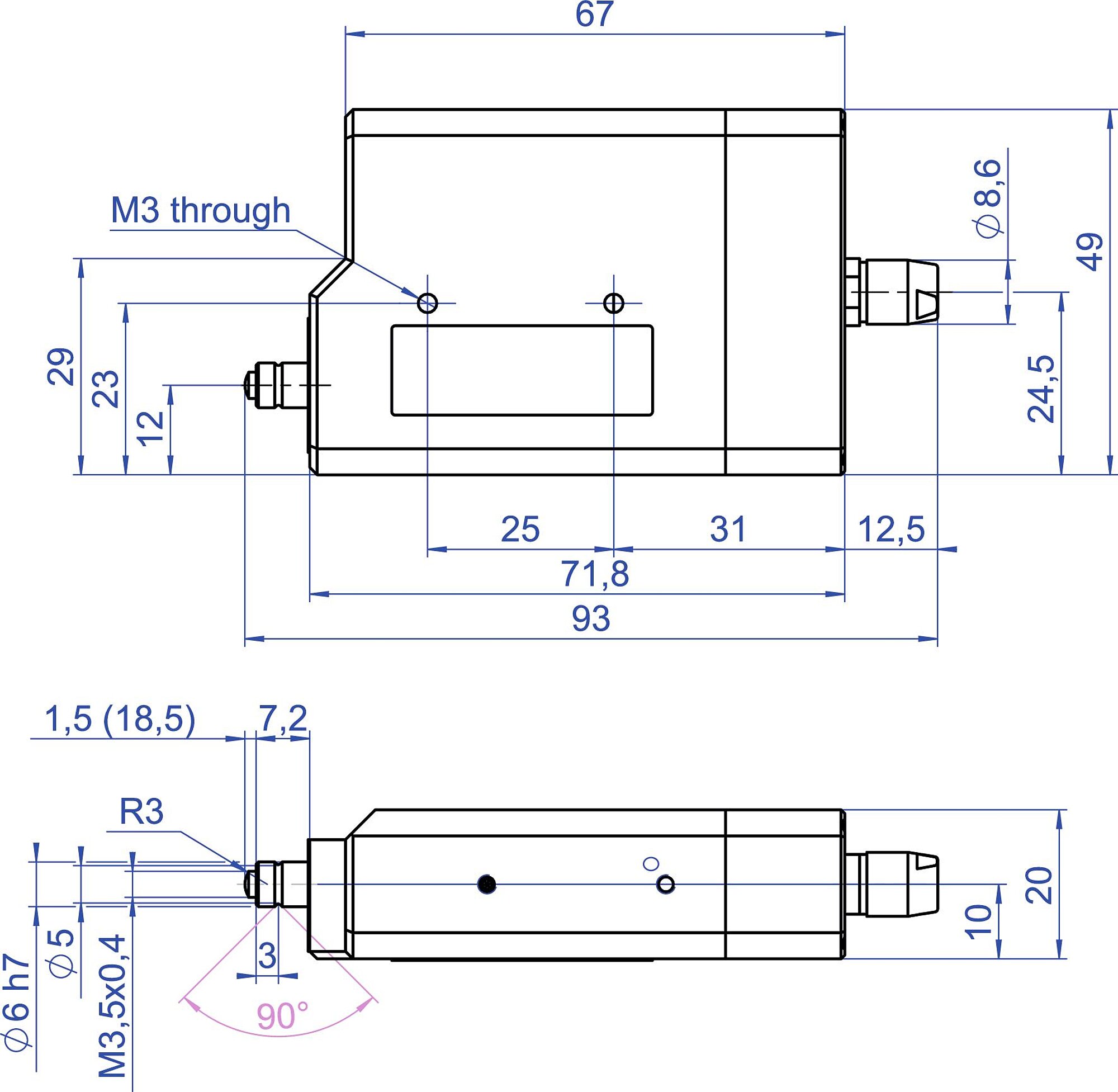

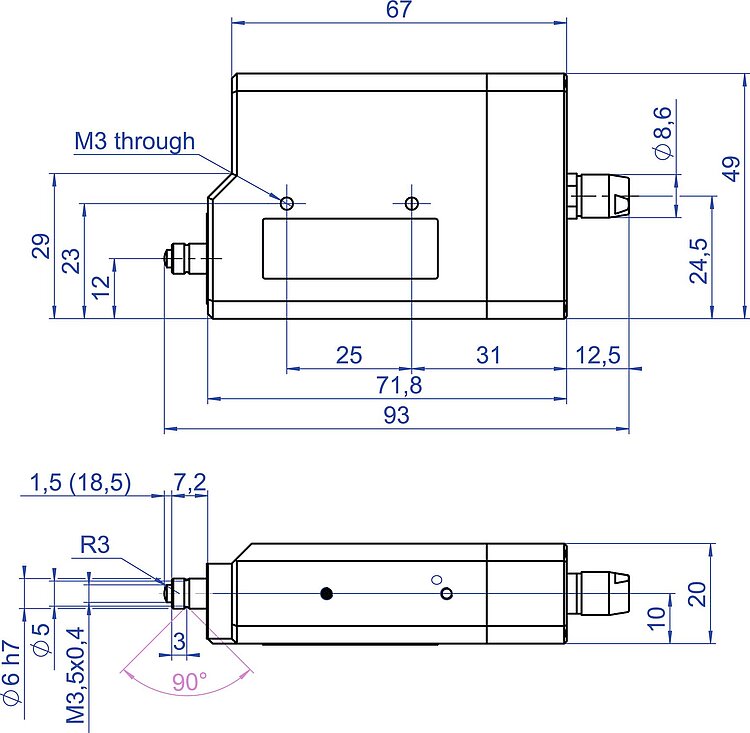

Specifications

Datasheet

Datasheet M-232

Version / Date
2023-07-12
pdf - 425 KB
Version / Date
2023-07-12
pdf - 429 KB

Downloads

Datasheet

Datasheet

Datasheet M-232

Version / Date
2023-07-12
pdf - 425 KB
Version / Date
2023-07-12
pdf - 429 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Version / Date
6.0.0 2023-10-10
pdf - 372 KB
Version / Date
6.0.0 2023-10-10
pdf - 384 KB
Documentation

User Manual MP105

M-232 Compact High-Resolution Linear Actuator

Version / Date
1.2 2020-08-31
pdf - 942 KB
Version / Date
1.2 2020-08-31
pdf - 1 MB

3-D Models

3-D Models

M-232 3-D model

zip - 94 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-232.17

High-resolution linear actuator with DC motor; DC gear motor; 17 mm travel range; 40 N feed force; 1.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length
