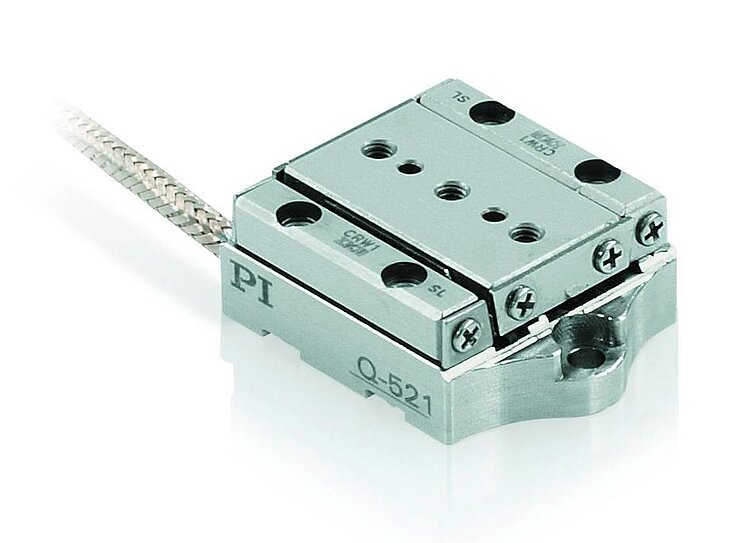

Q-521 Q‑Motion® Miniature Linear Stage

Smallest Linear Stage with Position Control, High Resolution and Affordable Price

Q-521 Q‑Motion® Miniature Linear Stage
Product Description Specifications Downloads Quote / Order
  • Only 21 mm in width and 10 mm in height
  • Direct position measurement with integrated incremental encoder
  • Encoder resolution up to 1 nm
  • Minimum incremental motion up to 2 nm
  • Multi-axis system setups with adapter plate or bracket (available as an option)
  • Vacuum versions to 10-6 hPa available on request

Piezoelectric inertia drive

Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. With an operating frequency of up to 20 kHz, the drives acting directly on the runner and achieve velocities of max. 6 mm/s.

Direct-measuring principle

The linear stages are equipped with a noncontact measuring optical linear encoder and a reference switch. Resolution 4 nm or 1  nm, depending on the version.

Vacuum

Vacuum versions to 10-6 hPa are available on request.

Application fields

Microassembly, Photonics, Optical alignment, Microscopy, Beamline instrumentation, Semiconductor technology, Testing

Specifications

Datasheet

Datasheet Q-521

Version / Date
2019-08-21
Version / Date
2019-08-21
Version / Date
2018-11-05
Document language
pdf - 884 KB
pdf - 876 KB
pdf - 800 KB

Downloads

Product Note

Product Note

Product Change Notification Q-xxx; N-765

Version / Date
2019-03-26
Document language English
pdf - 435 KB

Datasheet

Datasheet

Datasheet Q-521

Version / Date
2019-08-21
Version / Date
2019-08-21
Version / Date
2018-11-05
Document language
pdf - 884 KB
pdf - 876 KB
pdf - 800 KB

Documentation

Documentation

Short Instructions MP139EK

Q-Motion® Positioners: Q-5xx, Q-6xx
Version / Date
4.1.0 2019/07
pdf - 1 MB
Documentation

User Manual MP145

Q-521 Q-Motion Miniature Linear Positioning Stage, Piezoelectric Inertia Drive
Version / Date
1.1.0 2019-05-22
Version / Date
1.1.0 2019-05-22
Document language
pdf - 2 MB
pdf - 2 MB

3-D Models

3-D Models

Q-521 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

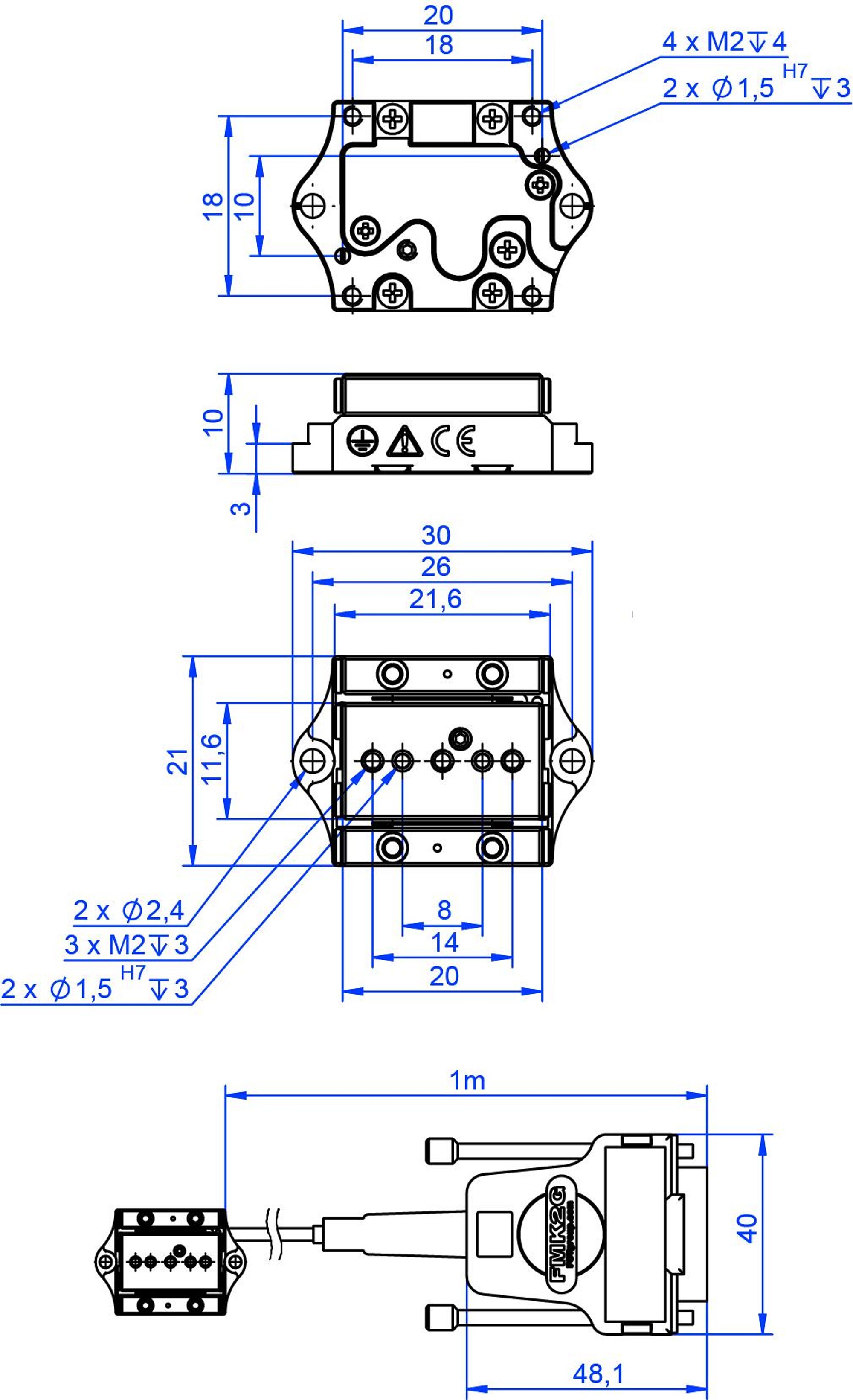

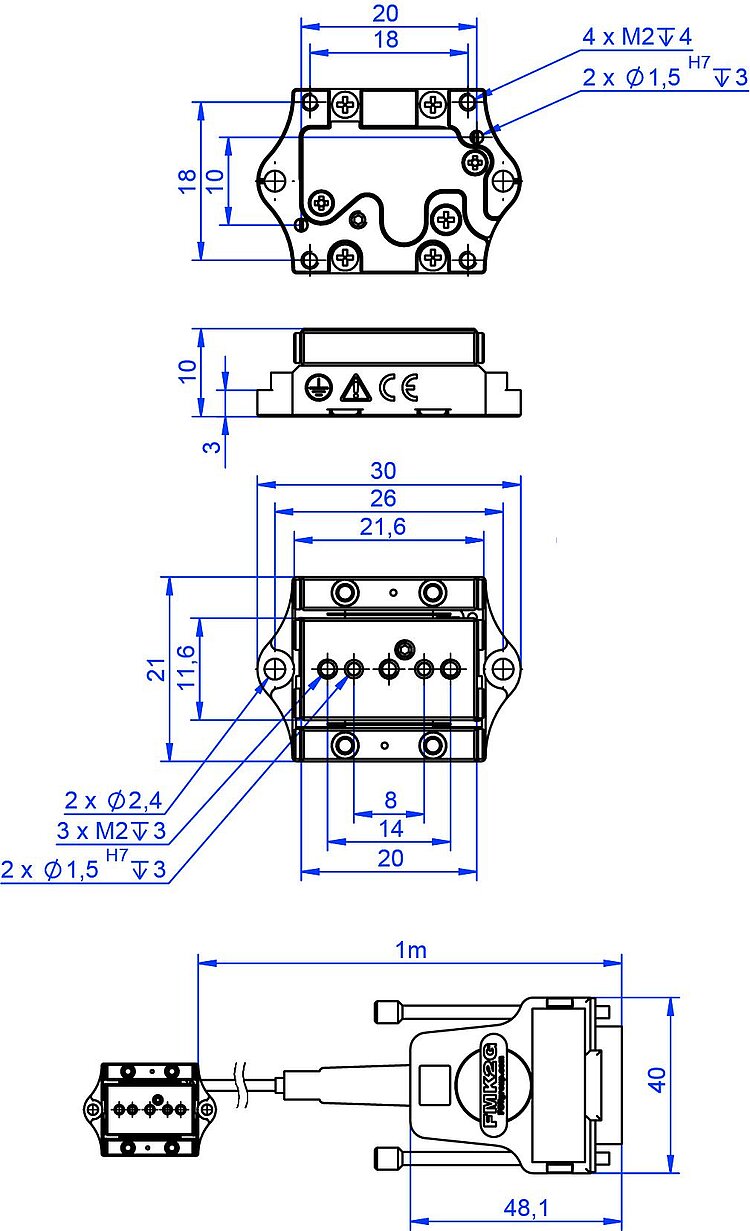

Q-521.130
Q-Motion® Miniature linear stage, piezoelectric inertia drive, 12 mm travel range, Linear encoder, 4 nm resolution, 1 N push/pull force, dimensions 21 × 30 × 10 mm (W × L × H)
Q-521.140
Q-Motion® Miniature linear stage, piezoelectric inertia drive, 12 mm travel range, Linear encoder, 1 nm resolution, 1 N push/pull force, dimensions 21 × 30 × 10 mm (W × L × H)

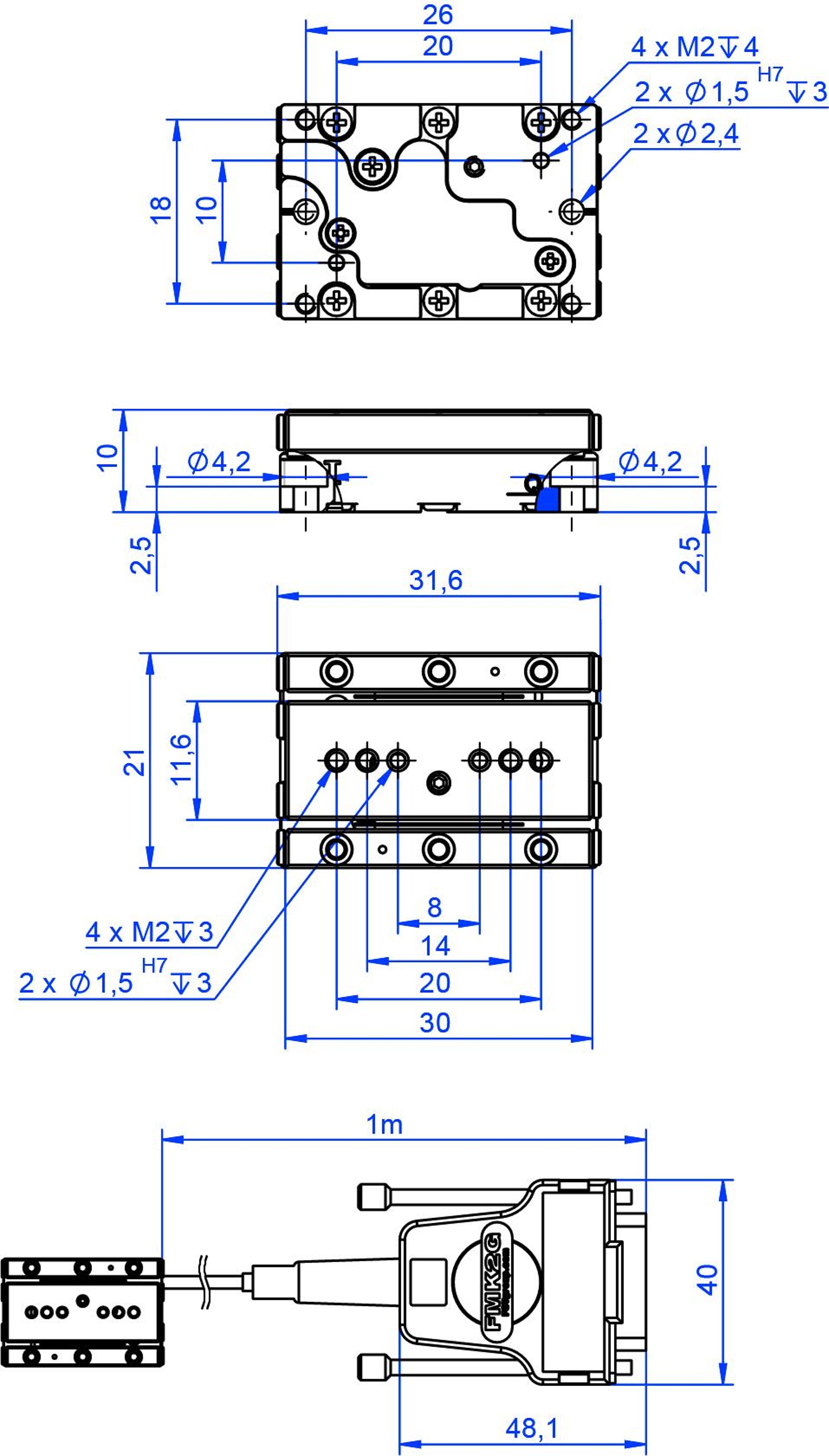

Q-521.230
Q-Motion® Miniature linear stage, piezoelectric inertia drive, 22 mm travel range, Linear encoder, 4 nm resolution, 1 N push/pull force, dimensions 21 × 32 × 10 mm (W × L × H)
Q-521.240
Q-Motion® Miniature linear stage, piezoelectric inertia drive, 22 mm travel range, Linear encoder, 1 nm resolution, 1 N push/pull force, dimensions 21 × 32 × 10 mm (W × L × H)

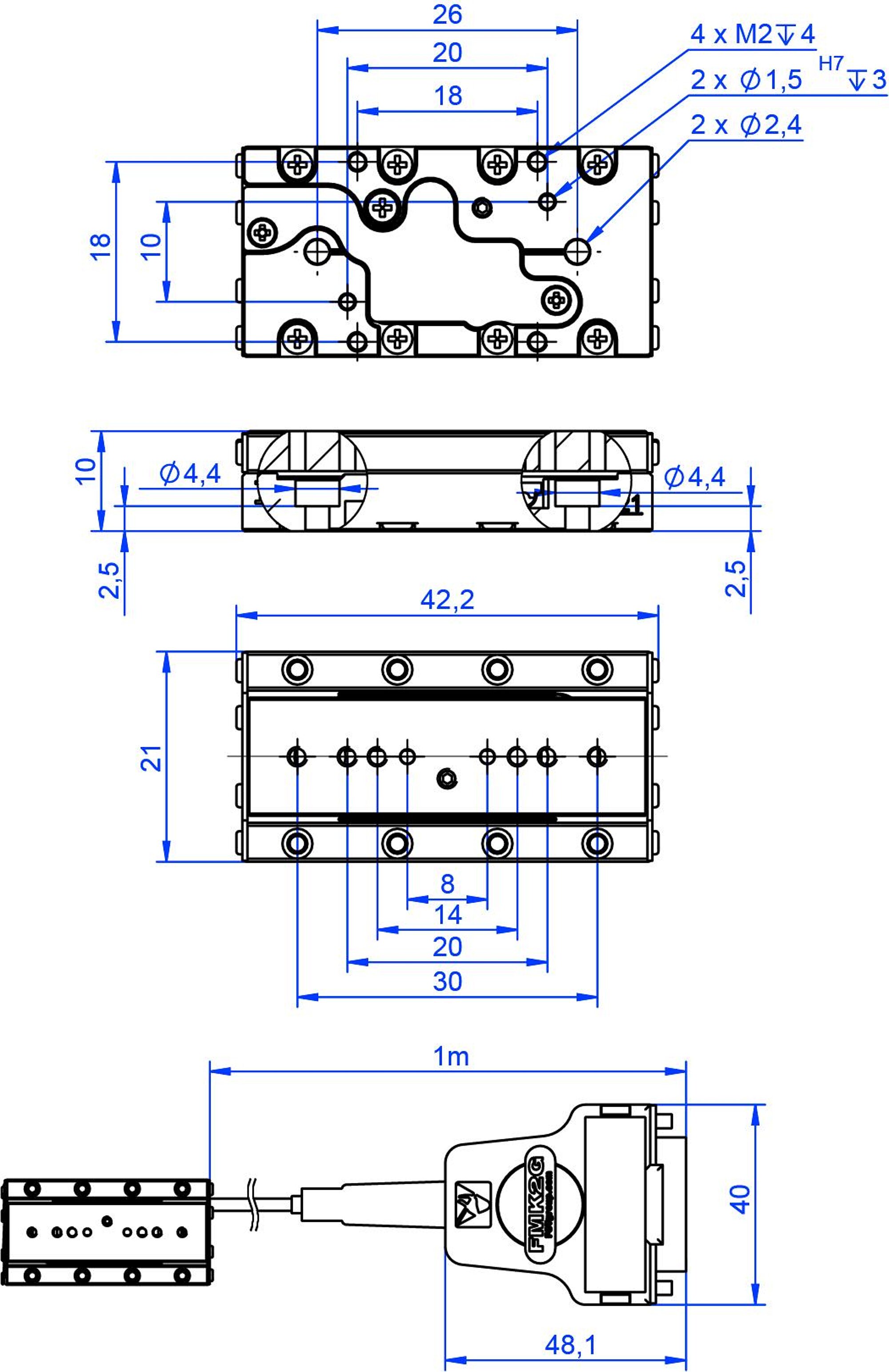

Q-521.330
Q-Motion® Miniature linear stage, piezoelectric inertia drive, 32 mm travel range, Linear encoder, 4 nm resolution, 1 N push/pull force, dimensions 21 × 42 × 10 mm (W × L × H)
Q-521.340
Q-Motion® Miniature linear stage, piezoelectric inertia drive, 32 mm travel range, Linear encoder, 1 nm resolution, 1 N push/pull force, dimensions 21 × 42 × 10 mm (W × L × H)
