V-817 High-Load Linear Stage

High Performance • Linear Motor • Cost Effective • Fast Delivery

  • Low profile (63 mm), 166 mm width, long travel ranges (to 813 mm)
  • Highly dynamic, maintenance-free linear motor and high-precision incremental linear encoder
  • Robust industrial design for a long lifetime
  • Permanent load capacity to 600 N
  • Fast integration thanks to reference edge, easily XY stackable
  • Creation and delivery of test reports as a standard
V-817 High-Load Linear Stage
Product Description Specifications Downloads Quote / Order

Industrial design for high performance and high load

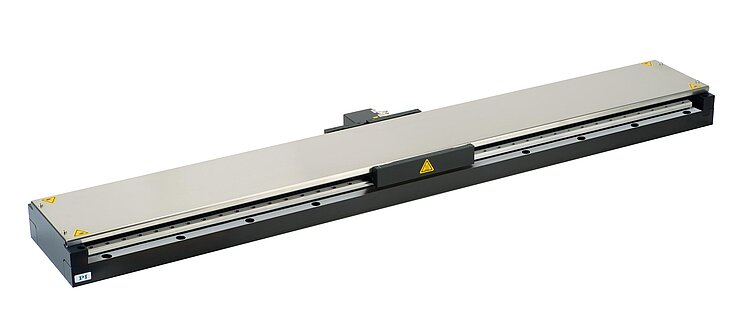

With the V-817, PI has a linear stage in its portfolio for industrial solutions that has a high load capacity and high dynamics. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: Recirculating ball bearing guides, 3-phase linear motor, incremental linear encoder. The high resolution of the encoders allows an excellent tracking performance, small tracking errors, and short settling times. Industry-compatible connectors offer a fast and secure connectivity. The optional motion platform offers versatile assembly options with a triple M6 hole pattern. A particularly low overall height is achieved without this platform, which offers advantages especially in XY combinations.

Linear motor with direct drive

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Fully integrated multi-axis systems

The V-817 linear stages are perfectly suited for being integrated into complex systems. Therefore, PI offers integrated XY or XYZ multi-axis systems with the suitable controller as well as accessories such as a granite base, machine frame, mounting adapter, cable set, and appropriate software support. For requests regarding multi-axis systems, contact our sales department.

Options

Optional accessory: V-817.TT1 motion platform

Application fields

Electronics assembly: Sensor and camera assembly. Noncontact inspection, X-ray inspection, and AOI (automated optical inspection). Sensor and ultrasonic tests. Semiconductor manufacturing: Wafer processing and inspection. Laser machining: Laser welding. Highly dynamic applications in precision automation, smooth scan motion, minimum tracking errors, and short settling times.

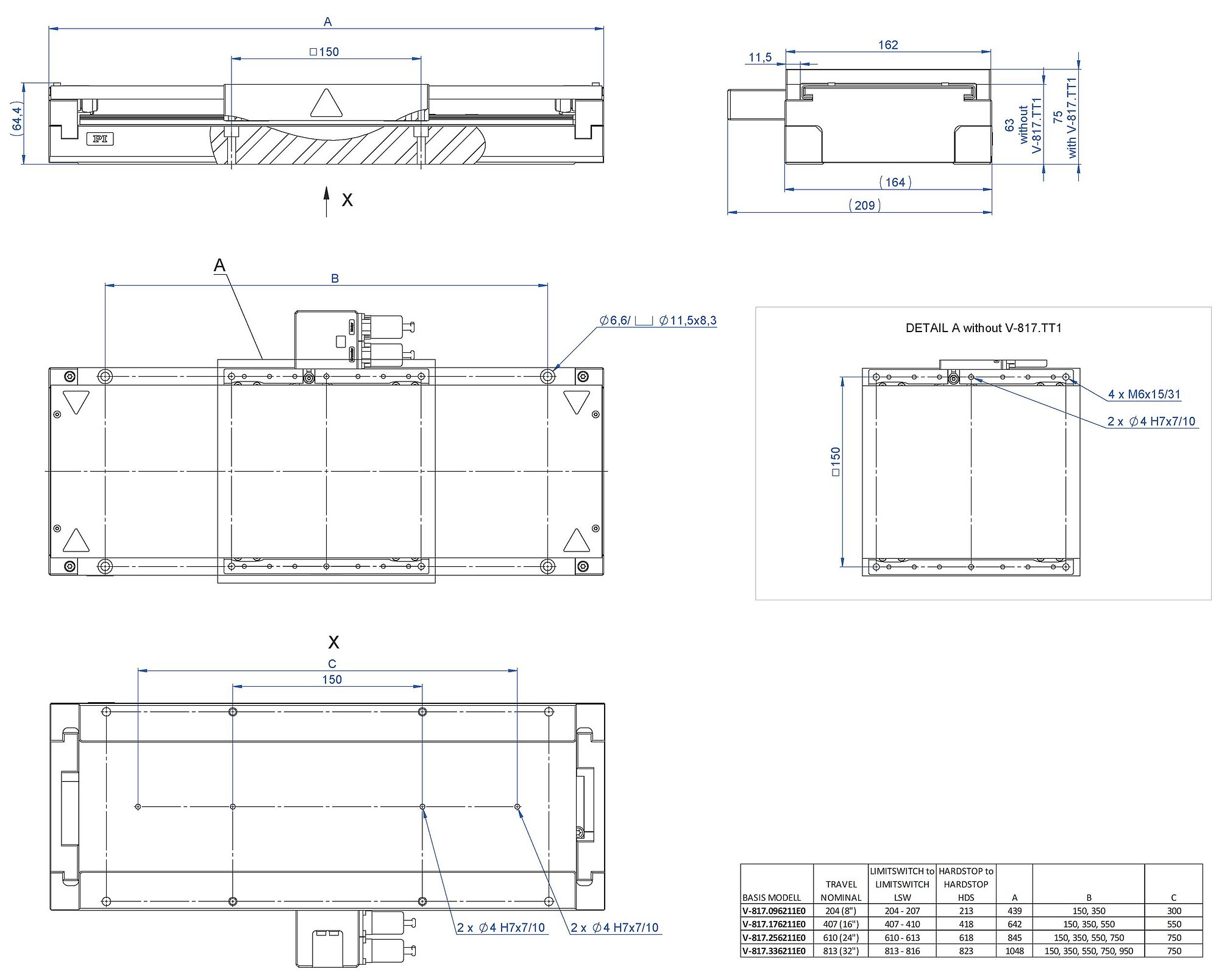

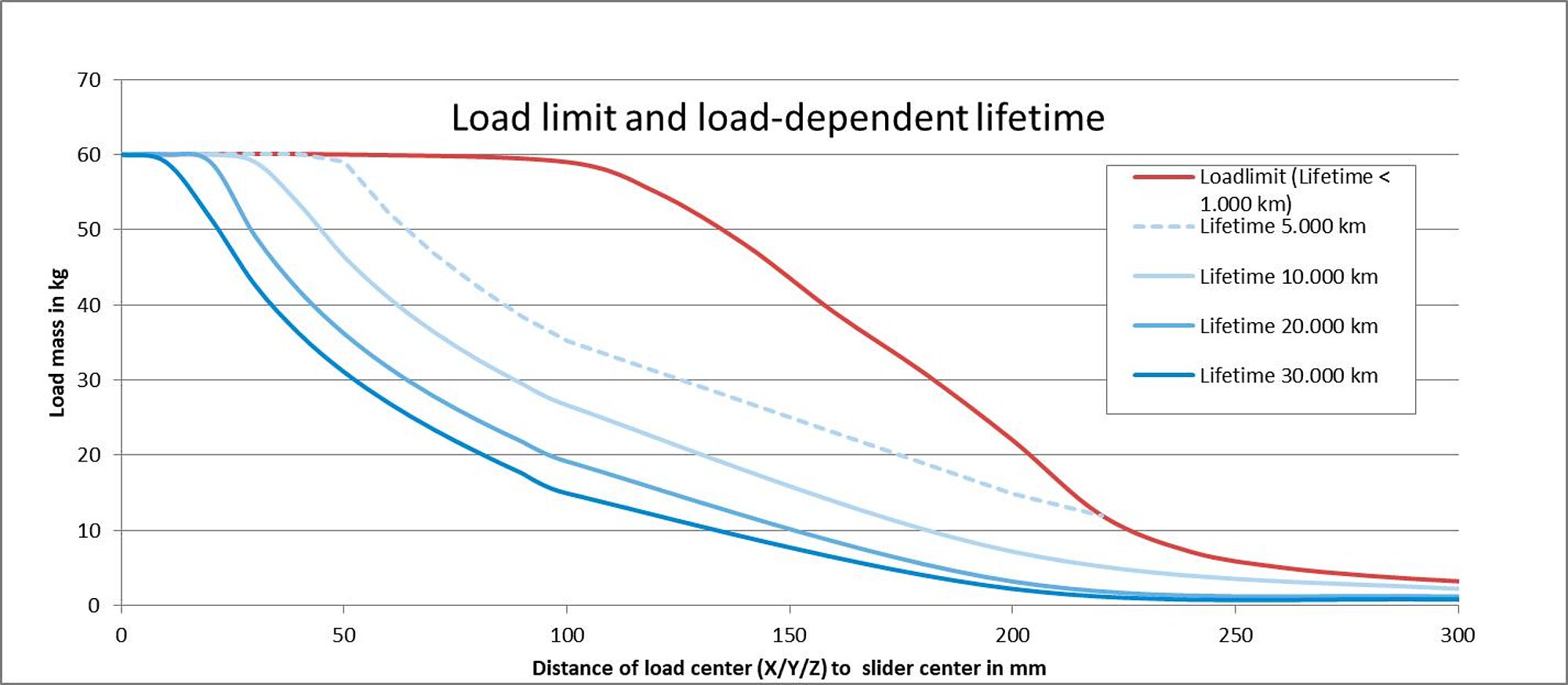

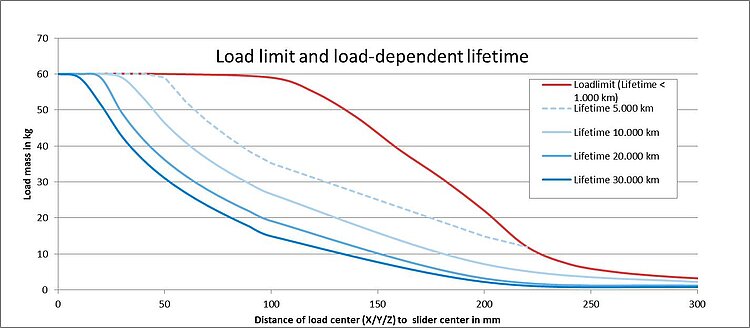

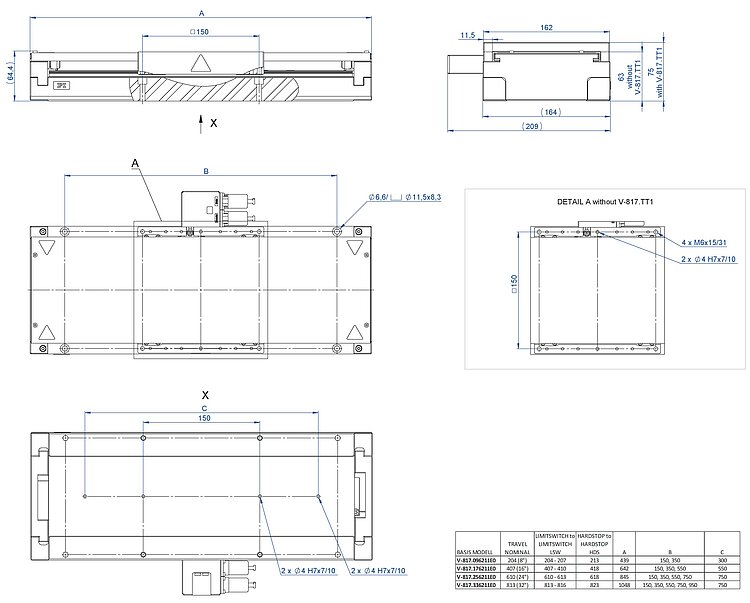

Specifications

Datasheet

Datasheet V-817

Version / Date
2022-03-02
pdf - 941 KB
Version / Date
2022-03-02
pdf - 964 KB
Version / Date
2021-01-19
pdf - 754 KB

Downloads

Datasheet

Datasheet

Datasheet V-817

Version / Date
2022-03-02
pdf - 941 KB
Version / Date
2022-03-02
pdf - 964 KB
Version / Date
2021-01-19
pdf - 754 KB

Documentation

Documentation

User Manual V817UM0001

V-817.xx6211E0 High-Load Linear Stage

Version / Date
2021-04-26
pdf - 4 MB
Version / Date
2021-04-26
pdf - 4 MB

3-D Models

3-D Models

3-D-model V-817.xxx211E0

zip - 7 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

V-817.096211E0 NEW!

High-load linear stage; ironless 3-phase linear motor; 204 mm travel range; 600 N load capacity; 3000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

V-817.176211E0 NEW!

High-load linear stage; ironless 3-phase linear motor; 407 mm travel range; 600 N load capacity; 3000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

V-817.256211E0 NEW!

High-load linear stage; ironless 3-phase linear motor; 610 mm travel range; 600 N load capacity; 3000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

V-817.336211E0 NEW!

High-load linear stage; ironless 3-phase linear motor; 813 mm travel range; 600 N load capacity; 3000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
