L-812.051400 NEW!
High-load linear stage; 2-phase stepper motor; 102 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw
NEW
L-812 High-Load Linear Stage
Stepper or Servo Motor • Drive Screw • Cost Effective
- Width 114 mm, travel range to 610 mm
- Precision ball screw, load capacity to 50 kg
- Stepper or servo motor
- Compact design thanks to models with folded drivetrain
- Models with holding brake for vertical mounting

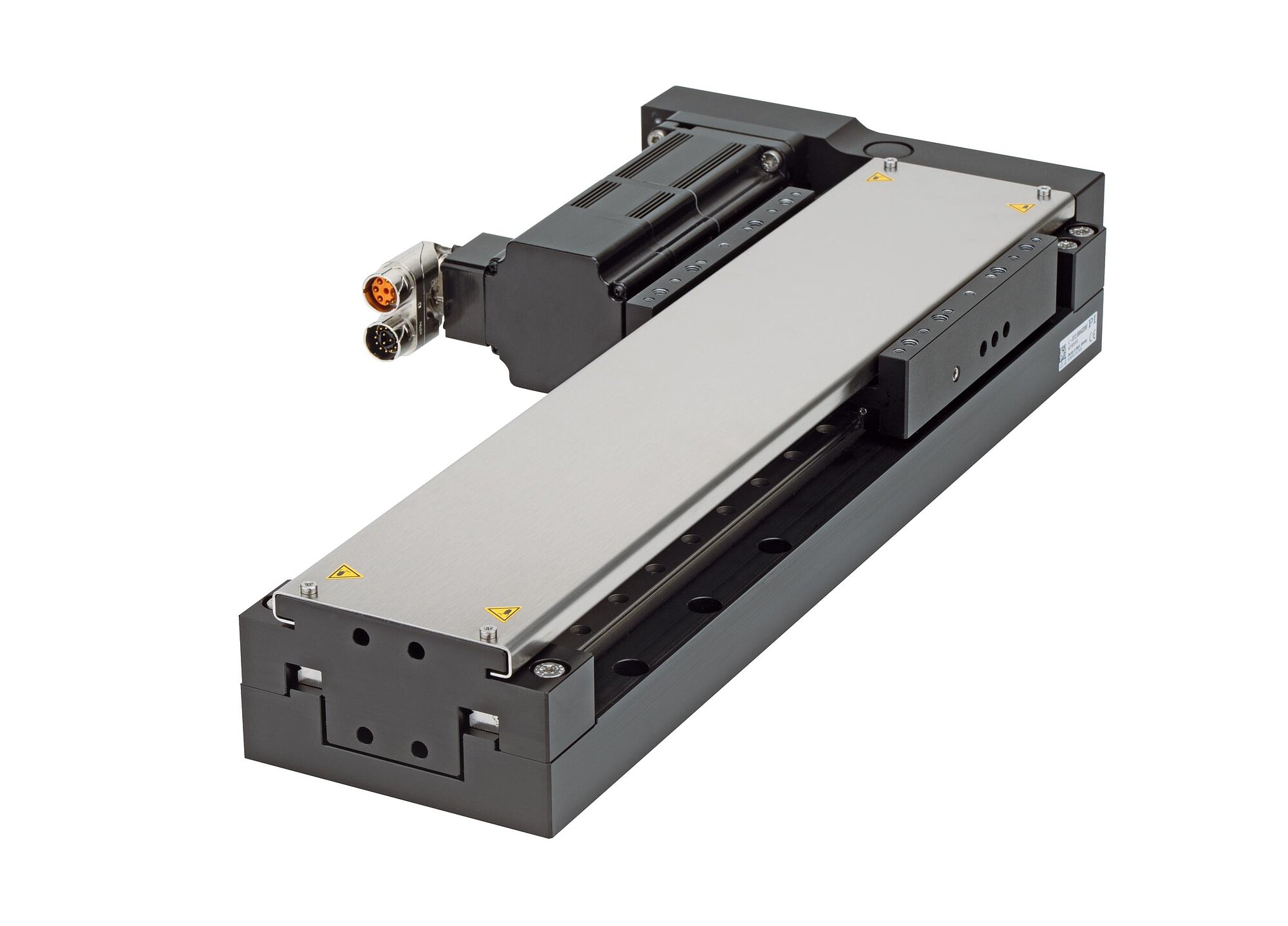

L-812.099432BF

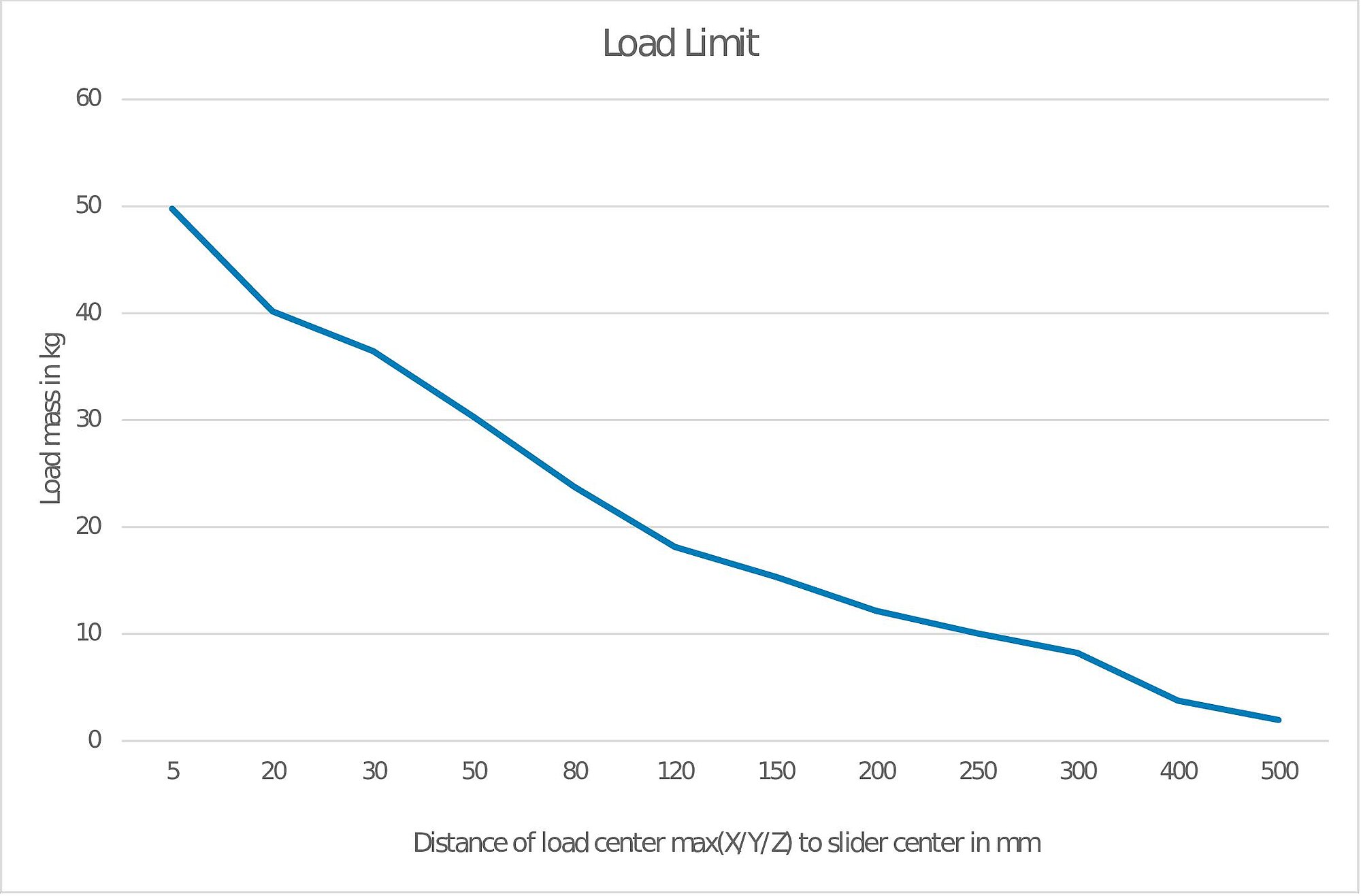

Load limit of the L-812 depending on the load mass and the distance of the center of gravity of the load from the center of the slider

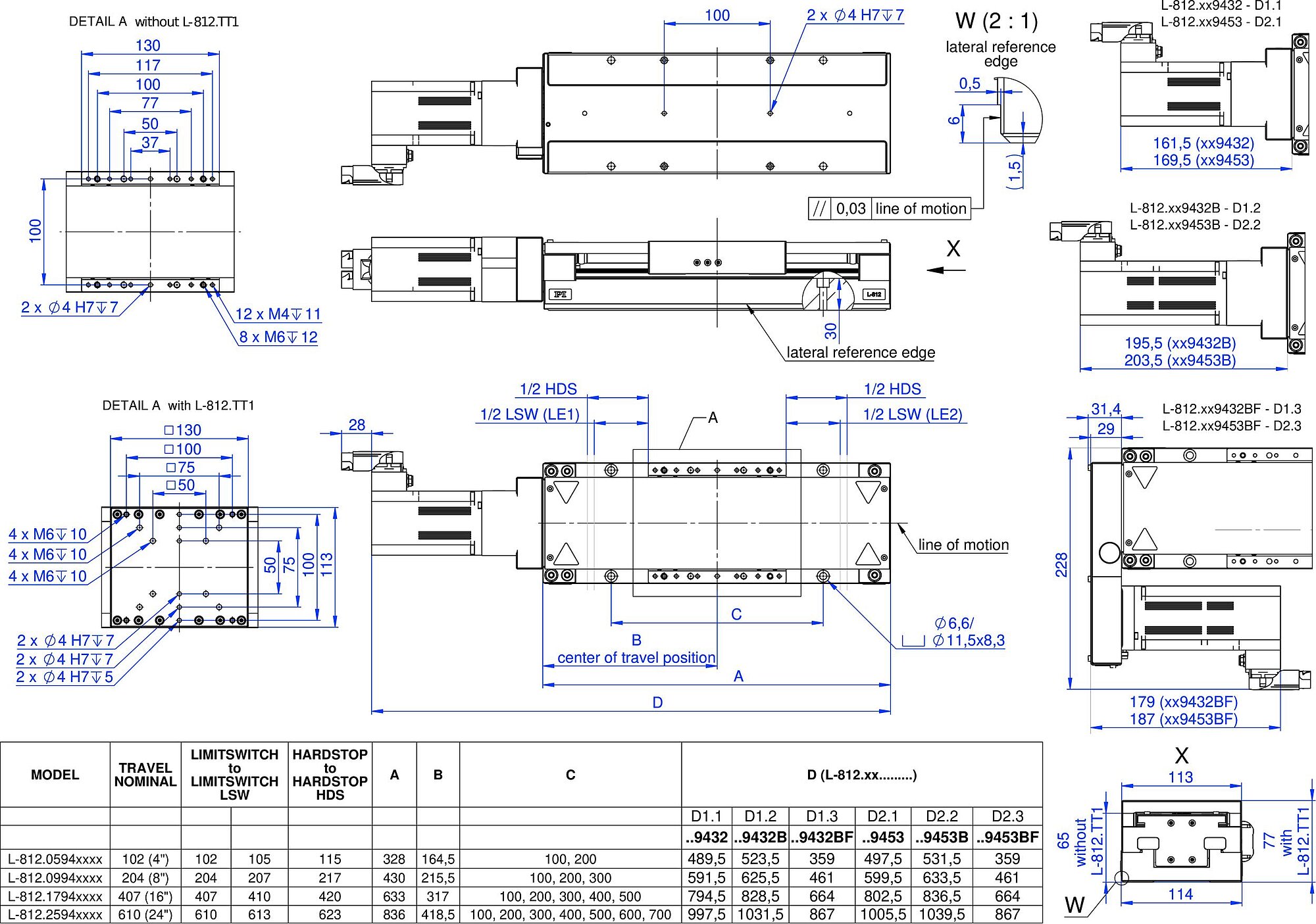

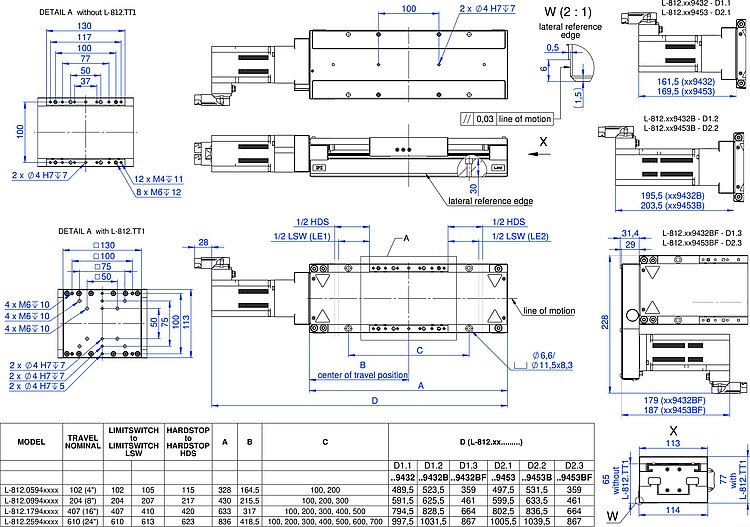

L-812.xx94xx[B[F]], dimensions in mm

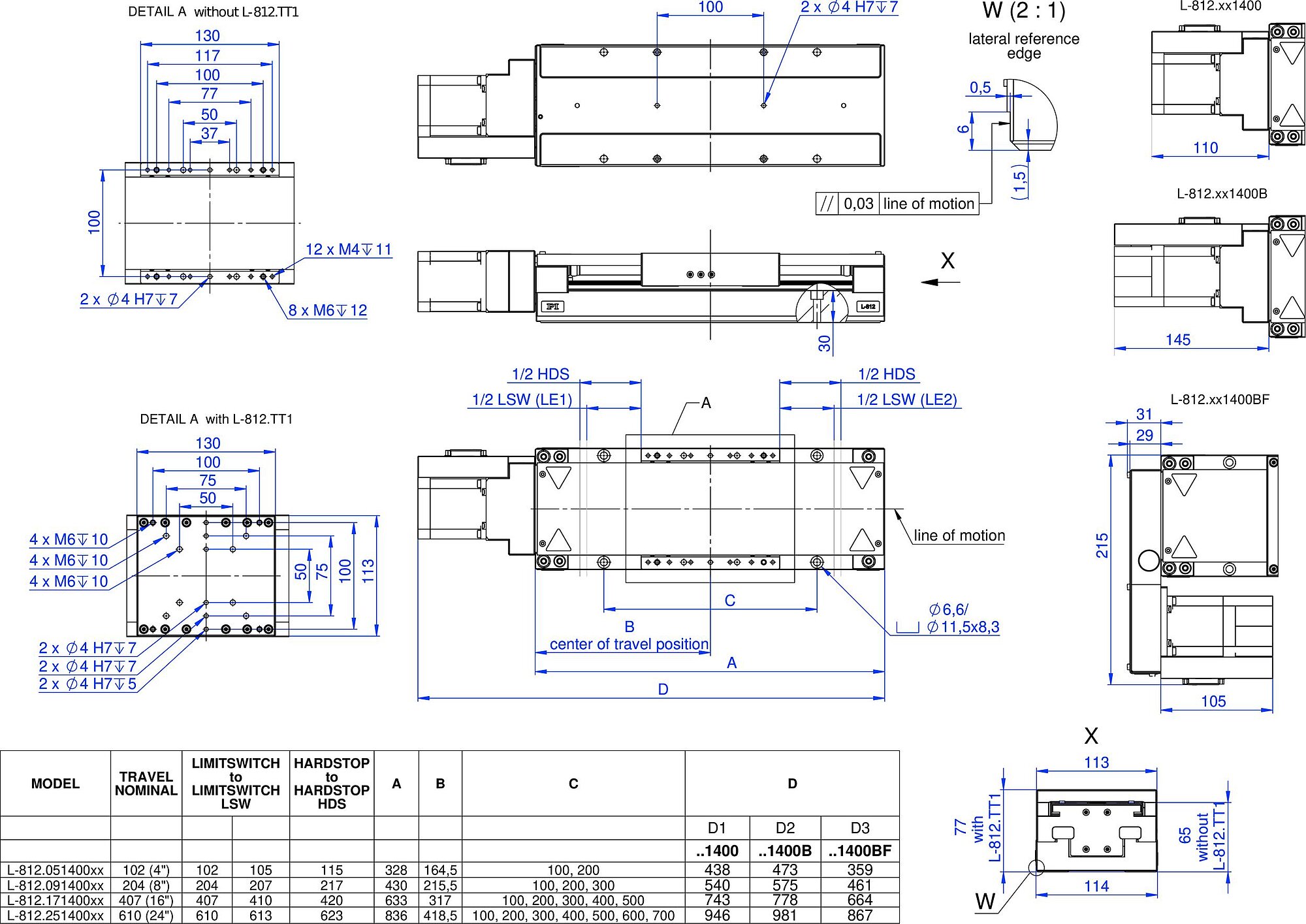

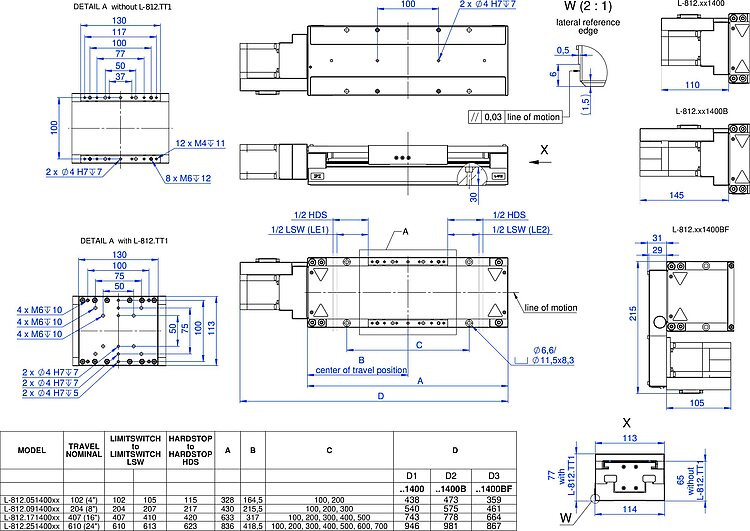

L-812.xx1400[B[F]], dimensions in mm

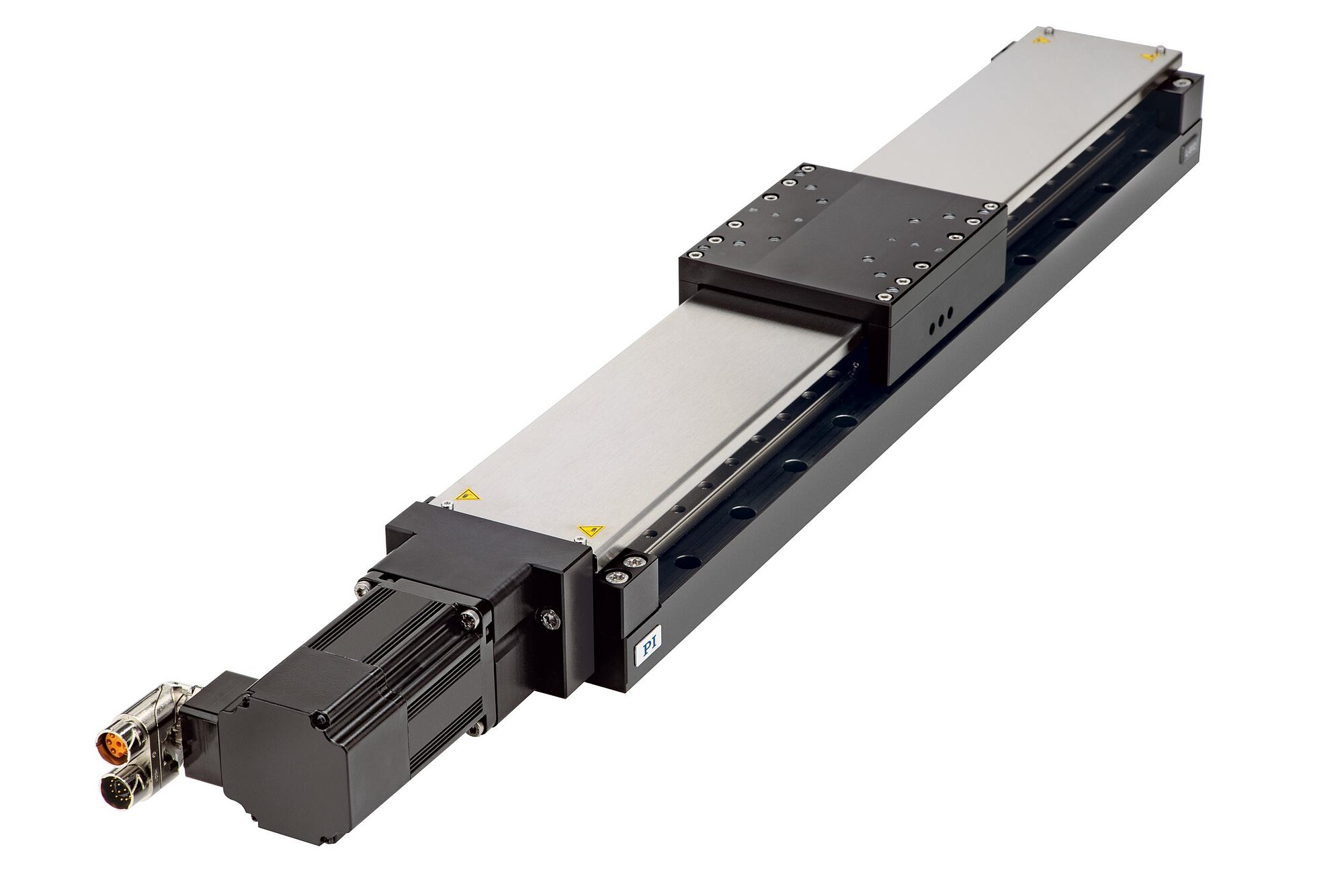

L-812.179432 with mounted L-812.TT1 motion platform

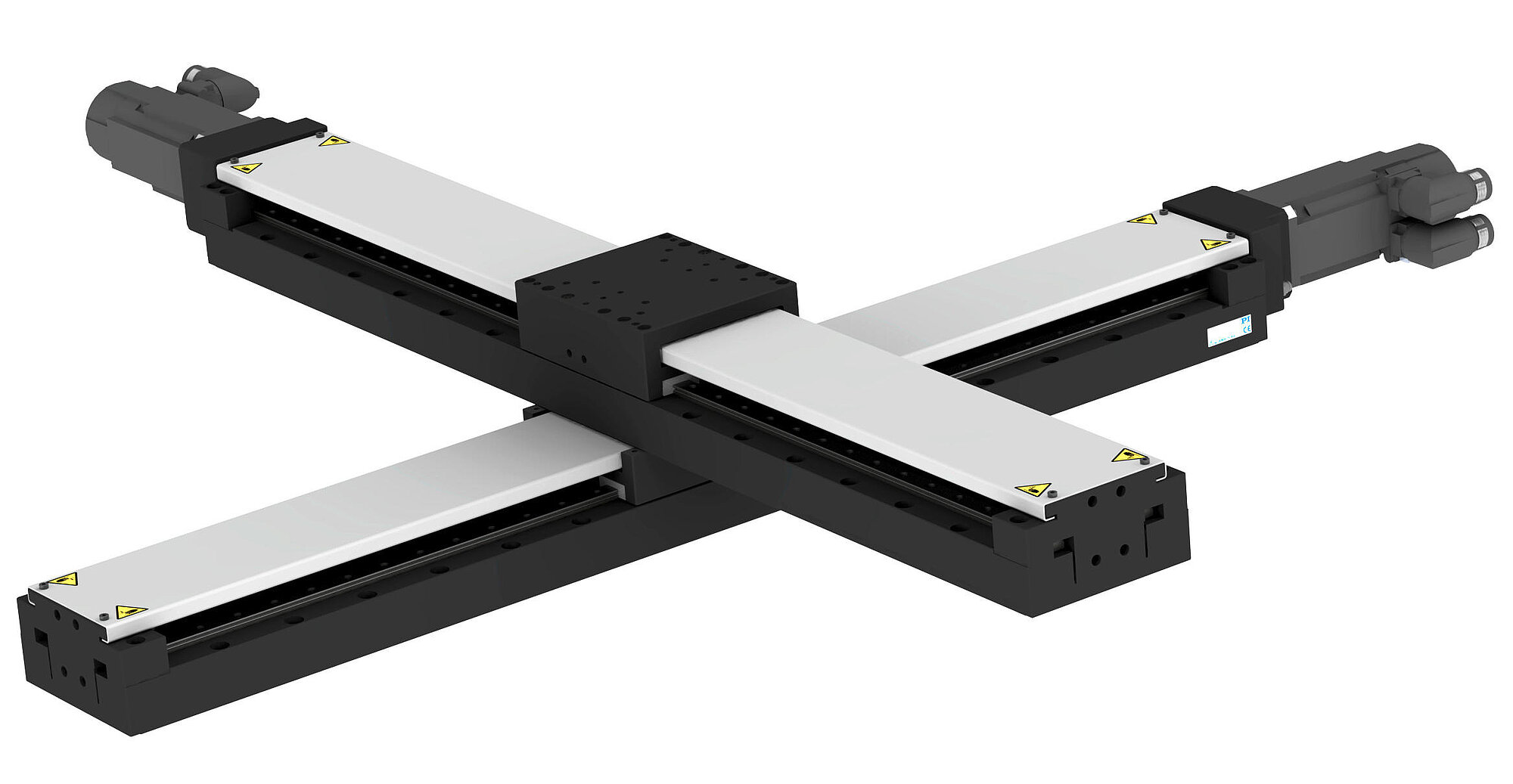

L-812 XY combination with optional V-812.TT1 motion platform on top positioner

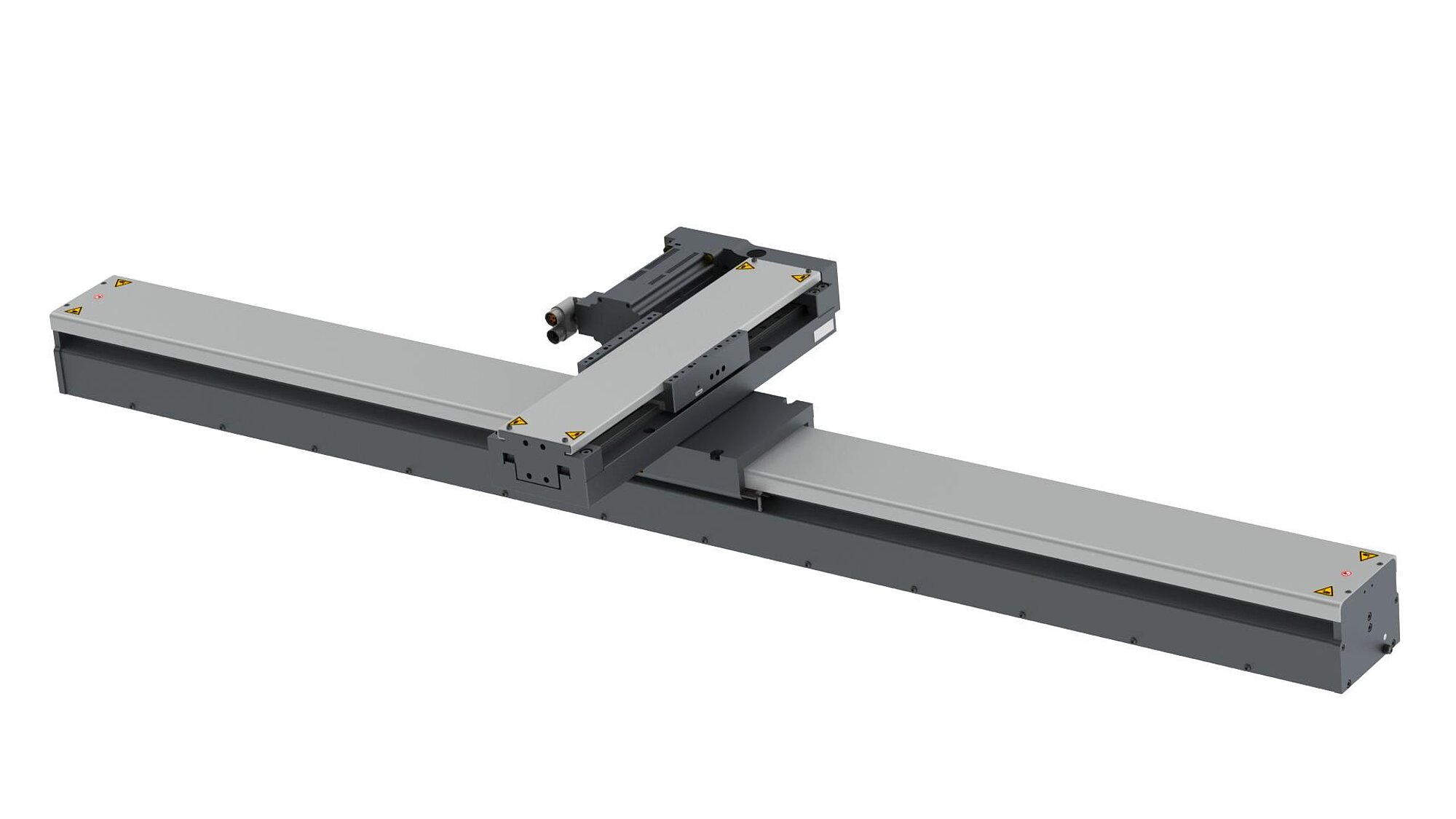

XY combination consisting of V-857.586211E0 (bottom) and L-812.099432BF (top)

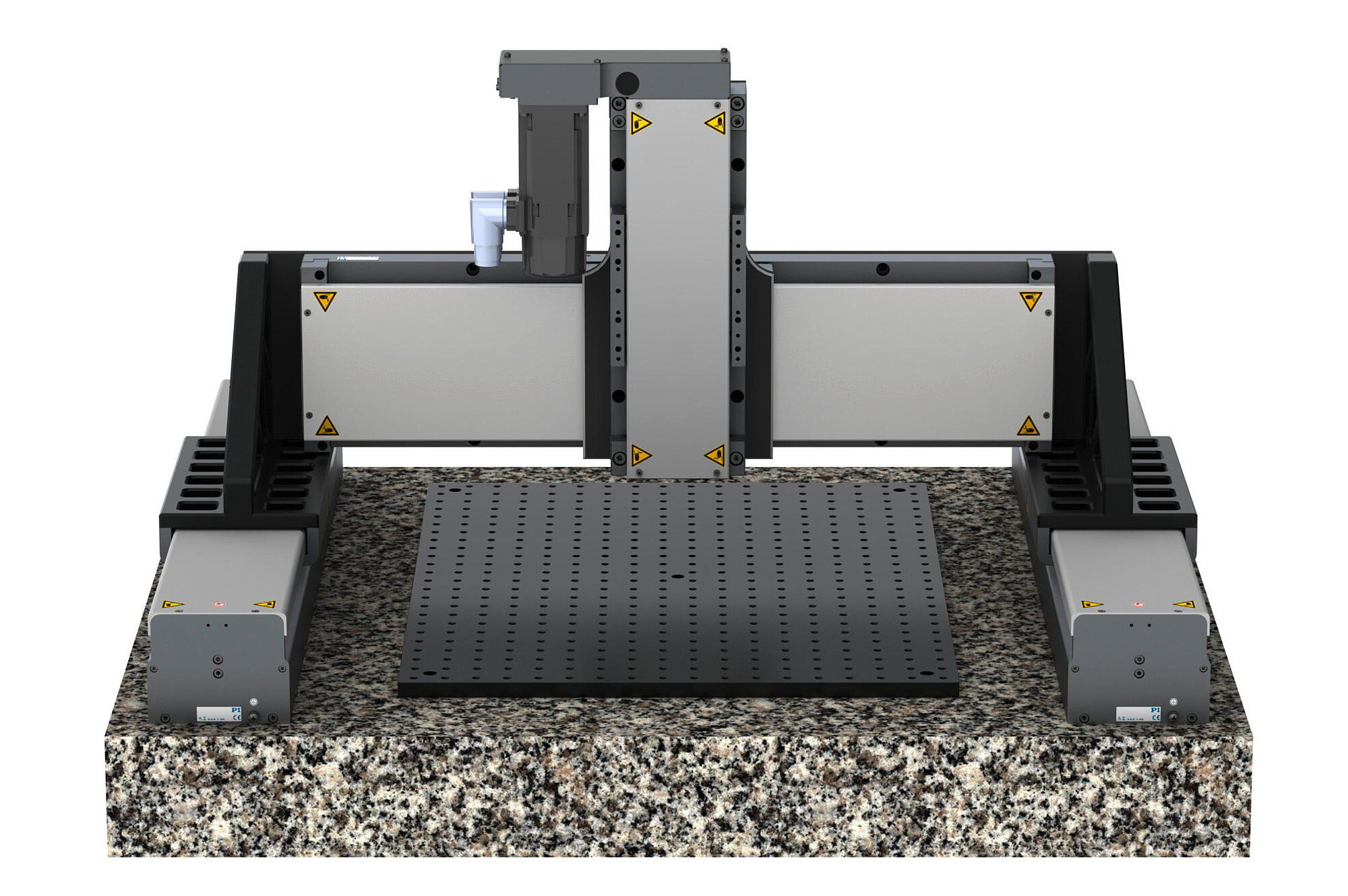

Gantry setup of two V-857, two V-817, and one L-812
L-812 High-Load Linear Stage
Product Description
Specifications
Downloads
Quote / Order
Powerful linear stage for use in demanding industrial applications
Precision ball screws, high-performance stepper or synchronous servo motors, heavy-duty recirculating ball bearings, and precision rotary encoders enable continuous and reliable operation under high load. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes.
Pioneering design
The recirculating ball bearing guides of the L-812 series are designed for high load capacity and dynamics. The high resolution of the motors allows improved tracking performance, smaller tracking errors, and improved settling times.
Options
- Stepper or synchronous servo motor
- Holding brake
- Rotary encoder, incremental or absolute-measuring
- Folded drivetrain for reducing the overall length
Synchronous servo motor
These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives. The long lifetime, high performance, and robustness of these motors allow excellent results in industrial automation applications.
Stepper motor
Powerful and low-vibration 2-phase stepper motors allow for accurate positioning even without position control.
Application fields
Electronics production: Microassembly. Sensor / camera placement.
Laser materials processing: Laser micromachining.
Industrial inkjet printing. Matrix plate and printed circuit board production.
Test & inspection.
Manufacturing of medical equipment: Hermetic welding. Robotic systems for gene laboratories.
Specifications
This content is only available on tablets or desktop devices.Specifications
Select a travel range:
Click inside the table and use your arrow keys to scroll left or right.
| Motion | L-812.051400 | L-812.051400B | L-812.051400BF | L-812.091400 | L-812.091400B | L-812.091400BF | L-812.171400 | L-812.171400B | L-812.171400BF | L-812.251400 | L-812.251400B | L-812.251400BF | L-812.059432 | L-812.059432B | L-812.059432BF | L-812.099432 | L-812.099432B | L-812.099432BF | L-812.179432 | L-812.179432B | L-812.179432BF | L-812.259432 | L-812.259432B | L-812.259432BF | L-812.059453 | L-812.059453B | L-812.059453BF | L-812.099453 | L-812.099453B | L-812.099453BF | L-812.179453 | L-812.179453B | L-812.179453BF | L-812.259453 | L-812.259453B | L-812.259453BF | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Active axes | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | |
| Travel range in X | 102 mm | 102 mm | 102 mm | 204 mm | 204 mm | 204 mm | 407 mm | 407 mm | 407 mm | 610 mm | 610 mm | 610 mm | 102 mm | 102 mm | 102 mm | 204 mm | 204 mm | 204 mm | 407 mm | 407 mm | 407 mm | 610 mm | 610 mm | 610 mm | 102 mm | 102 mm | 102 mm | 204 mm | 204 mm | 204 mm | 407 mm | 407 mm | 407 mm | 610 mm | 610 mm | 610 mm | |
| Acceleration in X, unloaded | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | 10 m/s² | max. |
| Maximum velocity in X, unloaded | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | 300 mm/s | |
| Straightness (Linear crosstalk in Y with motion in X) | ± 4 µm | ± 4 µm | ± 4 µm | ± 6 µm | ± 6 µm | ± 6 µm | ± 10 µm | ± 10 µm | ± 10 µm | ± 14 µm | ± 14 µm | ± 14 µm | ± 4 µm | ± 4 µm | ± 4 µm | ± 6 µm | ± 6 µm | ± 6 µm | ± 10 µm | ± 10 µm | ± 10 µm | ± 14 µm | ± 14 µm | ± 14 µm | ± 4 µm | ± 4 µm | ± 4 µm | ± 6 µm | ± 6 µm | ± 6 µm | ± 10 µm | ± 10 µm | ± 10 µm | ± 14 µm | ± 14 µm | ± 14 µm | max. |
| Flatness (Linear crosstalk in Z with motion in X) | ± 4 µm | ± 4 µm | ± 4 µm | ± 6 µm | ± 6 µm | ± 6 µm | ± 10 µm | ± 10 µm | ± 10 µm | ± 14 µm | ± 14 µm | ± 14 µm | ± 4 µm | ± 4 µm | ± 4 µm | ± 6 µm | ± 6 µm | ± 6 µm | ± 10 µm | ± 10 µm | ± 10 µm | ± 14 µm | ± 14 µm | ± 14 µm | ± 4 µm | ± 4 µm | ± 4 µm | ± 6 µm | ± 6 µm | ± 6 µm | ± 10 µm | ± 10 µm | ± 10 µm | ± 14 µm | ± 14 µm | ± 14 µm | max. |
| Pitch (Rotational crosstalk in θY with motion in X) | ± 21 µrad | ± 21 µrad | ± 21 µrad | ± 28.5 µrad | ± 28.5 µrad | ± 28.5 µrad | ± 58.5 µrad | ± 58.8 µrad | ± 58.5 µrad | ± 88.5 µrad | ± 88.5 µrad | ± 88.5 µrad | ± 21 µrad | ± 21 µrad | ± 21 µrad | ± 29 µrad | ± 29 µrad | ± 29 µrad | ± 59 µrad | ± 59 µrad | ± 59 µrad | ± 87 µrad | ± 87 µrad | ± 87 µrad | ± 21 µrad | ± 21 µrad | ± 21 µrad | ± 29 µrad | ± 29 µrad | ± 29 µrad | ± 59 µrad | ± 59 µrad | ± 59 µrad | ± 87 µrad | ± 87 µrad | ± 87 µrad | max. |
| Yaw (Rotational crosstalk in θZ with motion in X) | ± 21 µrad | ± 21 µrad | ± 21 µrad | ± 27 µrad | ± 27 µrad | ± 27 µrad | ± 59 µrad | ± 59 µrad | ± 59 µrad | ± 87 µrad | ± 87 µrad | ± 87 µrad | ± 21 µrad | ± 21 µrad | ± 21 µrad | ± 29 µrad | ± 29 µrad | ± 29 µrad | ± 59 µrad | ± 59 µrad | ± 59 µrad | ± 87 µrad | ± 87 µrad | ± 87 µrad | ± 21 µrad | ± 21 µrad | ± 21 µrad | ± 29 µrad | ± 29 µrad | ± 29 µrad | ± 59 µrad | ± 59 µrad | ± 59 µrad | ± 87 µrad | ± 87 µrad | ± 87 µrad | max. |
| Positioning | L-812.051400 | L-812.051400B | L-812.051400BF | L-812.091400 | L-812.091400B | L-812.091400BF | L-812.171400 | L-812.171400B | L-812.171400BF | L-812.251400 | L-812.251400B | L-812.251400BF | L-812.059432 | L-812.059432B | L-812.059432BF | L-812.099432 | L-812.099432B | L-812.099432BF | L-812.179432 | L-812.179432B | L-812.179432BF | L-812.259432 | L-812.259432B | L-812.259432BF | L-812.059453 | L-812.059453B | L-812.059453BF | L-812.099453 | L-812.099453B | L-812.099453BF | L-812.179453 | L-812.179453B | L-812.179453BF | L-812.259453 | L-812.259453B | L-812.259453BF | Tolerance |
| System resolution in X | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 25000 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 500 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | |
| Bidirectional repeatability in X | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | ± 5 µm | max. |
| Positioning accuracy in X, uncalibrated | ± 20 µm | ± 20 µm | ± 20 µm | ± 25 µm | ± 25 µm | ± 25 µm | ± 30 µm | ± 30 µm | ± 30 µm | ± 35 µm | ± 35 µm | ± 35 µm | ± 20 µm | ± 20 µm | ± 20 µm | ± 25 µm | ± 25 µm | ± 25 µm | ± 30 µm | ± 30 µm | ± 30 µm | ± 35 µm | ± 35 µm | ± 35 µm | ± 20 µm | ± 20 µm | ± 20 µm | ± 25 µm | ± 25 µm | ± 25 µm | ± 30 µm | ± 30 µm | ± 30 µm | ± 35 µm | ± 35 µm | ± 35 µm | max. |
| Minimum incremental motion in X | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 3 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | 1.5 µm | max. |
| Limit switches | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | Inductive, N/C contact,, 5 V, NPN | |
| Integrated sensor | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | Absolute rotary encoder, multi-turn | |||||||||||||
| Resolution, motor encoder | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | 10000 Cts./rev. | |||||||||||||||||||||||||
| Motor encoder: Sensor signal | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | BiSS-C | |||||||||||||
| Number of revolutions, motor encoder, bit width | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | 12 bit | |||||||||||||||||||||||||
| Resolution, motor encoder, bit width | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | 24 bit | |||||||||||||||||||||||||
| Drive Properties | L-812.051400 | L-812.051400B | L-812.051400BF | L-812.091400 | L-812.091400B | L-812.091400BF | L-812.171400 | L-812.171400B | L-812.171400BF | L-812.251400 | L-812.251400B | L-812.251400BF | L-812.059432 | L-812.059432B | L-812.059432BF | L-812.099432 | L-812.099432B | L-812.099432BF | L-812.179432 | L-812.179432B | L-812.179432BF | L-812.259432 | L-812.259432B | L-812.259432BF | L-812.059453 | L-812.059453B | L-812.059453BF | L-812.099453 | L-812.099453B | L-812.099453BF | L-812.179453 | L-812.179453B | L-812.179453BF | L-812.259453 | L-812.259453B | L-812.259453BF | Tolerance |
| Drive type | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | Synchronous servo motor | |
| Motor resolution | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | |||||||||||||||||||||||||
| Nominal voltage | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | 310 V | |
| Nominal current, RMS | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | typ. |
| Peak current, RMS | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.2 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | 4.5 A | typ. |
| Drive force in negative direction of motion in X | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | typ. |
| Drive force in positive direction of motion in X | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 377 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | 800 N | typ. |
| Resistance phase-phase | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 0.5 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | 10.1 Ω | typ. |
| Inductance phase-phase | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 1.2 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | 107.5 mH | |
| Torque constant | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | 0.43 N·m/A | typ. | ||||||||||||
| Back EMF, phase-phase, rotational | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | 14.5 V/kRPM | max. | ||||||||||||
| Number of pole pairs | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||||||
| Mechanical Properties | L-812.051400 | L-812.051400B | L-812.051400BF | L-812.091400 | L-812.091400B | L-812.091400BF | L-812.171400 | L-812.171400B | L-812.171400BF | L-812.251400 | L-812.251400B | L-812.251400BF | L-812.059432 | L-812.059432B | L-812.059432BF | L-812.099432 | L-812.099432B | L-812.099432BF | L-812.179432 | L-812.179432B | L-812.179432BF | L-812.259432 | L-812.259432B | L-812.259432BF | L-812.059453 | L-812.059453B | L-812.059453BF | L-812.099453 | L-812.099453B | L-812.099453BF | L-812.179453 | L-812.179453B | L-812.179453BF | L-812.259453 | L-812.259453B | L-812.259453BF | Tolerance |
| Guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | |
| Drive screw type | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | |
| Drive screw pitch | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | |
| Moved mass in X, unloaded | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | 2800 g | |
| Permissible push force in Y | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | 250 N | max. |
| Permissible push force in Z | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | max. |
| Overall mass | 6800 g | 6900 g | 7000 g | 7800 g | 7900 g | 8000 g | 9900 g | 10000 g | 10100 g | 11900 g | 12000 g | 12100 g | 7300 g | 7400 g | 7500 g | 8300 g | 8400 g | 8500 g | 10400 g | 10500 g | 10600 g | 12500 g | 12600 g | 12700 g | 7300 g | 7400 g | 7500 g | 8300 g | 8400 g | 8500 g | 10400 g | 10500 g | 10600 g | 12500 g | 12600 g | 12700 g | |
| Material | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | Aluminum, black anodized, stainless steel | |
| Holding brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | Electromagnetic safety brake | |||||||||||||
| Holding force in X, passive | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | 500 N | |||||||||||||
| Miscellaneous | L-812.051400 | L-812.051400B | L-812.051400BF | L-812.091400 | L-812.091400B | L-812.091400BF | L-812.171400 | L-812.171400B | L-812.171400BF | L-812.251400 | L-812.251400B | L-812.251400BF | L-812.059432 | L-812.059432B | L-812.059432BF | L-812.099432 | L-812.099432B | L-812.099432BF | L-812.179432 | L-812.179432B | L-812.179432BF | L-812.259432 | L-812.259432B | L-812.259432BF | L-812.059453 | L-812.059453B | L-812.059453BF | L-812.099453 | L-812.099453B | L-812.099453BF | L-812.179453 | L-812.179453B | L-812.179453BF | L-812.259453 | L-812.259453B | L-812.259453BF | Tolerance |
| Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | M15 9-pole (m) | |
| Recommended controllers / drivers | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for immediate use with fully integrated controller of the G-910 and G-901.R319 series. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpa. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | Ready for use, with fully integrated controller of the G-901 series: G-901.R519. Flexible integration with compact modules: ACS SPiiPlusEC and UDMpm. Also compatible with other third-party controllers and servo drivers. | |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector for motor encoder | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) | M15 15-pole (m) |
