RS-40 V7 Compact Rotation Stage Suitable for Vacuum

Precision Positioning

RS-40 V7 Compact Rotation Stage Suitable for Vacuum
Product Description Specifications Downloads Quote / Order

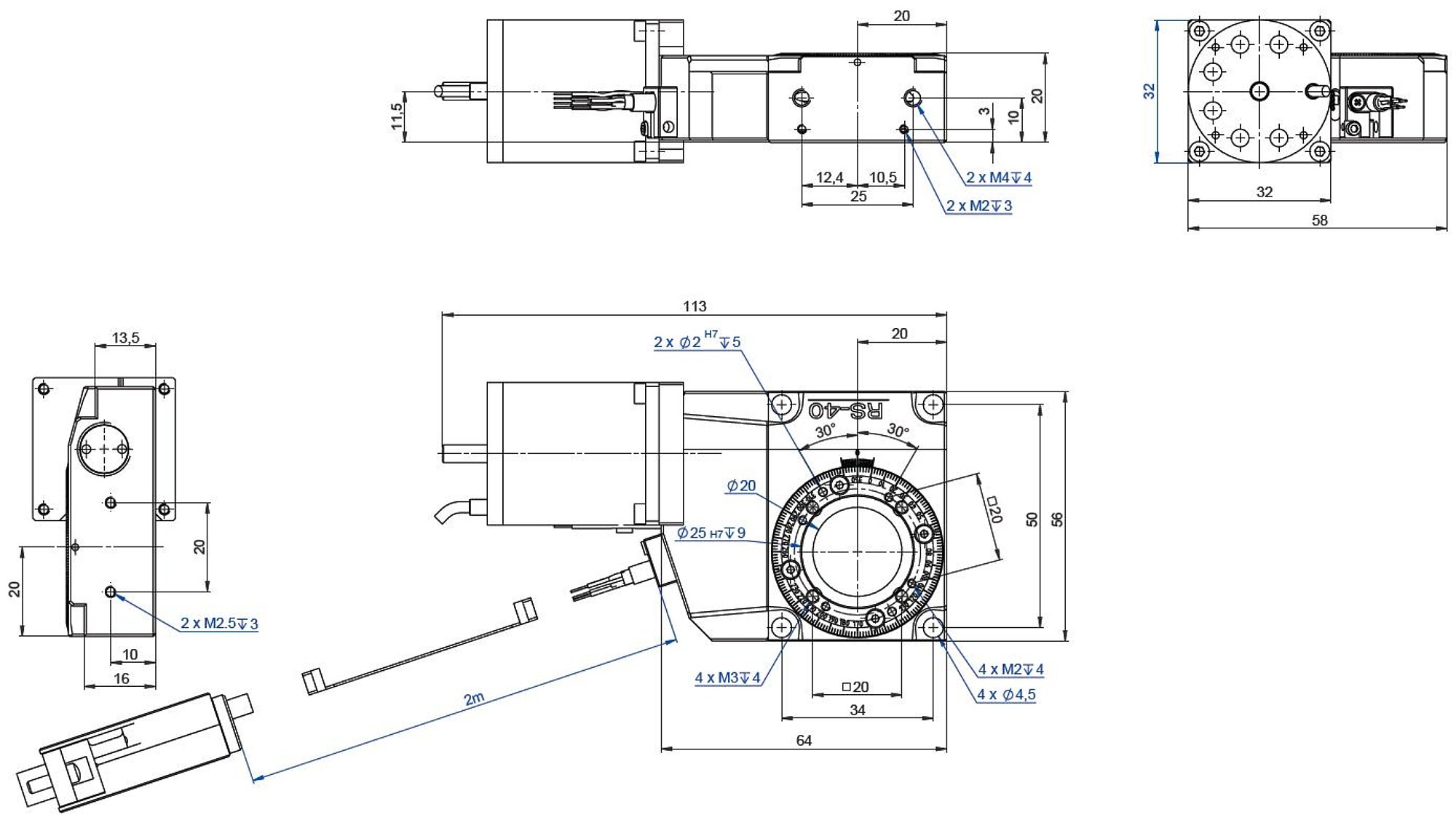

Standard-class rotation stage

Worm drive. Aperture with 20 mm Ø. Reference switch.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. Therefore, a bakeout temperature of up to 80 °C can be reached.

Higher quality for high vacuum applications

In this case, special components suitable for high vacuum are used, such as motor, measuring system, and limit switches. In addition, the surface is made of uncoated aluminum, the drive screw and guides are made of stainless steel. With this, the PI V7 vacuum class is reached, which means up to 10-7 hPa.

Drive

Stepper motor with gearhead.

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Specifications

Datasheet

Datasheet RS-40 V

Version / Date
2020-02-21
Version / Date
2020-02-21
Document language
pdf - 718 KB
pdf - 722 KB

Downloads

Datasheet

Datasheet

Datasheet RS-40 V

Version / Date
2020-02-21
Version / Date
2020-02-21
Document language
pdf - 718 KB
pdf - 722 KB

Documentation

Documentation

User Manual RS-40

Compact Rotation Stage
Version / Date
2016-06-29
Version / Date
2016-06-13
Document language
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
1.5.0 October 2017
pdf - 395 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

3216V21000 NEW!
RS-40 Rotation stage, 20 mm Ø aperture, stepper motor, magnetic reference switch, including 2 m cable on the vacuum side, when ordered with a controller from PI additionally including 3 m cable on the air side, vacuum compatible to 10-7 hPa

Adapter brackets
