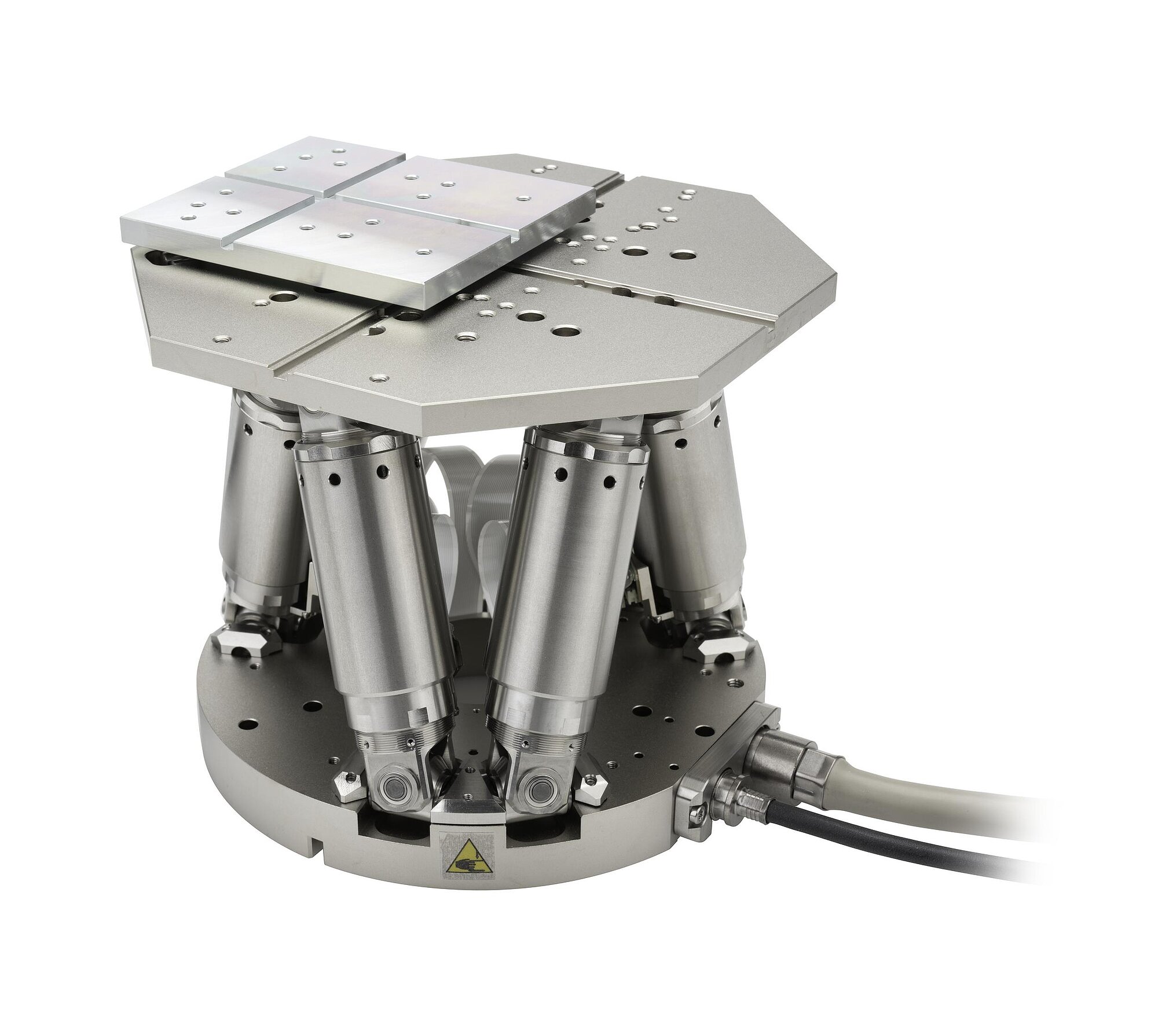

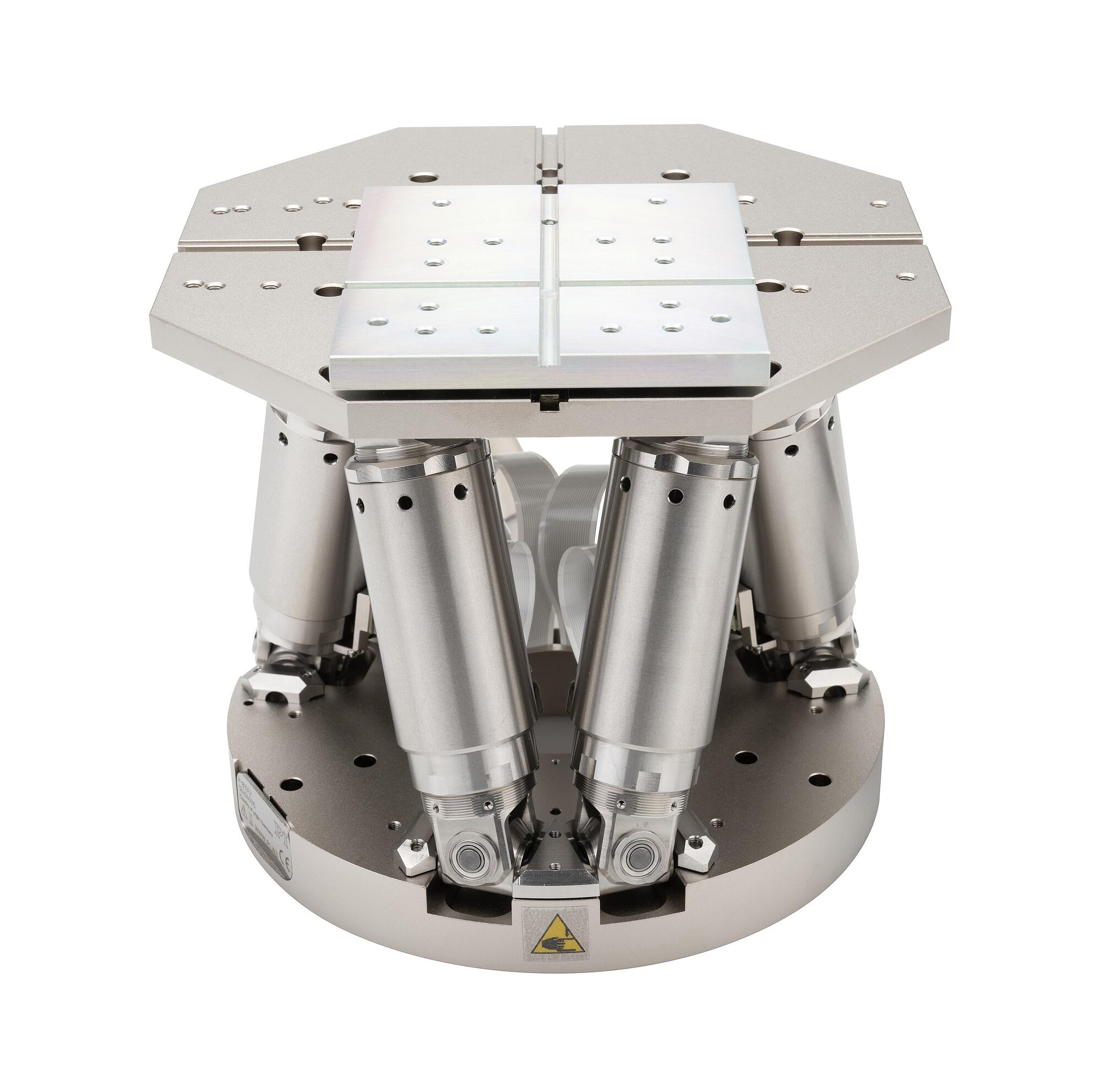

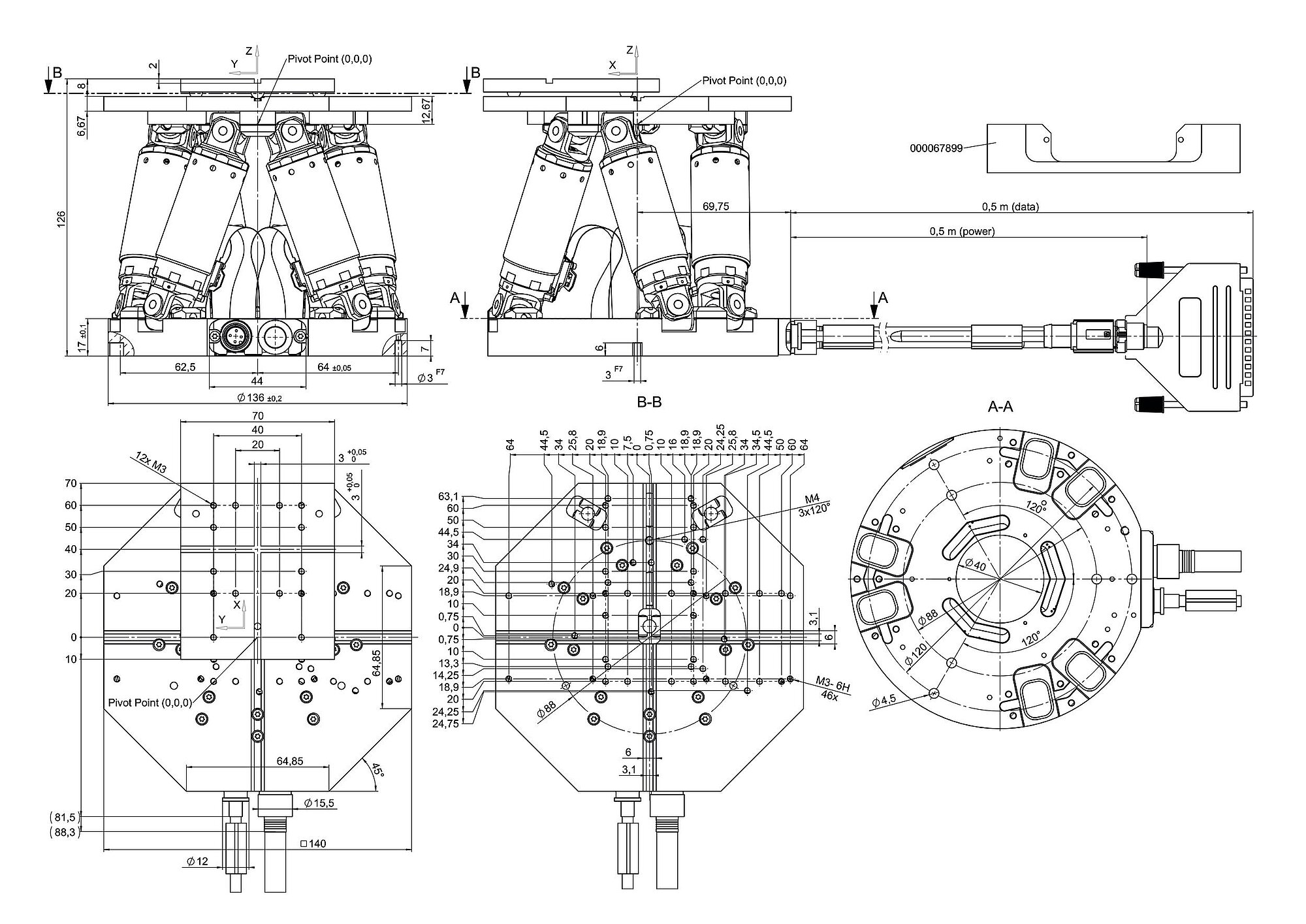

H-811.F2 6-Axis Miniature Hexapod

Ideal for Fiber Alignment

  • Travel ranges to ±17 mm / ±21°
  • Compact design
  • Removable magnetic plate
  • High dynamics and precision
  • Freely programmable, virtual pivot point
  • Superior lifetime
H-811.F2 6-Axis Miniature Hexapod
Product Description Specifications Downloads Quote / Order

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction.

Extensive Software Package

The software package included in the scope of delivery allows integration of the system into virtually any environment. All common operating systems such as Windows, Linux, and macOS as well as a large number of common programming languages such as Python, MATLAB, and NI LabVIEW are supported. Thanks to sophisticated program examples and the use of software tools such as PIMikroMove, the time between starting integration and productive operation is shortened considerably.

Brushless DC Motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

Removable magnetic plate

Accelerate your workflows. The next workpiece can be prepared parallel to our automated process step. The removable magnetic plate can be disassembled quickly without tools and subsequently reassembled accurately each time.

PIVirtualMove

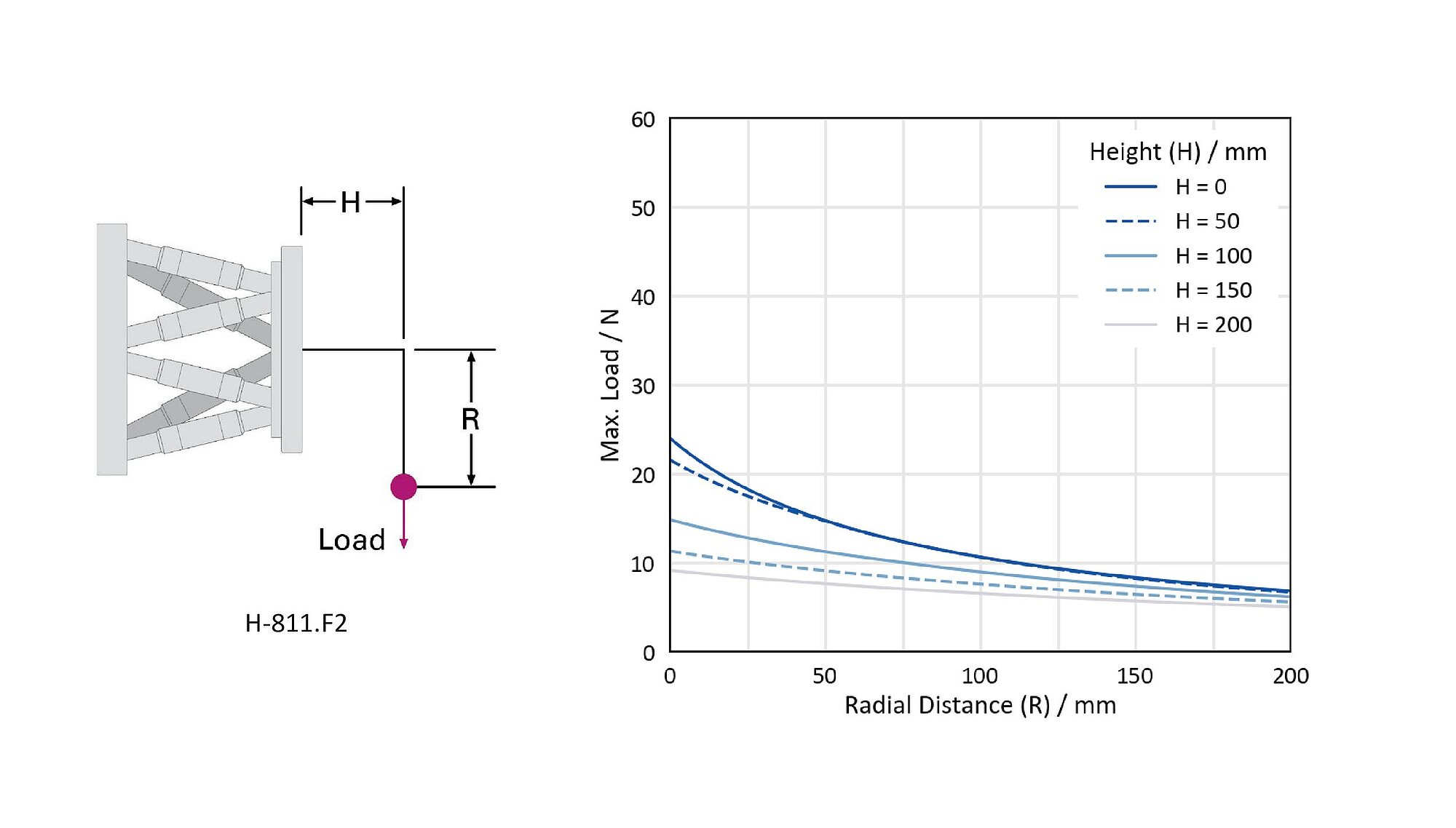

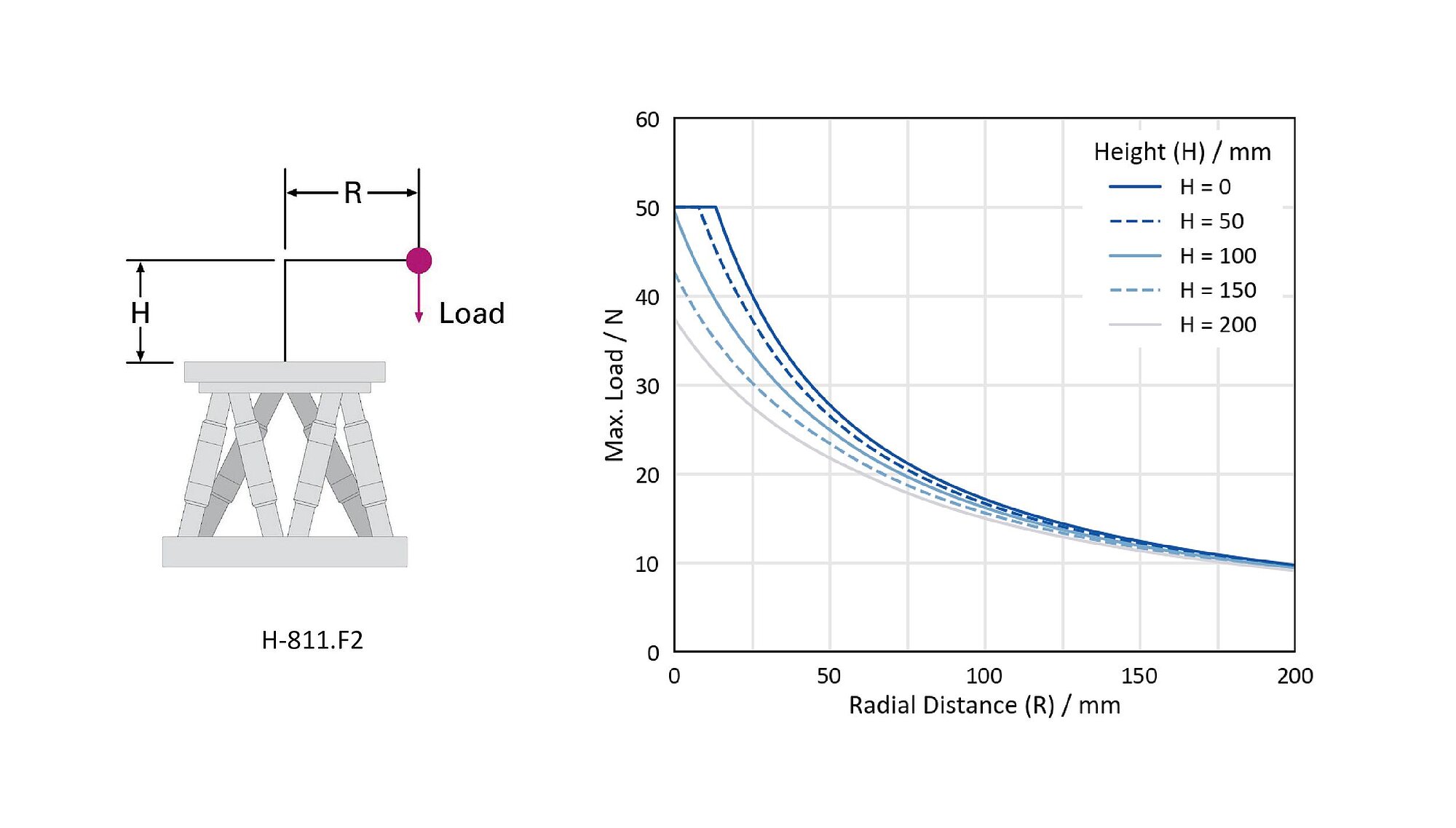

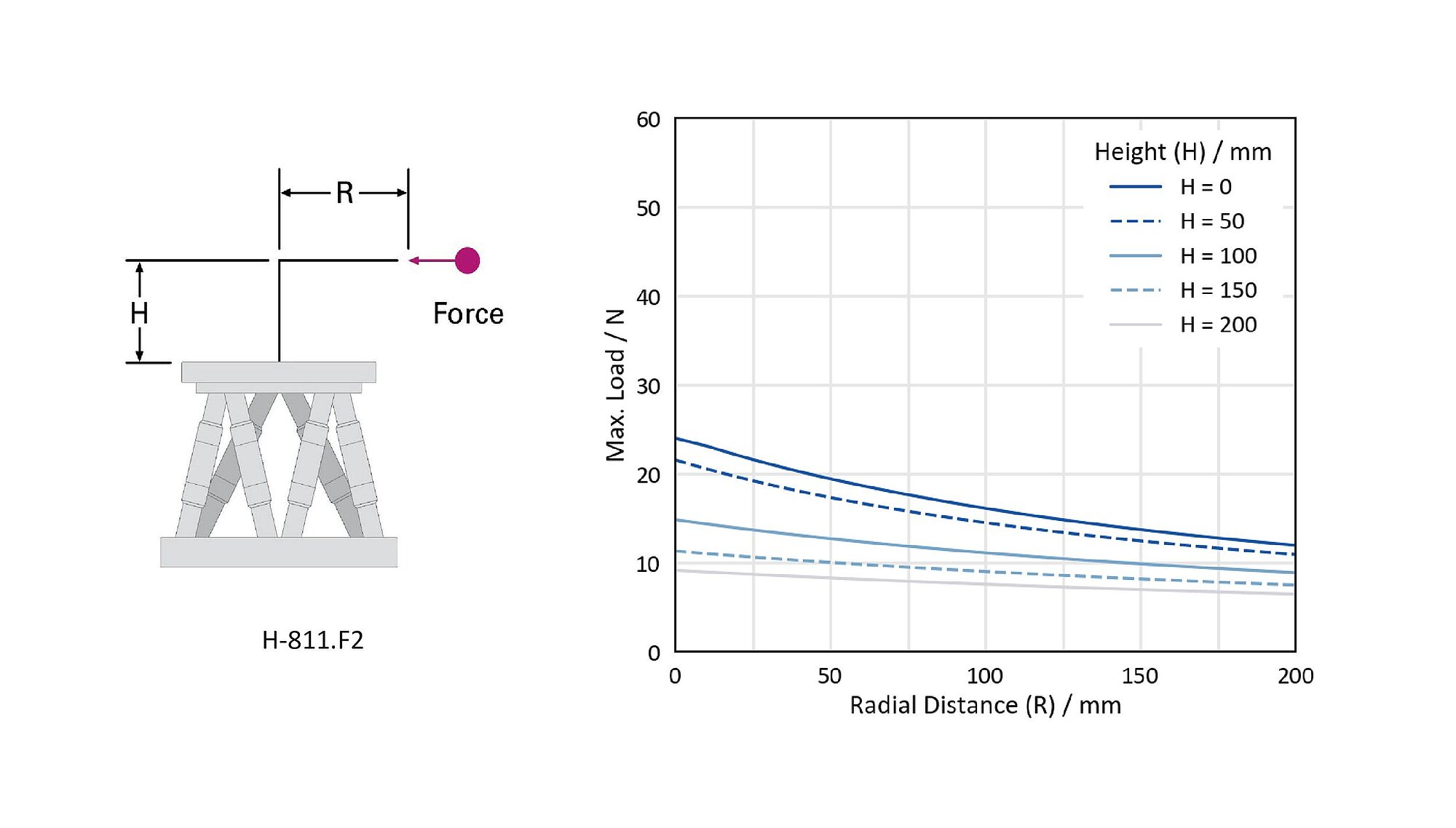

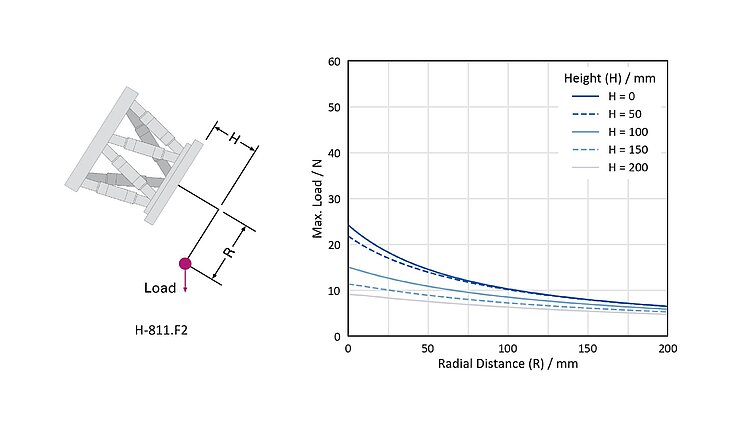

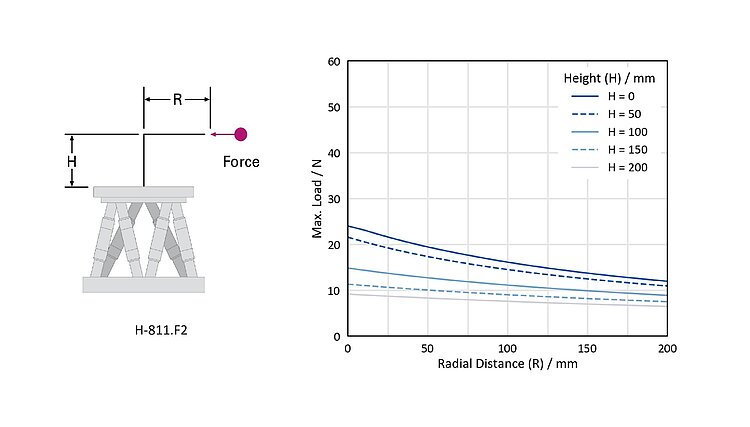

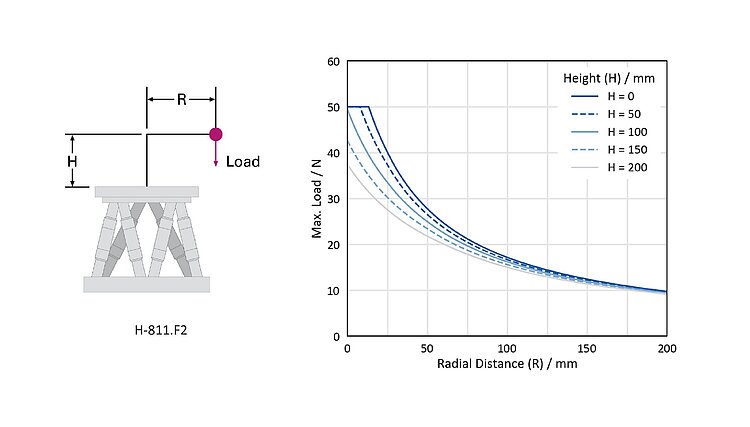

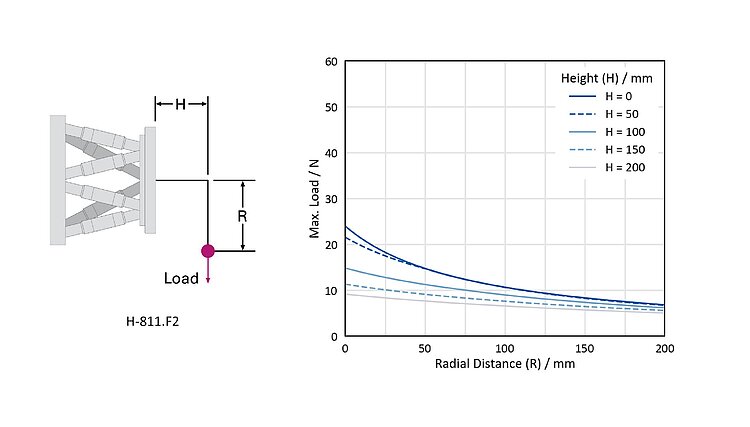

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research, micromanufacturing, fiber alignment, and the alignment of optical components.

Specifications

Datasheet

Datasheet H-811.F2

Version / Date
2024-02-28
pdf - 897 KB
Version / Date
2024-02-28
pdf - 900 KB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English
Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English
Product Note

Product Change Notification H-811 Series

Version / Date
2020-10-15
pdf - 81 KB
English
Product Note

Product Change Notification H-811 Vent Holes

Version / Date
2019-03-04
pdf - 206 KB
English
Product Note

Product Change Notification Cable Change H-811.S2/H-811.F2

Version / Date
2019-05-10
pdf - 196 KB
English

Datasheet

Datasheet

Datasheet H-811.F2

Version / Date
2024-02-28
pdf - 897 KB
Version / Date
2024-02-28
pdf - 900 KB

Documentation

Documentation

User Manual MS235

H-811.I2, H-811.I2V, H-811.F2, and H-811.S2 miniature hexapods

Version / Date
2.5.0 2023-02-23
pdf - 7 MB
Version / Date
2.5.0 2023-02-23
pdf - 7 MB
Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB

3-D Models

3-D Models

H-811.x2x 3-D model

Version / Date
2020-09-24
zip - 3 MB

Software Files

Software Files

PIVirtualMove

Version / Date
1.0.1.0, 2024-01
zip - 150 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

H-811.F2

Miniature hexapod microrobot for optical alignment, removable magnetic plate, brushless DC motor, 5 kg load capacity, 20 mm/s velocity, 0.5 m cable length. Connecting cables are not included in the scope of delivery and must be ordered separately.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
