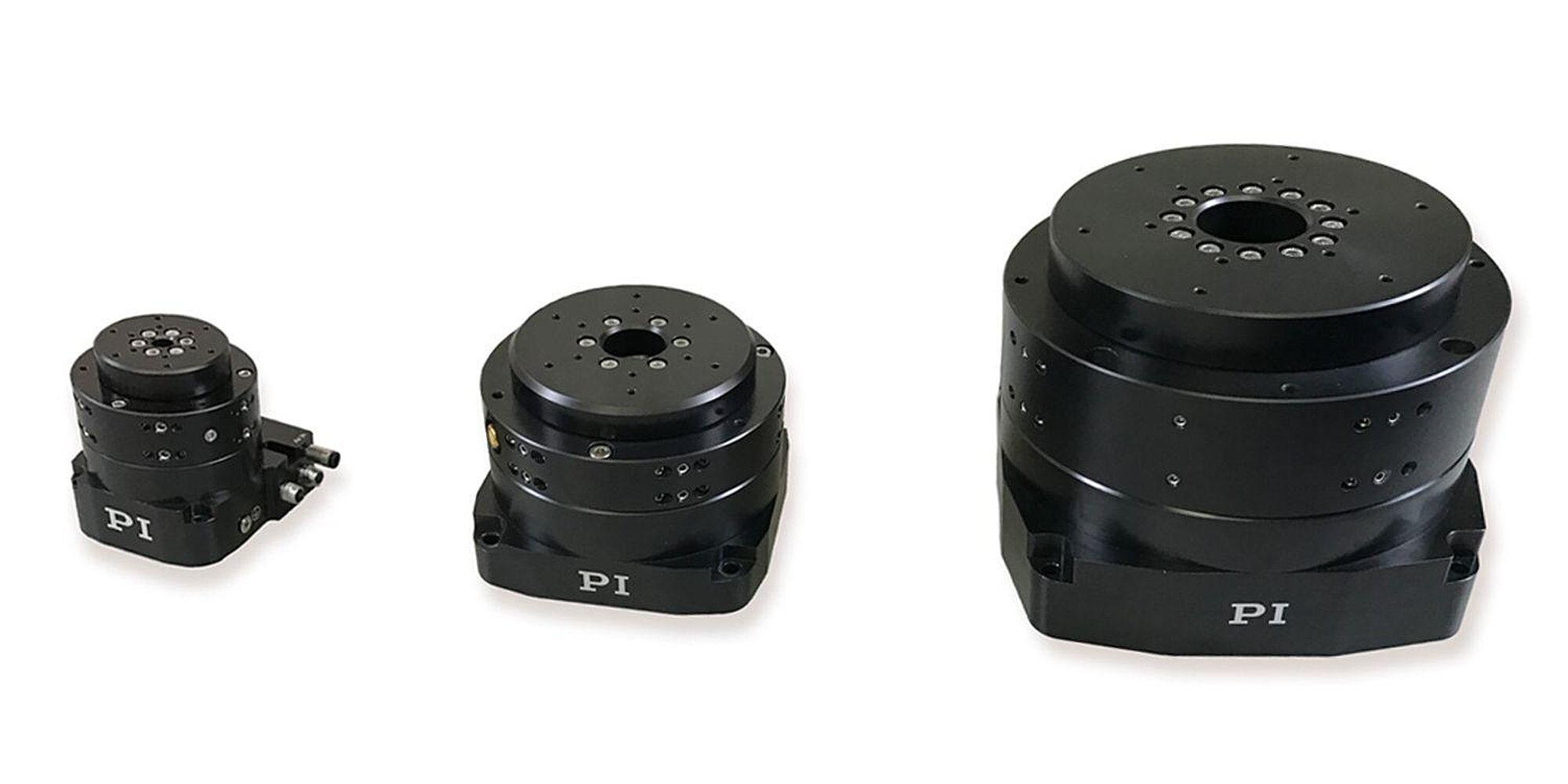

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology

A-62x PIglide RM Rotation Stage with Air Bearings
Product Description Specifications Downloads Quote / Order
  • Cleanroom compatible
  • Motion platform diameter from 50 mm to 300 mm
  • Load capacity to 4170 N
  • Eccentricity and flatness < 200 nm
  • Can be mounted vertically or horizontally

Product overview

The PIglide RM series of motorized rotation stages are designed for accuracy, precision, high stiffness, and ease of use, and can be mounted in any orientation.

Various options can be combined to create a solution ideal for point-to-point indexing or constant velocity scanning.

The RM stages offer superior travel accuracy, flatness, and wobble performance. Because they are friction free and require no maintenance or lubrication, they are ideal for use in cleanrooms.

3-Phase Torque Motor

  • Brushless
  • Slotless
  • Low cogging torque

Absolute encoder (optional)

Absolute encoders supply explicit position information that enables immediate determination of the position. This means that referencing is not required during switch-on, which increases efficiency and safety during operation.

Accessories and options

  • Encoder
  • Optional tip/tilt platform
  • Custom mounting flanges
  • Vacuum feedthrough
  • Slip rings
  • PIglide filter and air preparation kit
  • Single or multi-axis motion controllers and servo drives
  • Base plates made of granite and systems for reducing vibration

Application fields

Optical alignment, metrology, inspection systems, calibration, scanning.

Specifications

Datasheet A-62x

Version / Date
2018-07-27
Version / Date
2018-07-27
Version / Date
2018-09-05
Document language
pdf - 965 KB
pdf - 972 KB
pdf - 1 MB

Downloads

Product Note

Product Change Notification A-xxx.*C1

Version / Date
2018-08-02
Document language English
pdf - 71 KB

Datasheet

Datasheet A-62x

Version / Date
2018-07-27
Version / Date
2018-07-27
Version / Date
2018-09-05
Document language
pdf - 965 KB
pdf - 972 KB
pdf - 1 MB

Documentation

User Manual A-62x

User Manual A-62x
Version / Date
1.1 2018-11-29
Document language English
pdf - 1 MB

3-D Models

A-62x 3-D model

Version / Date
2017-03-13

Whitepapers & Success Stories

Whitepaper: Air Bearings: When to Use and When to Avoid in Your Motion Application

All Positioning Stages are not Created Equal. Author: Matt Reck, PI
Version / Date
WP4003 2015-09
Document language English
pdf - 3 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

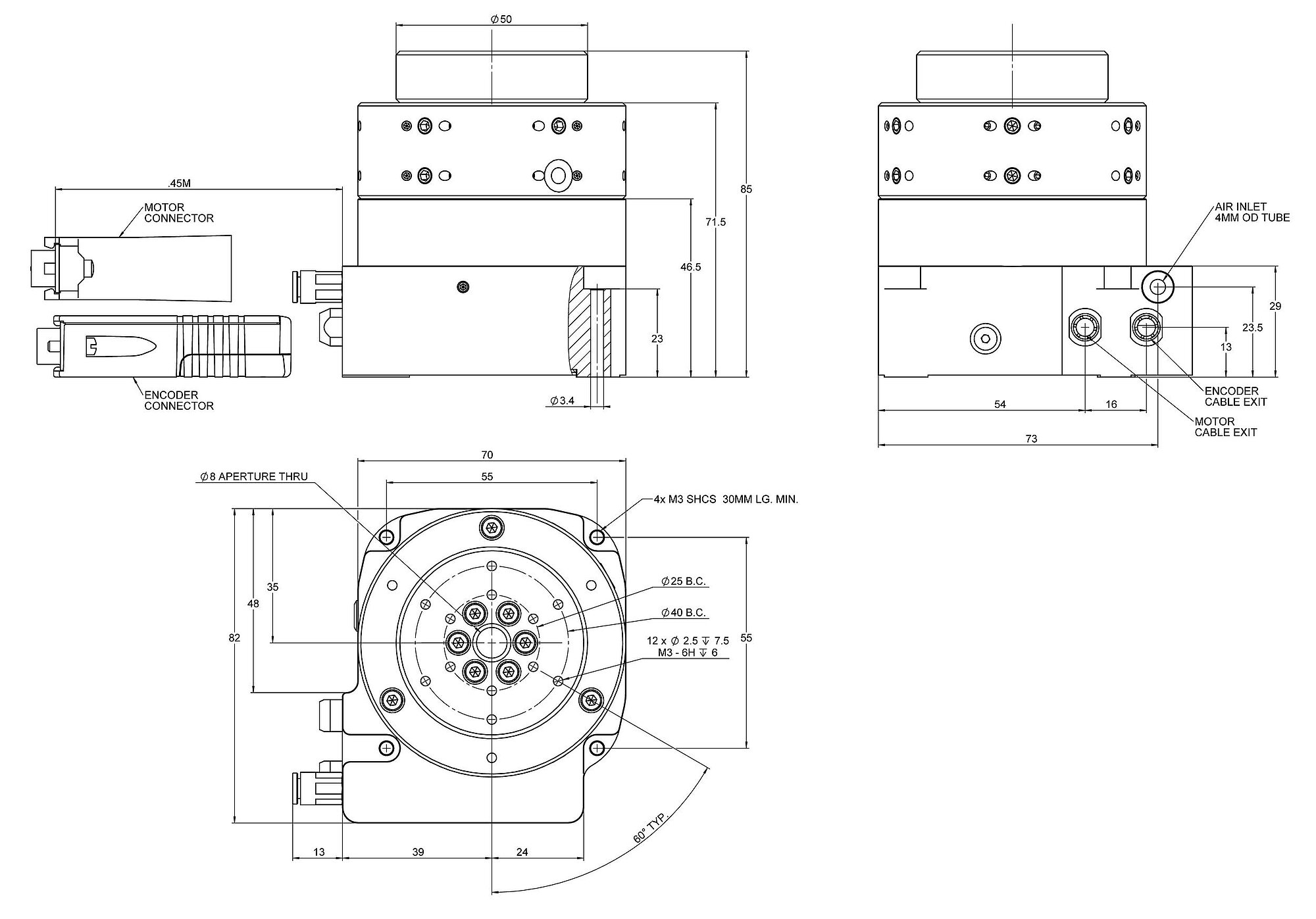

A-621.025A1
PIglide RM rotation stage, air bearing, 50 mm motion platform diameter, 25 mm Journal length, incremental angle measuring system with sin/cos signal transmission, 8192 lines/revolution, slotless, brushless 3-phase torque motor
A-621.025B1
PIglide RM rotation stage, air bearing, 50 mm motion platform diameter, 25 mm Journal length, absolute angle-measuring system with BiSS-C signal transmission, 0.0015 µrad sensor resolution, slotless, brushless 3-phase torque motor

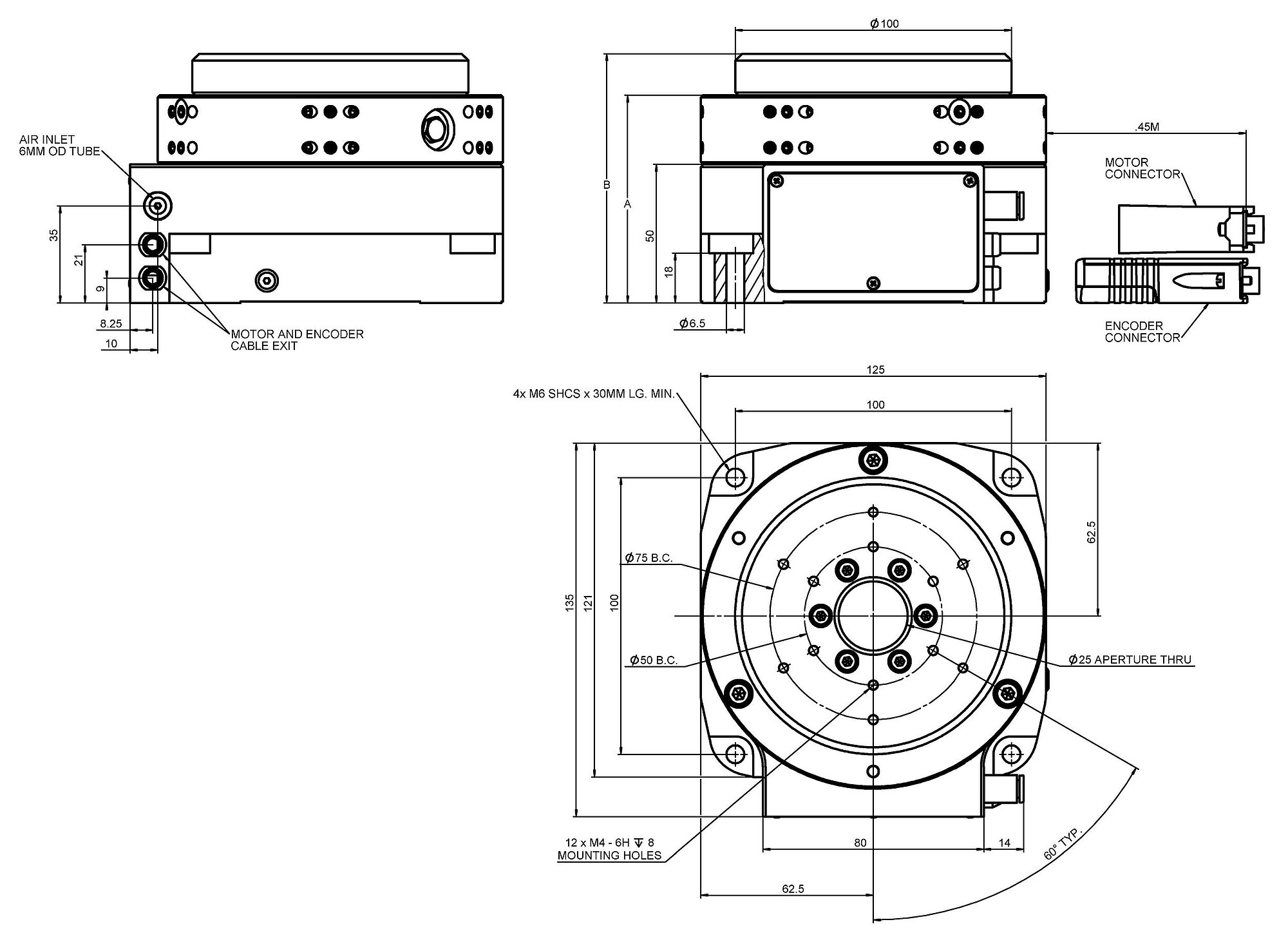

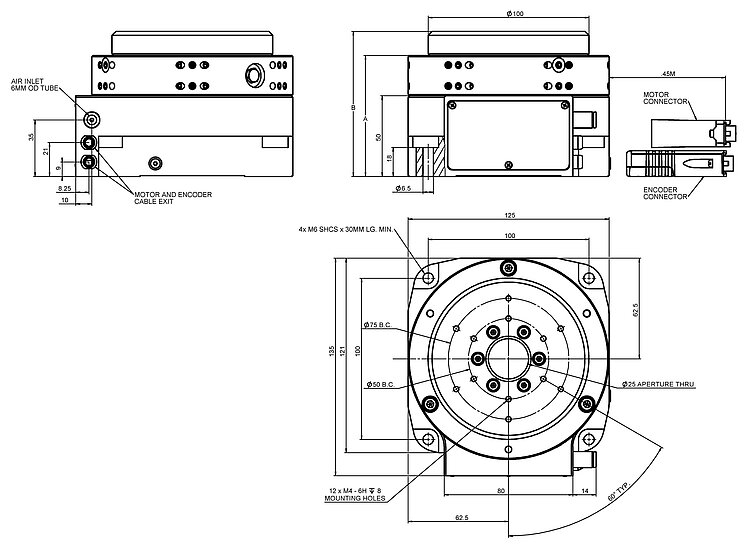

A-623.025A1
PIglide RM rotation stage, air bearing, 100 mm motion platform diameter, 25 mm Journal length, incremental angle measuring system with sin/cos signal transmission, 15744 lines/revolution, slotless, brushless 3-phase torque motor
A-623.025B1
PIglide RM rotation stage, air bearing, 100 mm motion platform diameter, 25 mm Journal length, absolute angle-measuring system with BiSS-C signal transmission, 0.0015 µrad sensor resolution, slotless, brushless 3-phase torque motor
A-623.050A1
PIglide RM rotation stage, air bearing, 100 mm motion platform diameter, 50 mm Journal length, incremental angle measuring system with sin/cos signal transmission, 15744 lines/revolution, slotless, brushless 3-phase torque motor
A-623.050B1
PIglide RM rotation stage, air bearing, 100 mm motion platform diameter, 50 mm Journal length, absolute angle-measuring system with BiSS-C signal transmission, 0.0015 µrad sensor resolution, slotless, brushless 3-phase torque motor

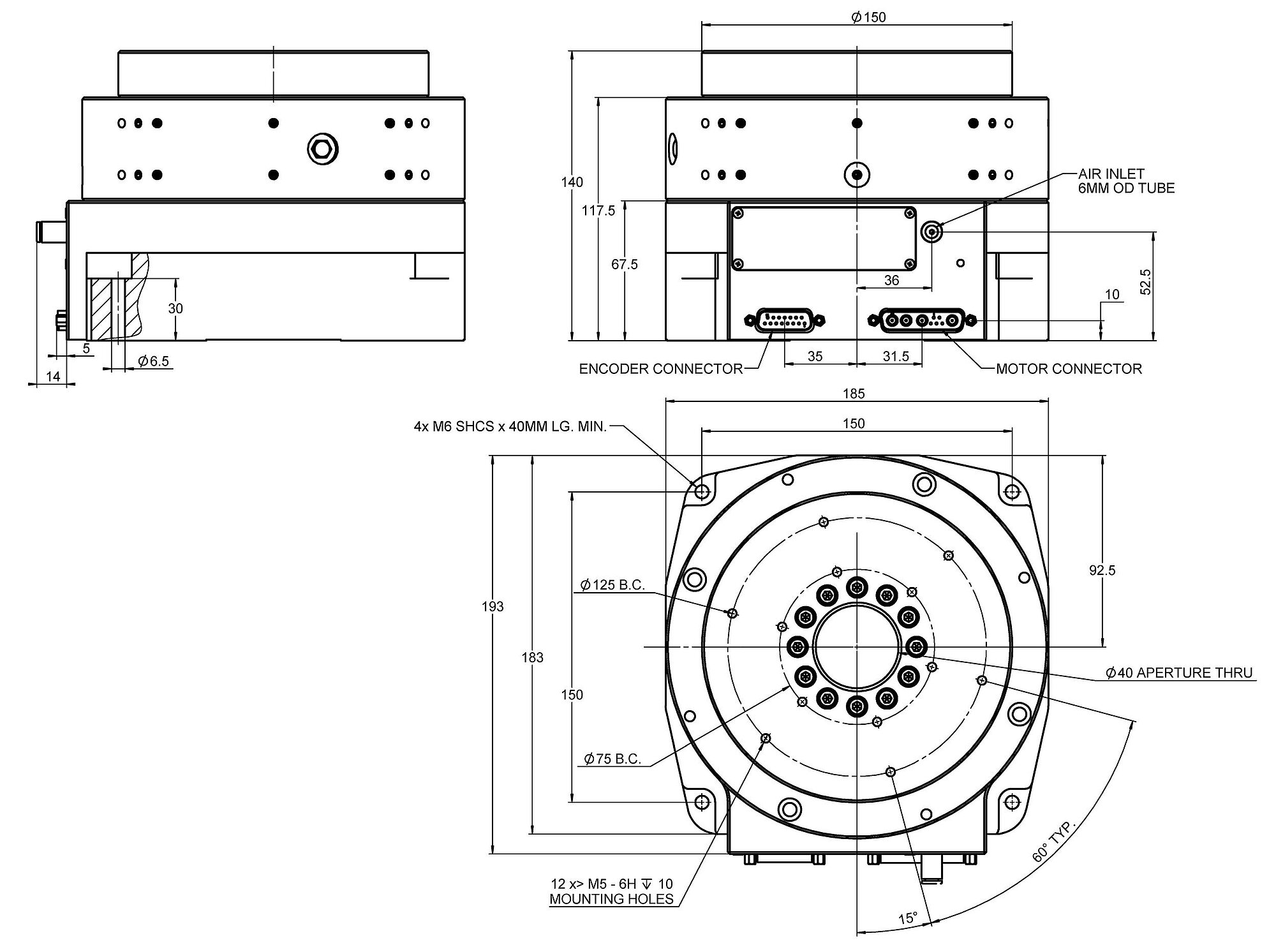

A-624.050A1
PIglide RM rotation stage, air bearing, 150 mm motion platform diameter, 50 mm Journal length, incremental angle measuring system with sin/cos signal transmission, 23600 lines/revolution, slotless, brushless 3-phase torque motor
A-624.050B1
PIglide RM rotation stage, air bearing, 150 mm motion platform diameter, 50 mm Journal length, absolute angle-measuring system with BiSS-C signal transmission, 0.0015 µrad sensor resolution, slotless, brushless 3-phase torque motor

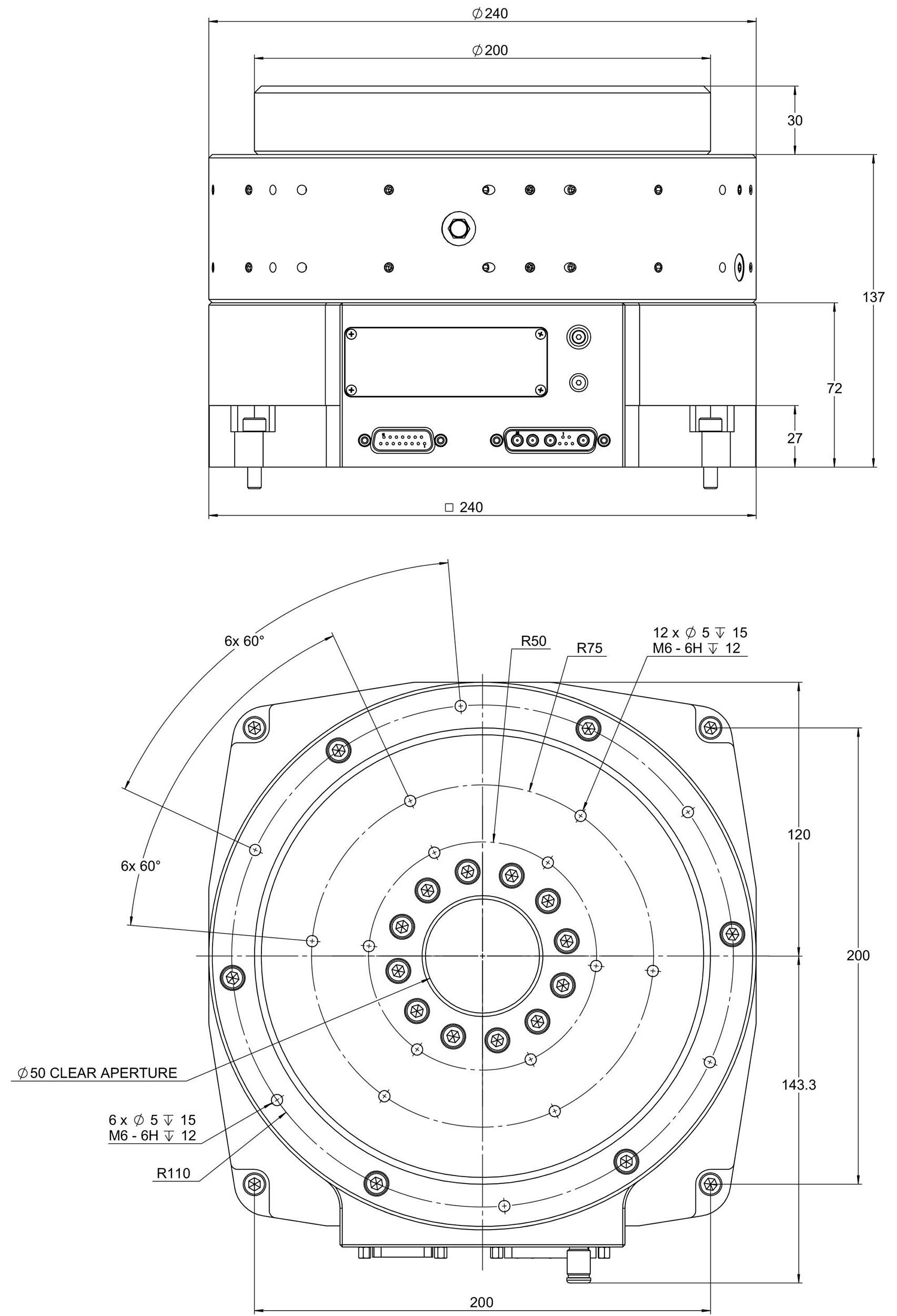

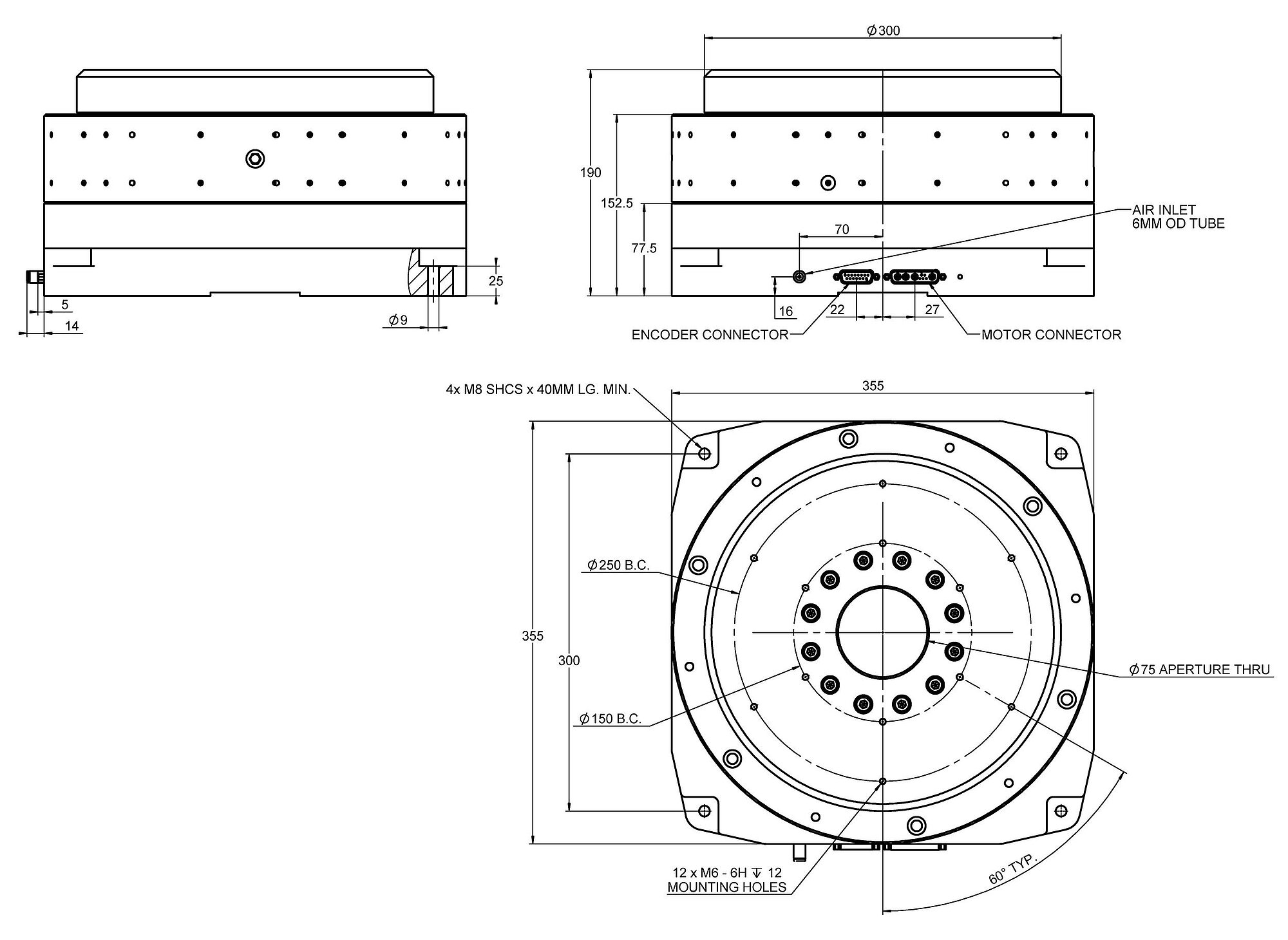

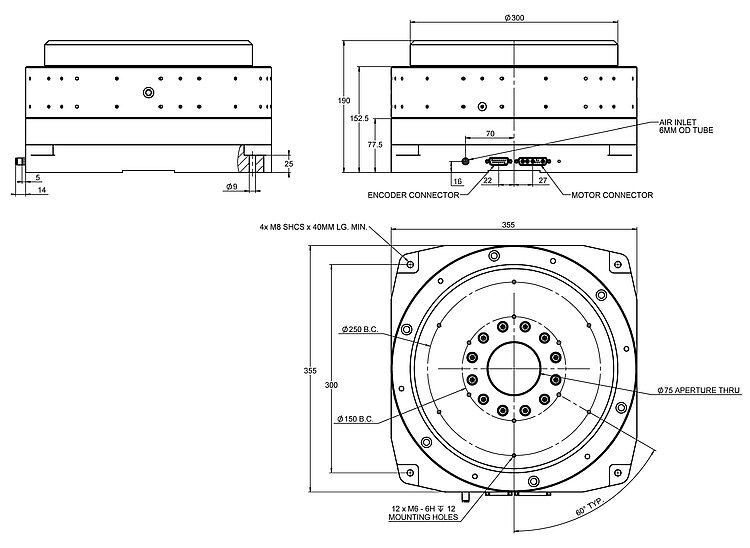

A-627.075A1
PIglide RM rotation stage, air bearing, 300 mm motion platform diameter, 75 mm Journal length, incremental angle measuring system with sin/cos signal transmission, 47200 lines/revolution, slotless, brushless 3-phase torque motor
A-627.075B1
PIglide RM rotation stage, air bearing, 300 mm motion platform diameter, 75 mm Journal length, absolute angle-measuring system with BiSS-C signal transmission, 0.0015 µrad sensor resolution, slotless, brushless 3-phase torque motor
