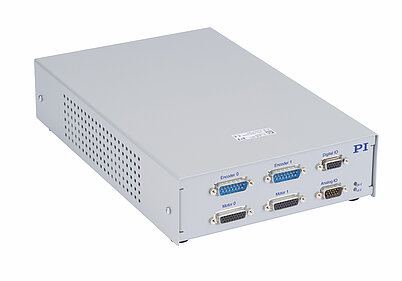

SMC pollux SMC-series

SMC pollux SMC-series
Product Description Specifications Downloads Quote / Order
  • Single-axis Microstep-Controller System
  • Stand-alone-system or with integrated 2-Phase stepper motor
  • High Resolution-Microtstep
  • Up to 16 S C pollux can be combined with only one RS232 interface
  • DSP Controller Type
  • Velocity-range <0.1 µm/s ... 40 rev/s (200 step motor)
  • Serial interface RS-232 115 kBaud
  • Venus-2 compatible string-based command language
  • Windows™ User-Interface
  • 24 VDC power supply (external)
  • Synchron motion start commands
  • Speed Mode
  • Closed -loop 1 Vpp interface, optional for NT series
  • Mixed configurations (open loop / closed loop) possible with NT series
  • LabVIEW™ VI's
  • Windows DLL and Open-Source project available
  • 3 types with different torques / velocities available

Our SMC family is based on modern 32bit technology which enables performances of stepper motor driven systems which haven´t been possible before. A so called sin 2 acceleration offers very smooth acceleration and deceleration of the motors so that positioning in the nanometer range is possible with highest performance. One of the big advantages of our SMC-controllers is the possibility to drive the stages with extreme high resolution.

Specifications

Datasheet

Datasheet SMC pollux

Version / Date
2016-06-17
Document language English
pdf - 749 KB

Downloads

Datasheet

Datasheet

Datasheet SMC pollux

Version / Date
2016-06-17
Document language English
pdf - 749 KB

Documentation

Documentation

Technical Manual SMC Pollux

SMC Pollux Drive and Pollux Box hardware description
Version / Date
2.3
Document language English
pdf - 527 KB
Documentation

Software Manual MS217

Windows Hydra/Pollux GCS 2.0 DLL
Version / Date
2012-05-30
Document language English
Documentation

Software Manual MS214

Hydra/Pollux LabView Driver Library
Version / Date
2014-01-31
Document language English
Documentation

Manual Venus-2 for SMC Pollux

Venus-2 command language for SMC Pollux controller
Version / Date
2.3
Document language English

3-D Models

3-D Models

SMC pollux STEP

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
