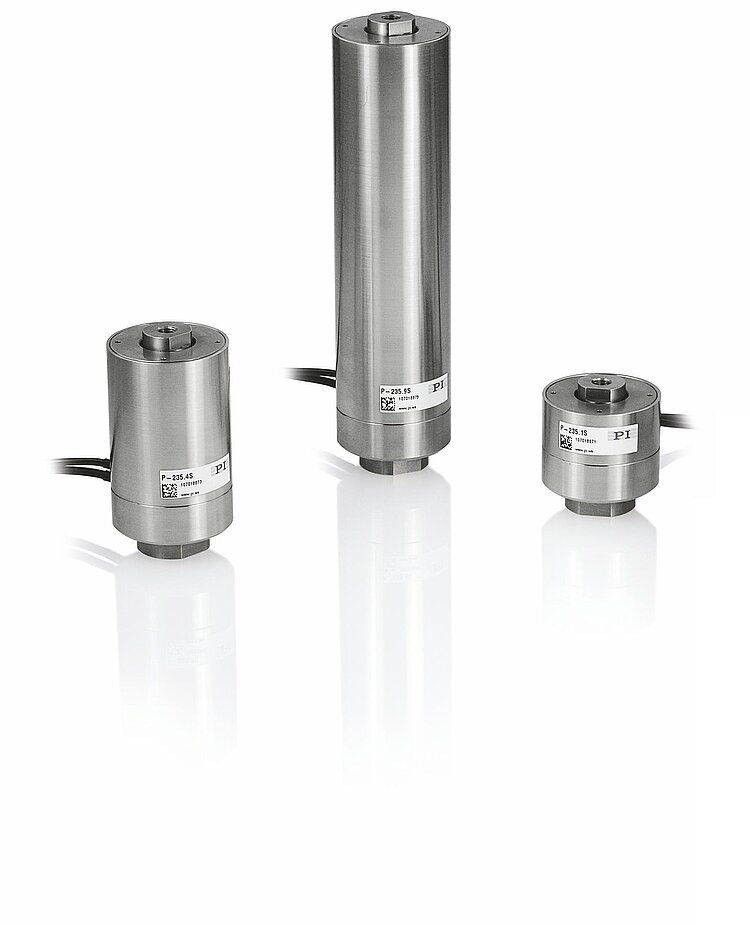

P-225 PICA Power Piezo Actuators

Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option

P-225 PICA Power Piezo Actuators
Product Description Specifications Downloads Quote / Order
  • Extremely high stiffness
  • Push force capacity to 12500 N
  • Pull force capacity to 2000 N
  • Travel range to 120 µm
  • Options: Vacuum, high-temperature versions, waterproof housing

Fields of application

  • Active vibration absorber
  • Adaptive mechanics
  • Precision mechanics / micromechanics
  • Optics
  • Measuring technology / interferometry
  • Adaptive systems technology
  • Switching
  • Laser tuning
  • Force generation / materials testing
  • Nanotechnology

PICA Power piezo actuators for high loads

PICA Power high-load stack actuators are reliable and offer long travel ranges with large loads. The actuators are suitable for demanding loads with high temperatures.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. Versions are available for vacuum to 10-9 hPa and for particularly high or low operating temperatures.

Specifications

Datasheet P-225

Version / Date
2018-08-24
Version / Date
2018-08-24
Version / Date
2018-09-11
Version / Date
2018-10-24
Document language
pdf - 775 KB
pdf - 777 KB
pdf - 655 KB
pdf - 728 KB

Downloads

Datasheet

Datasheet P-225

Version / Date
2018-08-24
Version / Date
2018-08-24
Version / Date
2018-09-11
Version / Date
2018-10-24
Document language
pdf - 775 KB
pdf - 777 KB
pdf - 655 KB
pdf - 728 KB

Documentation

User Manual PZ245

P-225, P-235 Preloaded High-Load Piezo Actuators, 1000 V
Version / Date
1.1.0 2018-09-05
Version / Date
1.1.0 2018-09-05
Document language
pdf - 3 MB
pdf - 3 MB

Short Instructions PZ246EK

Preloaded PICA Piezo Actuators 1000 V P-21x, P-2x5
Version / Date
2.2.1 August 2018
Document language English
pdf - 1 MB

3-D Models

P-225 3-D model

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Actuators without sensor

Actuators without sensor, vacuum compatible

Actuators with sensor

Actuators with sensor, vacuum compatible

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
