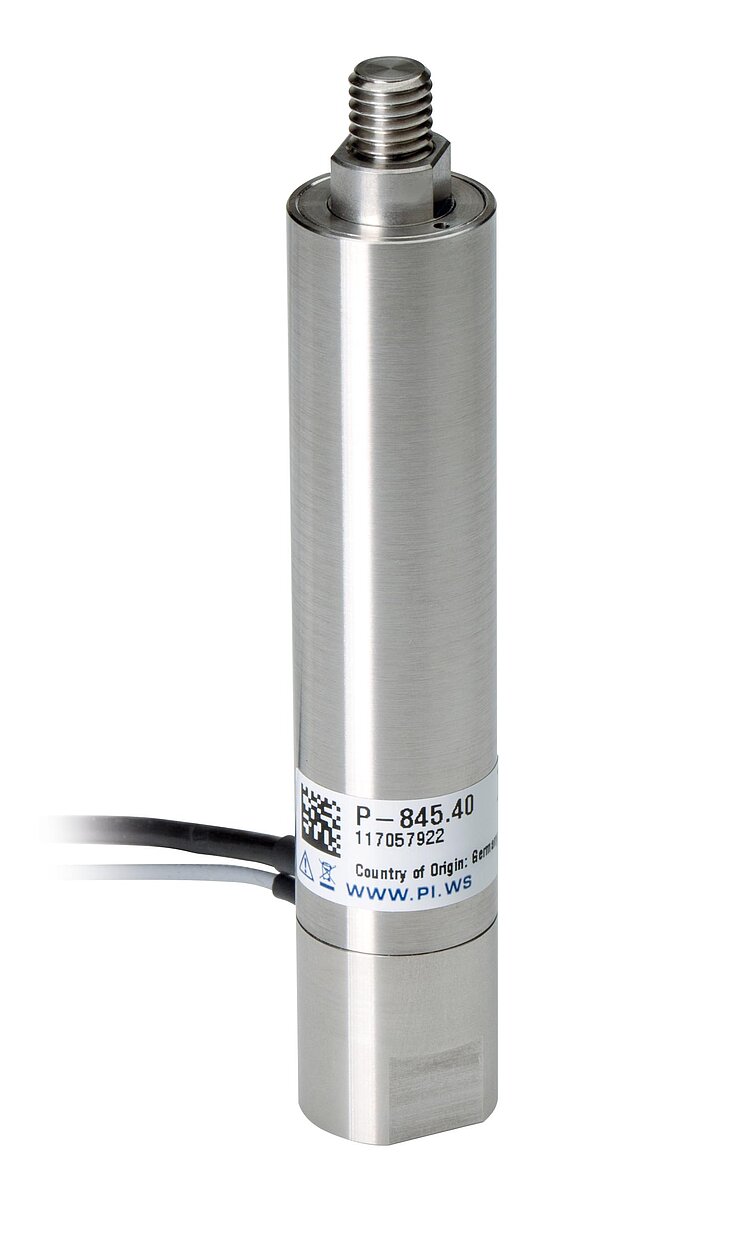

P-845 Preloaded Piezo Actuators

For High Loads and Forces, with Position Sensor

P-845 Preloaded Piezo Actuators
Product Description Specifications Downloads Quote / Order
  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Push force capacity to 3000 N
  • Pull force capacity to 700 N
  • Microsecond response
  • Subnanometer resolution
  • Vacuum versions, optional water-resistant housing

Fields of application

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.
