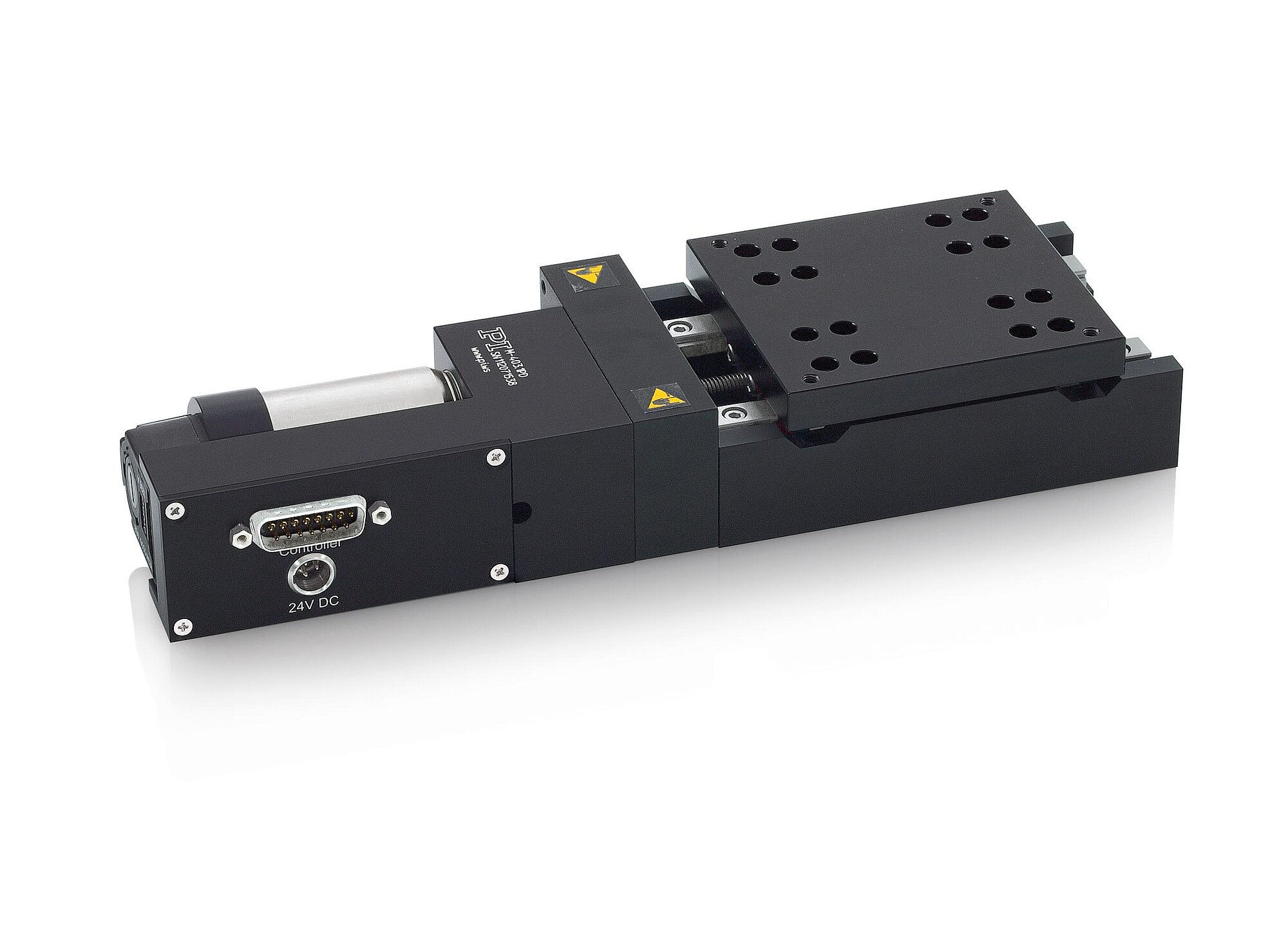

M-403 Linear Stage

Inexpensive, Reliable, Precise

  • Inexpensive, cost-optimized design for precise positioning
  • Travel ranges from 25 to 200 mm
  • Resolution to 0.018 µm
  • Minimum incremental motion to 0.2 µm
  • Preloaded precision threaded spindle
  • Higher loads with M-414
M-403 Linear Stage
Product Description Specifications Downloads Quote / Order

Application fields

Measuring technology. Adjustment.

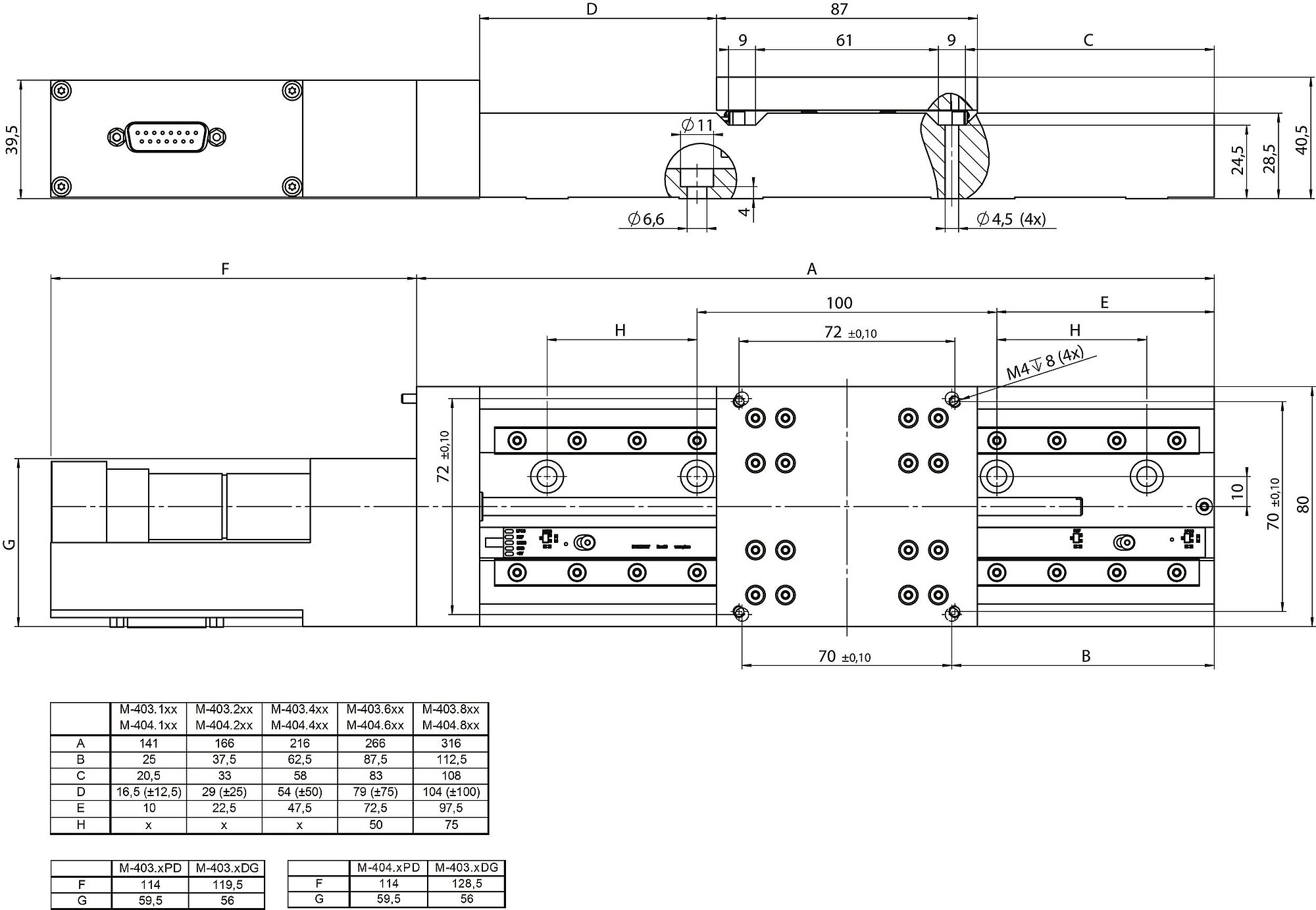

Specifications

Datasheet

Datasheet M-403

Version / Date
2024-02-23
pdf - 1 MB
Version / Date
2024-02-23
pdf - 1 MB
Version / Date
2019-07-31
pdf - 788 KB
Version / Date
2019-09-12
pdf - 750 KB

Downloads

Product Note

Product Note

Product Change Notification M-Portfolio-Streamlining Part-3

M-313.80, M-331.1MS, M-332.5MS, M-333.1MS, M-333.2MS, M-403.1VG, M-403.1VP, M-403.2VG, M-403.2VP, M-403.4VG, M-403.4VP, M-403.6VG, M-403.6VP, M-403.8VG, M-403.8VP, M-413.1VG, M-413.1VP, M-413.2VG, M-413.2VP, M-413.3VG, M-413.3VP, M-414.1VG, M-414.1VP, M-414.2VG, M-414.2VP, M-414.3VG, M-414.3VP, M-414.500, M-451.01, M-451.12S, M-451.1DG, M-451.1PD, M-500.18V, M-500.90, M-505.4DG, M-511.2S1, M-521.2S1, M-531.2S1, M-605.11, M-619.00, M-620.00, M-621.00, M-622.00, M-623.00, M-624.10, M-642.00, M-653.00, M-655.00

Version / Date
2019-08-13
pdf - 381 KB
English

Datasheet

Datasheet

Datasheet M-403

Version / Date
2024-02-23
pdf - 1 MB
Version / Date
2024-02-23
pdf - 1 MB
Version / Date
2019-07-31
pdf - 788 KB
Version / Date
2019-09-12
pdf - 750 KB

Documentation

Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Version / Date
3.2.0 01/2021
pdf - 1 MB
Version / Date
3.2.0 01/2021
pdf - 1 MB
Documentation

PI Mounting Adapters for Micropositioning

Overview of all possible combinations of PI linear, rotary and tilt stages

Version / Date
---
pdf - 760 KB
Version / Date
---
pdf - 763 KB
Documentation

User Manual MP73

M-403 Linear Stage

Version / Date
2.1.4 2024-02-23
pdf - 2 MB
Version / Date
2.1.4- 2024-02-23
pdf - 2 MB

3-D Models

3-D Models

M-403 3-D model

zip - 8 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-403.1PD

Linear stage; DC motor with ActiveDrive; 25 mm travel range; 200 N load capacity; 10 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.2PD

Linear stage; DC motor with ActiveDrive; 50 mm travel range; 200 N load capacity; 10 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.4PD

Linear stage; DC motor with ActiveDrive; 100 mm travel range; 200 N load capacity; 10 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.6PD

Linear stage; DC motor with ActiveDrive; 150 mm travel range; 200 N load capacity; 10 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.8PD

Linear stage; DC motor with ActiveDrive; 200 mm travel range; 200 N load capacity; 10 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.1DG

Linear stage; DC gear motor; 25 mm travel range; 200 N load capacity; 2.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.2DG

Linear stage; DC gear motor; 50 mm travel range; 200 N load capacity; 2.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.4DG

Linear stage; DC gear motor; 100 mm travel range; 200 N load capacity; 2.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.6DG

Linear stage; DC gear motor; 150 mm travel range; 200 N load capacity; 2.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

M-403.8DG

Linear stage; DC gear motor; 200 mm travel range; 200 N load capacity; 2.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
