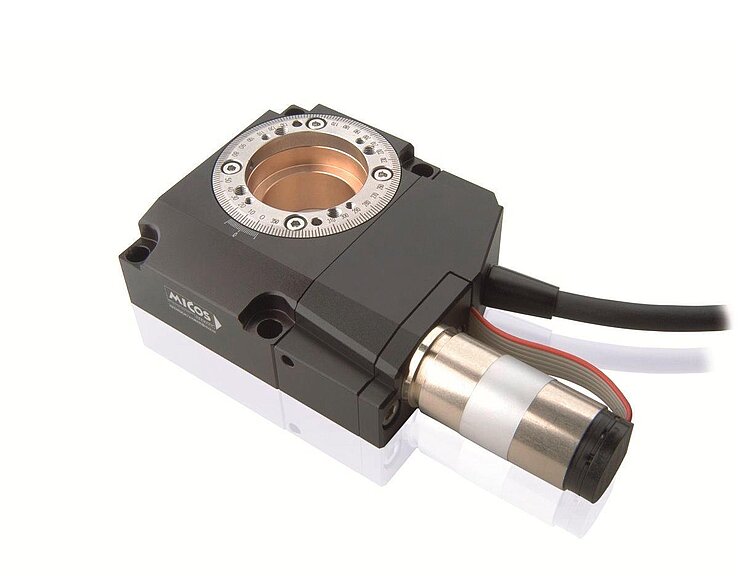

RS-40 Compact Rotation Stage

Precision Positioning

  • Unlimited travel range
  • Repeatability to 87 µrad
  • 20 mm Ø aperture
  • Reference switch
  • Vacuum-compatible variants available
RS-40 Compact Rotation Stage
Product Description Specifications Downloads Quote / Order

Standard-class rotation stage

Worm drive. Aperture with 20 mm Ø. Reference switch.

Versions

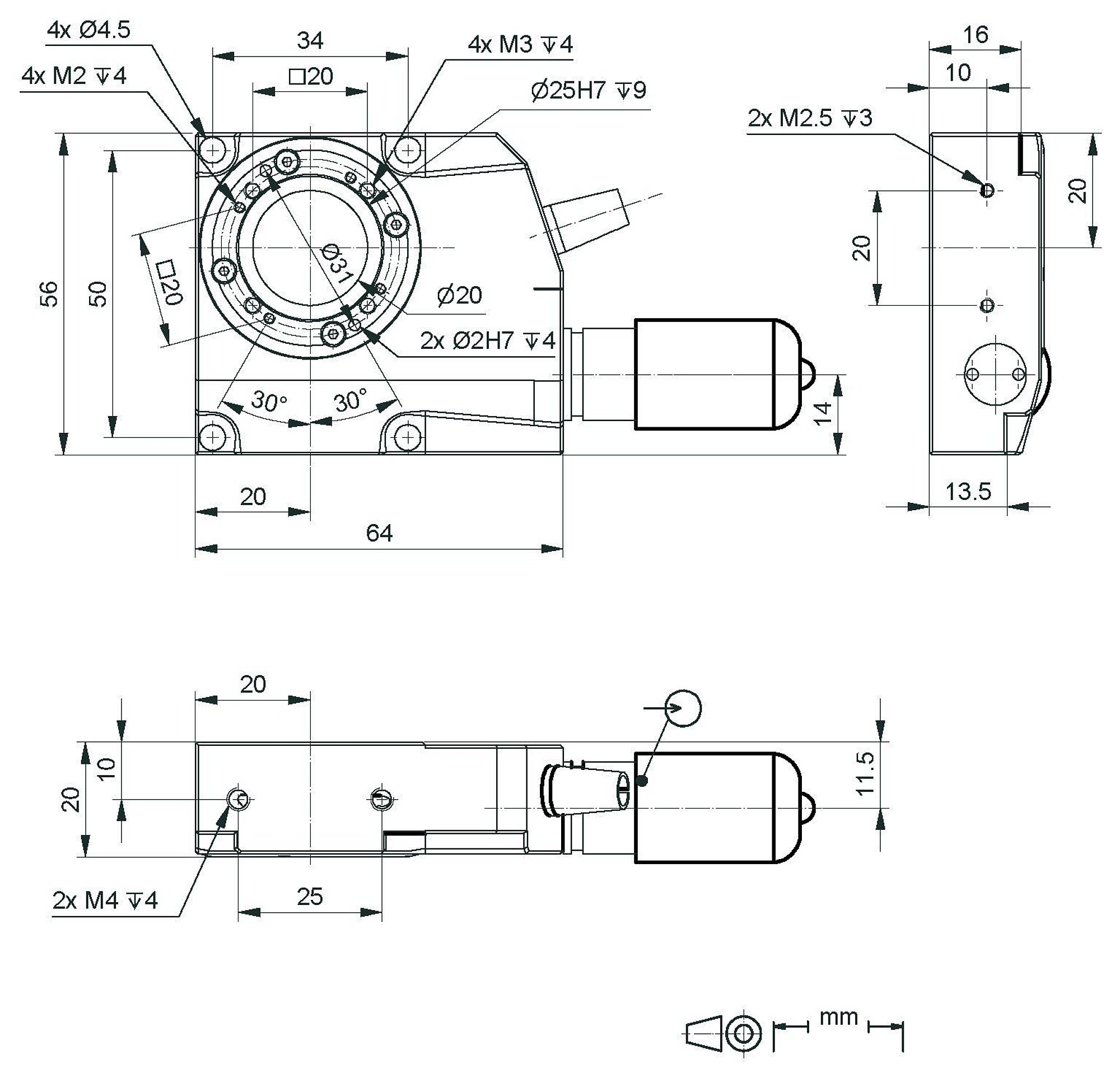

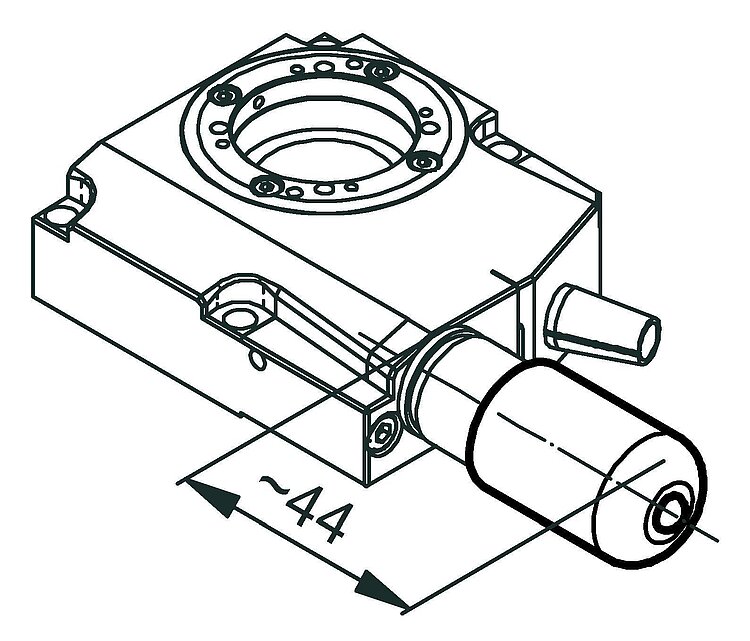

  • DC motor with gearhead, rotary encoder on the motor shaft

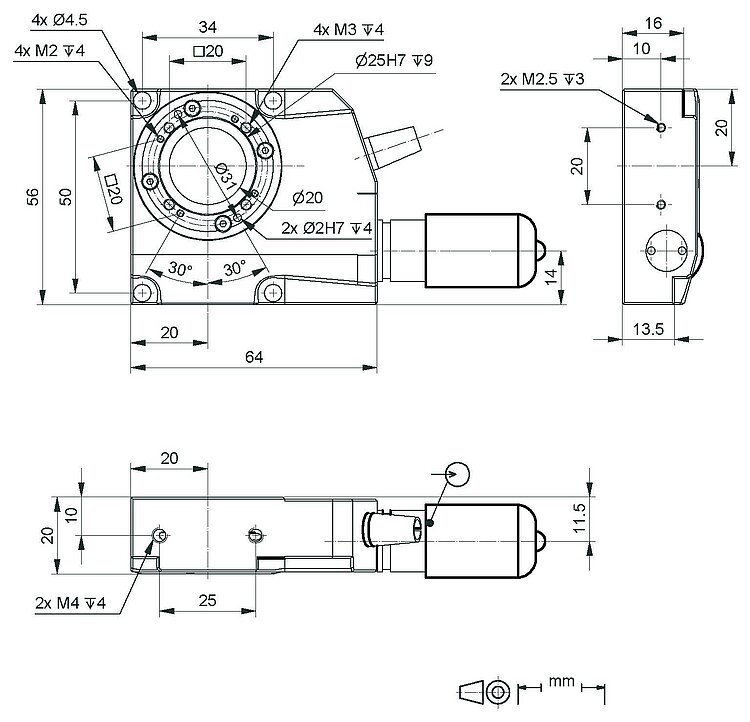

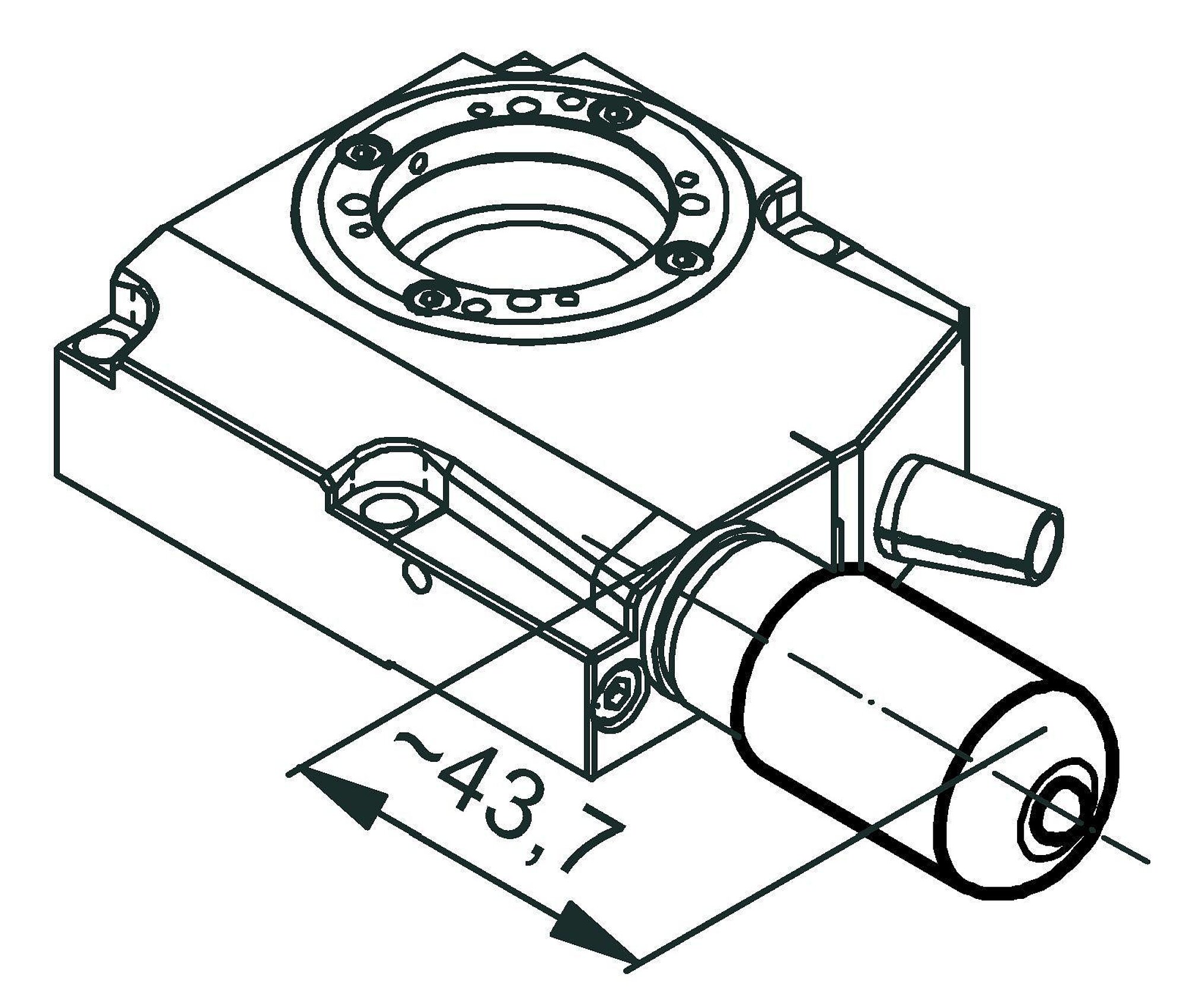

  • Stepper motor with gearhead
  • Vacuum versions available on request

Application fields

Precision microassembly, research, automation, vacuum

Specifications

Datasheet

Datasheet RS-40

Version / Date
2023-07-14
pdf - 880 KB
Version / Date
2023-07-14
pdf - 883 KB
Version / Date
2021-01-18
pdf - 661 KB

Downloads

Datasheet

Datasheet

Datasheet RS-40

Version / Date
2023-07-14
pdf - 880 KB
Version / Date
2023-07-14
pdf - 883 KB
Version / Date
2021-01-18
pdf - 661 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB
Documentation

User Manual RS-40

Compact Rotation Stage

Version / Date
2022-05-03
pdf - 655 KB
Version / Date
2022-05-03
pdf - 567 KB

3-D Models

3-D Models

RS-40 3-D model

zip - 615 KB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

321691001-0000

Compact rotation stage; DC gear motor; 360° rotational angle; 20 N load capacity; 7 °/s maximum angular velocity; incremental rotary encoder, 2048 cts./rev. sensor resolution, A/B quadrature, RS-422

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Compatible Accessories Related Products
