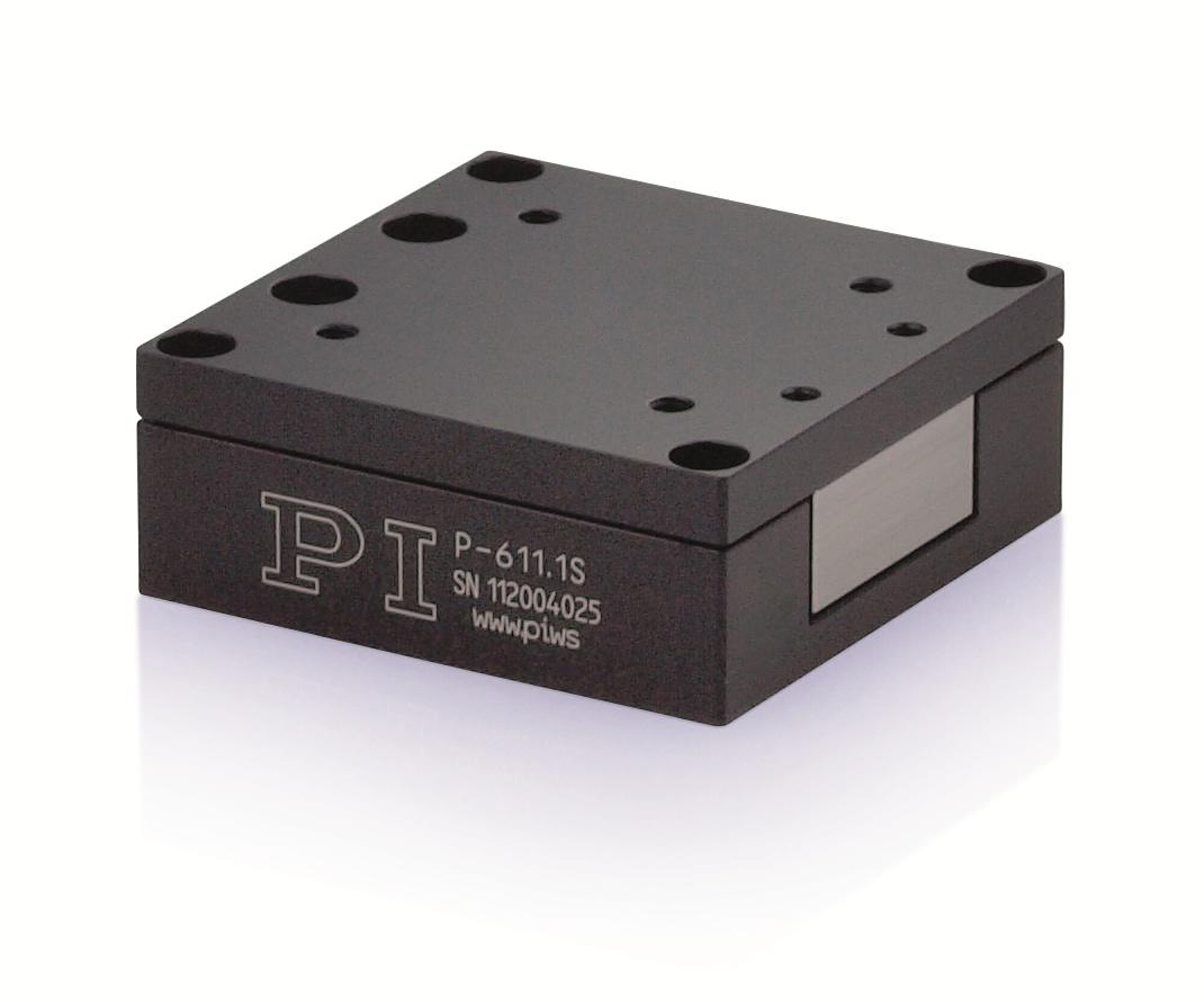

P-611.1 Linear Piezo Positioning System

Inexpensive, Compact Linear Positioning System

P-611.1 Linear Piezo Positioning System
Product Description Specifications Downloads Quote / Order

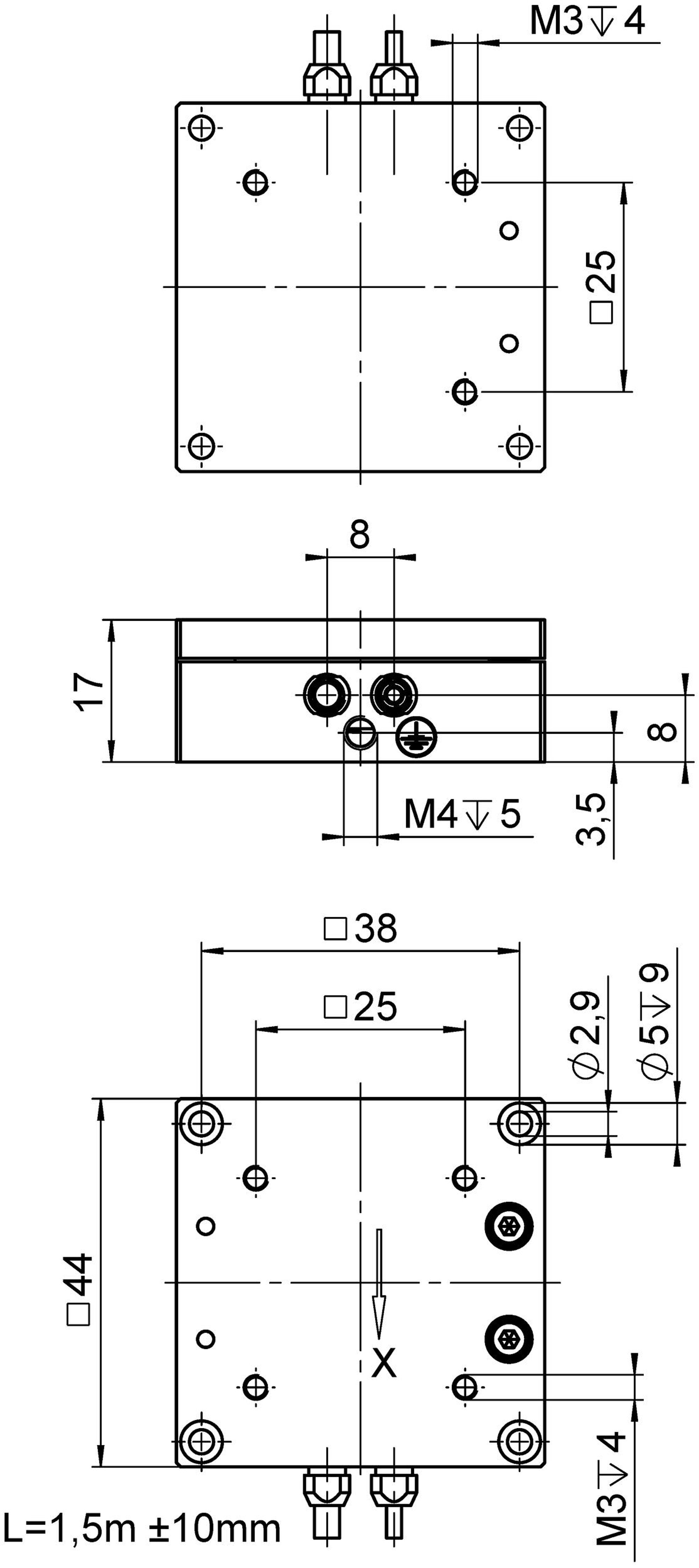

  • Compact design: Surface 44 × 44 mm
  • Travel range 120 µm
  • Resolution to 0.2 nm
  • Particularly inexpensive systems (mechanics and controller)
  • Outstanding lifetime due to PICMA® piezo actuators
  • Z stage, XY, XZ, and XYZ versions available

Fields of application

  • Microscopy
  • Nanopositioning
  • Biotechnology
  • Test applications
  • Semiconductor technology
  • Photonics
  • Fiber positioning

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.



Specifications

Datasheet P-611.1

Version / Date
2018-04-16
Version / Date
2018-04-13
Version / Date
2018-06-08
Version / Date
2018-06-08
Document language
pdf - 754 KB
pdf - 1 MB
pdf - 824 KB
pdf - 906 KB

Downloads

Datasheet

Datasheet P-611.1

Version / Date
2018-04-16
Version / Date
2018-04-13
Version / Date
2018-06-08
Version / Date
2018-06-08
Document language
pdf - 754 KB
pdf - 1 MB
pdf - 824 KB
pdf - 906 KB

Documentation

User Manual PZ253

P-611 Nanopositioning Systems with Strain Gauge Sensors / without Sensor
Version / Date
2014-07-24
Version / Date
2014-07-24
Document language
pdf - 1 MB
pdf - 1 MB

Technical Note P611T0006

Unpacking and Handling of P-611 Nanopositioning Systems
Version / Date
2018-01-24
Document language English
pdf - 1 MB

3-D Models

P-611.1x STEP
