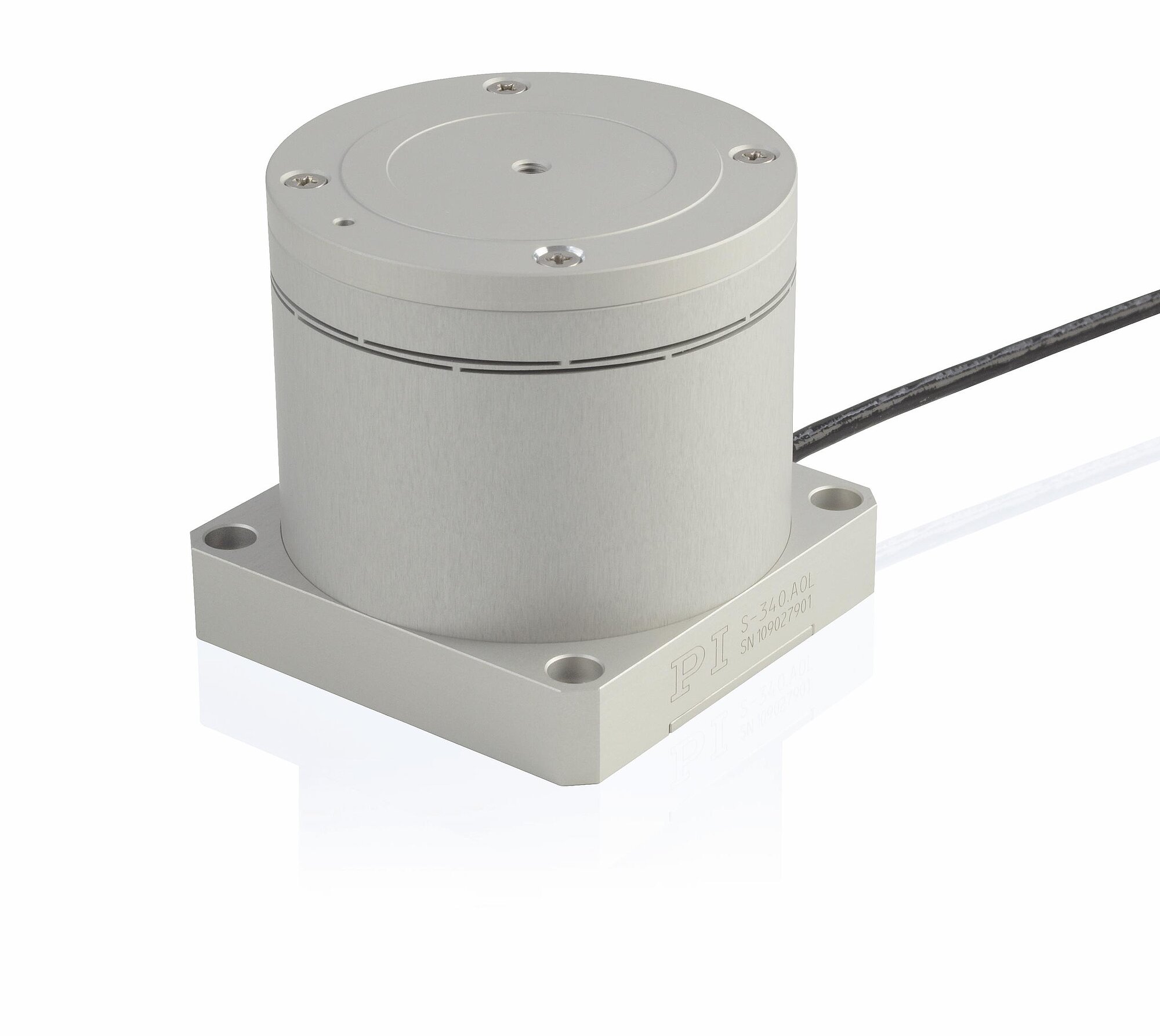

S-340 Piezo Tip/Tilt Platform

High Dynamics for Mirrors and Optics to Ø 75 mm (3")

S-340 Piezo Tip/Tilt Platform
Product Description Specifications Downloads Quote / Order
  • Resolution up to 20 nrad, excellent position stability
  • Optical beam deflection to 4 mrad
  • Parallel kinematics for higher accuracy and dynamics
  • Sub-ms response time
  • For mirrors to Ø 75 mm (3"); Ø 100 mm (4") on request
  • Closed-loop versions for improved linearity
  • Excellent temperature stability

Fields of application

  • Image processing / stabilization
  • Optical trapping
  • Laser scanning / beam steering with large deflection angle
  • Laser tuning
  • Optical filters / switches
  • Optics
  • Beam stabilization

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

High dynamics multi-axis operation due to parallel kinematics

In a parallel-kinematic multi-axis system, all actuators act on a common platform. The minimum mass inertia and the identical design of all axes allow fast, dynamic, and nevertheless precision motion.

Specifications

Datasheet S-340

Version / Date
2018-04-16
Version / Date
2018-04-16
Version / Date
2018-06-18
Version / Date
2018-07-19
Document language
pdf - 408 KB
pdf - 412 KB
pdf - 730 KB
pdf - 809 KB

Downloads

Datasheet

Datasheet S-340

Version / Date
2018-04-16
Version / Date
2018-04-16
Version / Date
2018-06-18
Version / Date
2018-07-19
Document language
pdf - 408 KB
pdf - 412 KB
pdf - 730 KB
pdf - 809 KB

Documentation

Short Instructions PZ277EK

S-3xx Piezo Tip/Tilt Platforms
Version / Date
1.0.0 November 2017
pdf - 1 MB

User Manual PZ75

S-340 Piezo Tip/Tilt Platform
Version / Date
2003-05-22
Document language English
pdf - 313 KB

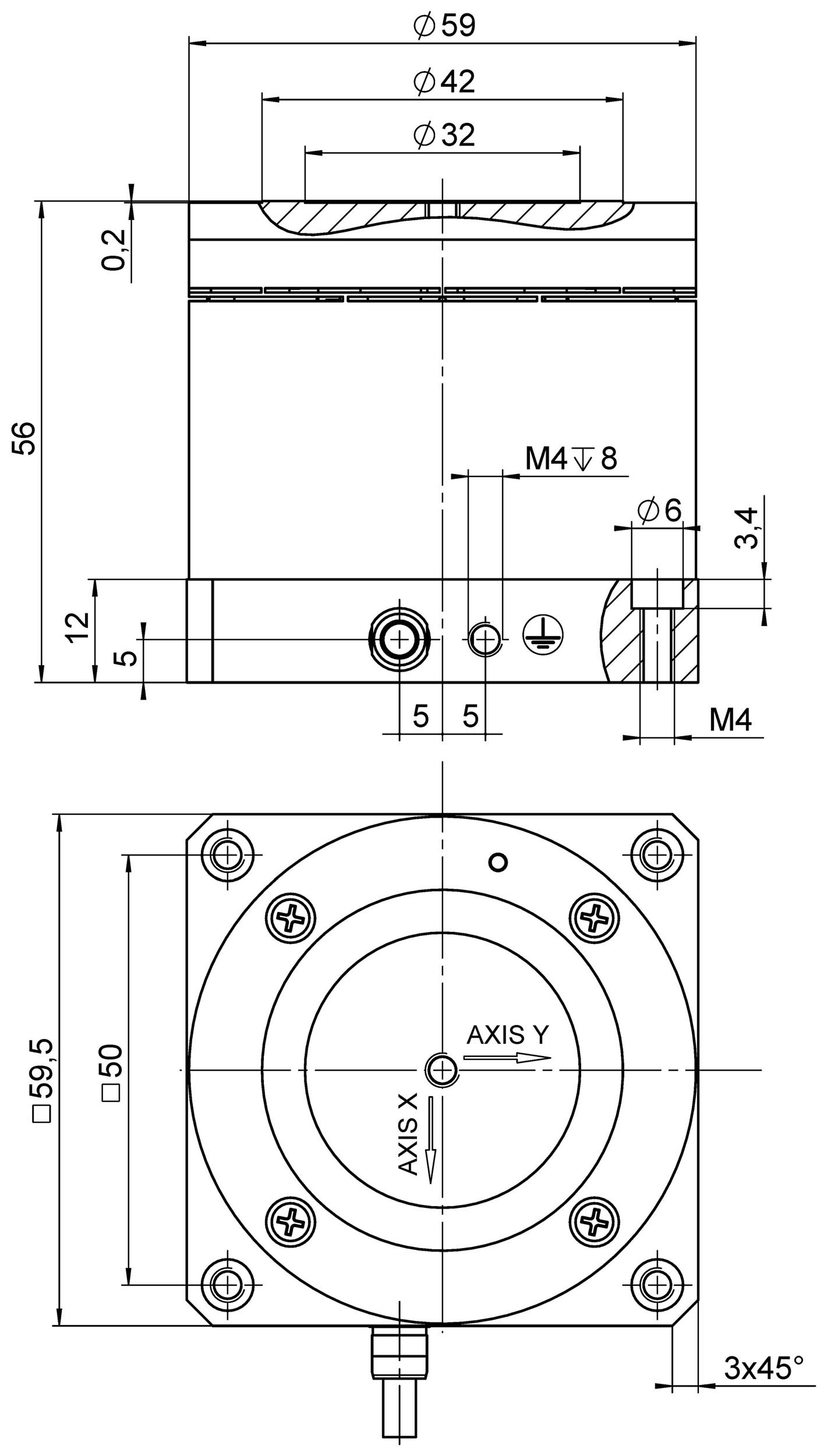

3-D Models

S-340 3-D model

Others

Whitepaper: Piezo Tip/Tilt Systems

Design – Performance – Tuning
Version / Date
WP4012E 2018-10
Version / Date
WP4012D 2018-10
Document language
pdf - 1,018 KB
pdf - 919 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
