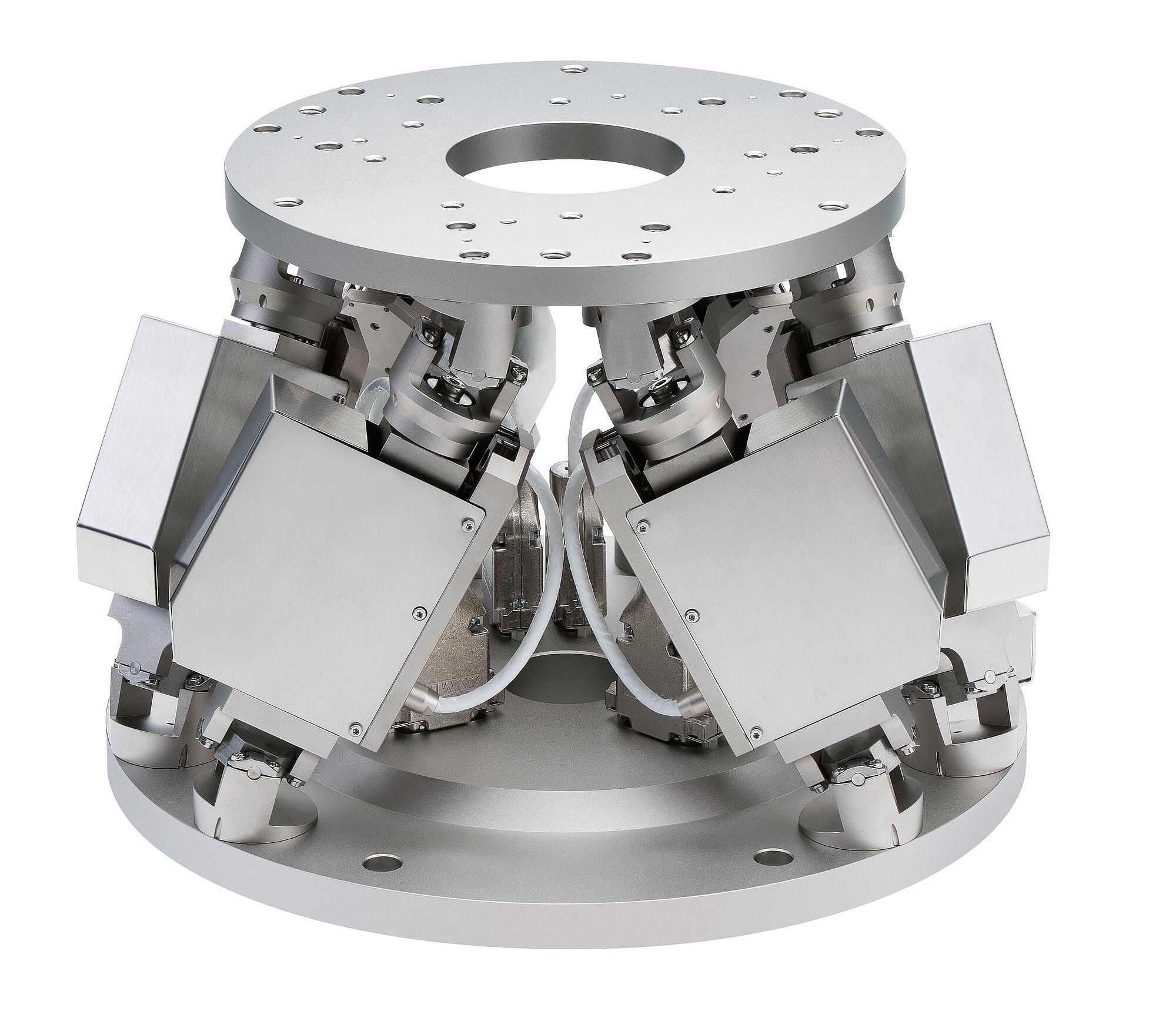

H-824.V Vacuum-Compatible 6-Axis Hexapod

Compact and Precise

  • Load capacity to 5 kg, self-locking version
  • Travel ranges to 45 mm / 25°
  • Minimum incremental motion to 0.3 µm
  • Repeatability to ±0.1 µm / ±2 µrad
  • Velocity to 12.5 mm/s
H-824.V Vacuum-Compatible 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

Precision-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction. suitable for vacuum environments to 10-6 hPa.

Compact due to folded drive design

PIVirtualMove

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research. For micromanipulation, biotechnology, semiconductor manufacturing

Specifications

Datasheet

Datasheet H-824.V

Version / Date
2024-02-26
pdf - 2 MB
Version / Date
2024-02-26
pdf - 2 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English
Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English

Datasheet

Datasheet

Datasheet H-824.V

Version / Date
2024-02-26
pdf - 2 MB
Version / Date
2024-02-26
pdf - 2 MB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS200

H-824 Compact Microrobot

Version / Date
2.4.0 / 2023-01-11
pdf - 3 MB
Version / Date
2.4.0 / 2023-01-11
pdf - 3 MB

3-D Models

3-D Models

H-824.x2x 3-D model

Version / Date
2020-11-24
zip - 4 MB

Software Files

Software Files

PIVirtualMove

Version / Date
1.0.1.0, 2024-01
zip - 150 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

H-824.D2V

Compact hexapod microrobot, direct drive, 12.5 mm/s, 2.5 kg load, vacuum-compatible to 10-6 hPa, D-sub connector, cable set 2 m vacuum side, feedthrough. Air-side connecting cables are not included in the scope of delivery and must be ordered separately.

H-824.G2V

Compact hexapod microrobot, gearhead, 0.5 mm/s, 5 kg load, vacuum-compatible to 10-6 hPa, D-sub connector, cable set 2 m vacuum side, feedthrough. Air-side connecting cables are not included in the scope of delivery and must be ordered separately.
