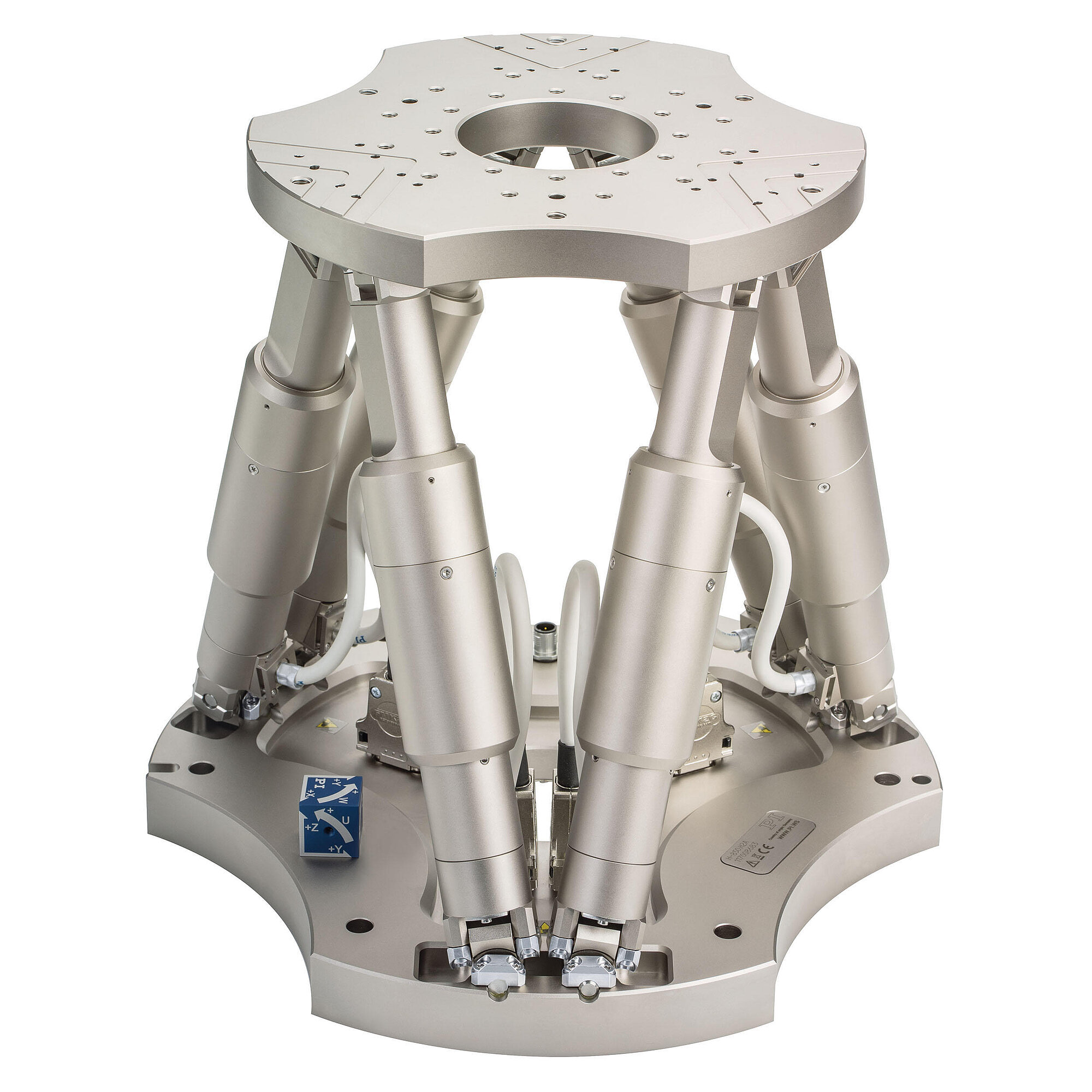

Precision Hexapod microrobot, brushless DC gear motor, absolute encoder, 50 kg load capacity, 8 mm/s velocity. Connecting cables are not in the scope of delivery and must be ordered separately.
- Load capacity to 250 kg
- Repeatability to ±0.2 µm
- Travel ranges to ±50 mm / ±30°
- Works in any orientation
The H-850 series hexapods position loads of up to 250 kg with high precision and reliability. Heavy-duty precision bearings allow applications with long duty cycles.
The parallel-kinematic design for six degrees of freedom makes it significantly more compact and stiffer than comparable serial kinematic systems. The advantages over serial, i.e., stacked systems, are mainly the much better path accuracy and repeatability. In addition, the moved mass is lower and allows improved dynamics performance and is the same for all motion axes. Cable management is not a problem because cables are not moved.
Use of brushless DC motors (BLDC)
Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.
Absolute encoders supply explicit position information that enables immediate determination of the position. Therefore, no referencing is necessary when switching on and this increases efficiency and safety during operation.
PI Hexapod Simulation Tool
The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

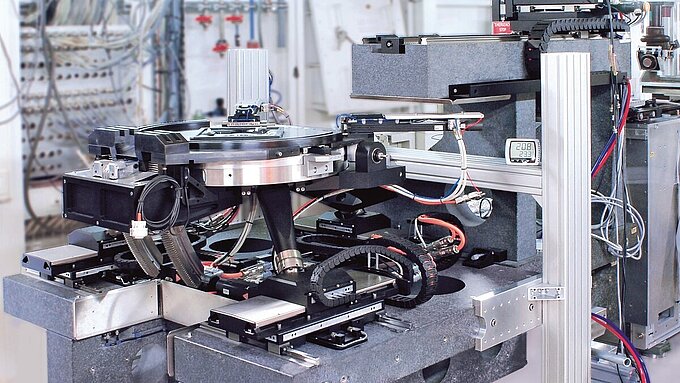

Industry and research. For astronomy, optics positioning, aerospace.
Product Change Notification Motor Driven Products
Product Change Notification H-850.H2, H-850.G2
Product Change Notification Hexapod Cables
Product Change Notification H-206.x1x, H-8xx.x1x, H-8xx.xVx, F-206.S
Short Instructions MS247EK
Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller
User Manual MS202
H-850 Hexapod Microrobot with Excellent Position Repeatability

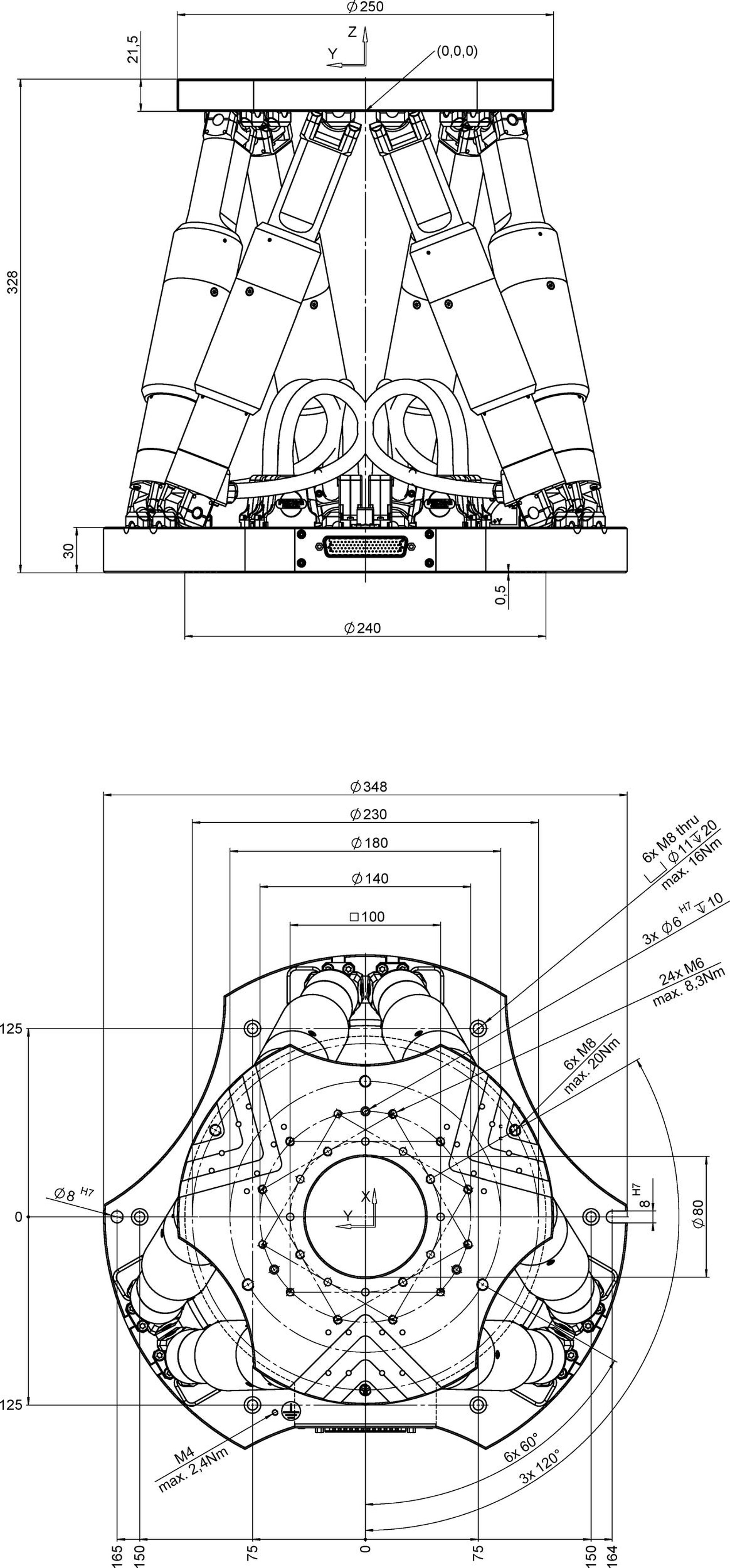

3-D model H-850.x2x
Hexapod Simulation Tool
Industrial Safety Device for Hexapods
How to Connect a Safety Light Barrier to a Hexapod System
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
Precision Hexapod microrobot, brushless DC gear motor, absolute encoder, 250 kg load capacity, 0.5 mm/s velocity. Connecting cables are not in the scope of delivery and must be ordered separately.
