H-850.V Vacuum-Compatible 6-Axis Hexapod

For loads to 80 kg

  • Load capacity to 80 kg
  • Repeatability to ±0.2 µm
  • Travel ranges to ±50 mm / ±30°
  • Works in any orientation
H-850.V Vacuum-Compatible 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

The hexapods suitable for vacuum of the H-850 series position loads of up to 80 kg with high precision and reliability. Heavy-duty precision bearings allow applications with long duty cycles.

The H-850.V are suitable for vacuum environments to 10-6 hPa.

The parallel-kinematic design for six degrees of freedom makes it significantly more compact and stiffer than comparable serial kinematic systems. The advantages over serial, i.e., stacked systems, are mainly the much better path accuracy and repeatability. In addition, the moved mass is lower and allows improved dynamics which is the same for all motion axes. Cable management is not a problem because cables are not moved.

PIVirtualMove

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research. For astronomy, optics positioning, aerospace.

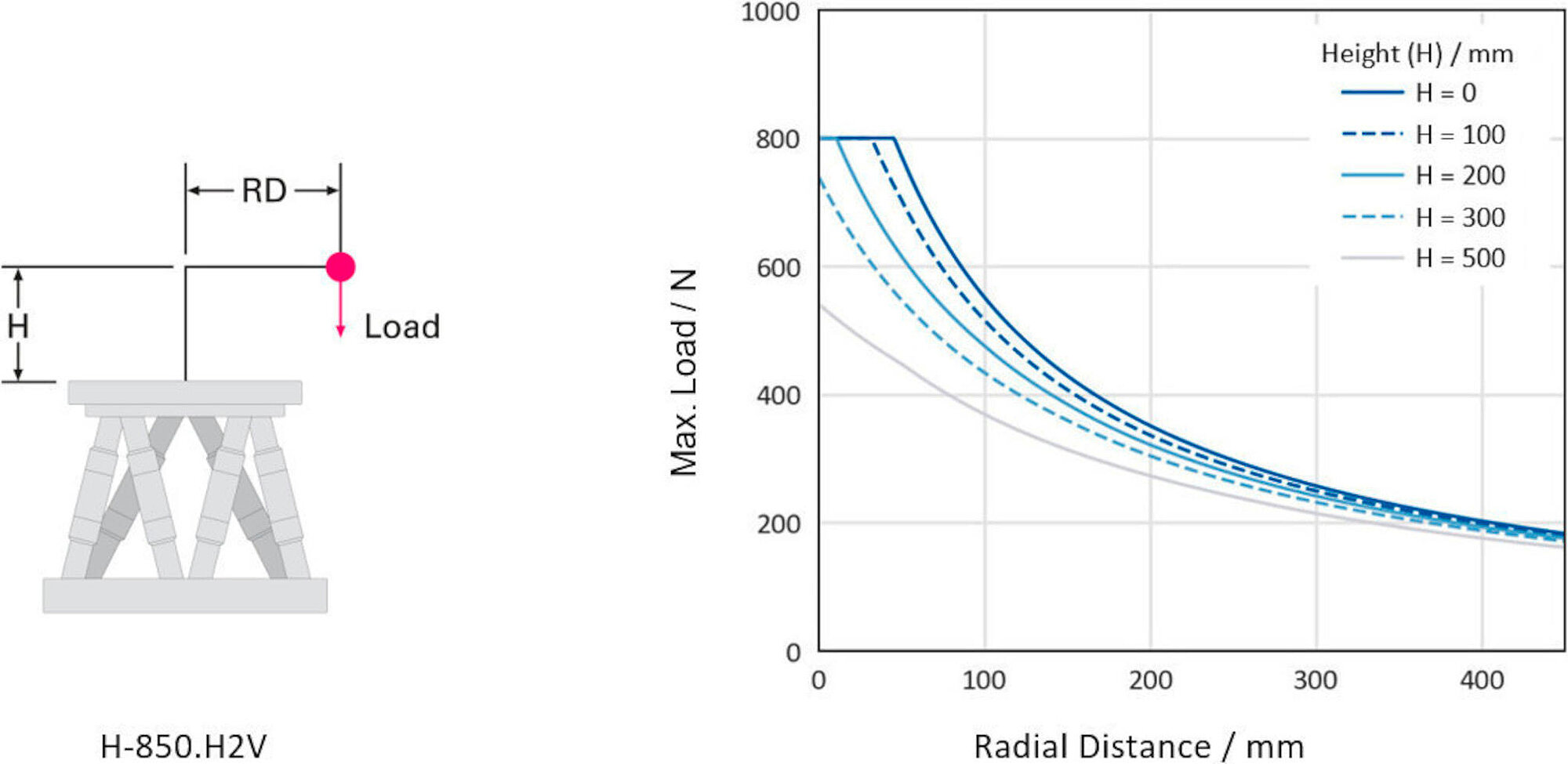

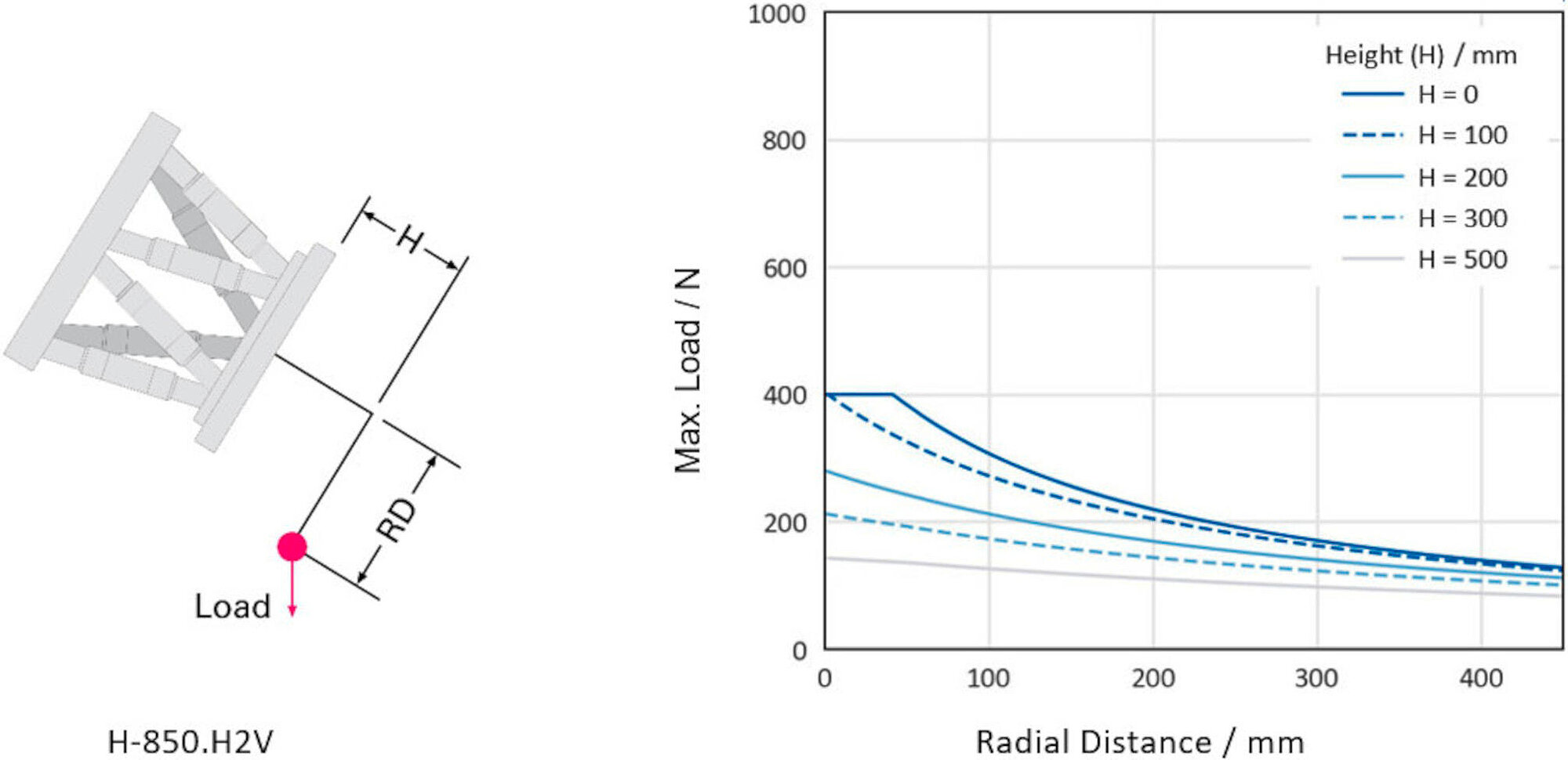

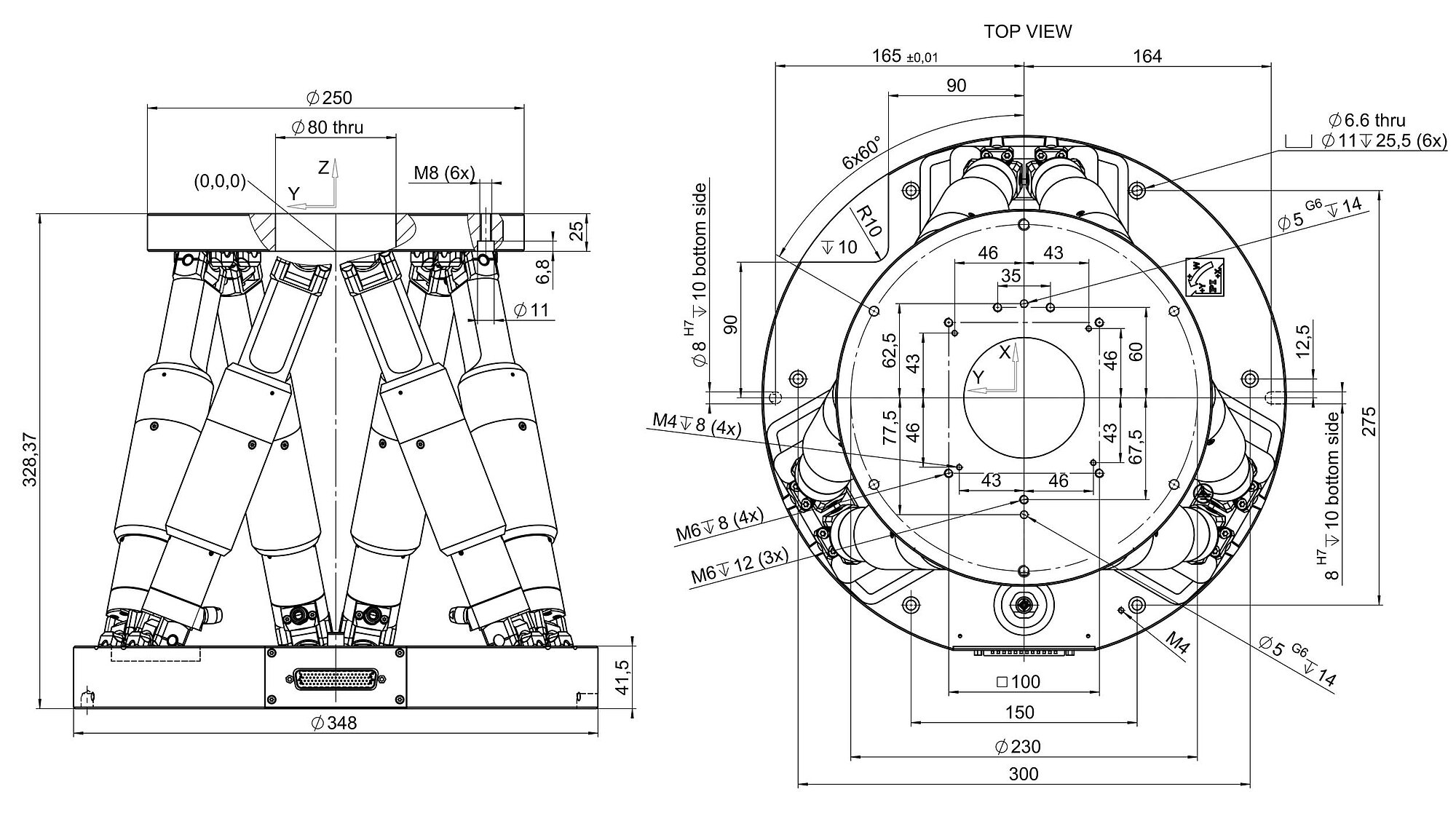

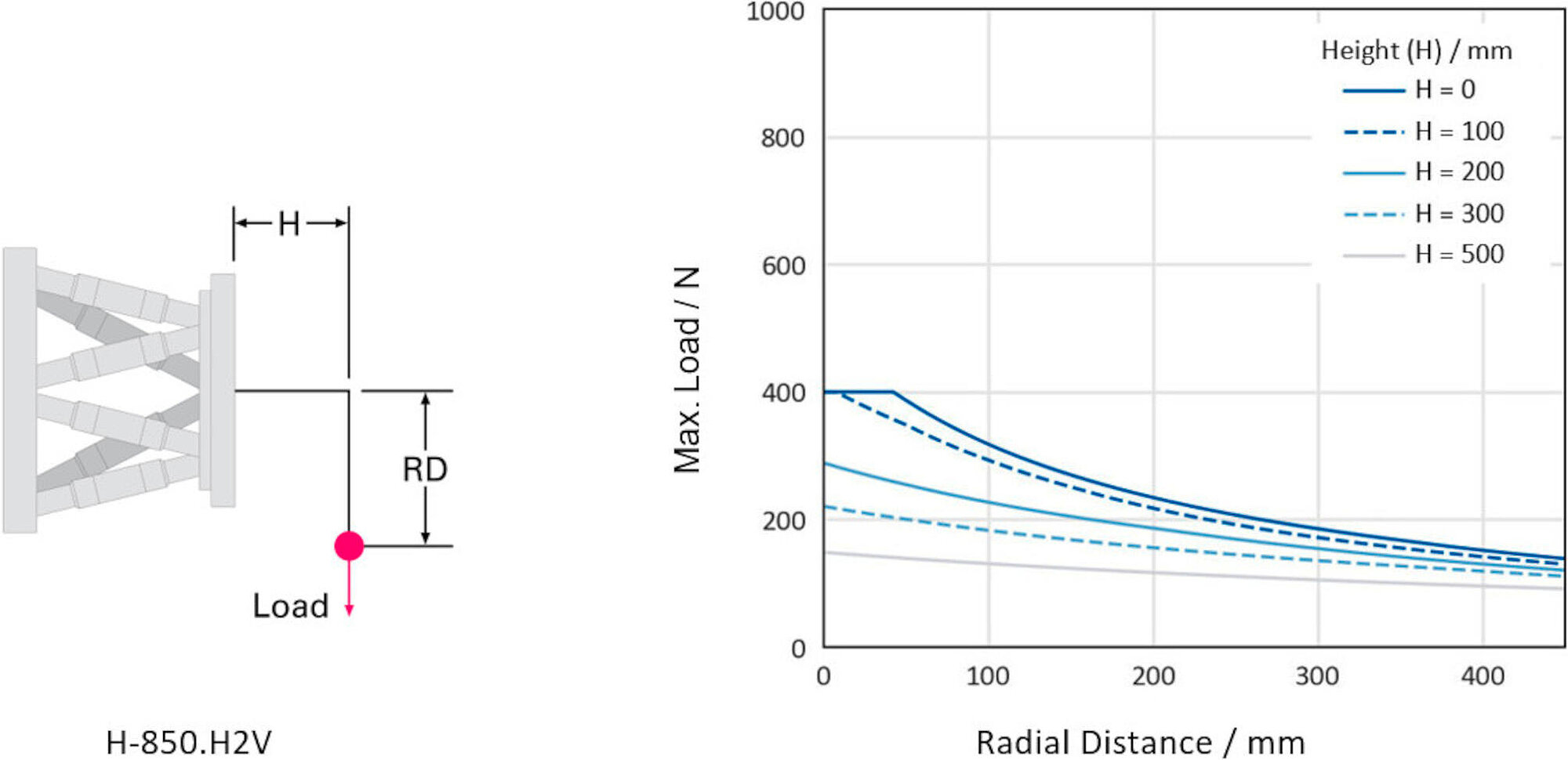

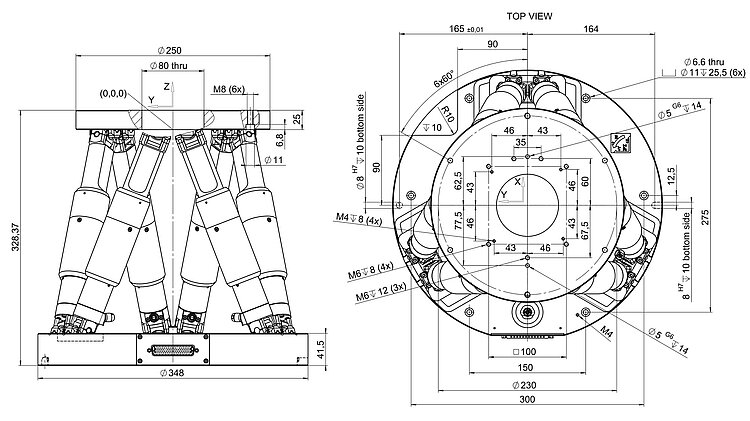

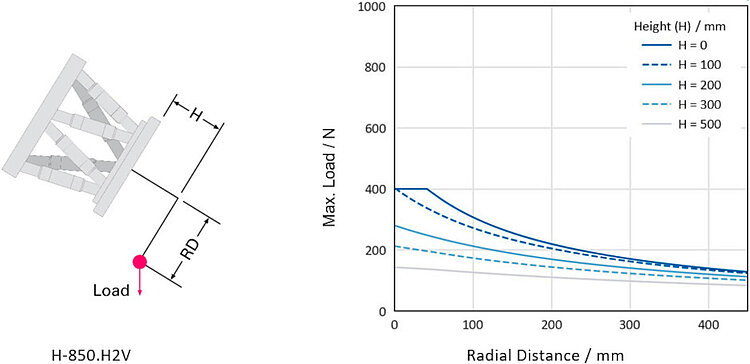

Specifications

Datasheet

Datasheet H-850.V

Version / Date
2024-02-26
pdf - 3 MB
Version / Date
2024-02-26
pdf - 3 MB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English
Product Note

Product Change Notification H-206.x1x, H-8xx.x1x, H-8xx.xVx, F-206.S

Version / Date
2019-04-04
pdf - 367 KB
English

Datasheet

Datasheet

Datasheet H-850.V

Version / Date
2024-02-26
pdf - 3 MB
Version / Date
2024-02-26
pdf - 3 MB

Documentation

Documentation

User Manual MS202

H-850 Hexapod Microrobot with Excellent Position Repeatability

Version / Date
2.5.0 2023-12-14
pdf - 5 MB
Version / Date
2.5.0 2023-12-14
pdf - 5 MB
Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB

3-D Models

3-D Models

H-850.x2V 3-D model

Version / Date
2021-04-20
zip - 5 MB

Software Files

Software Files

PIVirtualMove

Version / Date
1.0.1.0, 2024-01
zip - 150 MB

White Paper

White Paper

Industrial Safety Device for Hexapods

How to Connect a Safety Light Barrier to a Hexapod System

Version / Date
WP4025E 2020-02
pdf - 1 MB
Version / Date
WP4025D 2020-01
pdf - 1 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

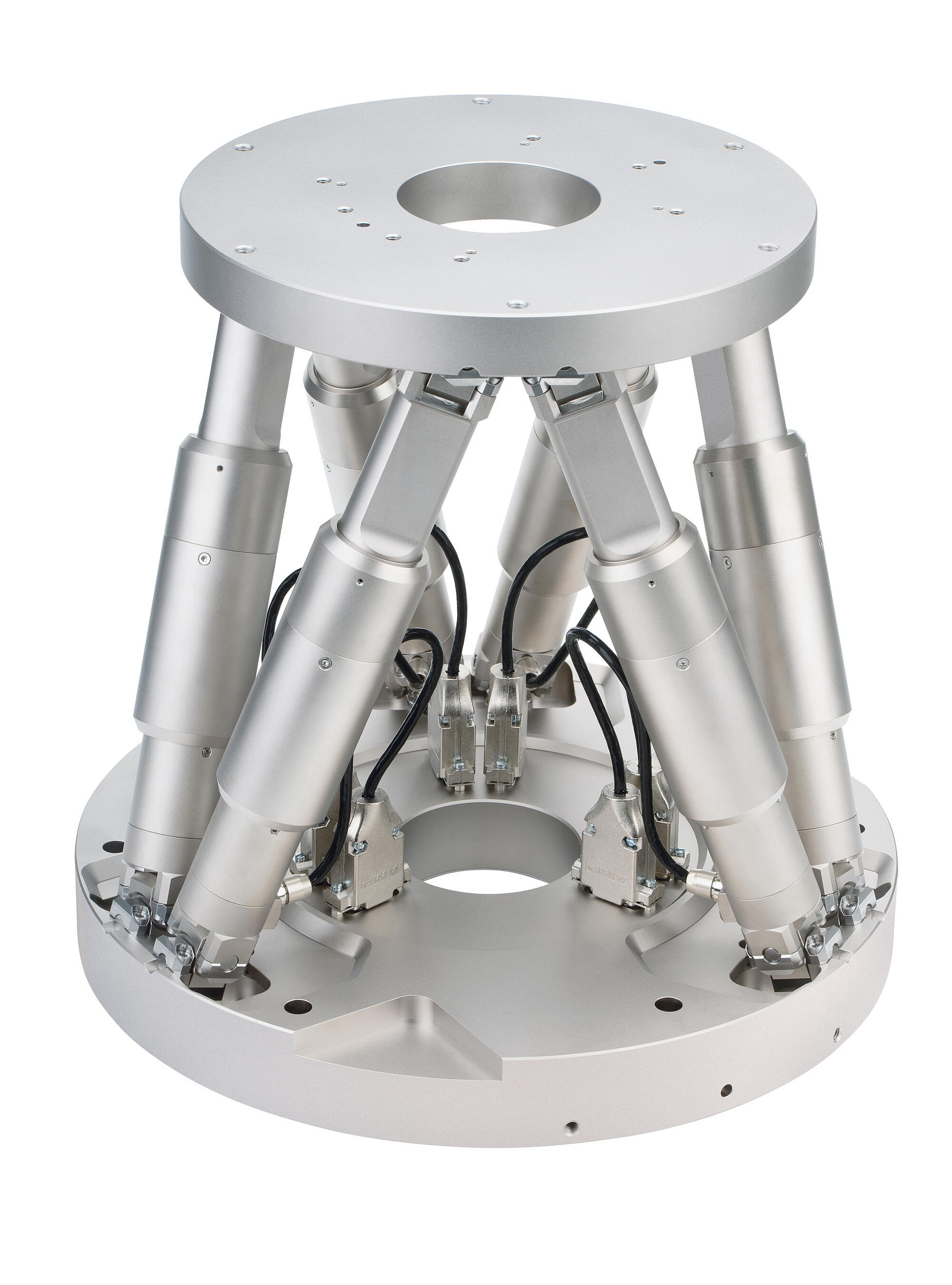

H-850.G2V

Precision Hexapod microrobot, DC gear motor, rotary encoder, 25 kg load capacity, 2.5 mm/s velocity, vacuum compatible to 10-6 hPa, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.

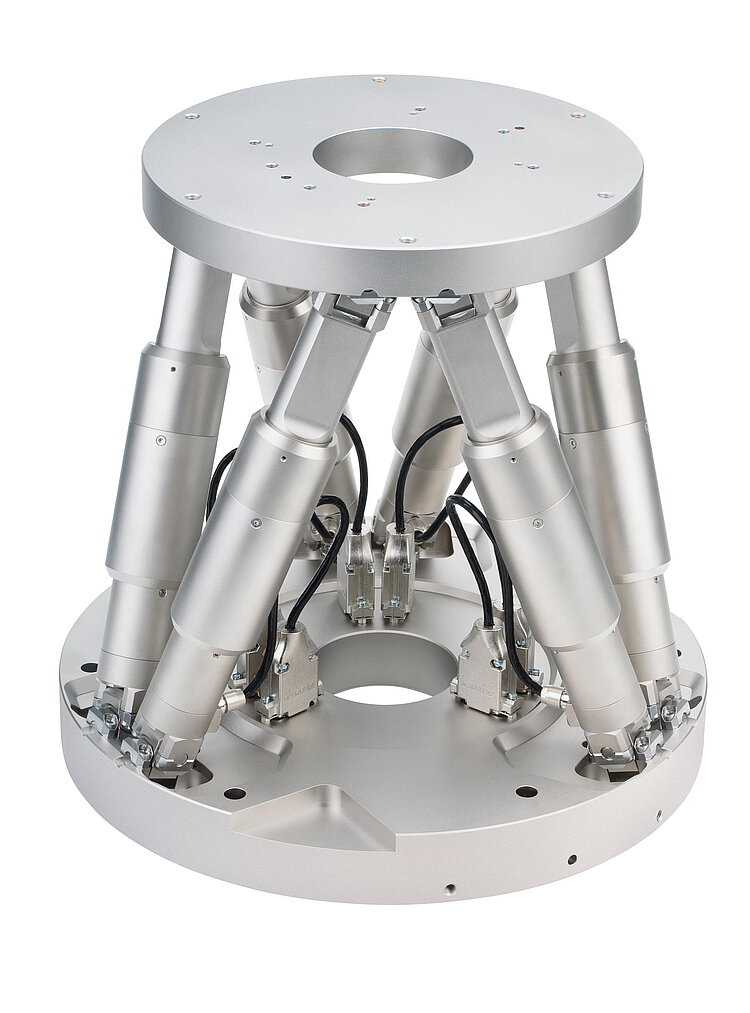

H-850.H2V

Precision Hexapod microrobot, DC gear motor, rotary encoder, 80 kg load capacity, 0.15 mm/s velocity, vacuum compatible to 10-6 hPa, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Related Products Services
