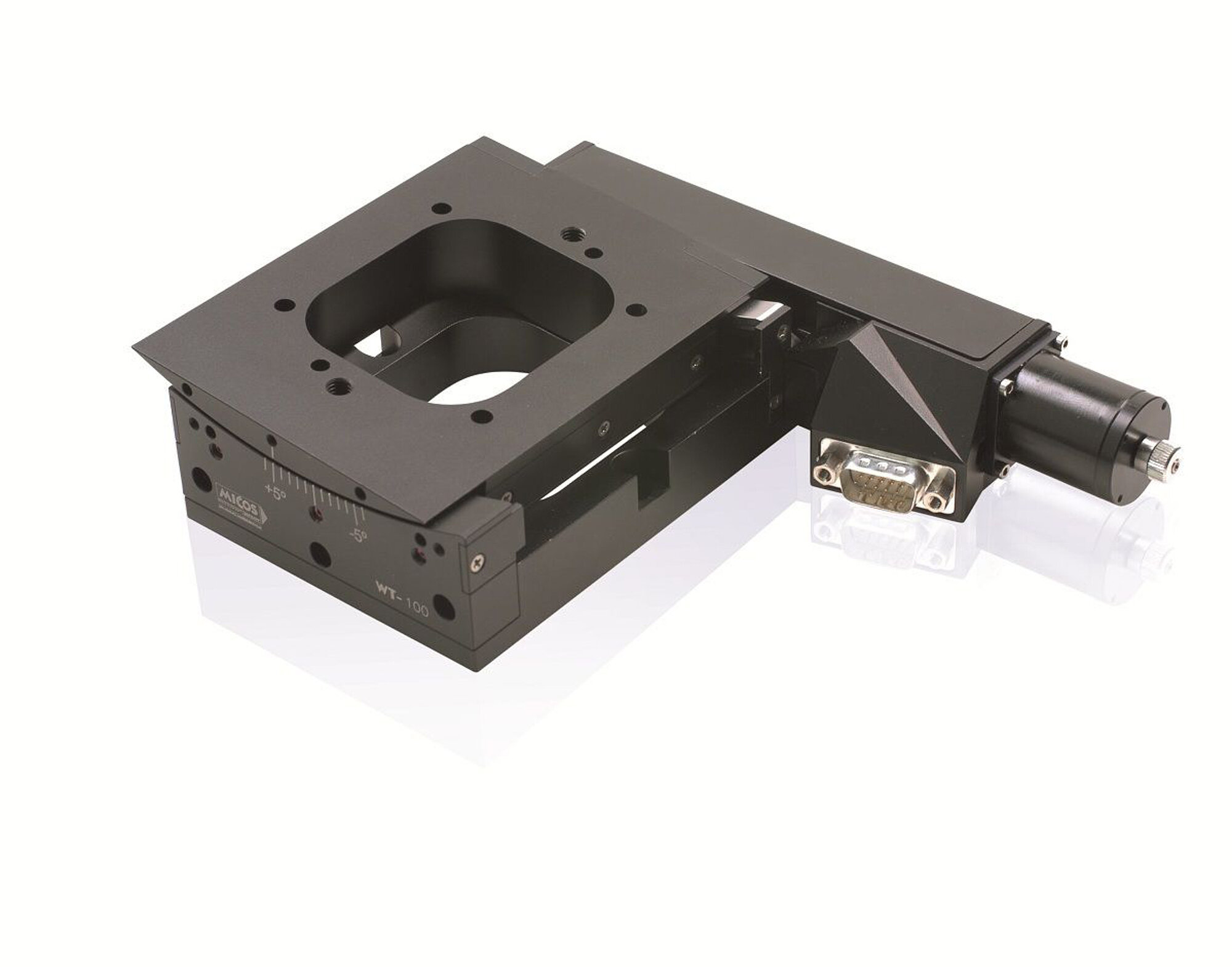

WT-100 Motorized Precision Goniometer

Compact, with Large Aperture

  • Rotation range 10°
  • Repeatability to 8.7 µrad
  • Load capacity to 2 kg
  • Option: Direct position measurement with angle measuring system
  • Combination with WT-85 with shared pivot point
WT-100 Motorized Precision Goniometer
Product Description Specifications Downloads Quote / Order

Precision-class goniometer stage

Drive with high gear ratio for precision positioning. Two limit switches. Large clear aperture with 60 mm × 25 mm.

Can be combined with WT-85 for 2-axis motion with shared pivot point.

Versions

  • DC servo motor with rotary encoder on the motor shaft
  • Stepper motor
  • Option: High-resolution optical angle measuring system for direct position measurement
  • Vacuum versions available on request

Application fields

Precision microassembly. Metrology. Photonics. Optical alignment.

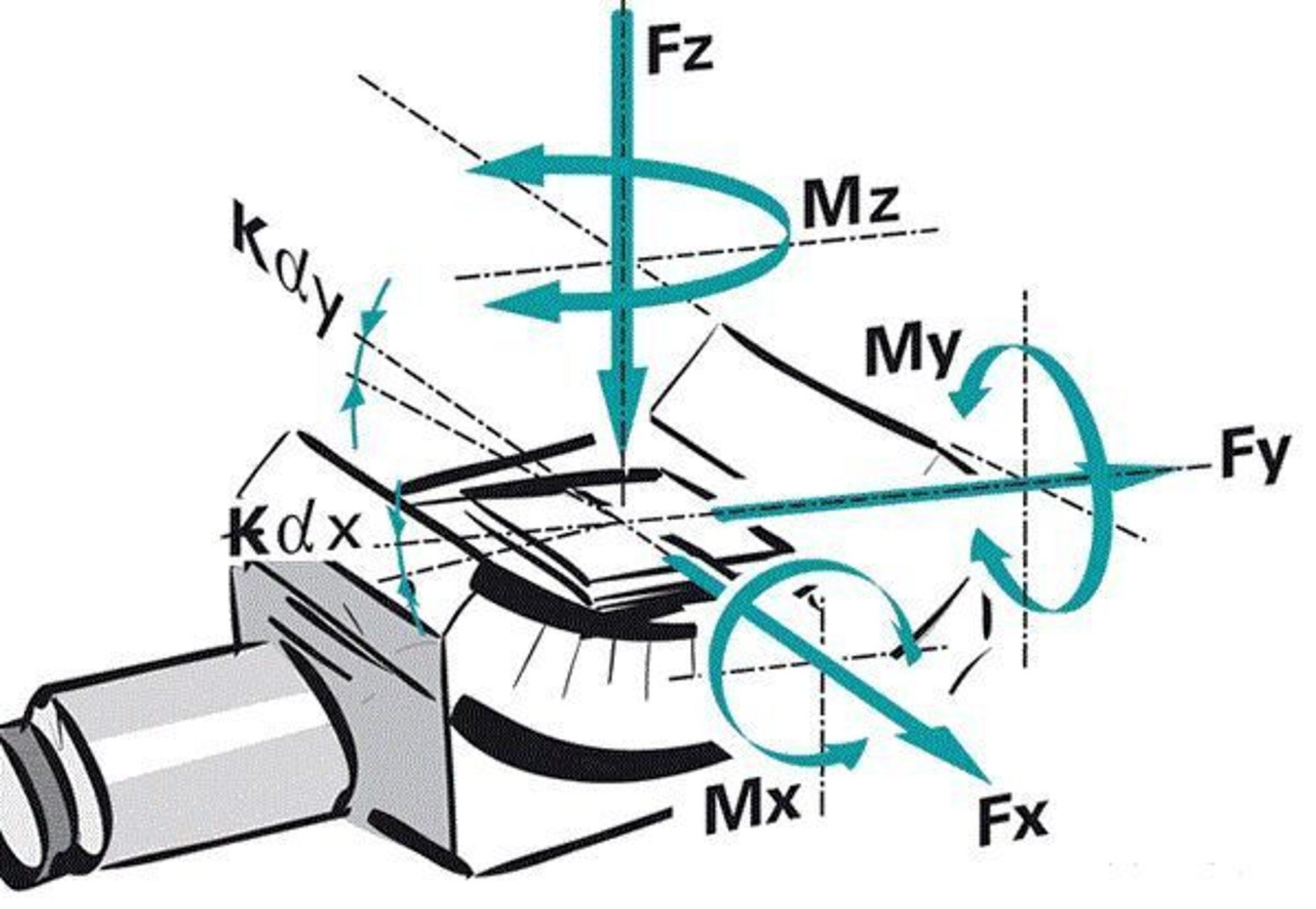

Specifications

Datasheet

Datasheet WT-100

Version / Date
2020-09-22
pdf - 2 MB
Version / Date
2020-09-22
pdf - 2 MB
Version / Date
2019-02-08
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet WT-100

Version / Date
2020-09-22
pdf - 2 MB
Version / Date
2020-09-22
pdf - 2 MB
Version / Date
2019-02-08
pdf - 1 MB

Documentation

Documentation

User Manual WT-100

WT-100 Goniometer

Version / Date
2016-08-11
pdf - 621 KB
Version / Date
2016-08-11
pdf - 642 KB

3-D Models

3-D Models

WT-100 3-D model

zip - 4 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

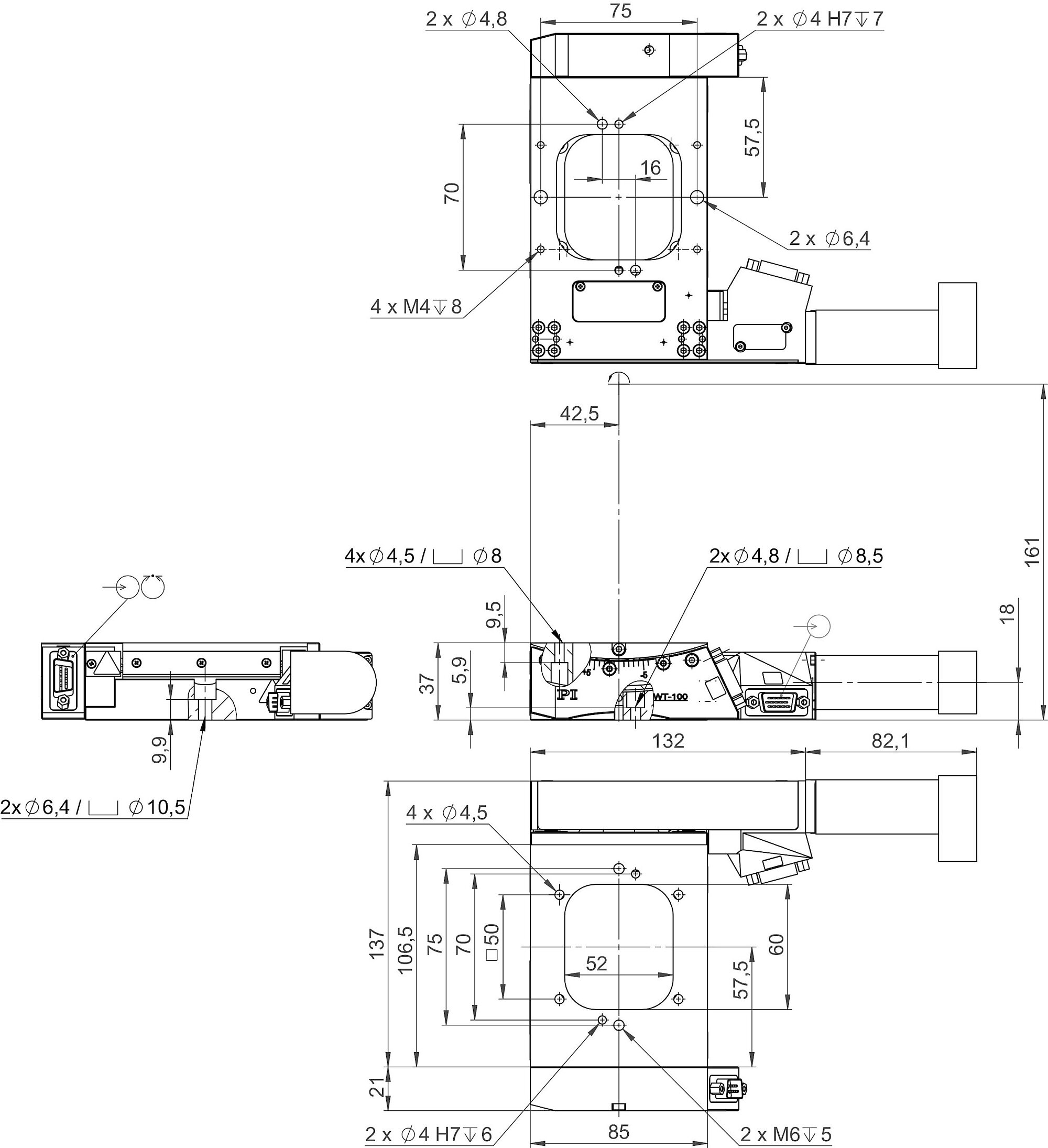

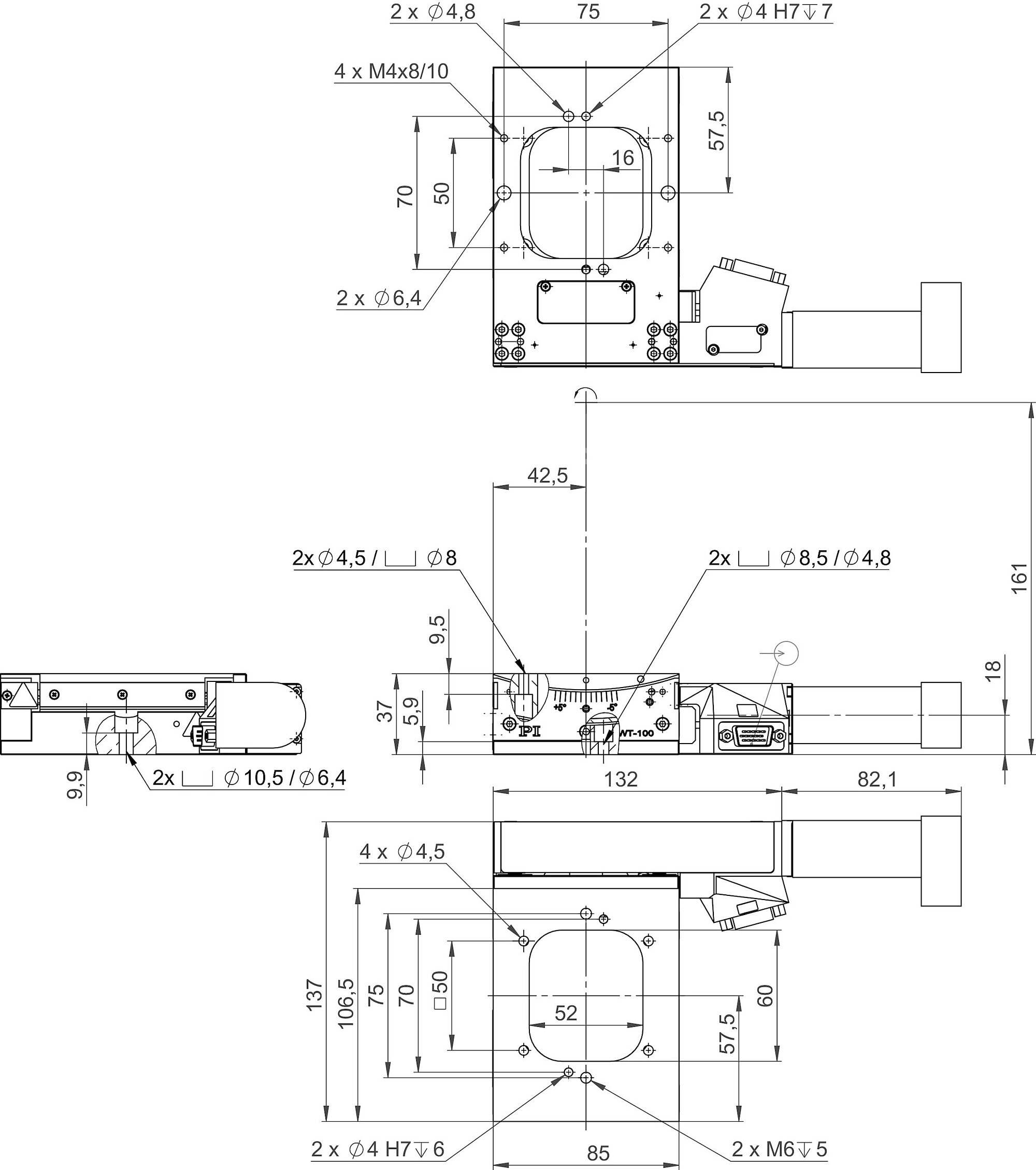

65419101
WT-100 goniometer stage, 100 mm width, DC motor, ±5° rotation range, angle measuring system with A/B quadrature signal transmission, clear aperture 60 mm × 52 mm, mechanical limit switches

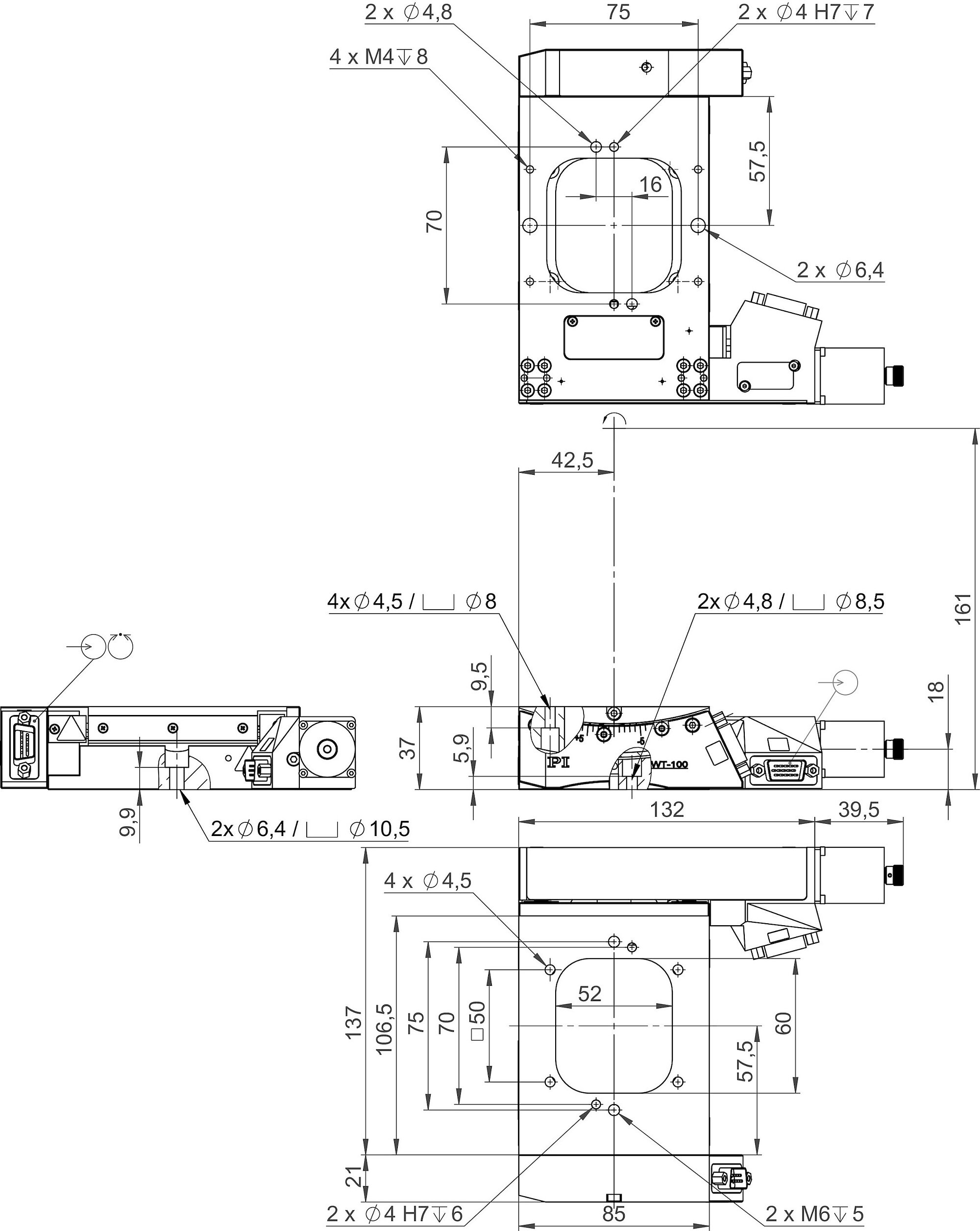

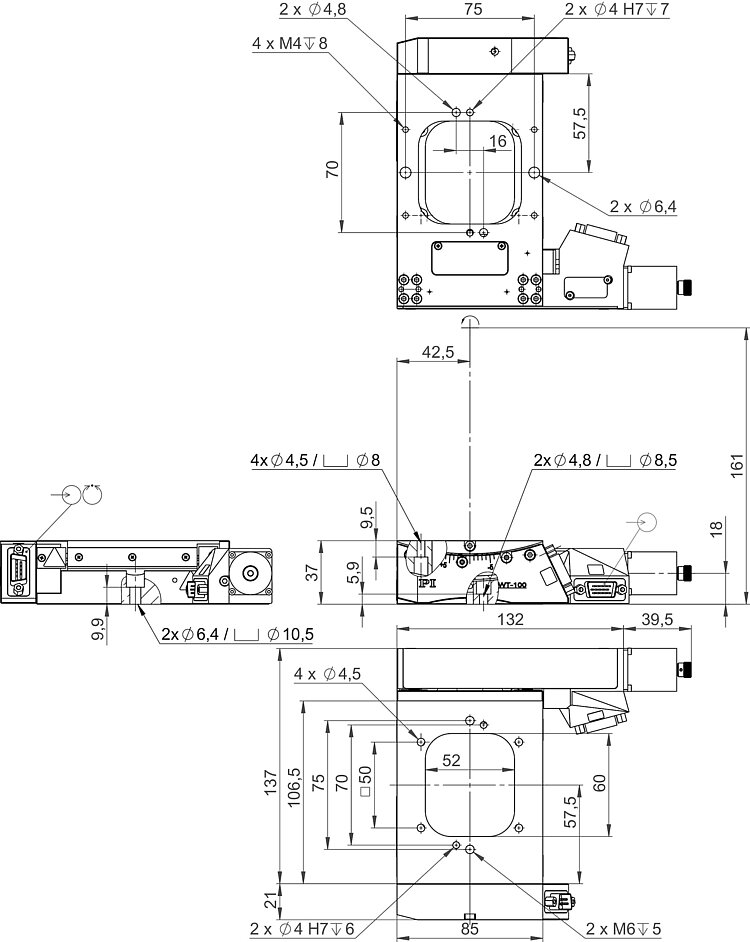

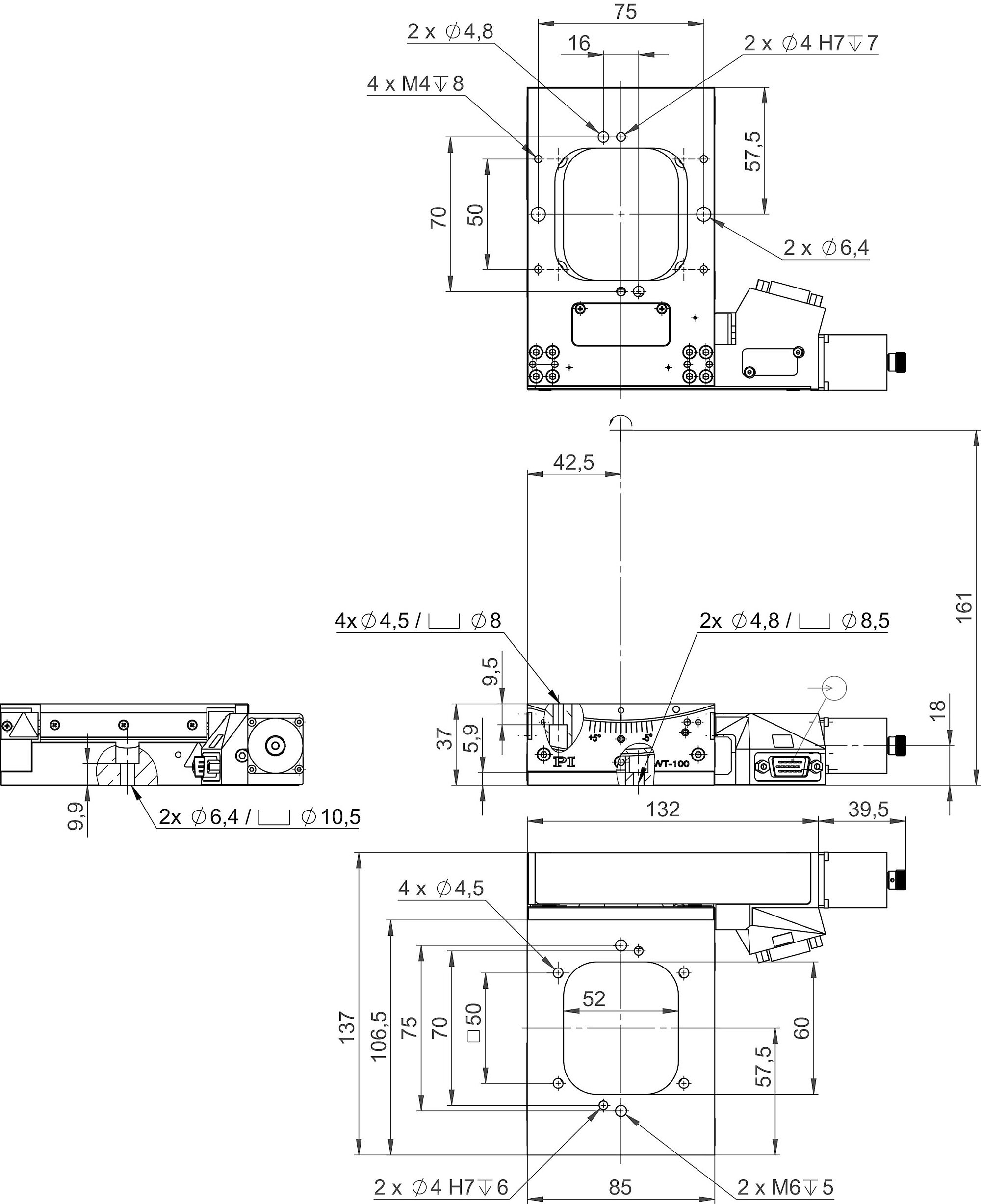

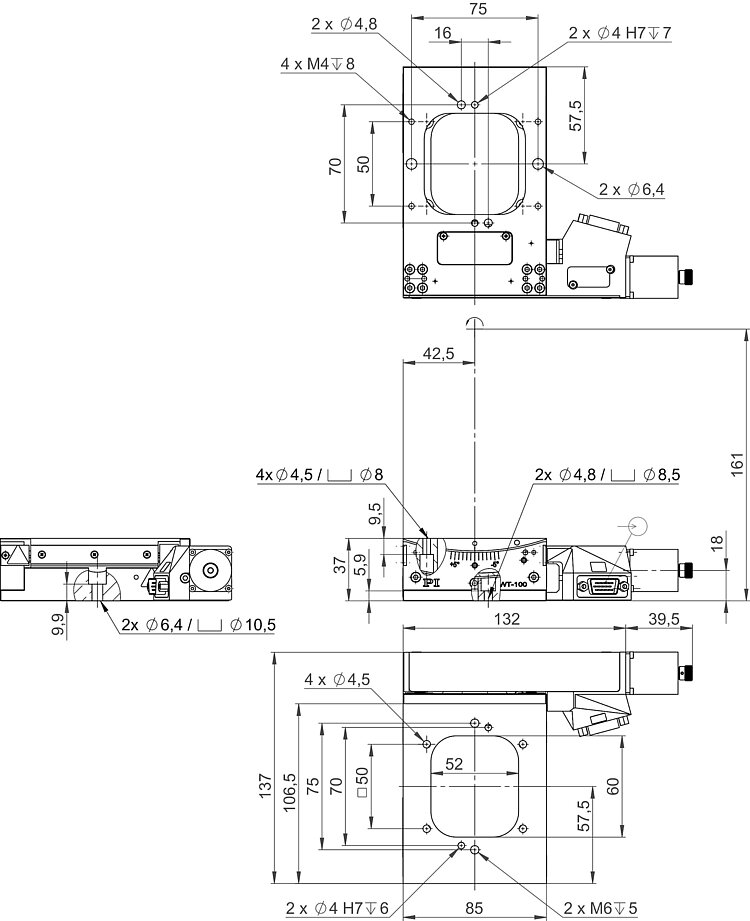

65419201-0001
WT-100 goniometer stage, 100 mm width, stepper motor, ±5° rotation range, angle measuring system with sin/cos signal transmission, clear aperture 60 mm × 52 mm, mechanical limit switches
