- Rotation range 10°
- Repeatability to 8.7 µrad
- Load capacity to 2 kg
- Option: Direct position measurement with angle measuring system
- Combination with WT-100 with shared pivot point

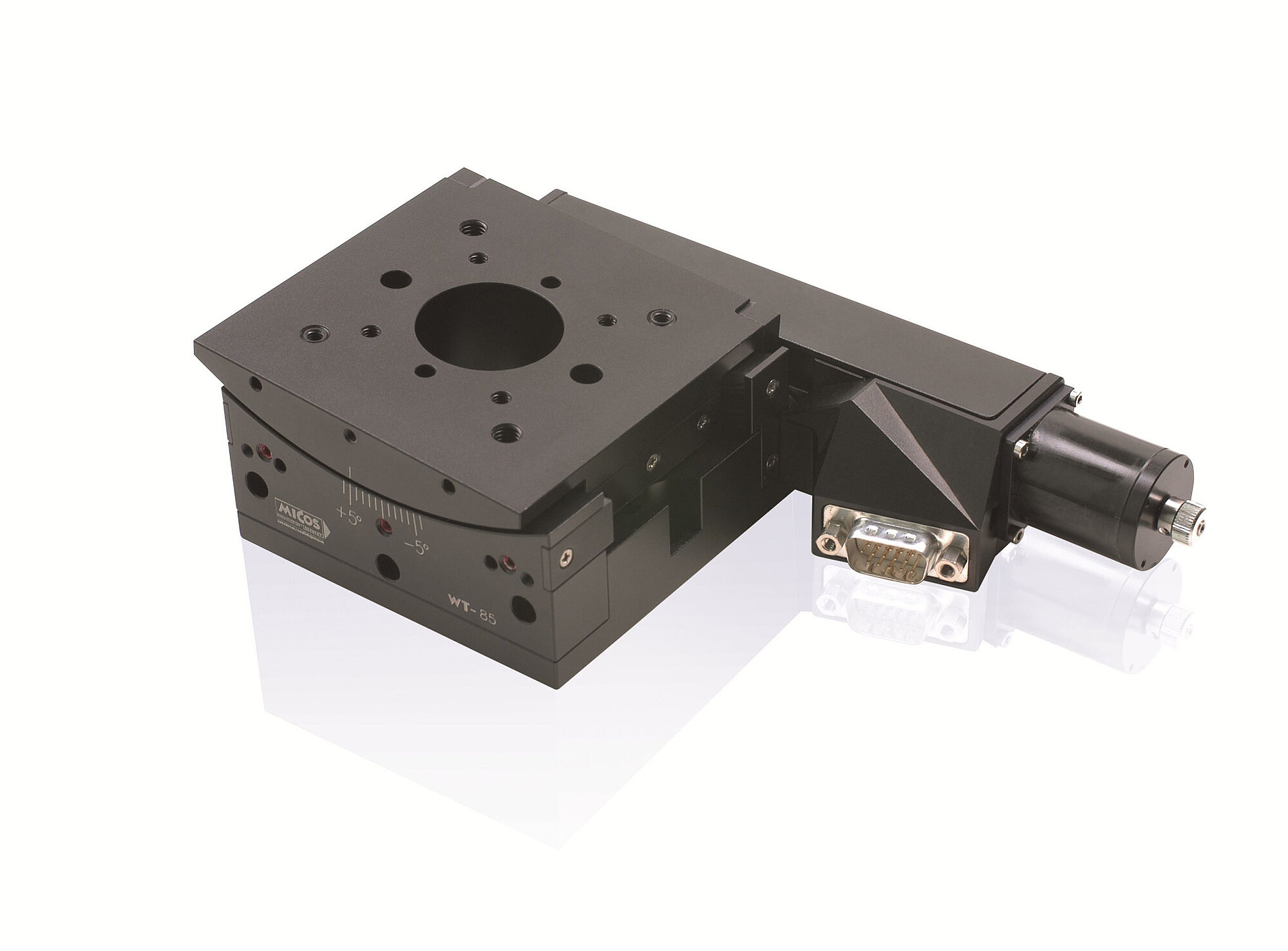

Precision-class goniometer stage
Drive with high gear ratio for precision positioning. Two limit switches. Large clear aperture with 30 mm diameter. Can be combined with WT-100 for 2-axis motion with shared pivot point.
- DC servo motor with rotary encoder on the motor shaft
- Stepper motor
- Option: High-resolution optical angle measuring system for direct position measurement
- Vacuum versions available on request
Precision microassembly. Metrology. Photonics. Optical alignment.
User Manual WT-85

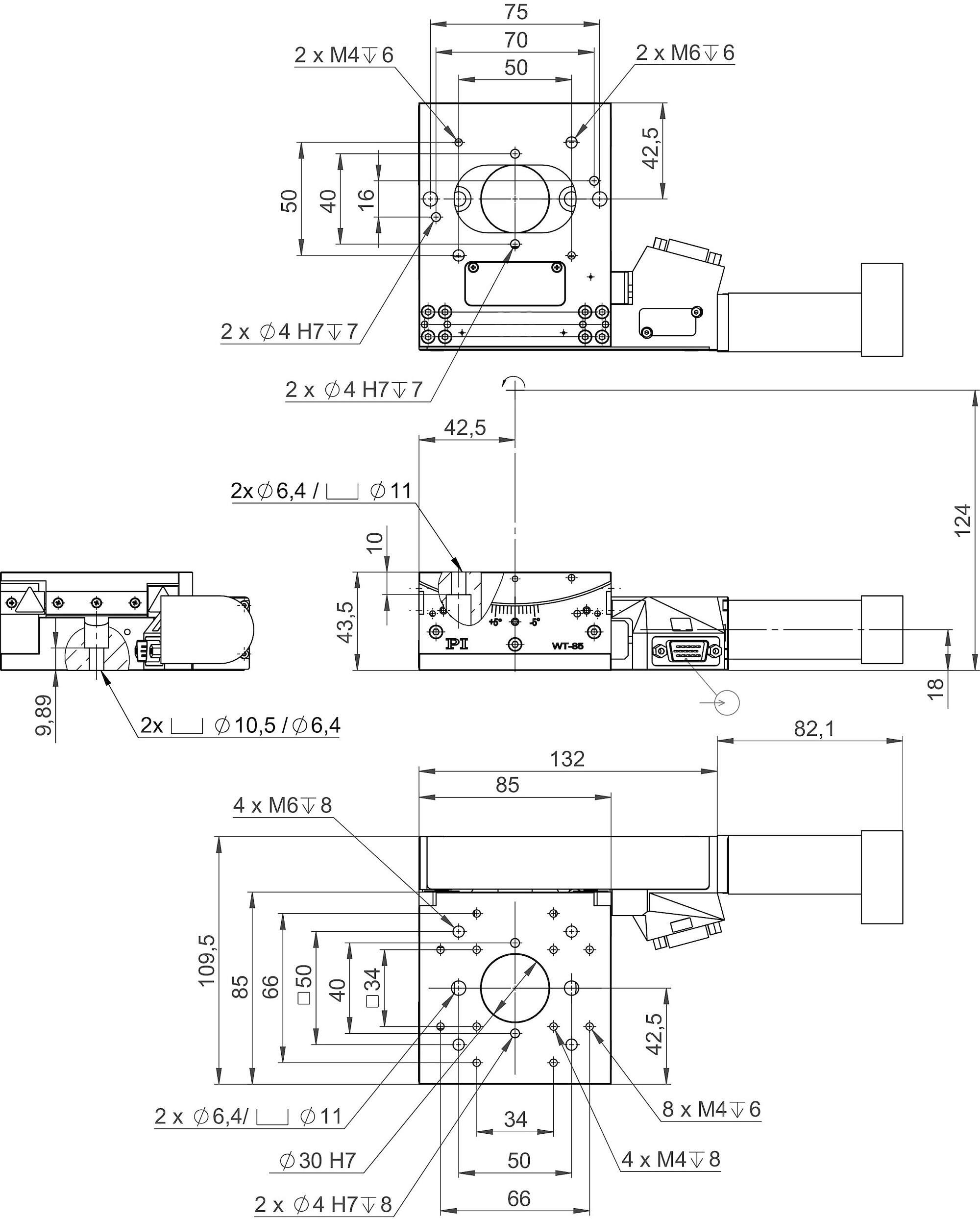

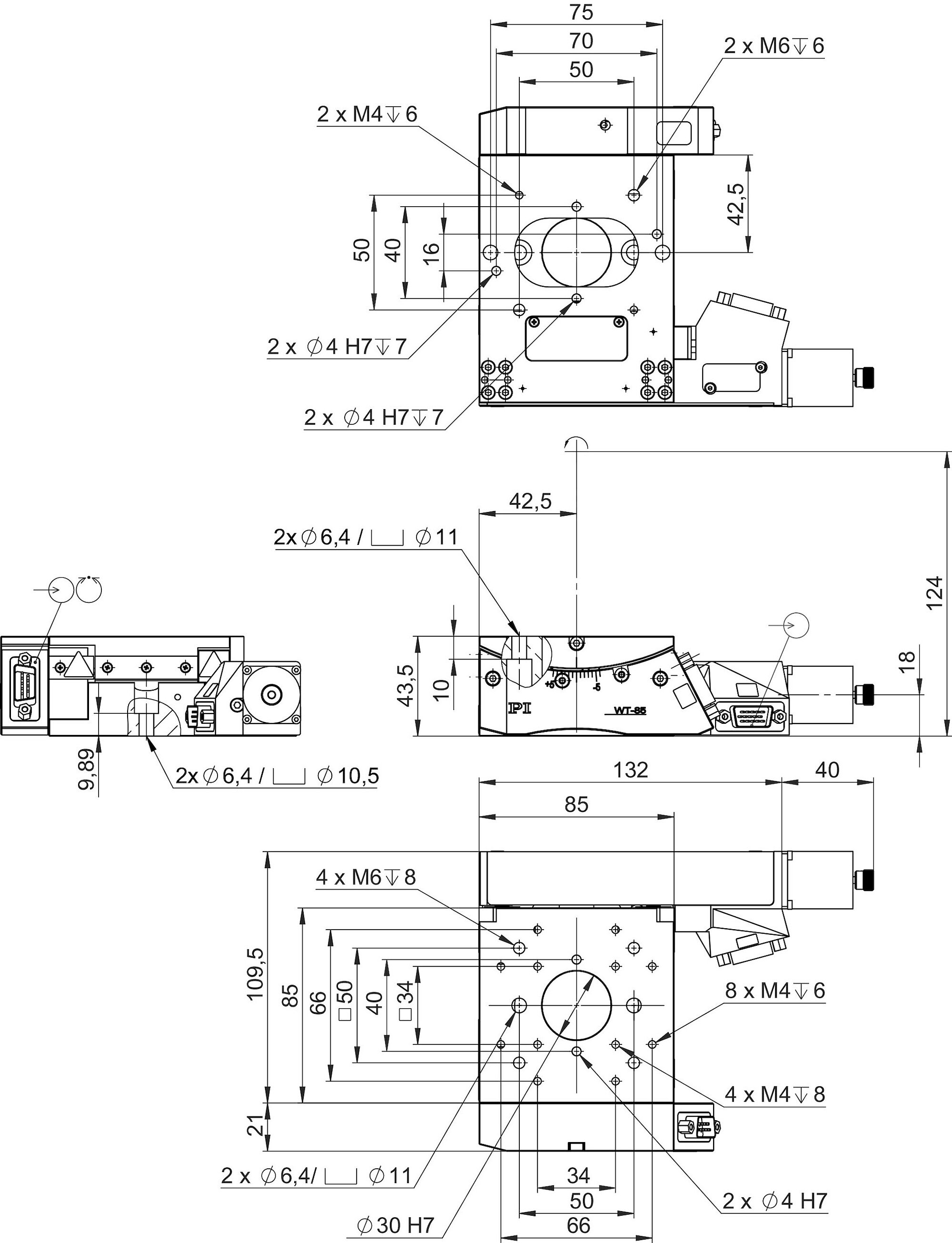

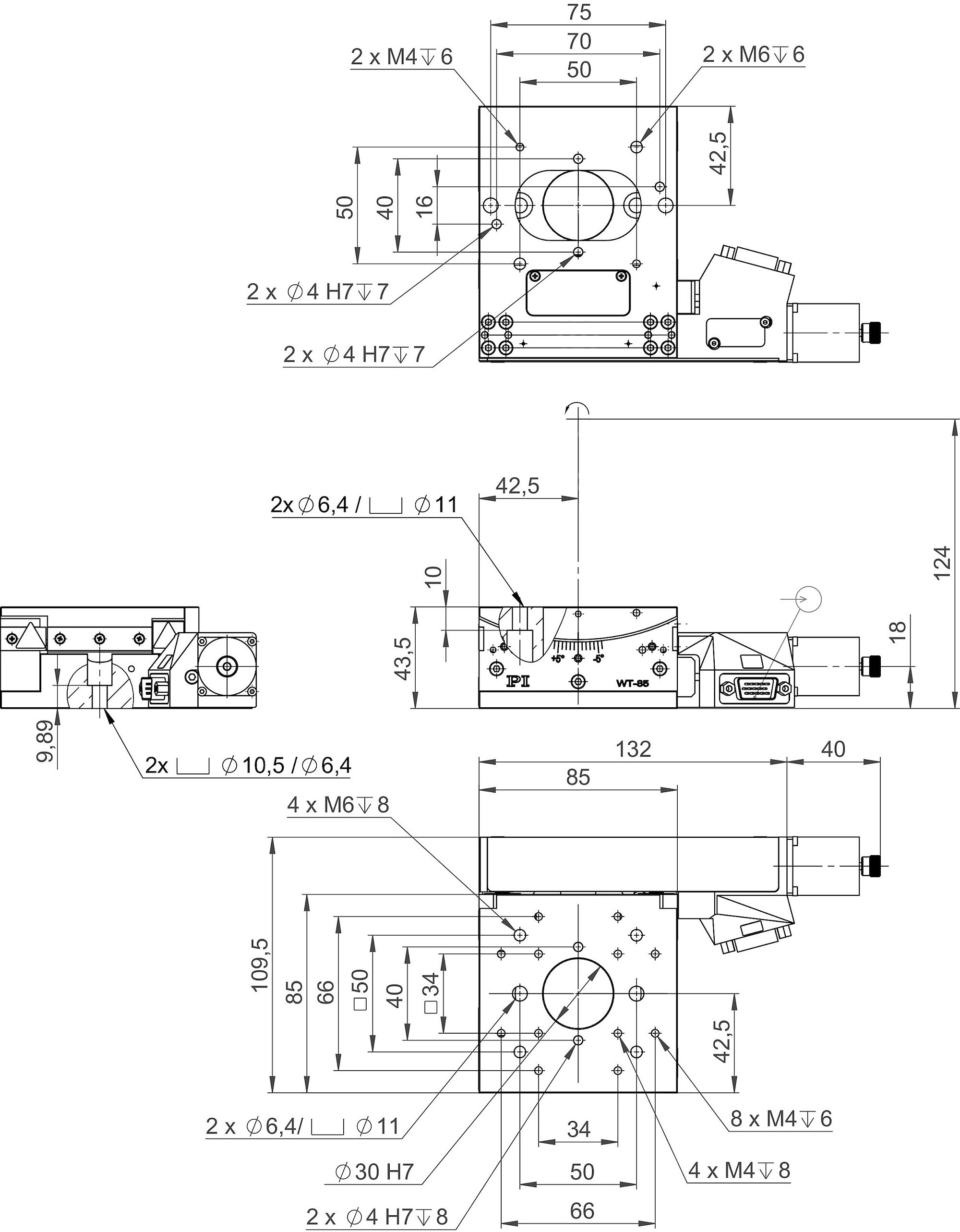

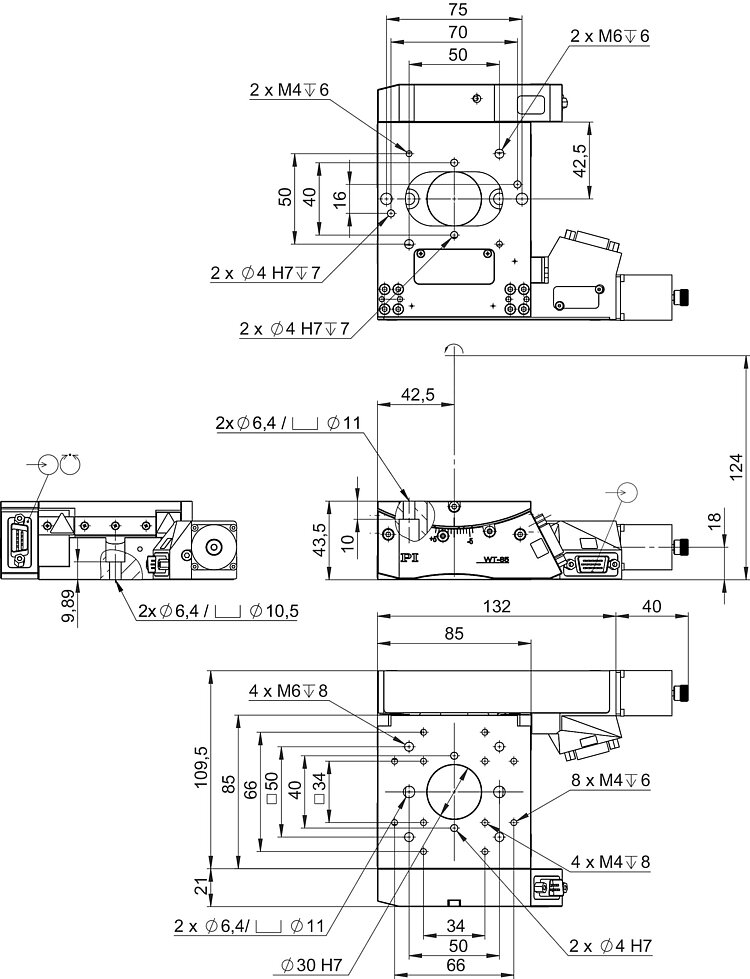

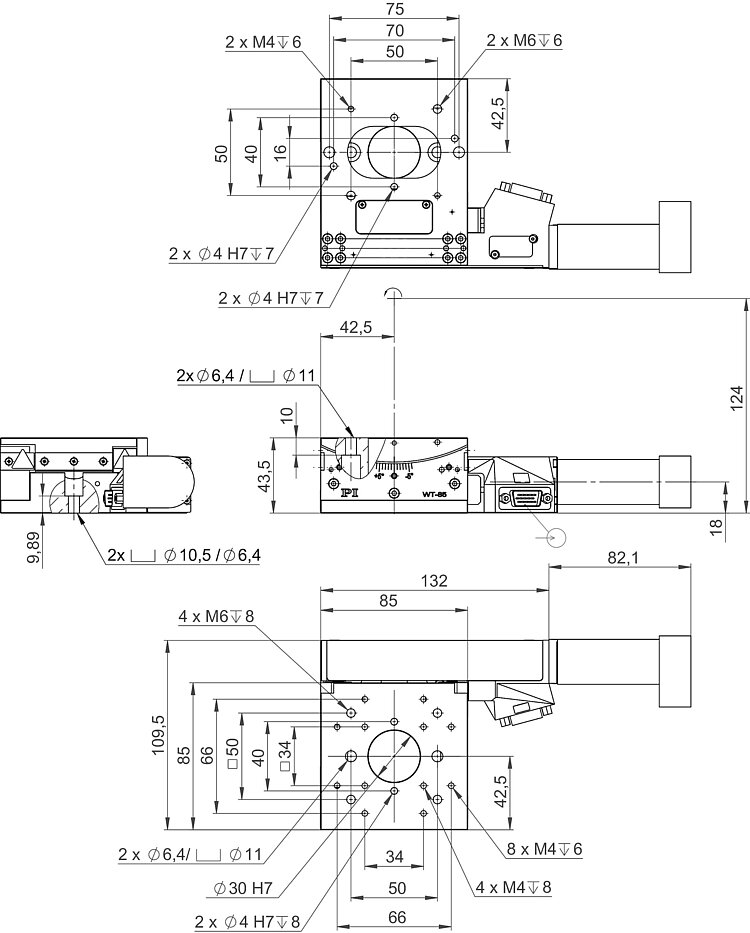

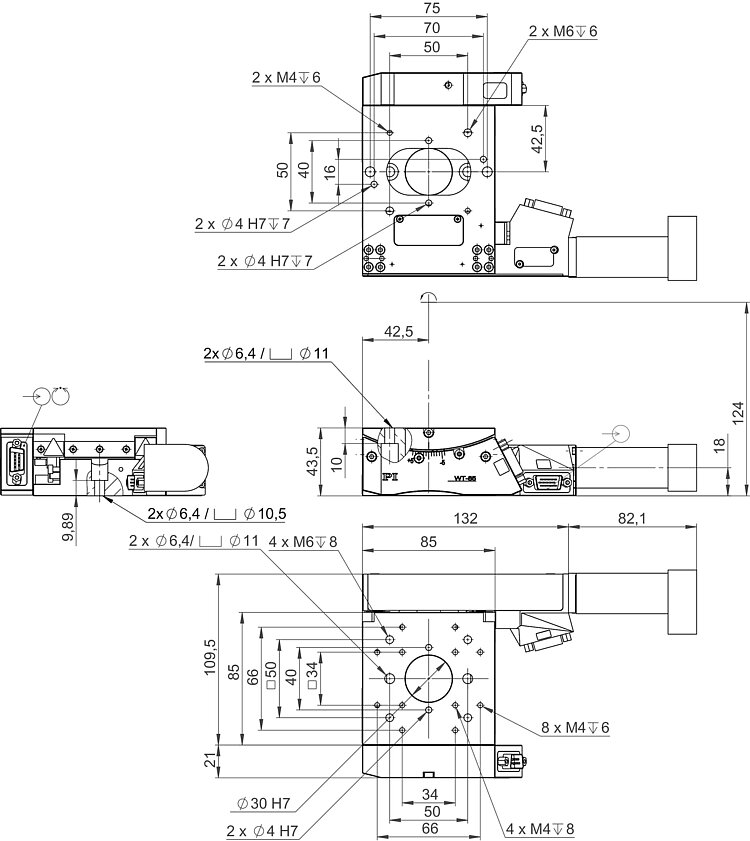

WT-85 3-D model
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
