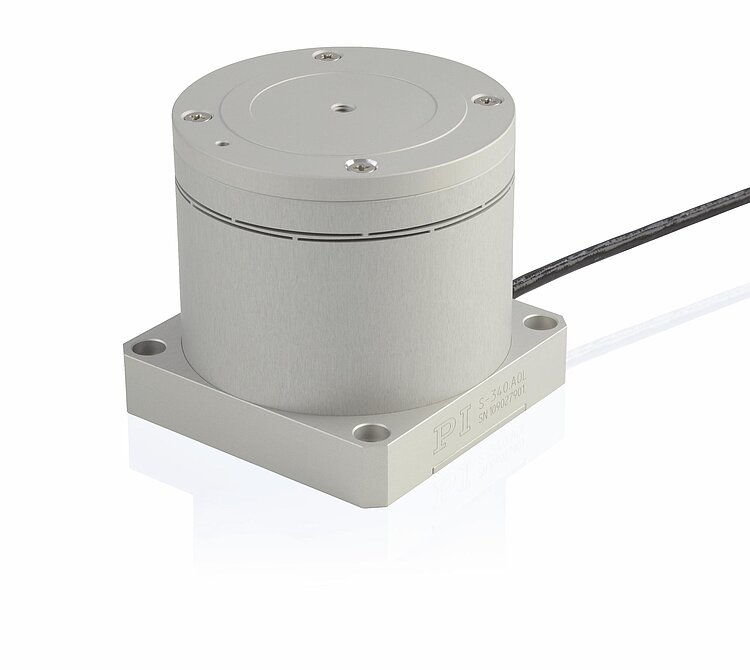

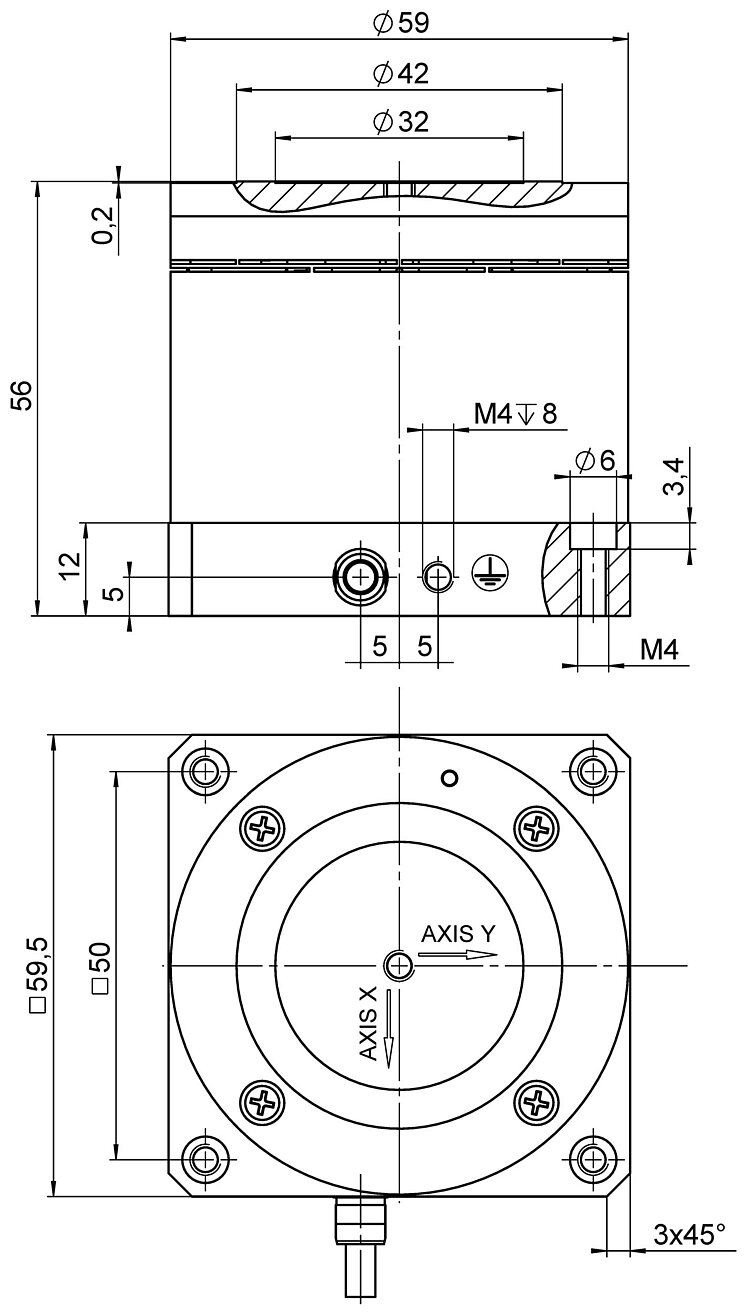

S-340 Piezo Tip/Tilt Platform

High Dynamics for Mirrors and Optics to Ø 75 mm (3")

S-340 Piezo Tip/Tilt Platform
Product Description Specifications Downloads Quote / Order
  • Resolution up to 20 nrad, excellent position stability
  • Optical beam deflection to 4 mrad
  • Parallel kinematics for higher accuracy and dynamics
  • Sub-ms response time
  • For mirrors to Ø 75 mm (3"); Ø 100 mm (4") on request
  • Closed-loop versions for improved linearity
  • Excellent temperature stability

Fields of application

  • Image processing / stabilization
  • Optical trapping
  • Laser scanning / beam steering with large deflection angle
  • Laser tuning
  • Optical filters / switches
  • Optics
  • Beam stabilization

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

High dynamics multi-axis operation due to parallel kinematics

In a parallel-kinematic multi-axis system, all actuators act on a common platform. The minimum mass inertia and the identical design of all axes allow fast, dynamic, and nevertheless precision motion.
