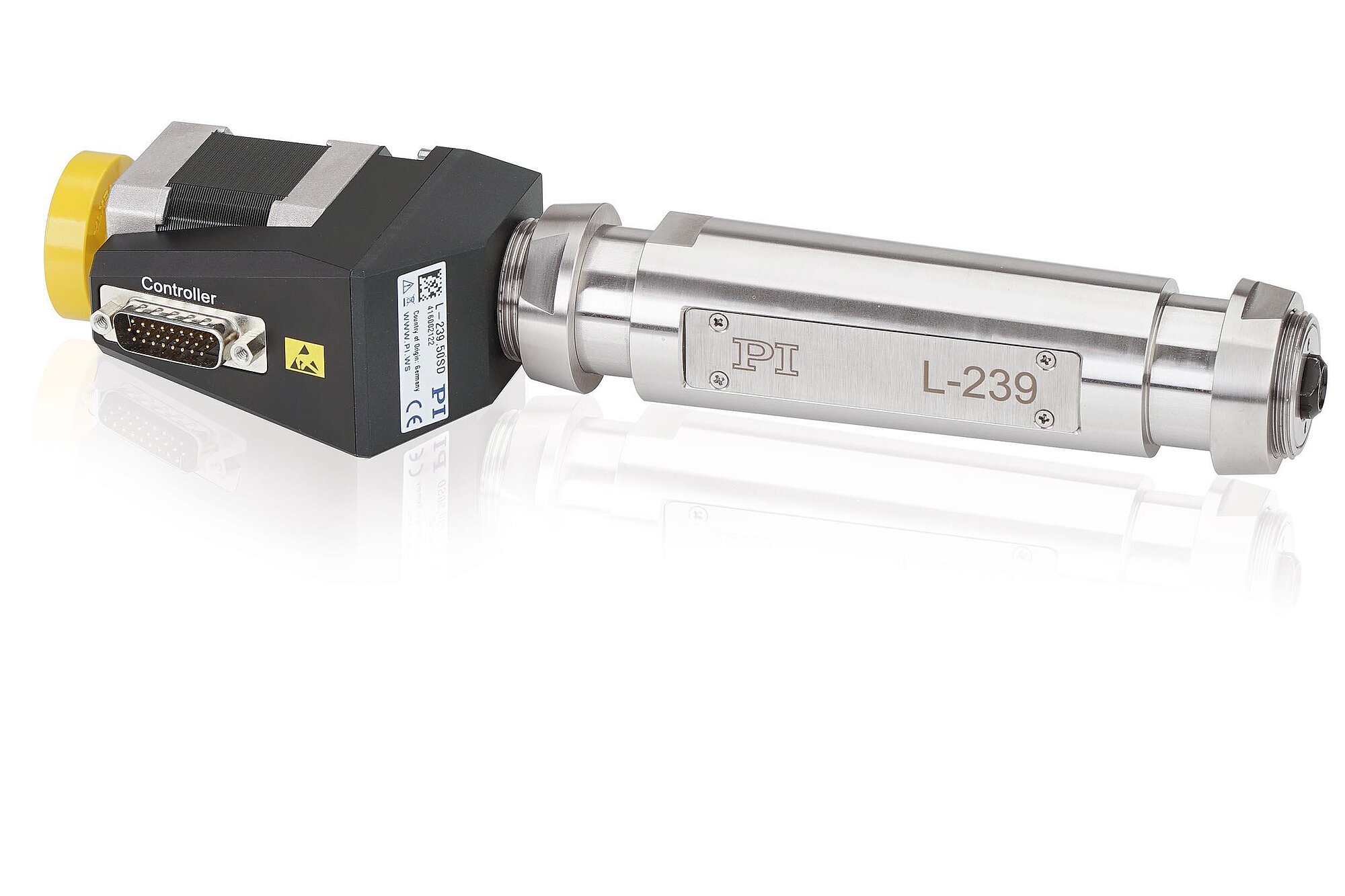

L-239 High-Load Linear Actuator

Dynamic, High-Resolution Precision Drive

L-239 High-Load Linear Actuator
Product Description Specifications Downloads Quote / Order
  • High push/pull force to 300 N
  • Travel range 52 mm (2")
  • Minimum incremental motion 0.1 µm
  • Velocity to 50 mm/s
  • Preloaded, low-friction ball screw

Product overview

High-resolution high-load linear actuator. Stepper motor for high torque. Highly dynamic, closed-loop DC and BLDC motors for high velocities. Robust design for industrial environments.

High-quality components

  • Ground ball screws for high velocities.
  • Stable bearing at shaft output reduces lateral forces on the pusher.
  • Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact.
  • Noncontact limit switches protect the mechanics. A direction-sensing reference point switch supports automation applications.
  • Optional on request and at additional charge: Increase of push/pull force to 1000 N.

Application fields

Research, Automation, Optical alignment

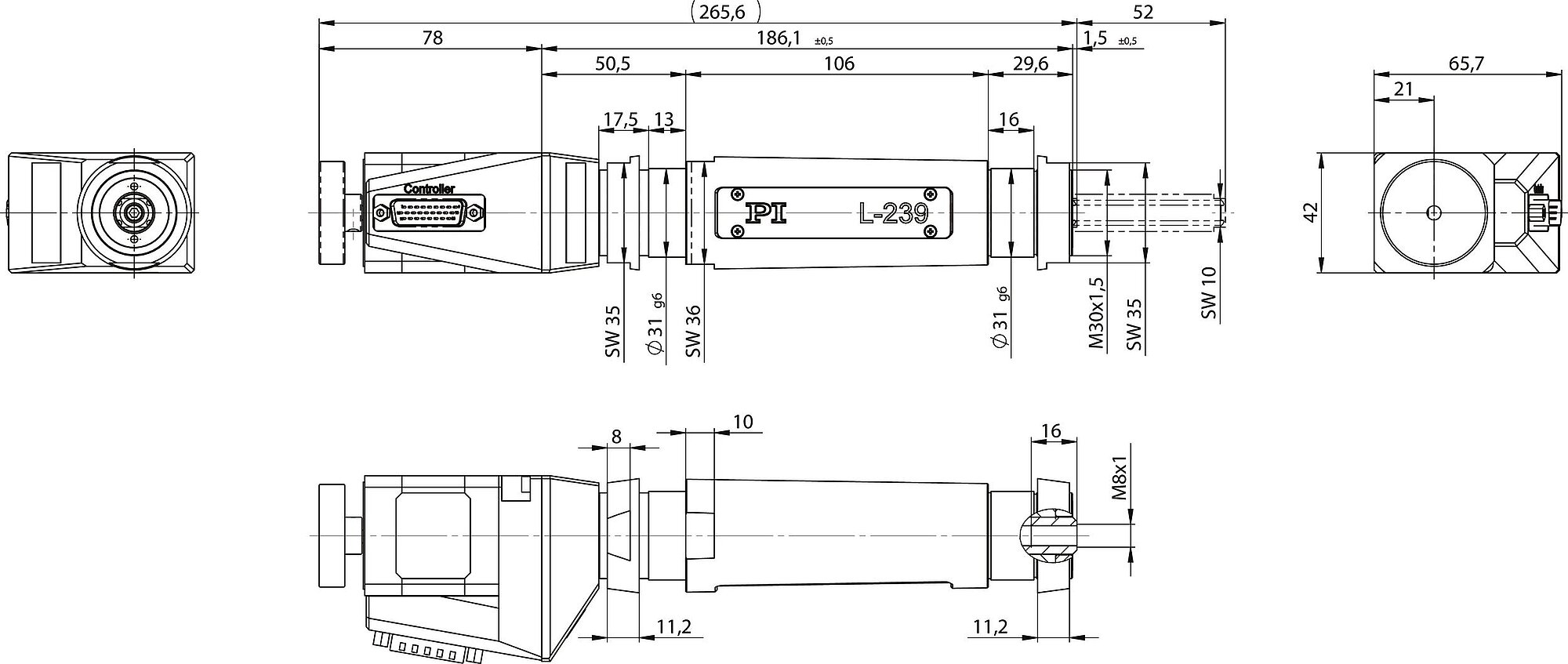

Specifications

Datasheet L-239

Version / Date
2018-10-29
Version / Date
2018-10-29
Version / Date
2018-10-29
Document language
pdf - 783 KB
pdf - 788 KB
pdf - 865 KB

Downloads

Datasheet

Datasheet L-239

Version / Date
2018-10-29
Version / Date
2018-10-29
Version / Date
2018-10-29
Document language
pdf - 783 KB
pdf - 788 KB
pdf - 865 KB

Documentation

User Manual MP156

L-239 High-Load Linear Actuator
Version / Date
1.1.0 201807-07
Version / Date
1.1.0 2018-07-17
Document language
pdf - 1 MB
pdf - 1 MB

Short Instructions MP159EK

L-2xx Linear Actuators
Version / Date
1.1.0 October 2017
pdf - 509 KB

3-D Models

L-239 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

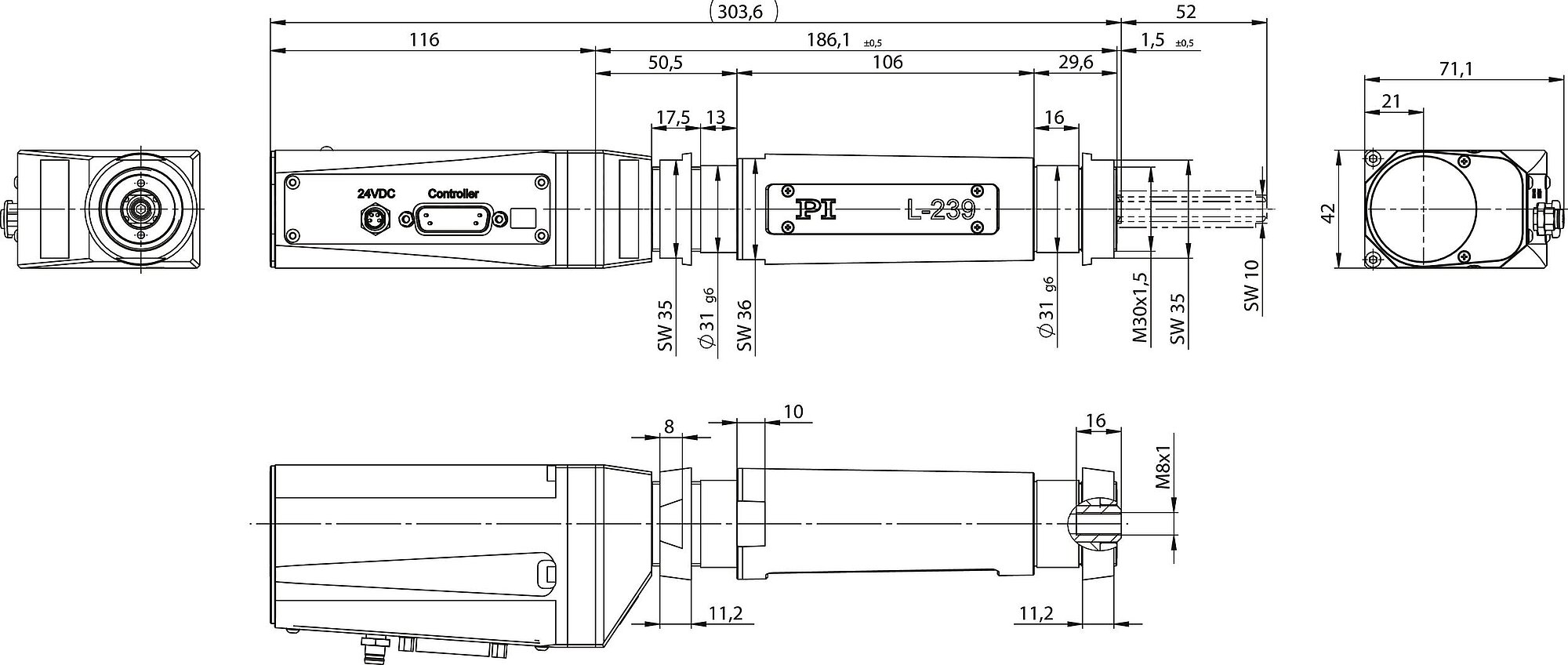

L-239.50AD
High-load linear actuator, 31 mm Ø shaft, ActiveDrive DC motor, 52 mm travel range, 200 N push force, Hall effect limit switches , including 3 m cable set
L-239.035232 NEW!
High-load linear actuator, 31 mm Ø shaft, brushless DC motor, 52 mm travel range, 200 N push force, Hall effect limit switches , including 3 m cable set
