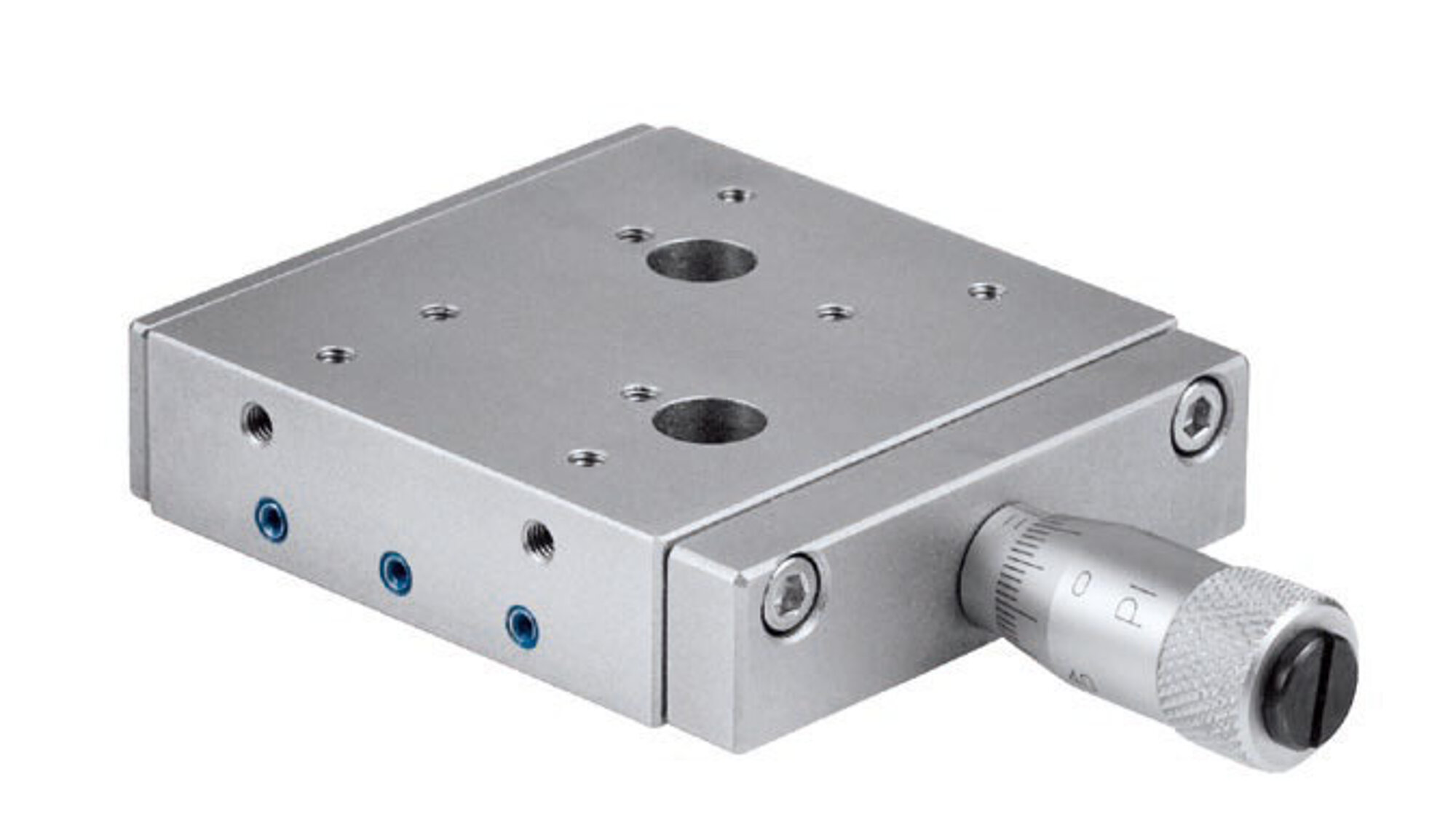

M-105 Microtranslation Stage

Precision Crossed Roller Guides, PiezoMike Option, XY(Z) Combinations

  • Travel range to 18 mm
  • Stainless steel construction
  • XY and XYZ combinations
  • Optional PiezoMike with 10 nm resolution
  • Optional motor drives
M-105 Microtranslation Stage
Product Description Specifications Downloads Quote / Order

The M-105-linear stages are available in various configurations and allow travel ranges up to 18 mm. They have crossed roller bearings that allow a guiding accuracy of better than 2 µm. The motion platform is preloaded with springs against the precision micrometer screw to suppress backlash.

With the XYZ version, the Z axis is mounted with an adapter bracket so that the load acts in the direction of the spring preload.

Application fields

Manual sample manipulation.
