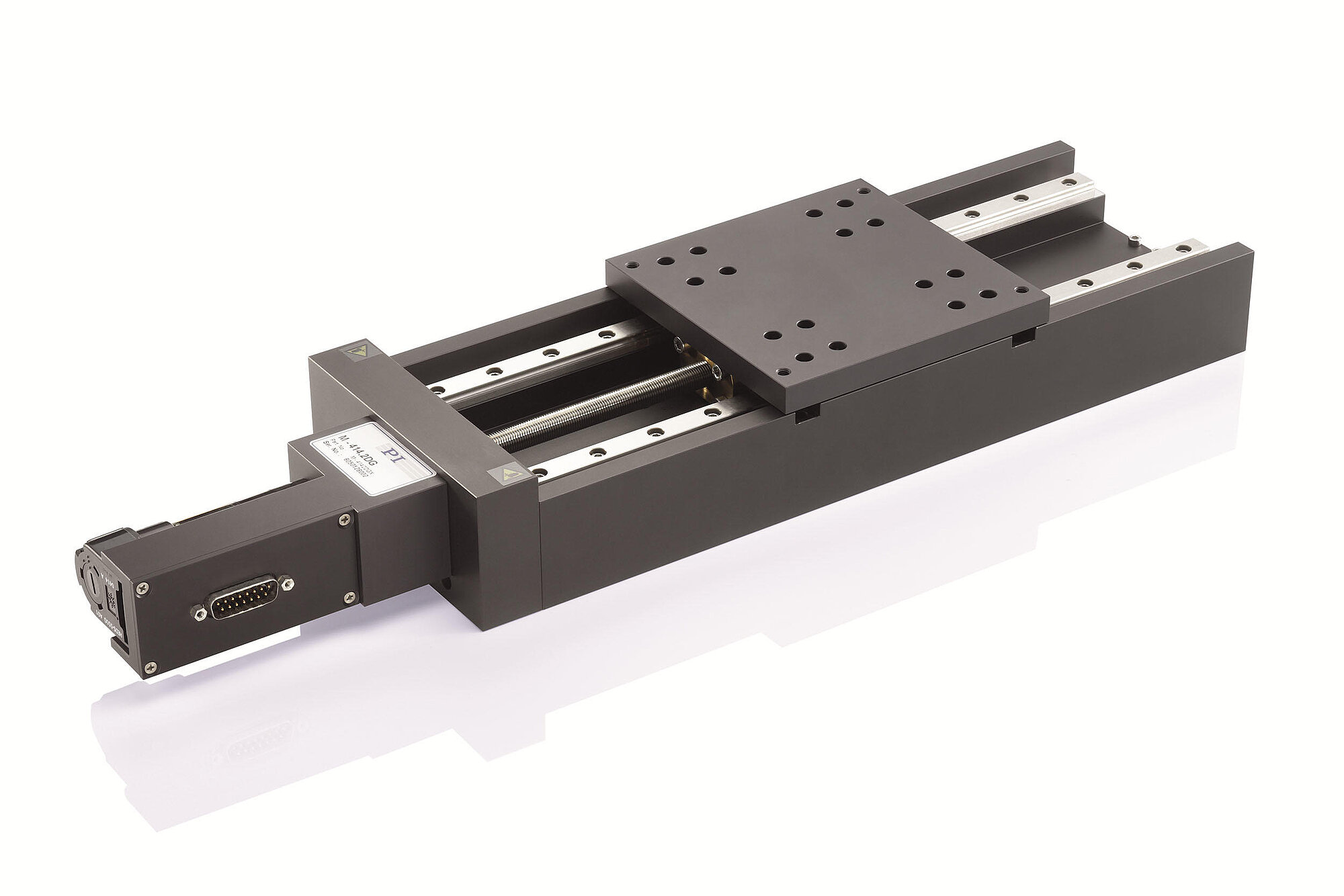

M-414 Precision High-Load Linear Stage

High Cycle Numbers, Inexpensive

  • Use of precision components
  • Flexible modular system M-403, M-414
  • Travel ranges from 100 to 300 mm
  • Recirculating ball screw provides high velocity and long lifetime
  • Minimum incremental motion 0.1 µm
M-414 Precision High-Load Linear Stage
Product Description Specifications Downloads Quote / Order

Application fields

Measuring technology. Adjustment.

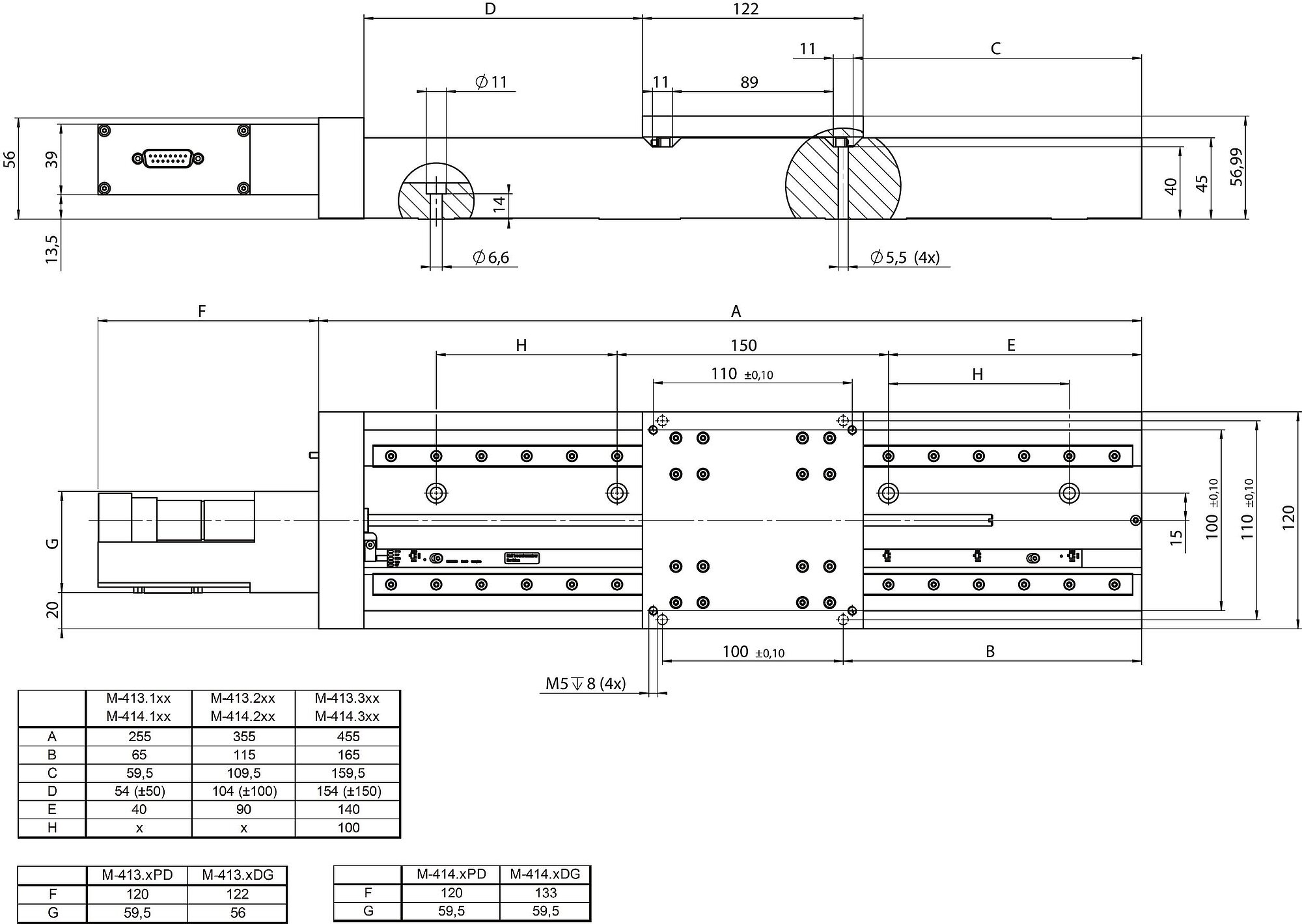

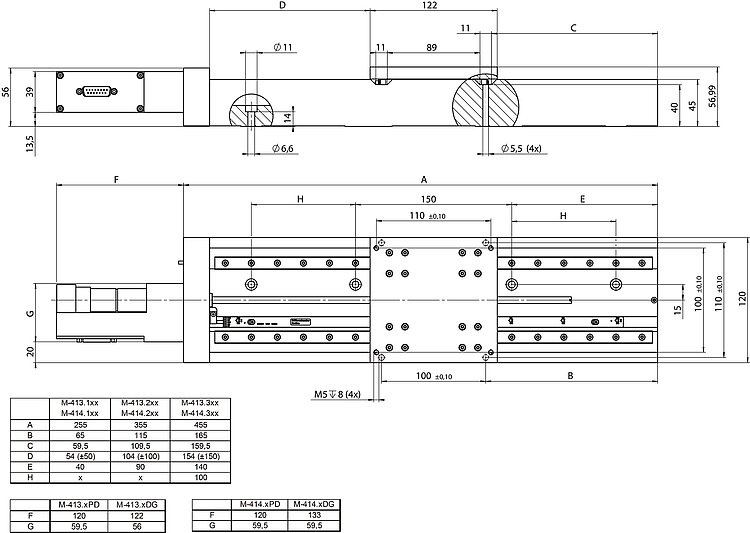

Specifications

Datasheet

Datasheet M-414

Version / Date
2024-02-23
pdf - 802 KB
Version / Date
2024-02-23
pdf - 807 KB
Version / Date
2019-07-31
pdf - 807 KB

Downloads

Product Note

Product Note

Product Change Notification M-Portfolio-Streamlining Part-3

M-313.80, M-331.1MS, M-332.5MS, M-333.1MS, M-333.2MS, M-403.1VG, M-403.1VP, M-403.2VG, M-403.2VP, M-403.4VG, M-403.4VP, M-403.6VG, M-403.6VP, M-403.8VG, M-403.8VP, M-413.1VG, M-413.1VP, M-413.2VG, M-413.2VP, M-413.3VG, M-413.3VP, M-414.1VG, M-414.1VP, M-414.2VG, M-414.2VP, M-414.3VG, M-414.3VP, M-414.500, M-451.01, M-451.12S, M-451.1DG, M-451.1PD, M-500.18V, M-500.90, M-505.4DG, M-511.2S1, M-521.2S1, M-531.2S1, M-605.11, M-619.00, M-620.00, M-621.00, M-622.00, M-623.00, M-624.10, M-642.00, M-653.00, M-655.00

Version / Date
2019-08-13
pdf - 381 KB
English

Datasheet

Datasheet

Datasheet M-414

Version / Date
2024-02-23
pdf - 802 KB
Version / Date
2024-02-23
pdf - 807 KB
Version / Date
2019-07-31
pdf - 807 KB

Documentation

Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Version / Date
3.2.0 01/2021
pdf - 1 MB
Version / Date
3.2.0 01/2021
pdf - 1 MB
Documentation

PI Mounting Adapters for Micropositioning

Overview of all possible combinations of PI linear, rotary and tilt stages

Version / Date
---
pdf - 760 KB
Version / Date
---
pdf - 763 KB
Documentation

User Manual MP81

M-414 Precision High-Load Linear Stage

Version / Date
1.1.4 2024-02-23
pdf - 2 MB
Version / Date
1.1.4 2024-02-23
pdf - 2 MB

3-D Models

3-D Models

M-414 3-D model

zip - 5 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-414.1PD

Precision high-load linear stage; DC motor with ActiveDrive; 100 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-414.2PD

Precision high-load linear stage; DC motor with ActiveDrive; 200 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-414.3PD

Precision high-load linear stage; DC motor with ActiveDrive; 300 mm travel range; 500 N load capacity; 100 mm/s maximum velocity; ball screw; incremental rotary encoder, 4000 counts/rev sensor resolution, A/B quadrature, RS-422

M-414.1DG

Precision high-load linear stage; DC gear motor; 100 mm travel range; 500 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

M-414.2DG

Precision high-load linear stage; DC gear motor; 200 mm travel range; 500 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

M-414.3DG

Precision high-load linear stage; DC gear motor; 300 mm travel range; 500 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
