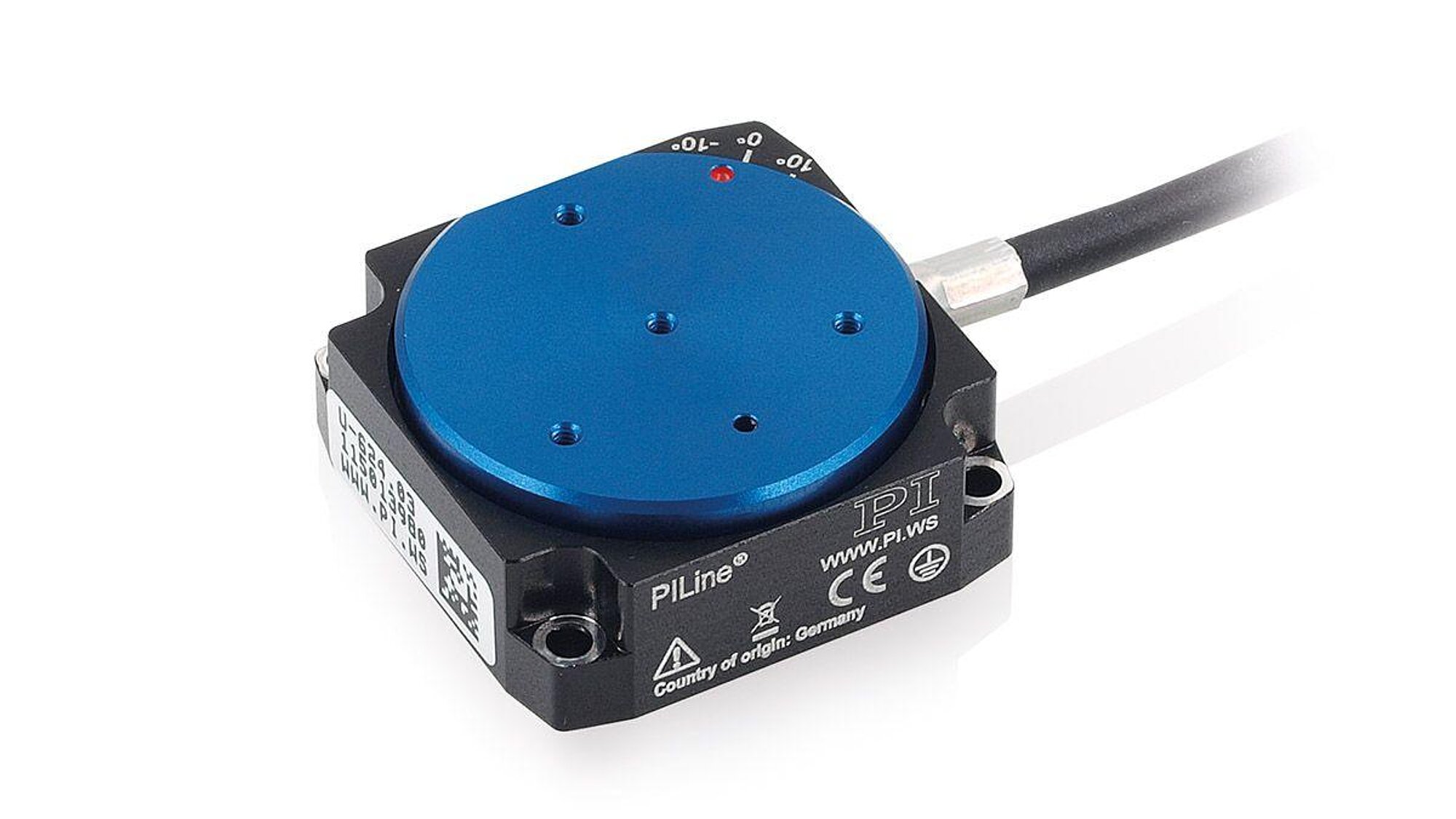

U-624 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

  • Extremely space-saving: Edge length only 30 mm, height 12 mm
  • Positions small loads quickly and with precision: Velocity to 720 °/s, minimum incremental motion to 105 µrad
  • Unlimited rotation range >360°
  • Drive torque 10 mNm
  • Self-locking when switched off: Saves energy and reduces generation of heat
  • Light and low noise
U-624 PILine® Rotation Stage
Product Description Specifications Downloads Quote / Order

Precision-class rotation stage

PILine® stages are particularly suitable for applications that require fast precision positioning. When switched off, the self-locking drive holds the position of the stage mechanically stable. Energy consumption and heat generation are therefore considerably reduced. Applications with a low duty cycle that are battery-powered or heat-sensitive benefit from these characteristics. The position of the axis is measured by an encoder and an optical reference switch allows reliable repeatable motion. The piezomotor drive principle and its electrical operation are inexpensive and can be customized.

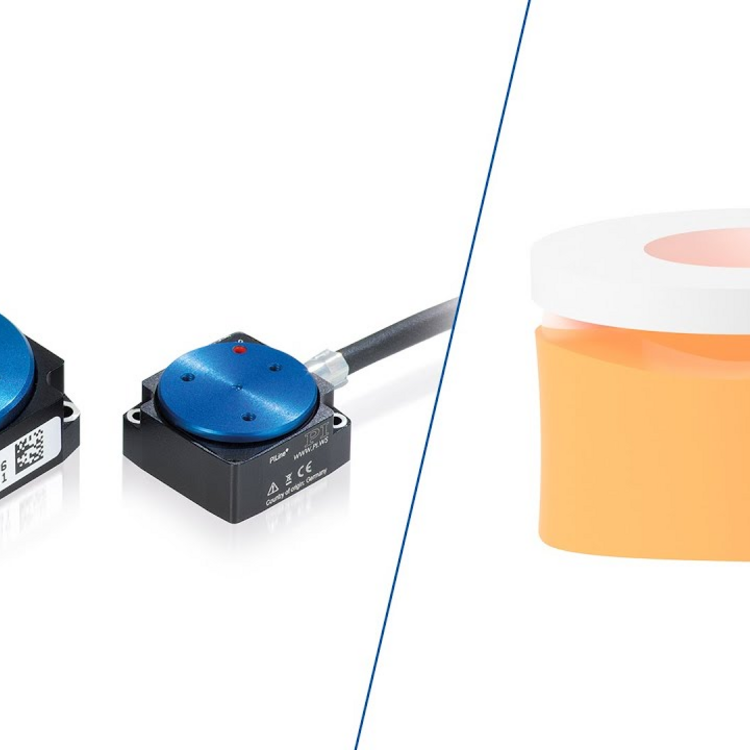

PILine® ultrasonic piezomotor

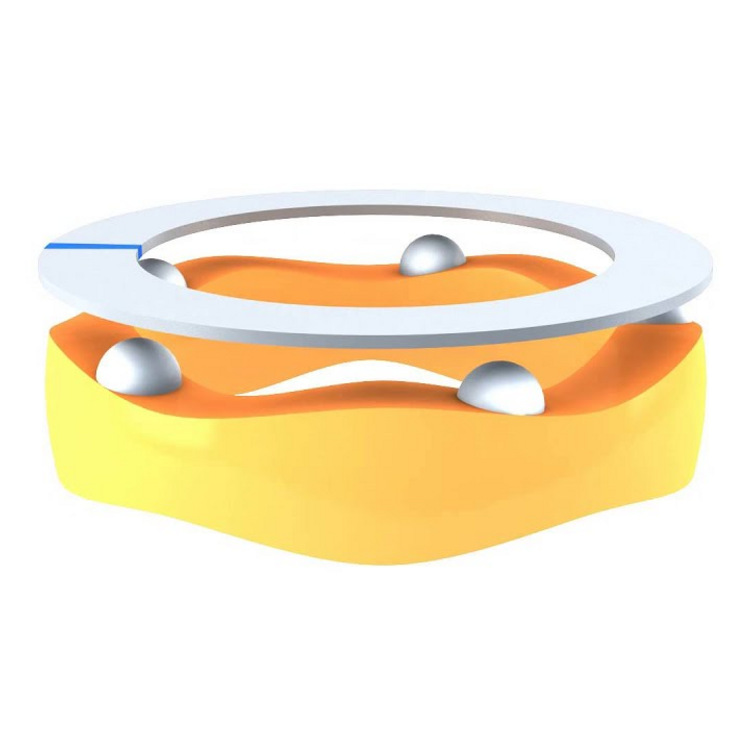

An integral part of a PILine® ultrasonic piezomotor is a piezo actuator that is preloaded against a movable, guided runner via a coupling element. The piezoceramic actuator is excited to ultrasonic oscillation by a high-frequency AC voltage between 100 and 200 kHz. Deformation of the actuator leads to periodic diagonal motion of the coupling element relative to the runner. The feed created is a few nanometers per cycle; the high frequencies lead to the high velocities. Preloading the piezoceramic actuator against the runner ensures self-locking of the drive when at rest and switched off.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Micromanipulation, automation, biotechnology, sample manipulation, sample positioning, optical metrology.

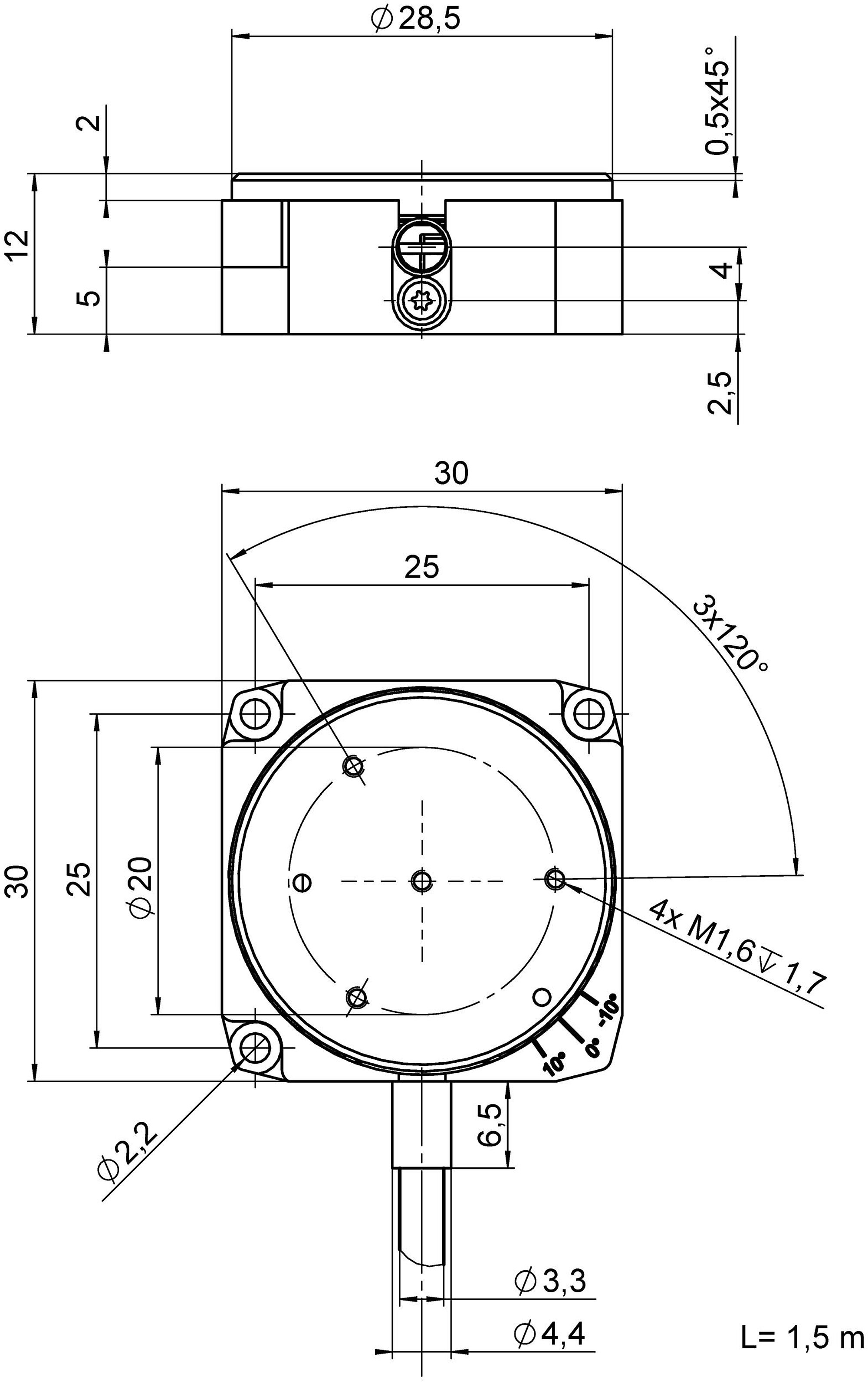

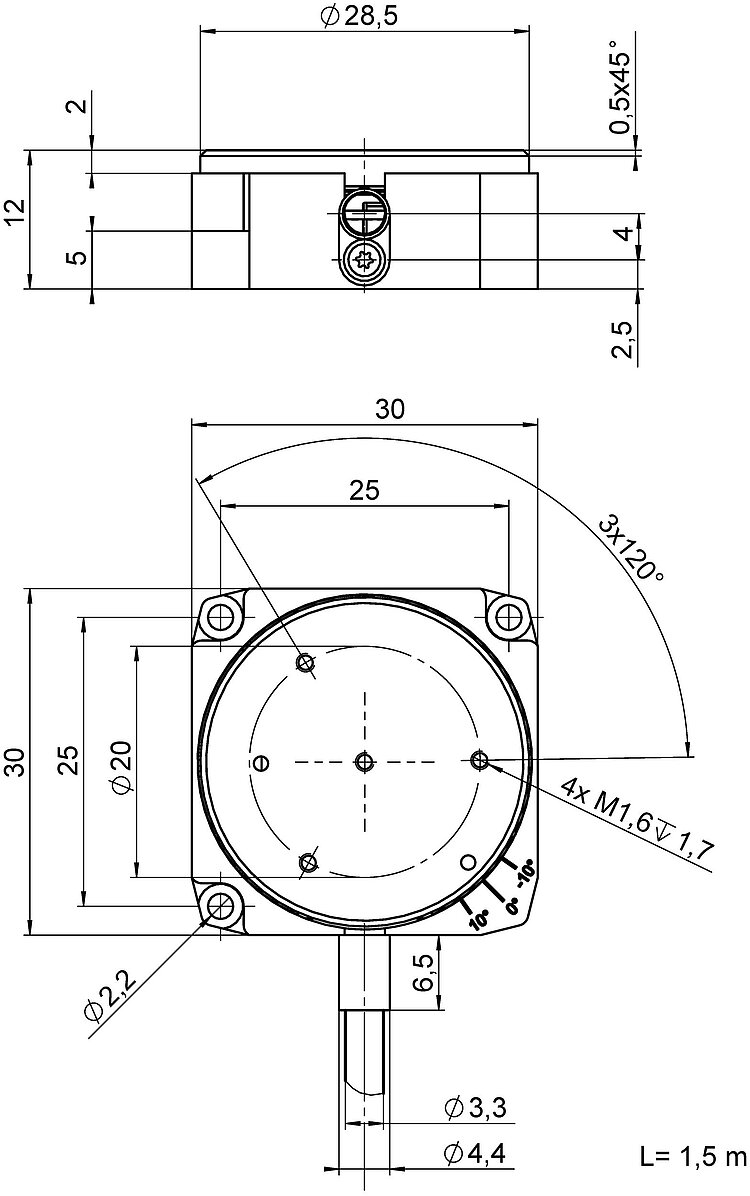

Specifications

Datasheet

Datasheet U-624

Version / Date
2023-02-07
pdf - 591 KB
Version / Date
2023-02-07
pdf - 593 KB
Version / Date
2018-11-05
pdf - 775 KB

Downloads

Datasheet

Datasheet

Datasheet U-624

Version / Date
2023-02-07
pdf - 591 KB
Version / Date
2023-02-07
pdf - 593 KB
Version / Date
2018-11-05
pdf - 775 KB

Documentation

Documentation

Short Instructions MP121EK

PILine® Positioners: M-67x, M-68x, U-52x, U-62x, U-651, U-7xx

Version / Date
6.0.0 03/2024
pdf - 959 KB
Version / Date
6.0.0 03/2024
pdf - 995 KB
Documentation

User Manual MP114

U-624 PILine® Rotation Stage

Version / Date
1.1.0 2020-07-31
pdf - 1 MB
Version / Date
1.1.0 2020-07-31
pdf - 1 MB

3-D Models

3-D Models

U-624 3-D model

zip - 1,009 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

U-624.03

PILine® rotation stage; PILine® piezo motor, performance class 1; >360 ° rotational angle; 1 N load capacity; 720 °/s maximum angular velocity; incremental angle measuring system, 35 µrad sensor resolution; 1.5 m cable length

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
