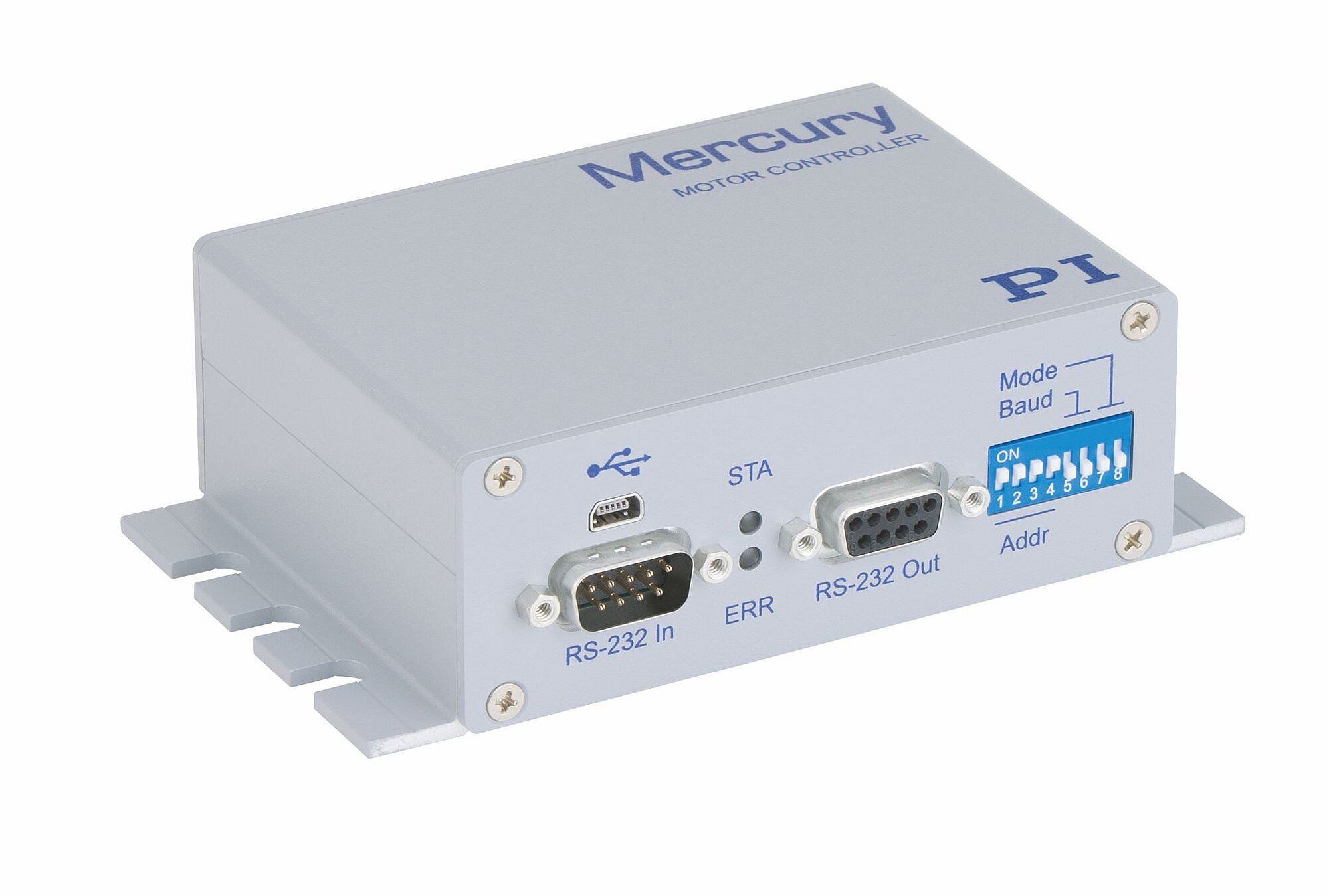

C-663.12 Mercury Step Stepper Motor Controller, 1 Axis

For Closed-Loop and Open-Loop Operation, HD Sub-D 26, 48 V

  • High microstep resolution
  • Operating voltage up to 48 V
  • Closed-loop operation of 2-phase stepper motors
  • Support for external sensors
  • Daisy chain networking
C-663.12 Mercury Step Stepper Motor Controller, 1 Axis
Product Description Specifications Downloads Quote / Order

Mercury Step controller for 2-phase stepper motors

1 axis. Microstep resolution: 1/2048 full step. Closed-loop operation. Point-to-point motion, trapezoidal velocity profile. Networkable via daisy chain.

Encoder inputs

Differential signal transmission for digital (A/B) encoder signals. TTL inputs for limit and reference point switches. Input for RS-422 signals for index switch.

Interfaces

USB and RS-232 for commanding. I/O lines (analog/digital) for automation. Interface for analog joystick.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Specifications

Datasheet

Datasheet C-663.12

Version / Date
2019-07-17
pdf - 105 KB
Version / Date
2019-07-17
pdf - 107 KB
Version / Date
2019-09-26
pdf - 584 KB

Downloads

Product Note

Product Note

Product Change Notification C-863.10, C-863.11, C-663.10, C-663.11

Version / Date
2021-10-05
pdf - 96 KB
English

Datasheet

Datasheet

Datasheet C-663.12

Version / Date
2019-07-17
pdf - 105 KB
Version / Date
2019-07-17
pdf - 107 KB
Version / Date
2019-09-26
pdf - 584 KB

Documentation

Documentation

User Manual C663T0005

Parameter Handling when Upgrading to C-663.12 Controllers

Version / Date
2020-01-14
pdf - 274 KB
English
Documentation

User Manual MS241

C-663.12 Mercury Step Stepper Motor Controller

Version / Date
1.4.0 2020-07-09
pdf - 8 MB
Version / Date
1.4.0 2020-07-09
pdf - 8 MB
Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873

Version / Date
3.1.0 02/2021
pdf - 2 MB
Version / Date
3.1.0 02/2021
pdf - 2 MB

3-D Models

3-D Models

C-663.12 3-D model

Version / Date
2020-04-23
zip - 5 MB

General Software Documentation

General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.0 2020-01-30
pdf - 6 MB
English
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.1.0 2016-02-29
pdf - 1 MB
Version / Date
1.1.0 2016-02-29
pdf - 1 MB
General Software Documentation

Software Manual SM156

PIStages3Editor for editing the PIStages3 database

Version / Date
2.1.0 2020-08-03
pdf - 2 MB
Version / Date
2.1.0 2020-08-03
pdf - 2 MB
General Software Documentation

User Manual A000T0067

Information on the PIStages3 database. What must be considered when changing from PIStages2 to PIStages3.

Version / Date
2020-01-13
pdf - 543 KB
English
General Software Documentation

Software Manual SM158

PI GCS2 Driver Library for NI LabVIEW

Version / Date
7.0.1 202-03-03
pdf - 3 MB
English
